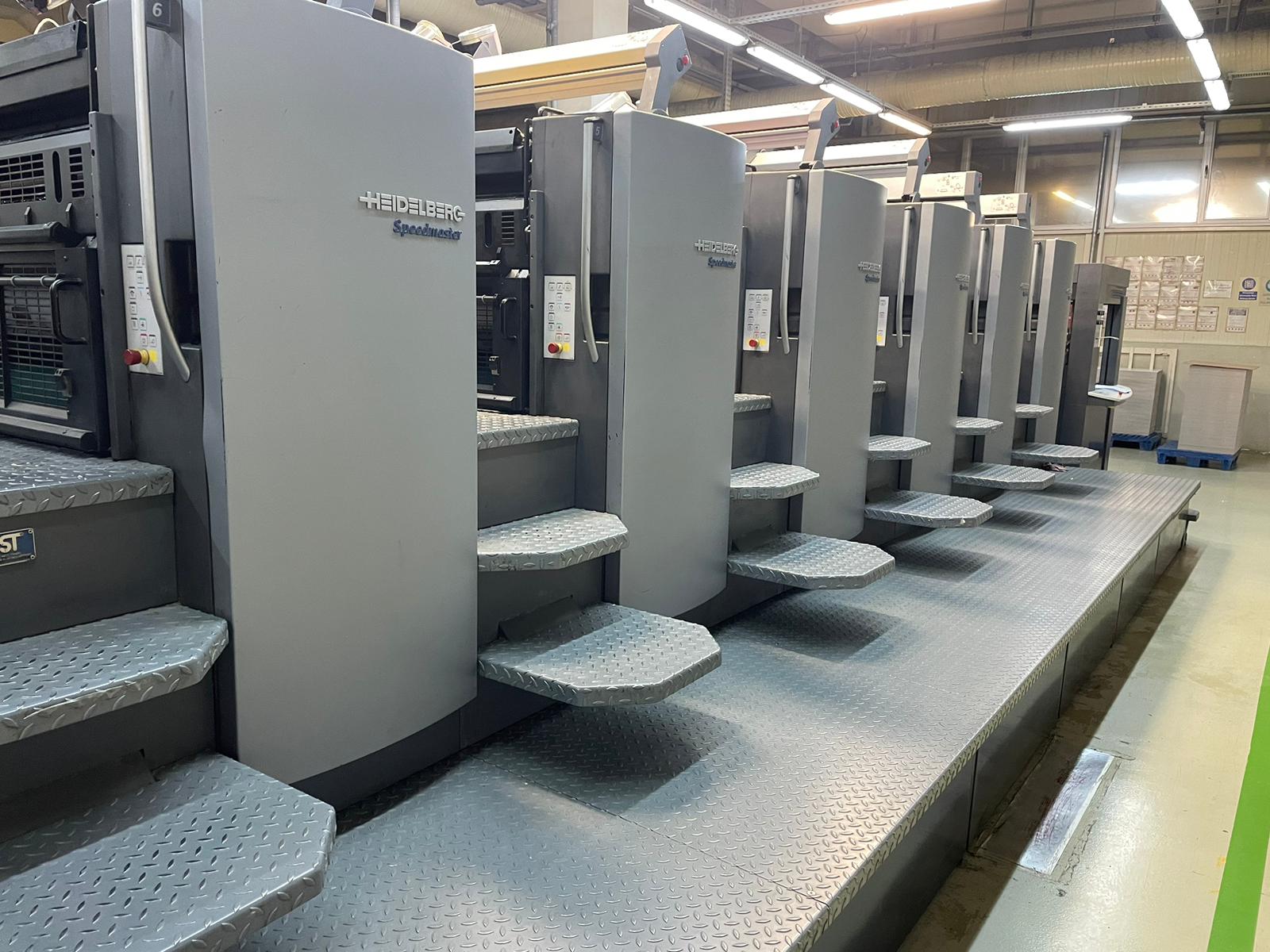

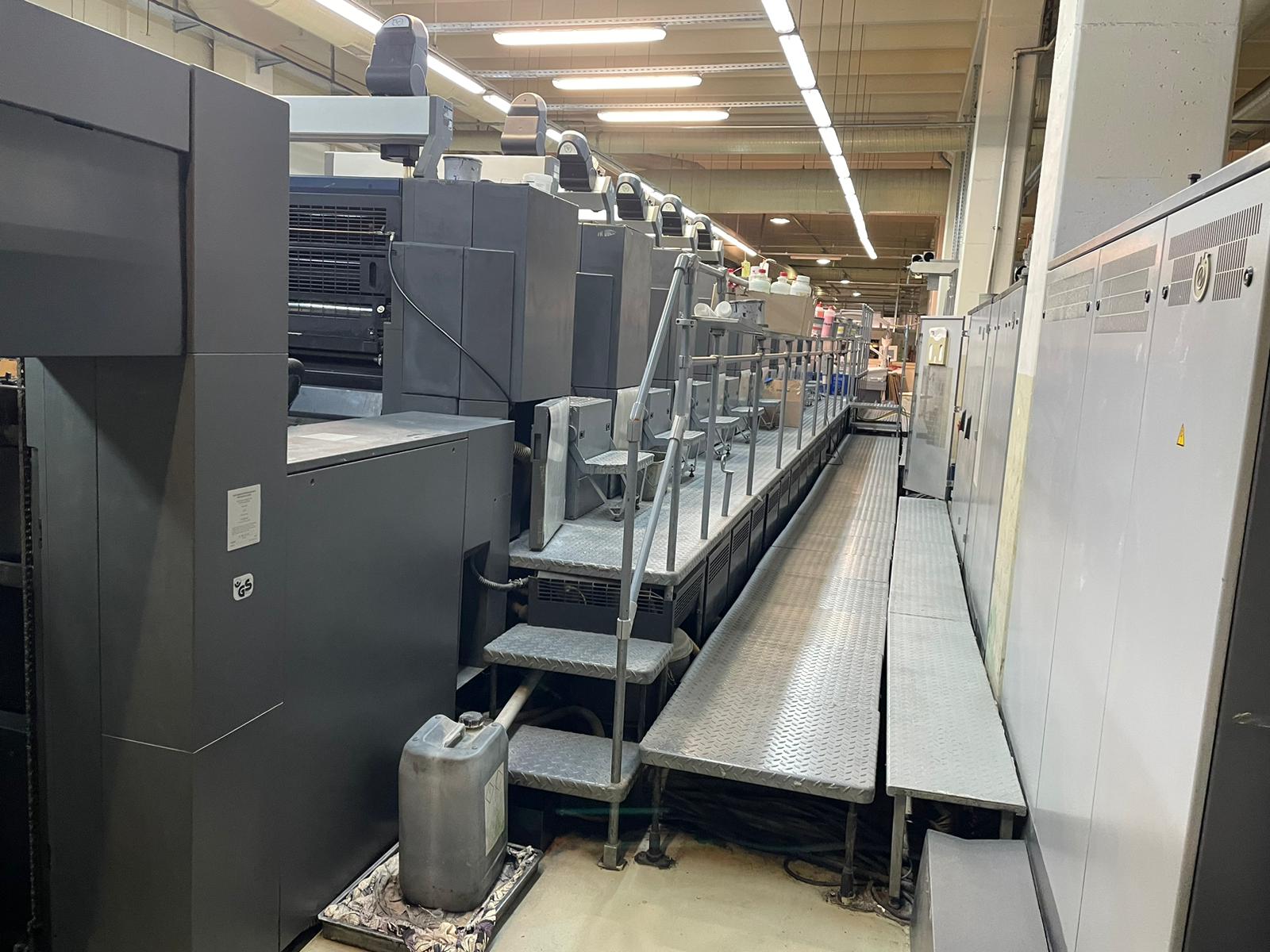

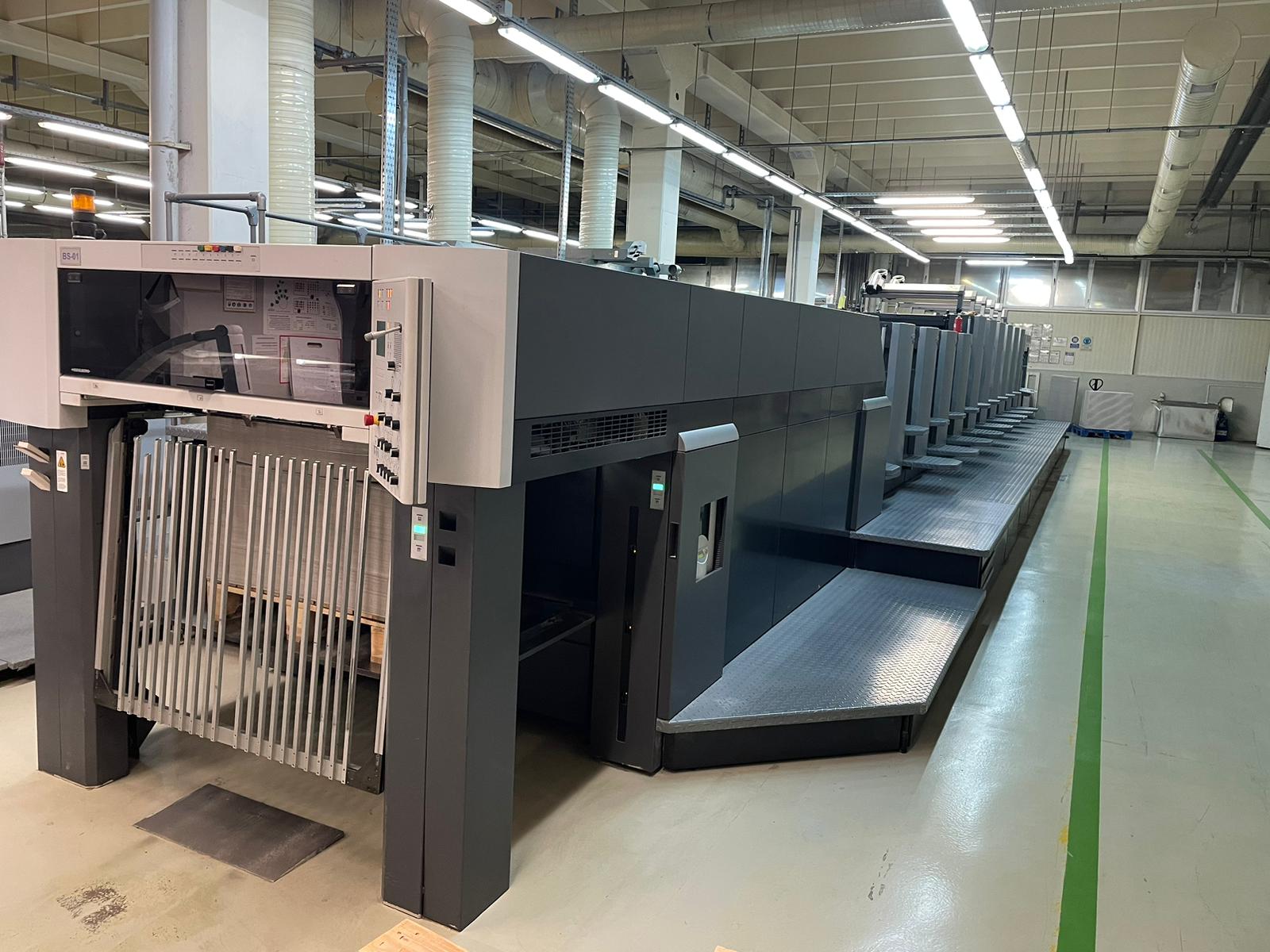

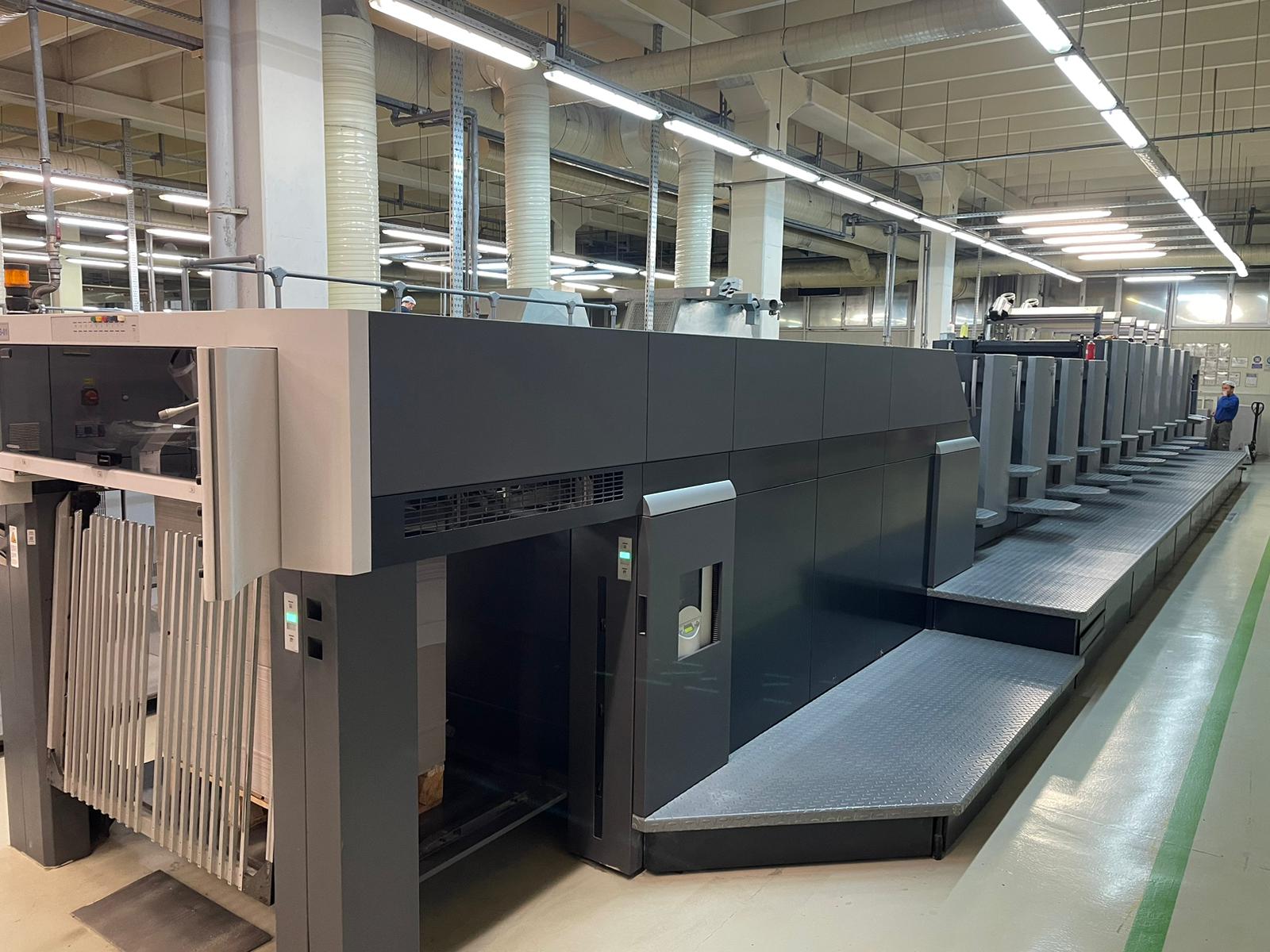

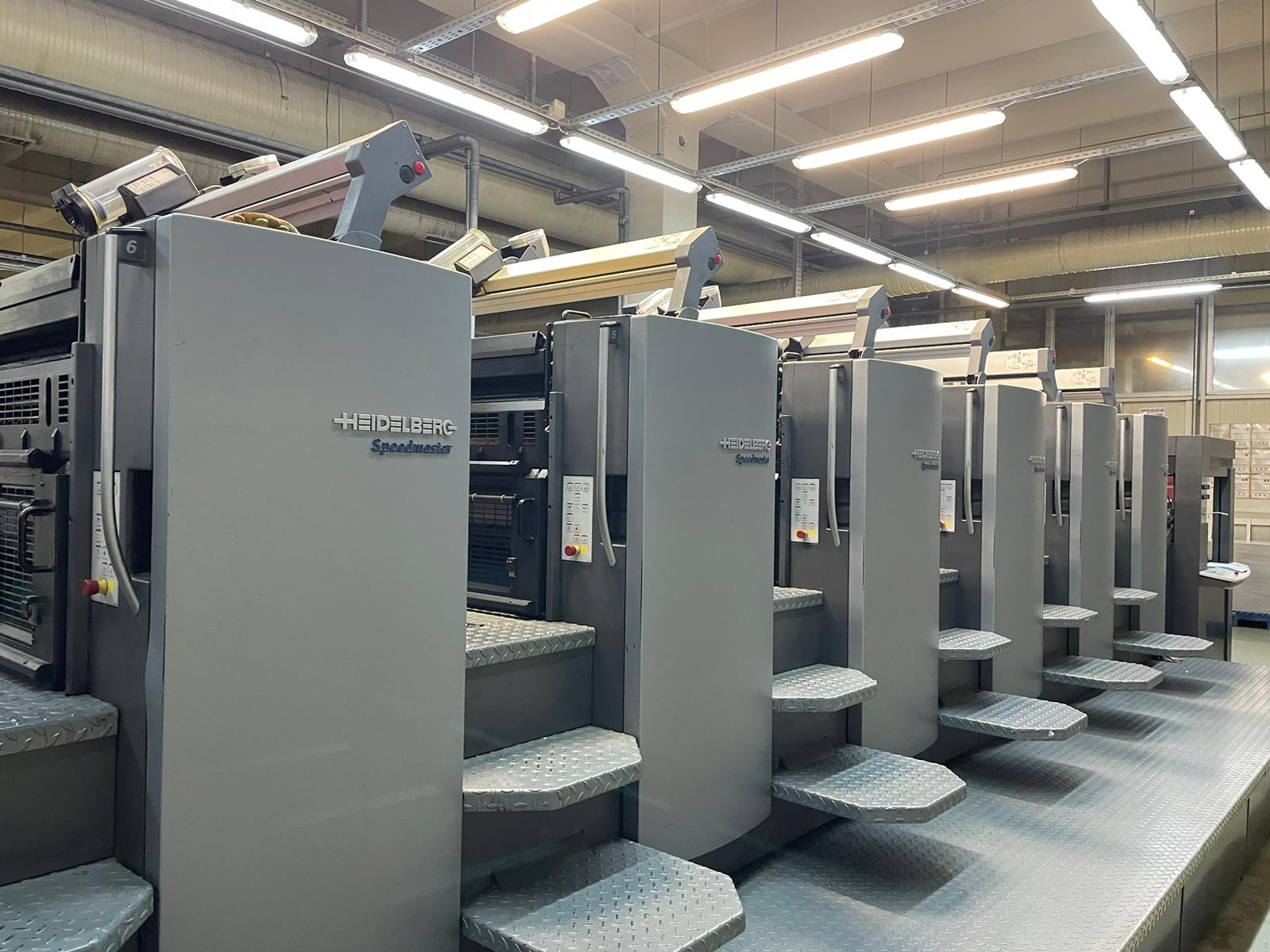

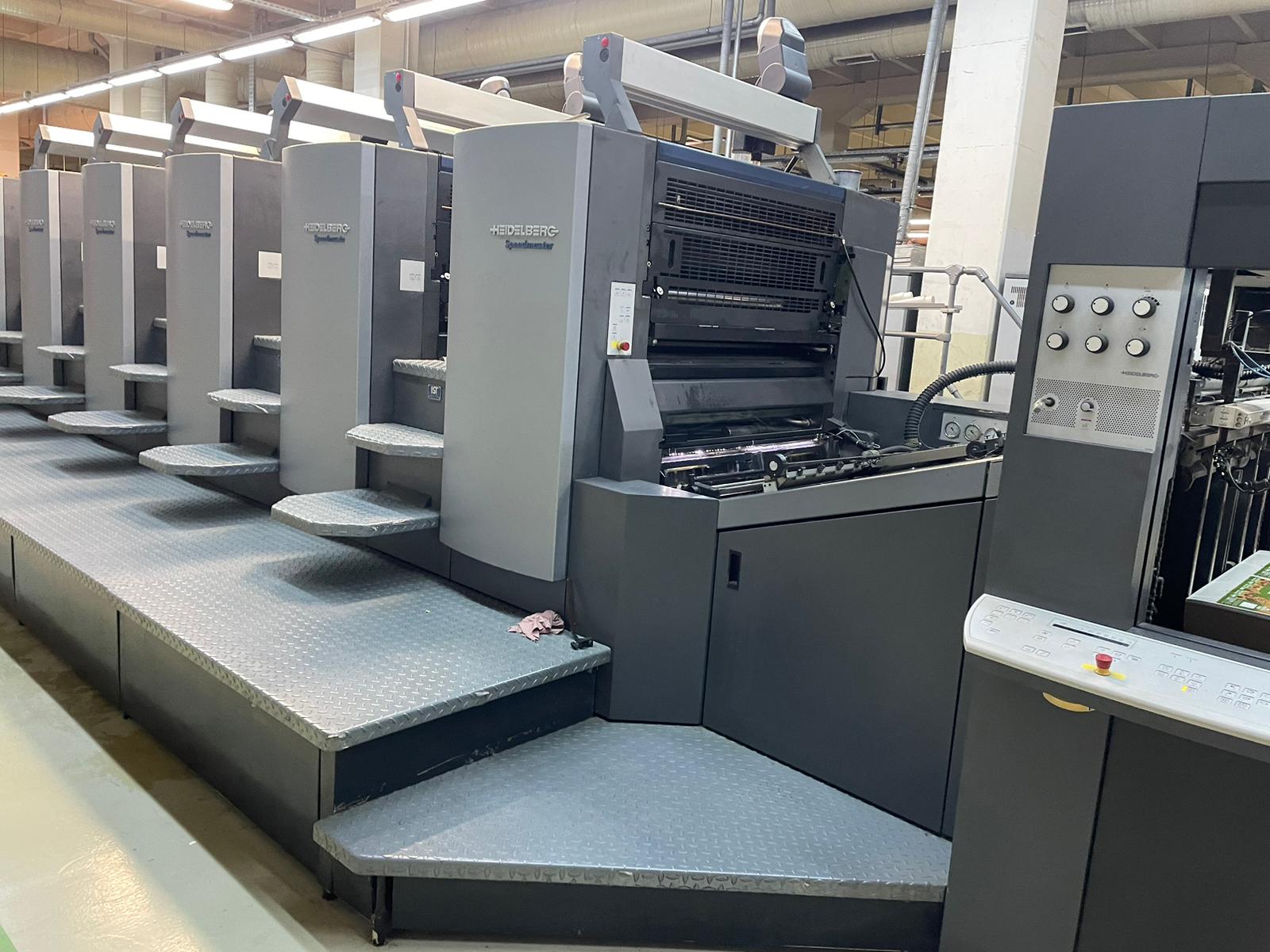

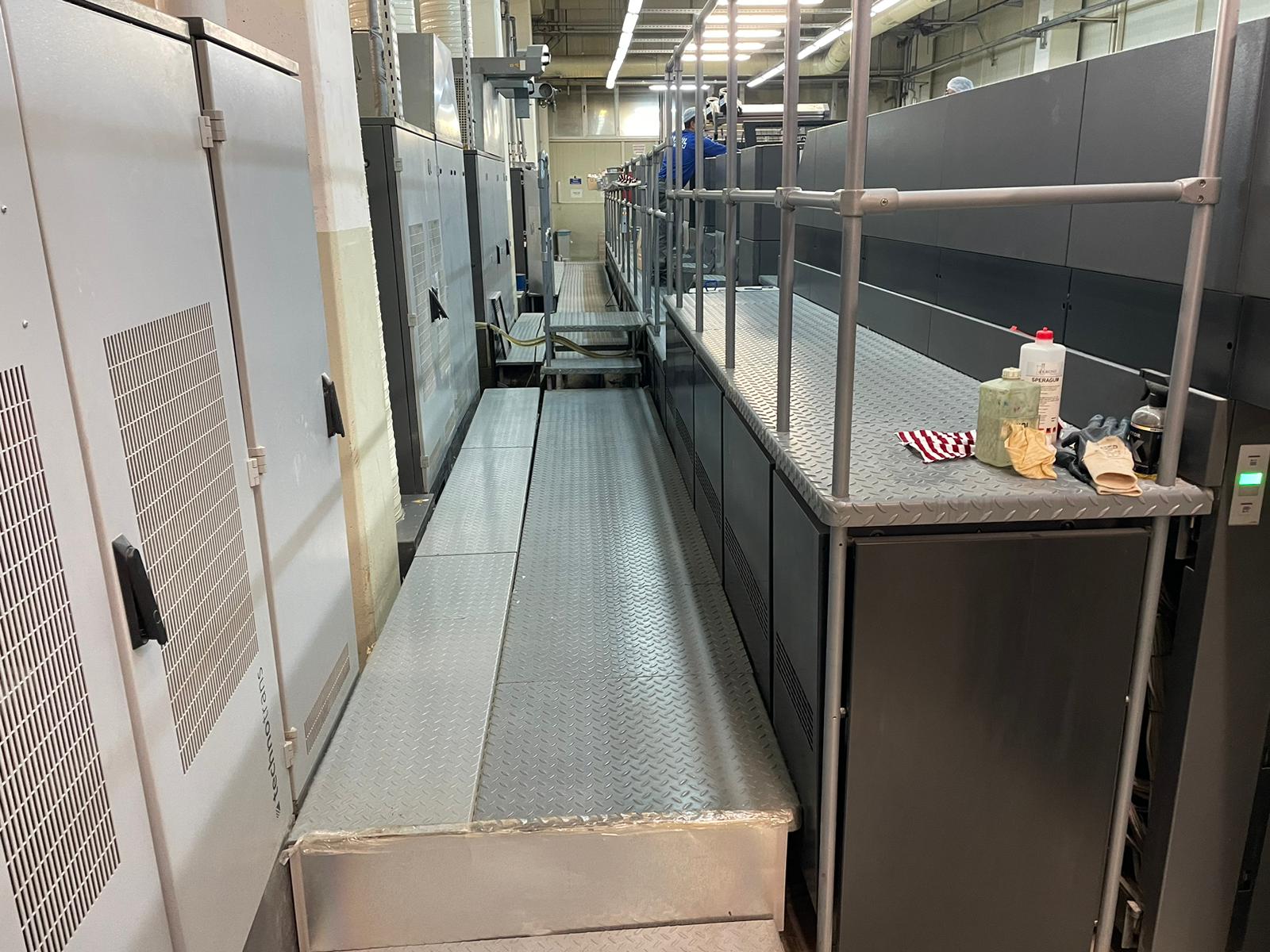

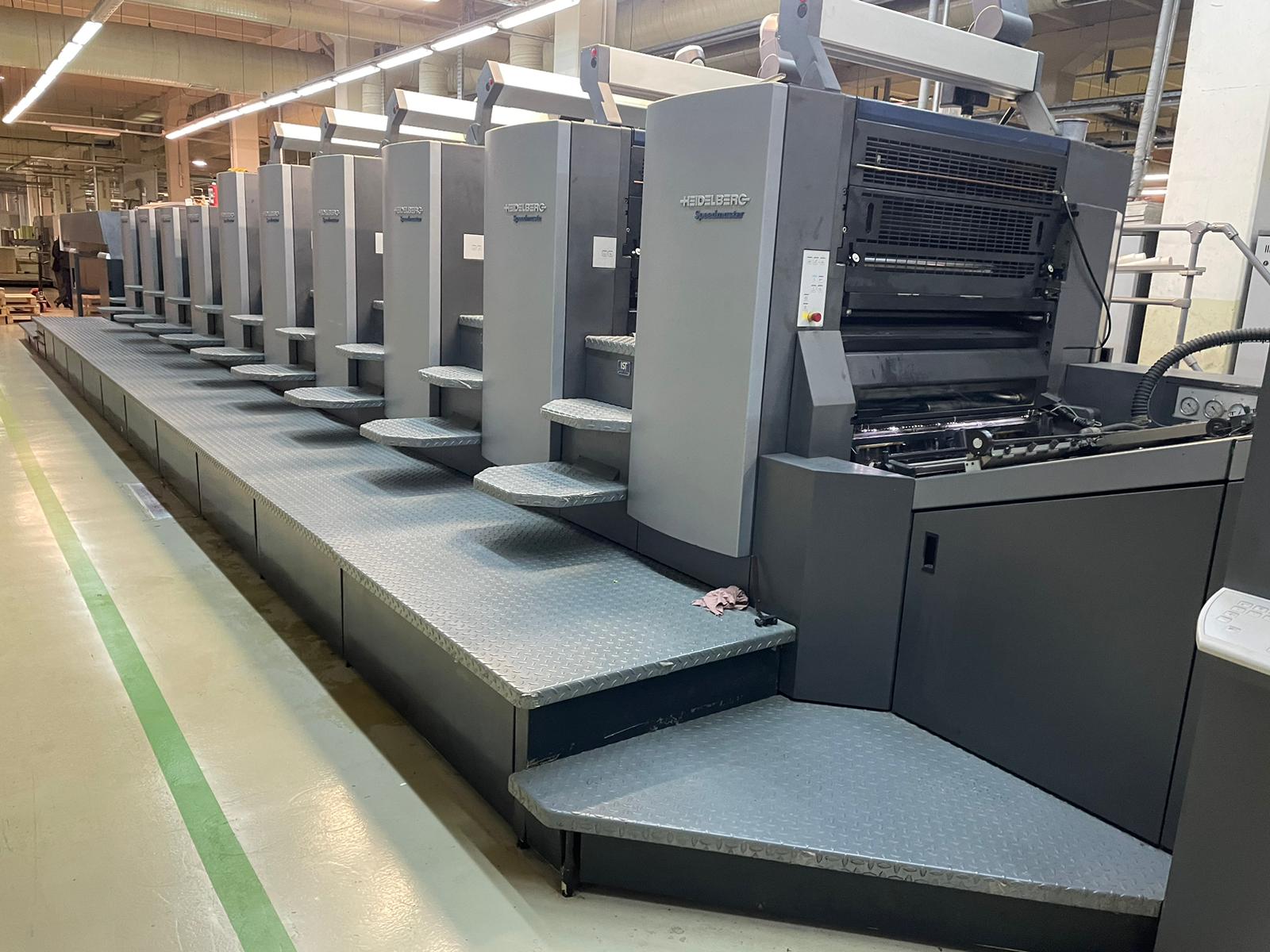

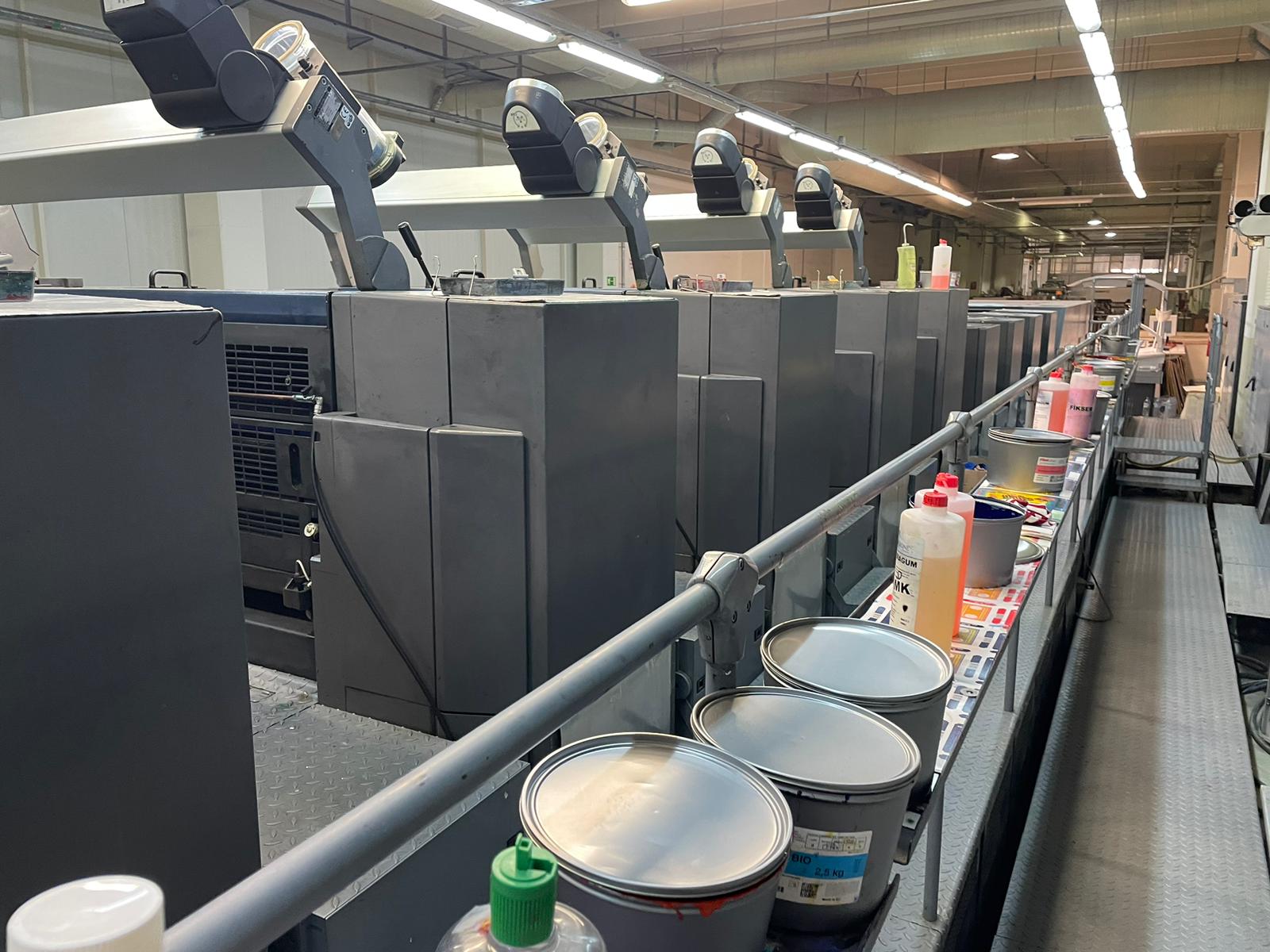

Heidelberg CD102-6 LYYLX3 Hybrid
Reference
23036298
Type
6 colors
Manufacturer
Heidelberg
Model
CD102-6 LYYLX3 Hybrid
Year
2007

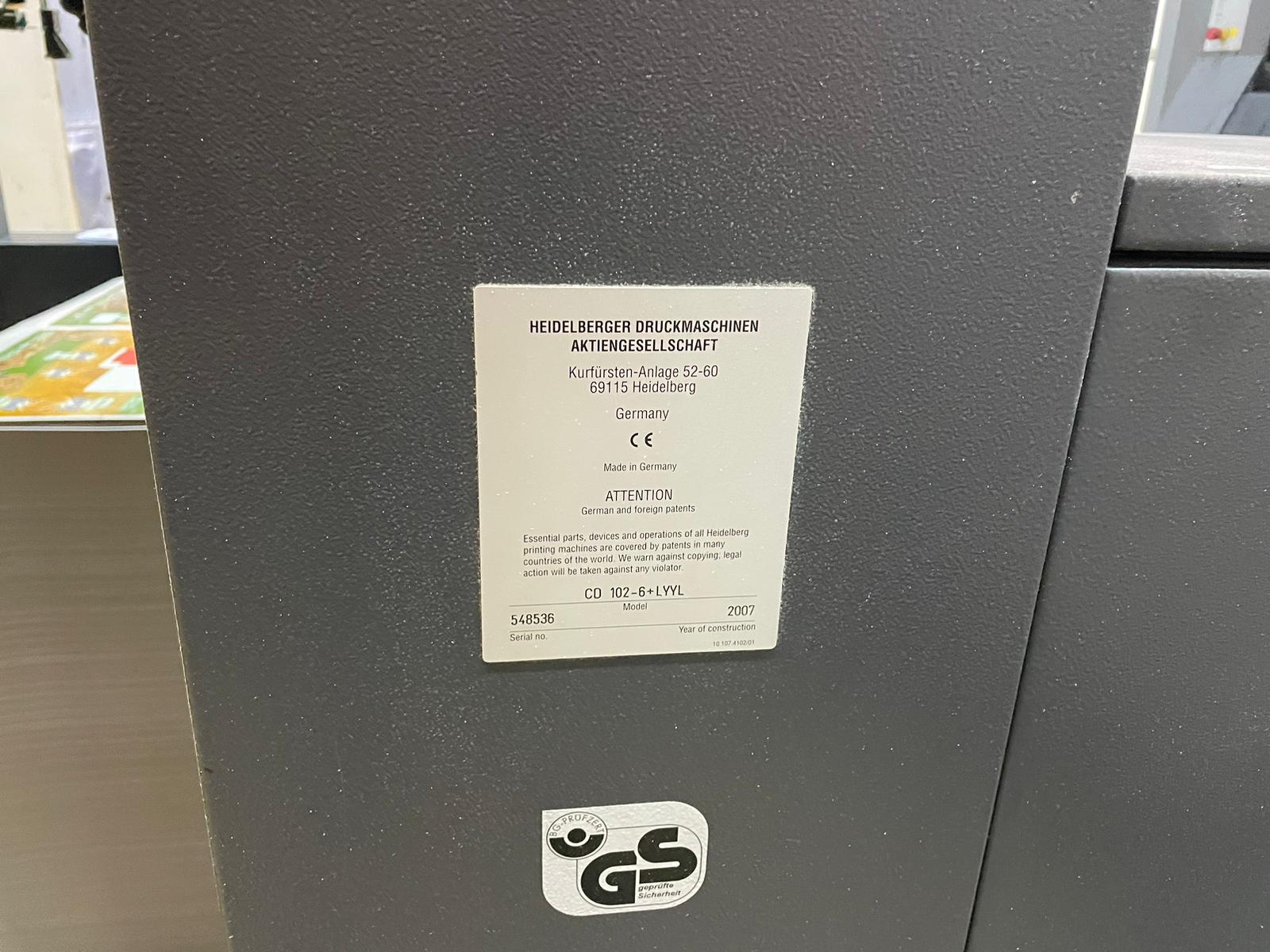

Serial Number
548536

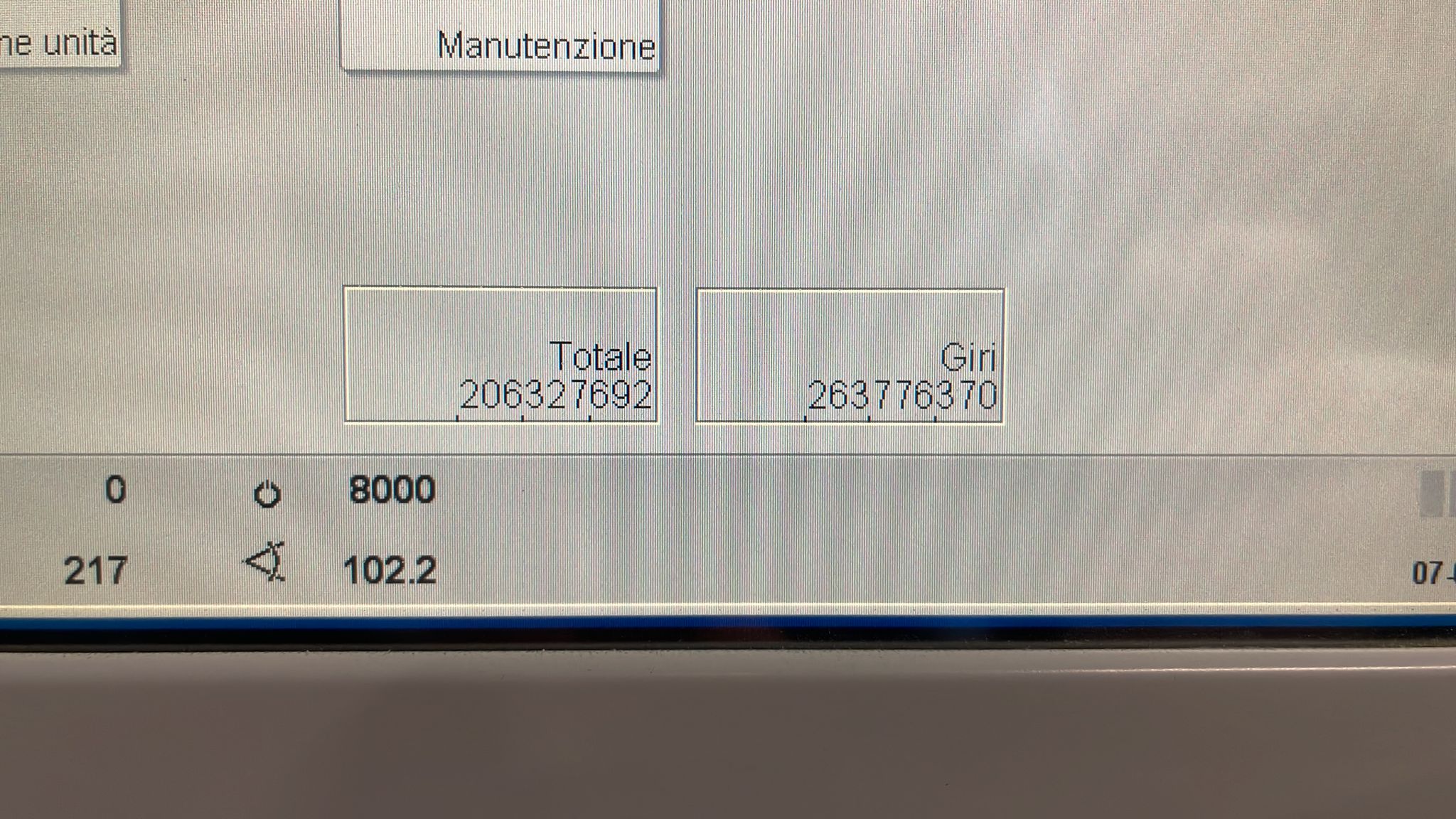

N.of Impressions
200
Visible
In production
Downlaod
PDF
Get Price Quotation
require more infos
Accessories

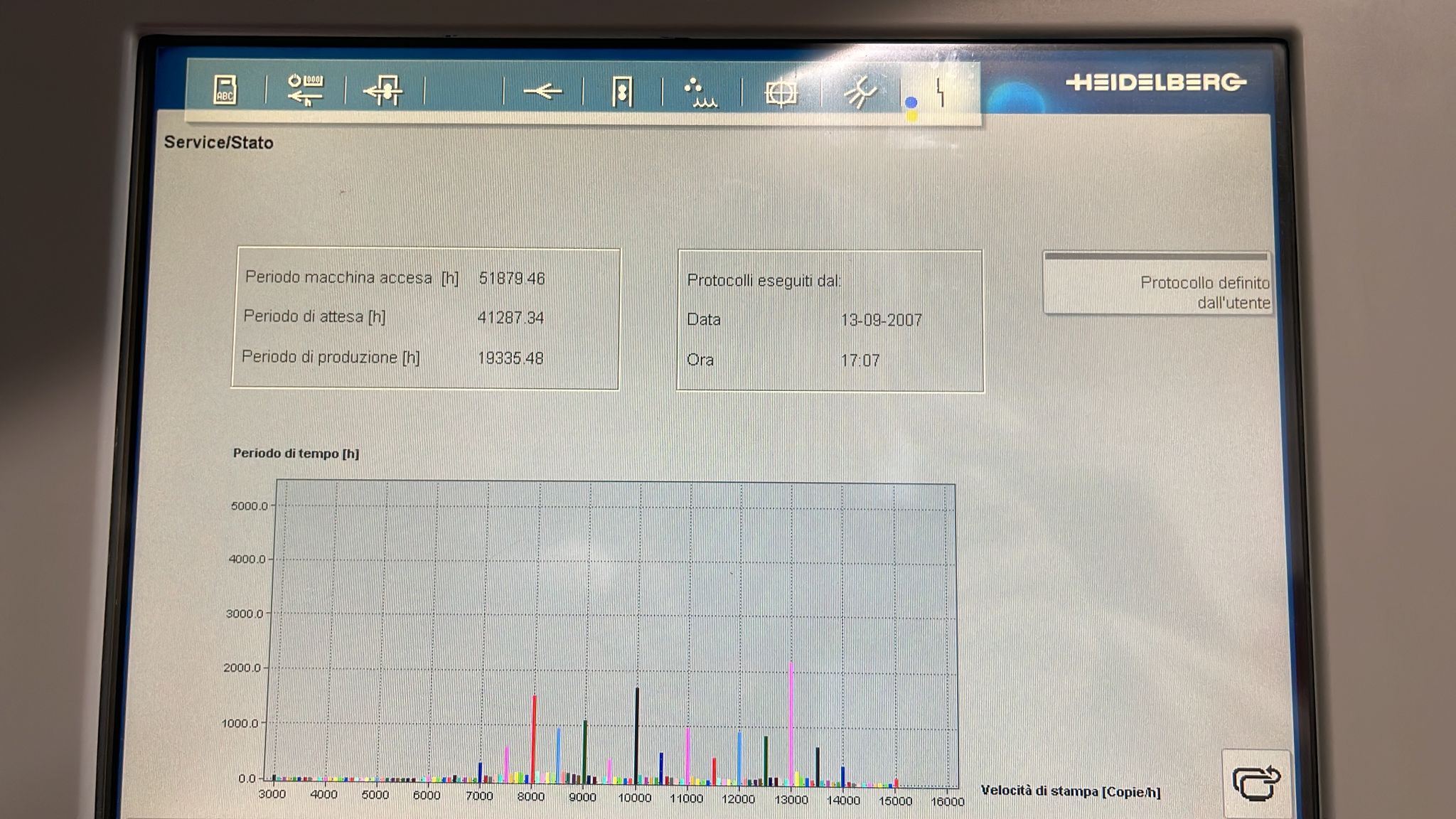

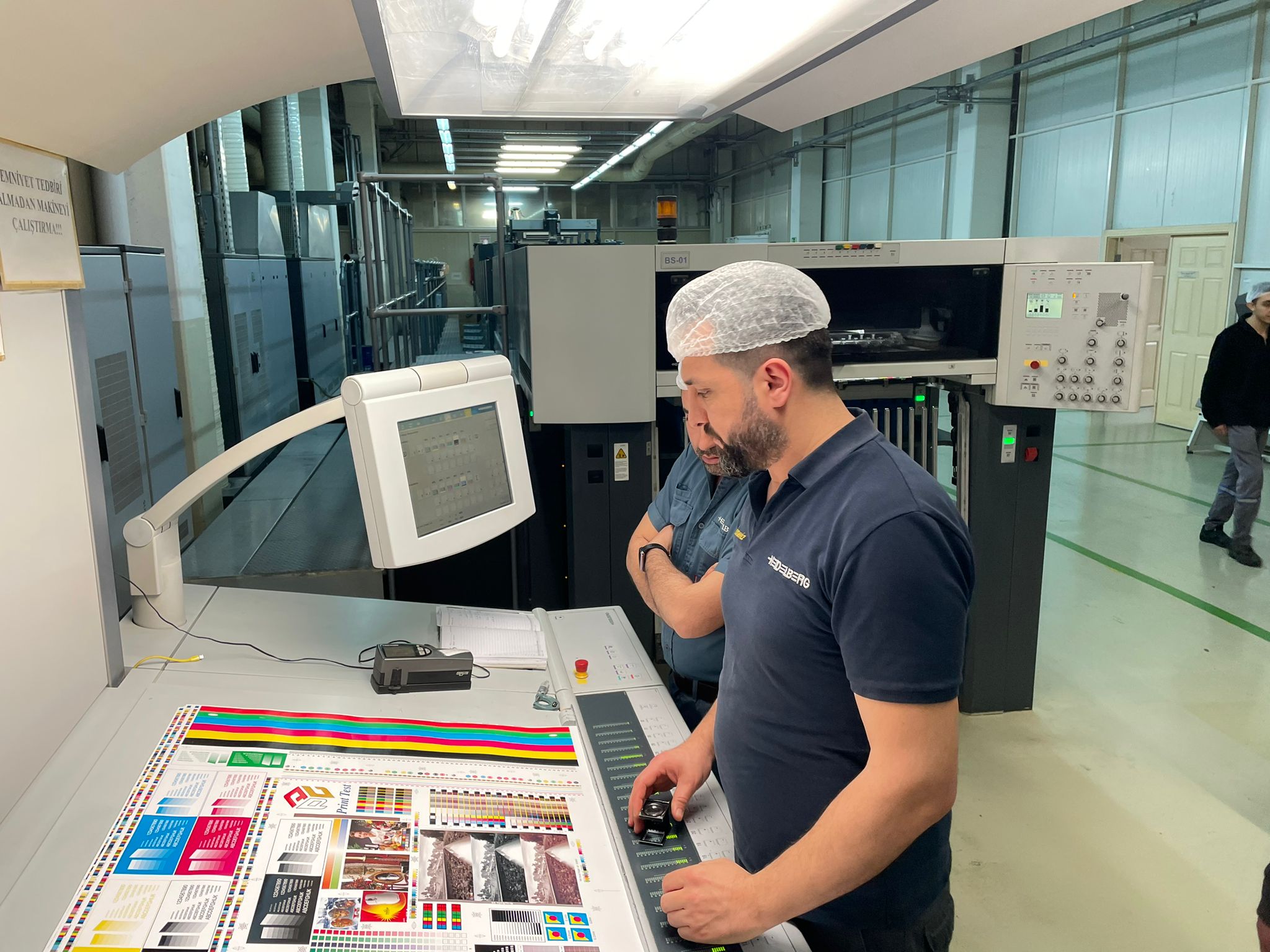

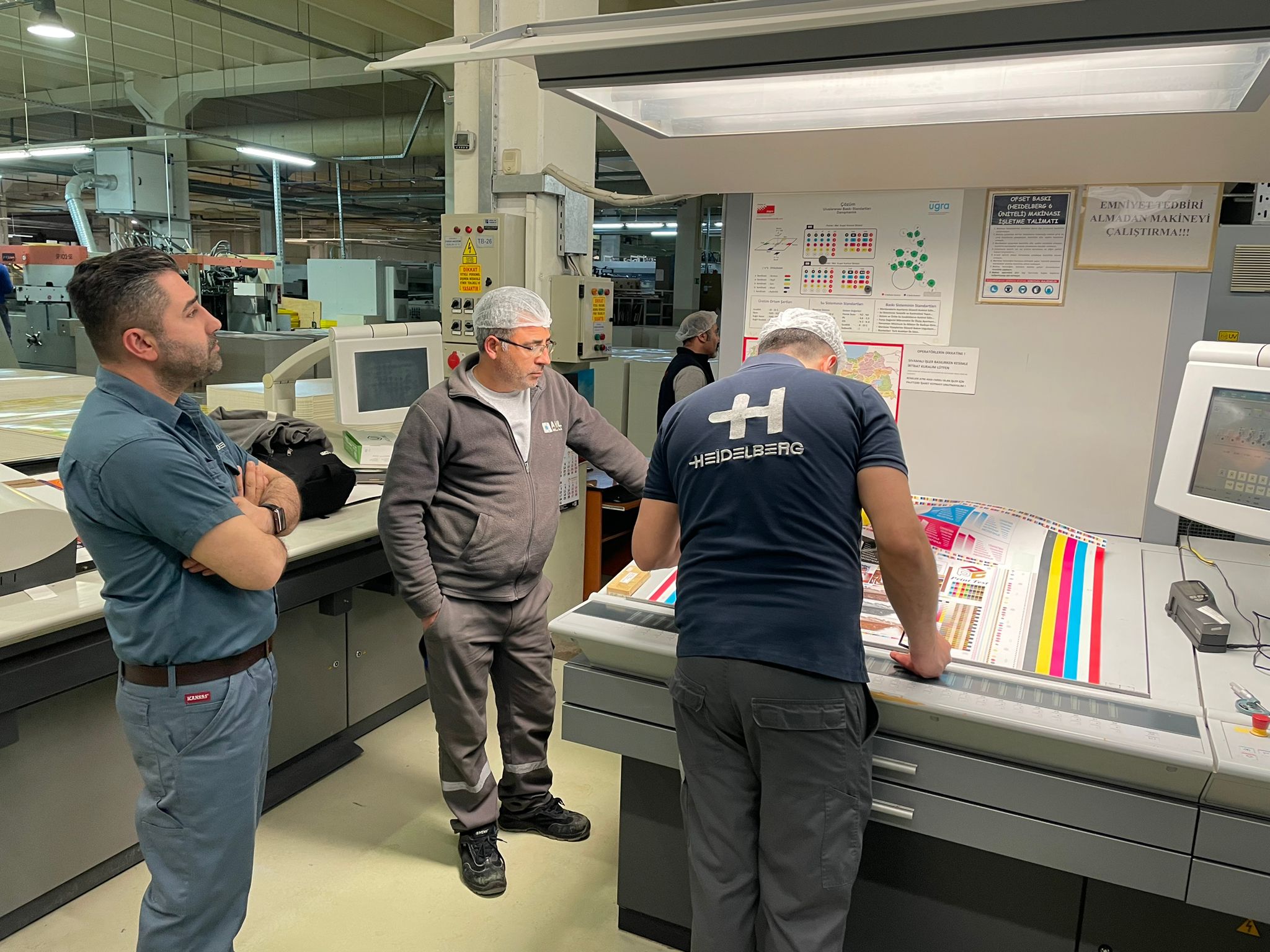

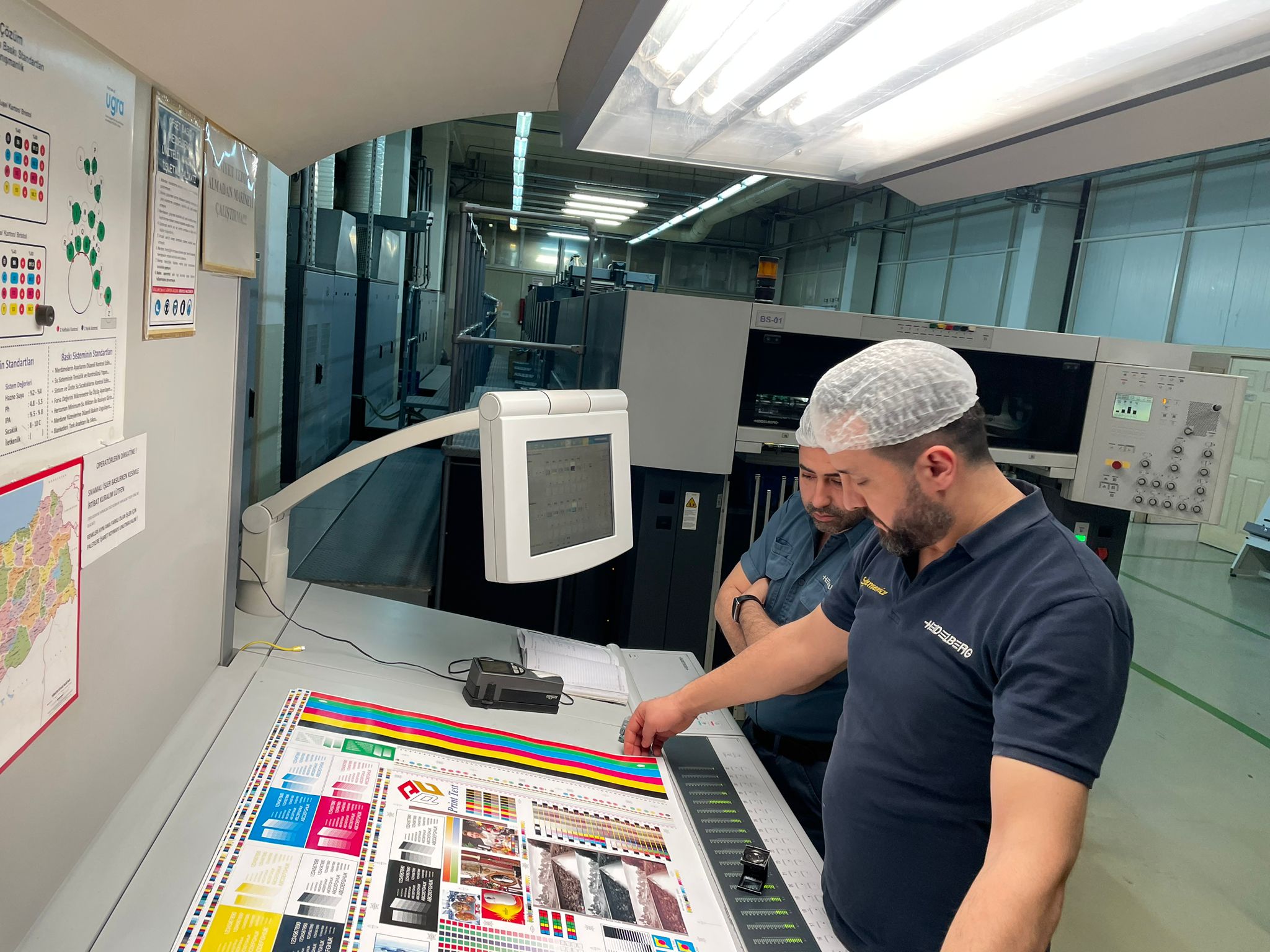

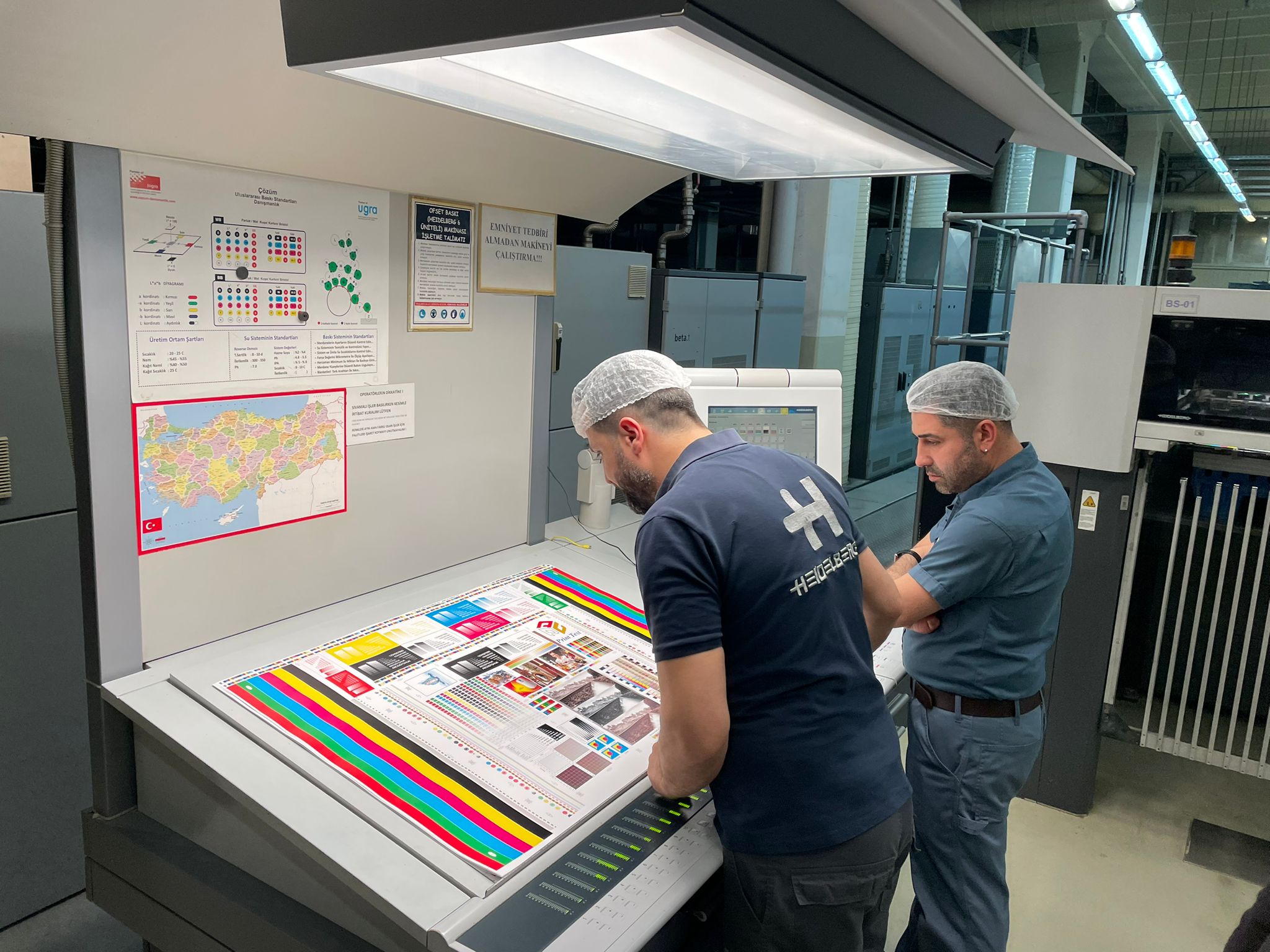

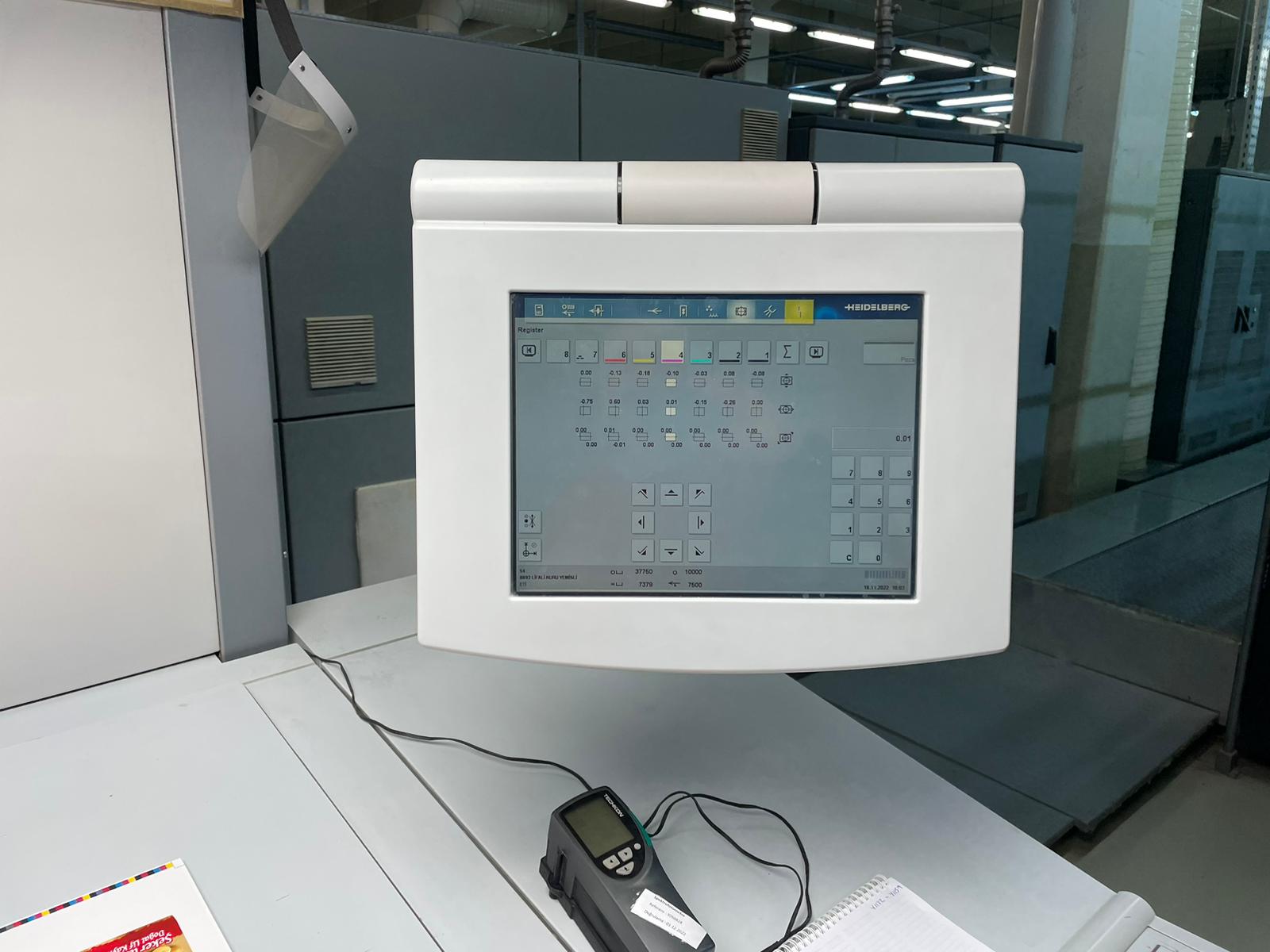

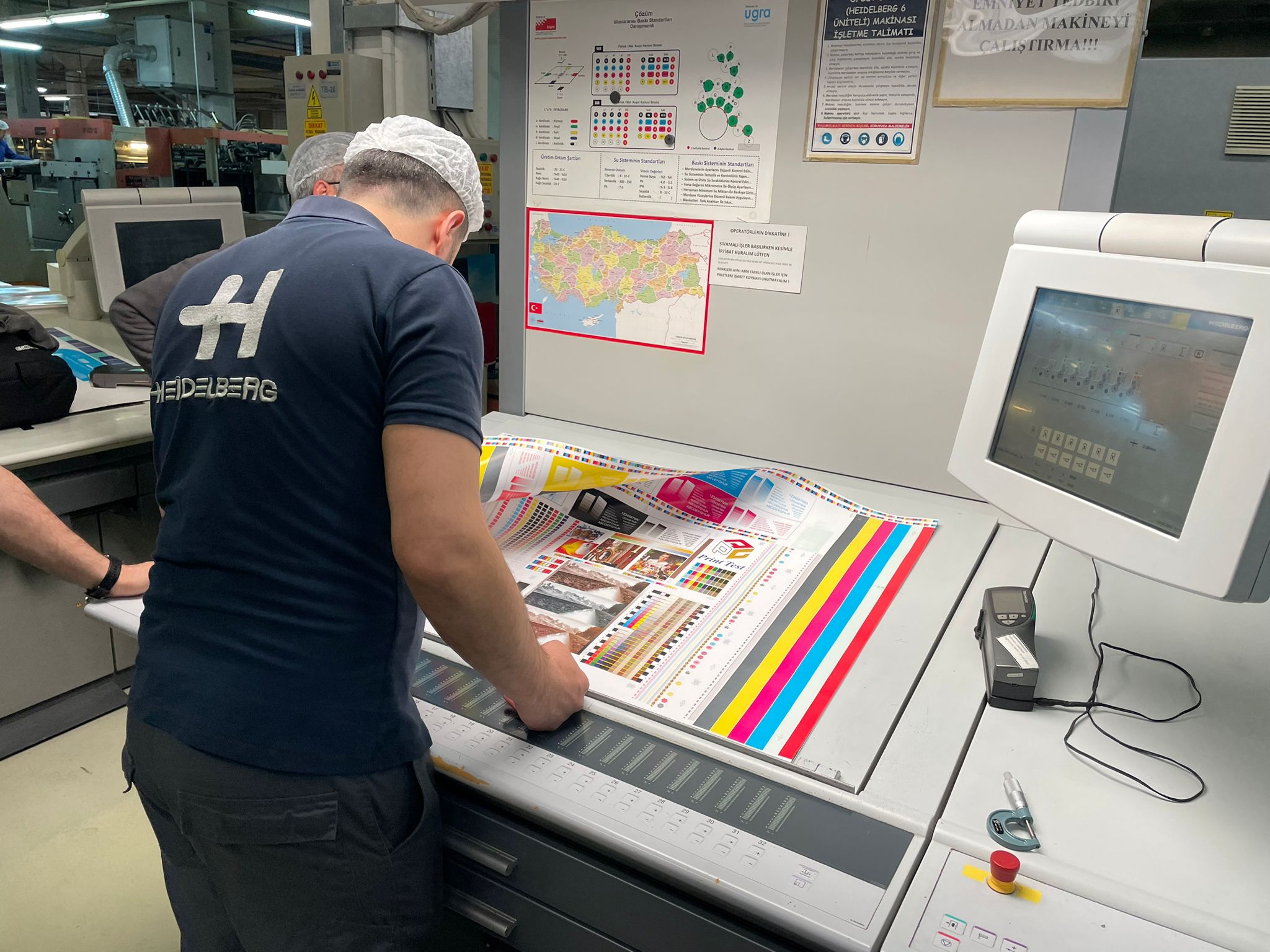

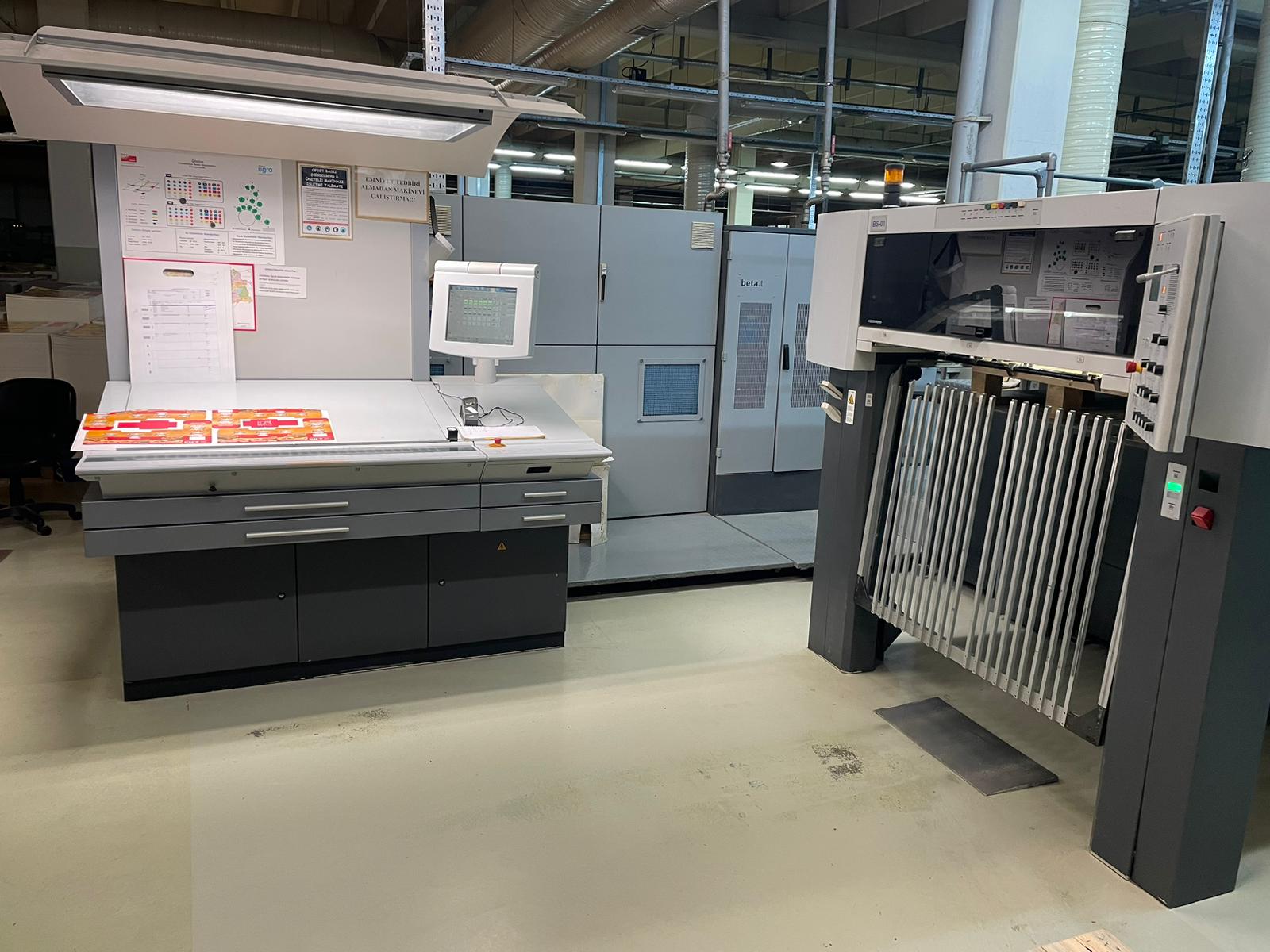

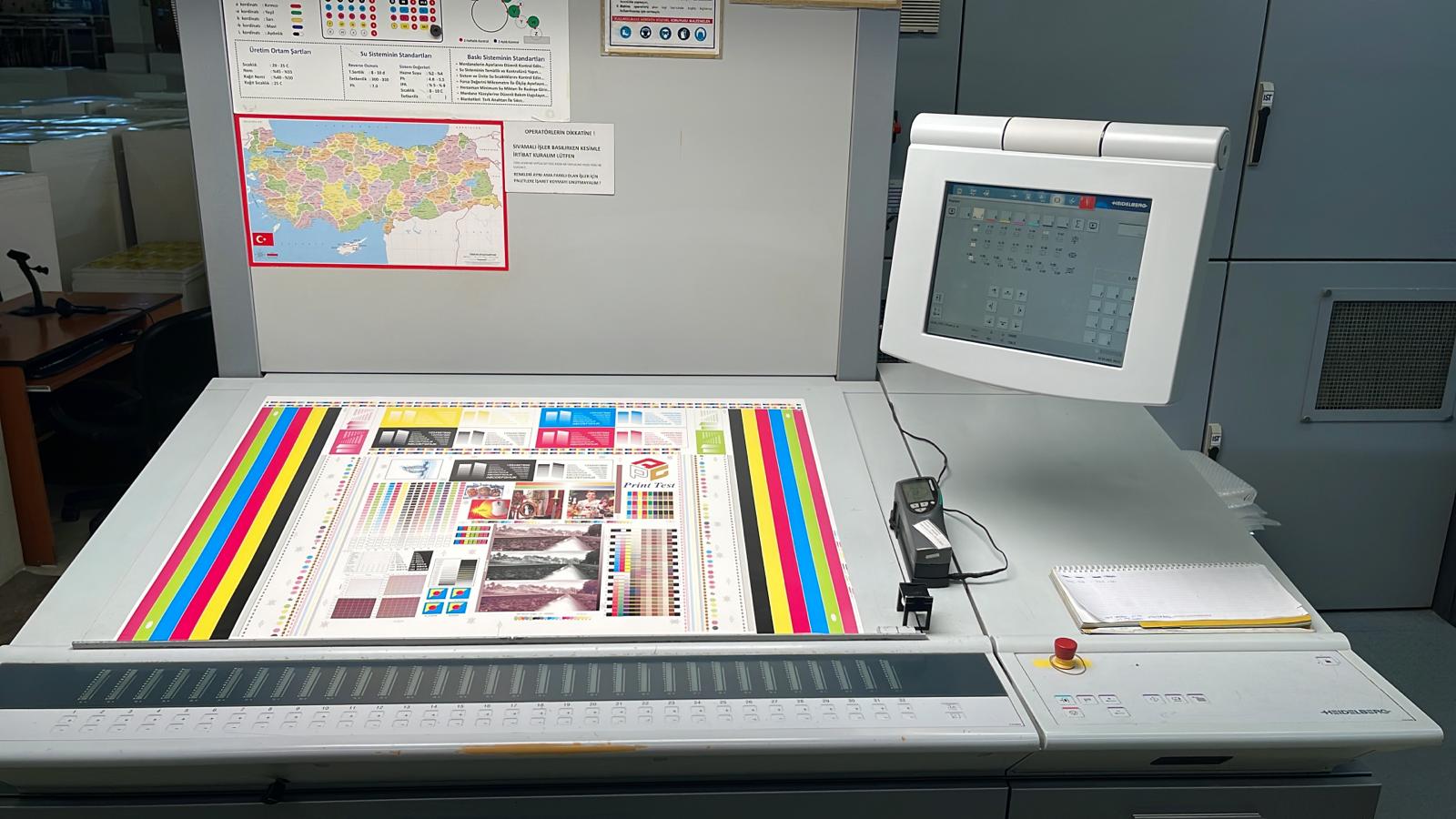

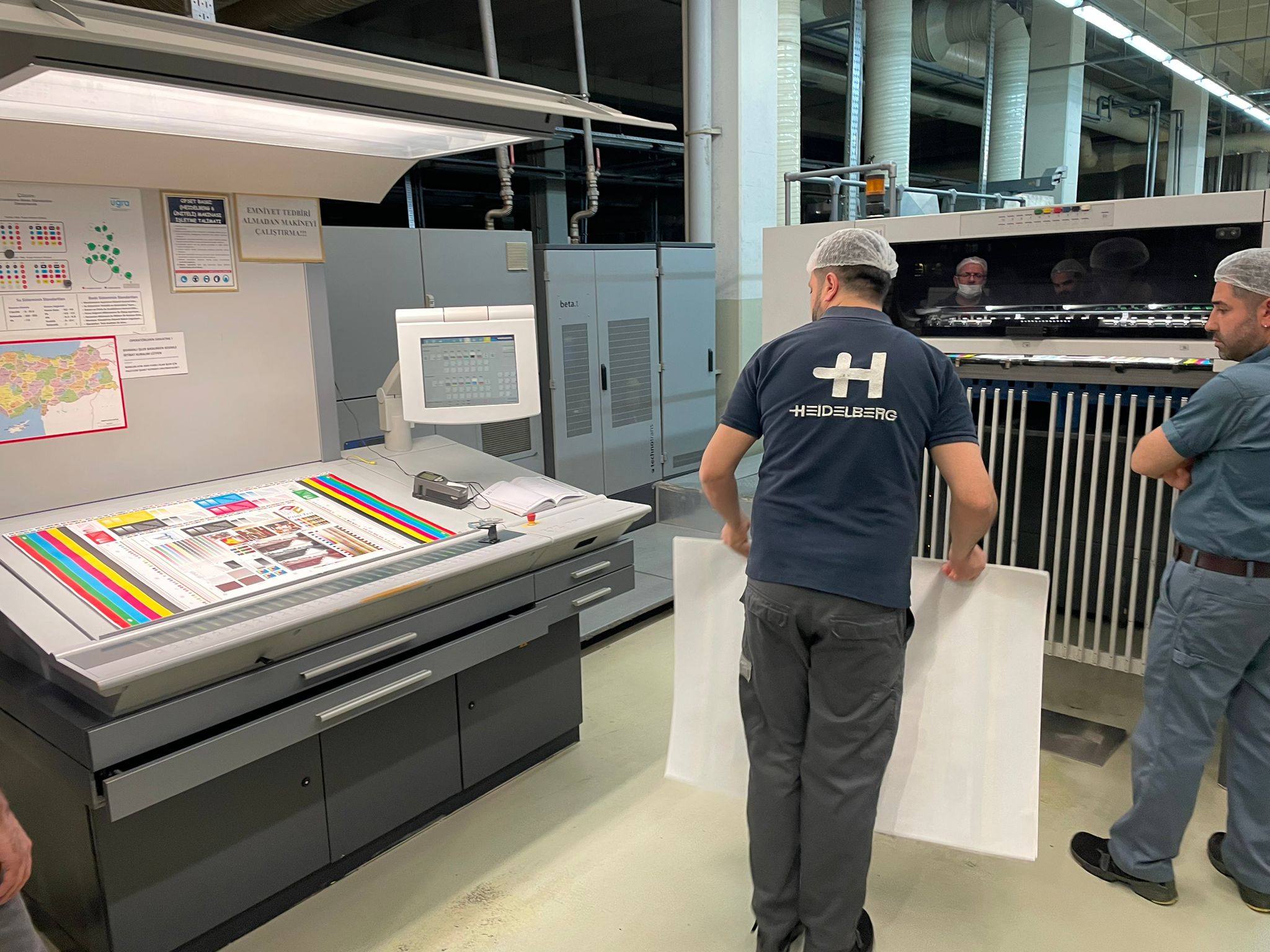

CP 2000 console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization

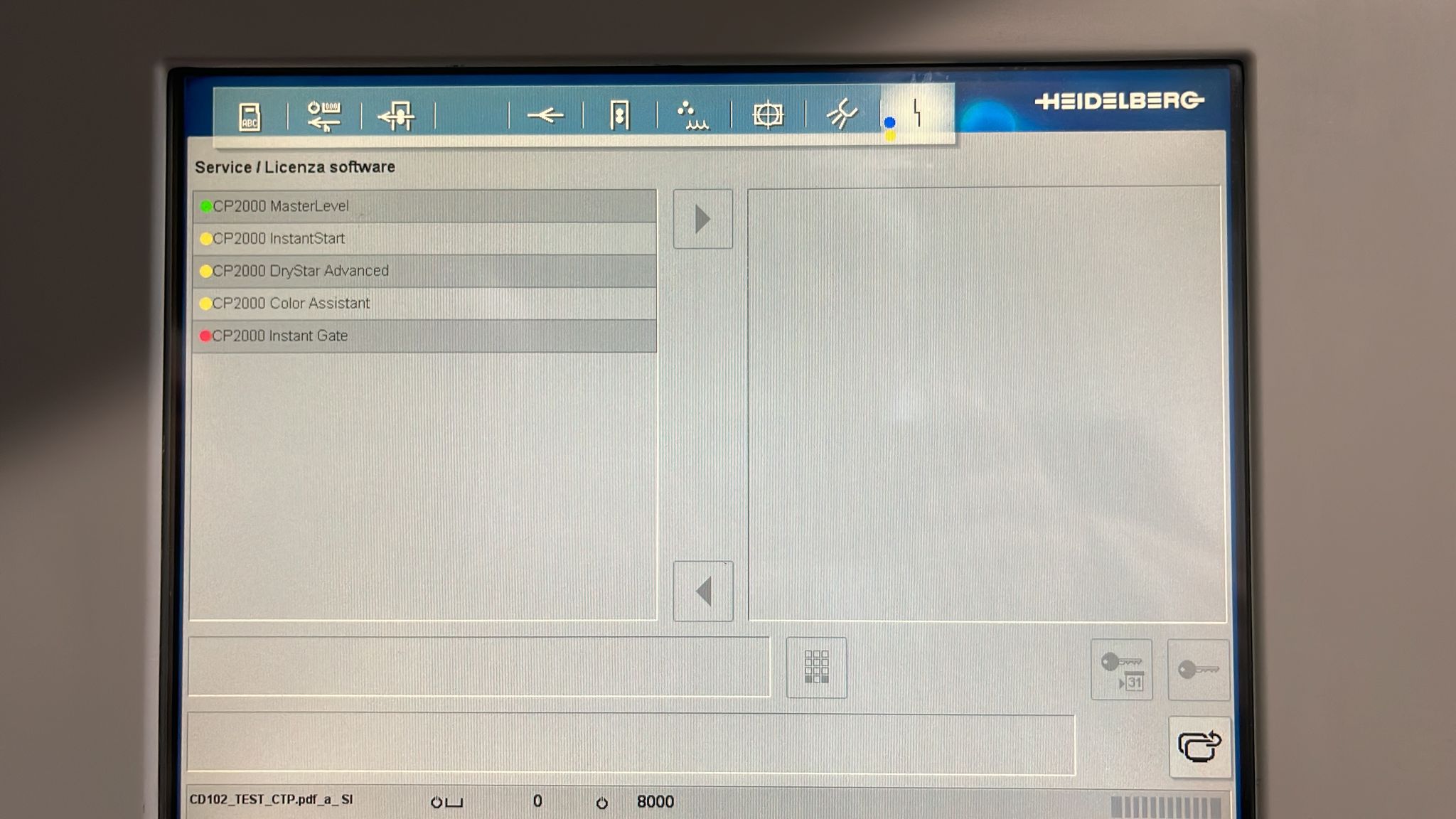

CP 2000 MasterLevel
Preset Plus Feeder
Head feeder 3 more suctions for paper transport
Front sensor on flap of the feeder
Slow down : system to slow the sheet down then 65% on feeder

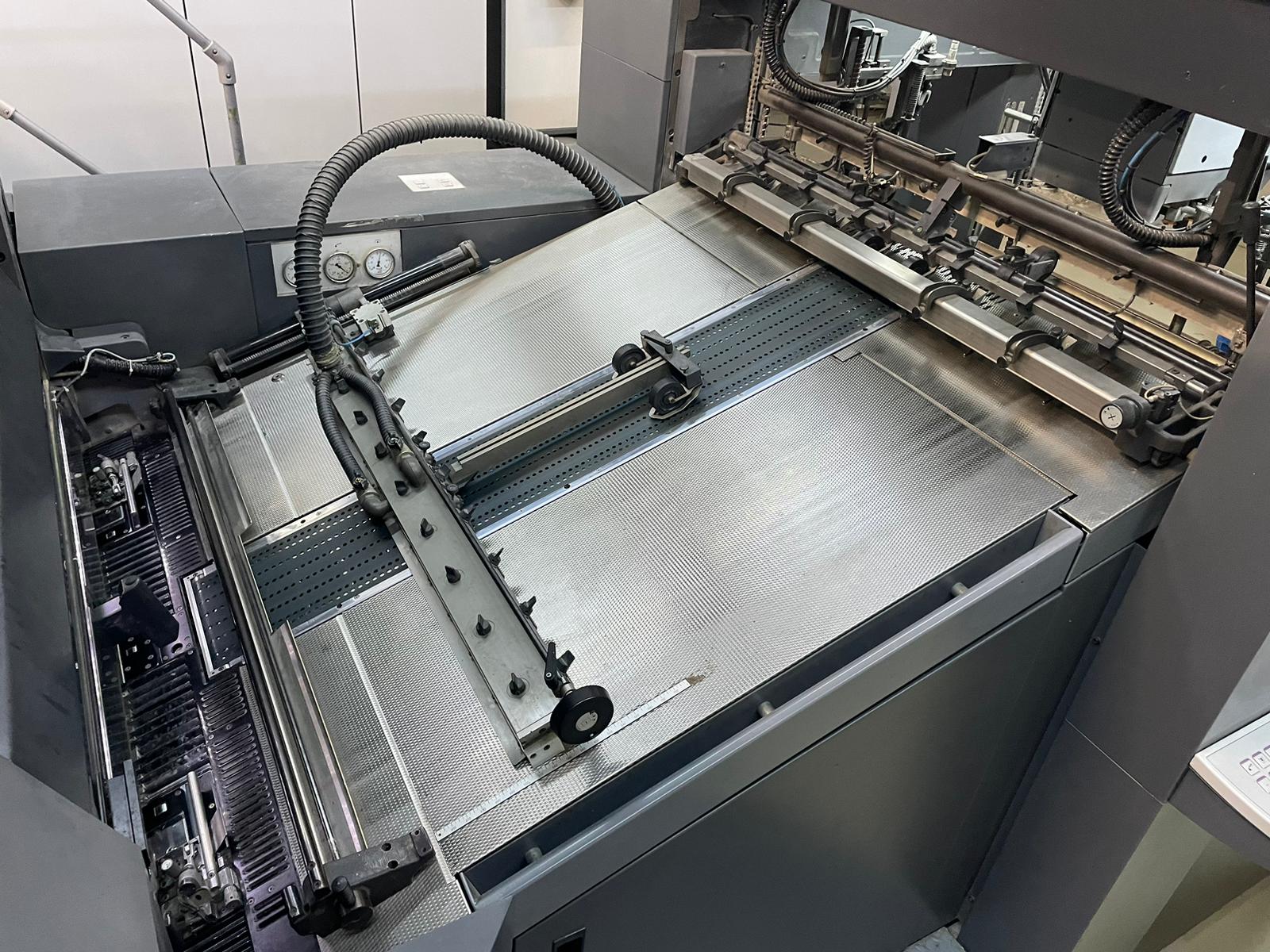

Suction belt feeder with 3 sections of transport of sheets to the frontal registers
Pneumatic side register control with integrated auto cleaning and double sheet control with direct system
Non-Stop on feeder
Multiple-sheet detector/ tear-off
Multiple sheet control/Forwarding roller
Ultrasonic double-sheet control
Antistatic for foil on feeder
No. 2 Eltex ion blowers on feeder
Suction brush on feeder
Air transfer System Venturi
Roller wash-up device controlled by CP 2000
Modular blanket cylinder washing device by CP 2000
Modular impression cylinder washing device by CP 2000
Autoplate
Chromed blanket cylinders
Alcolor Vario System damping

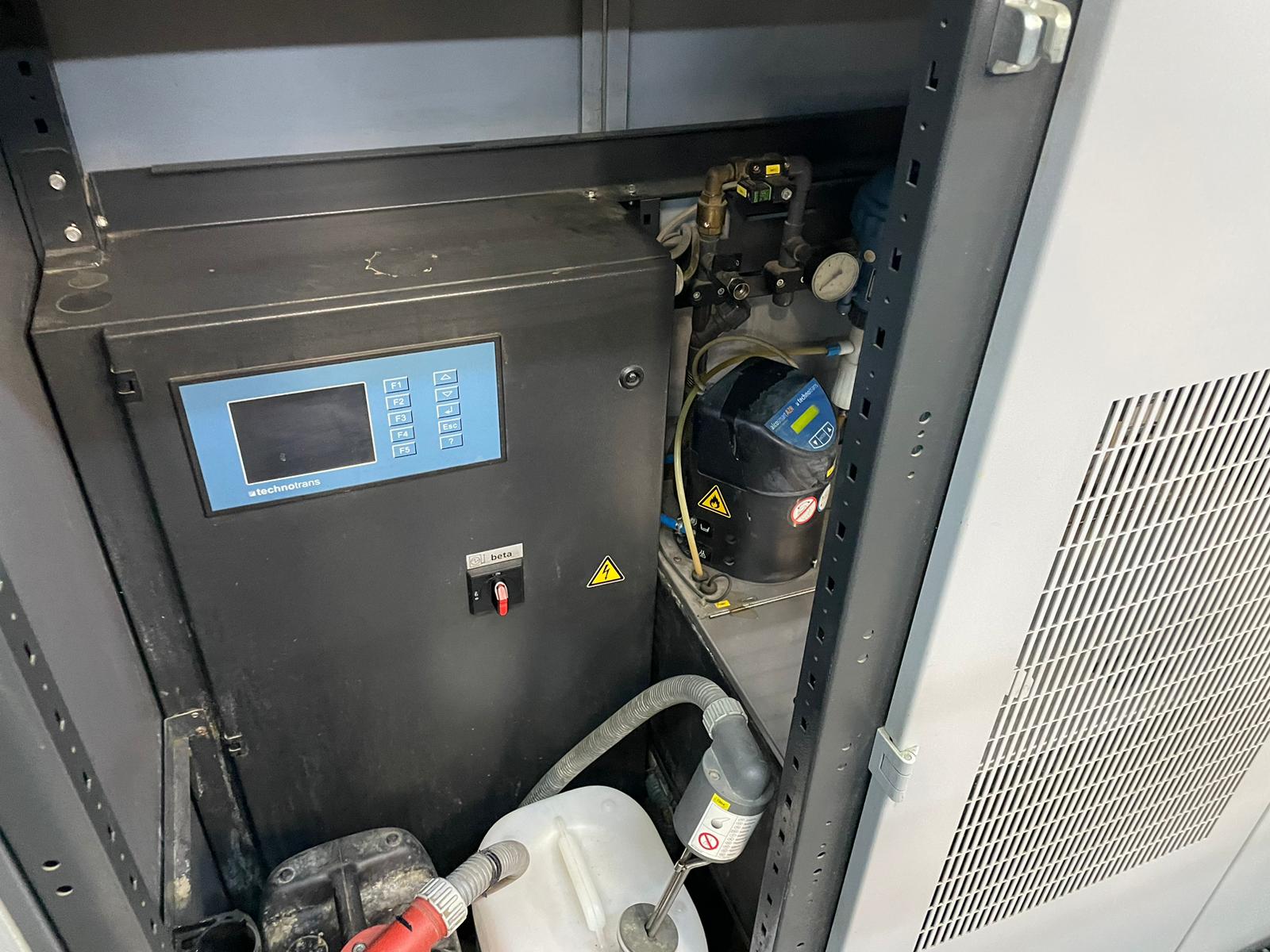

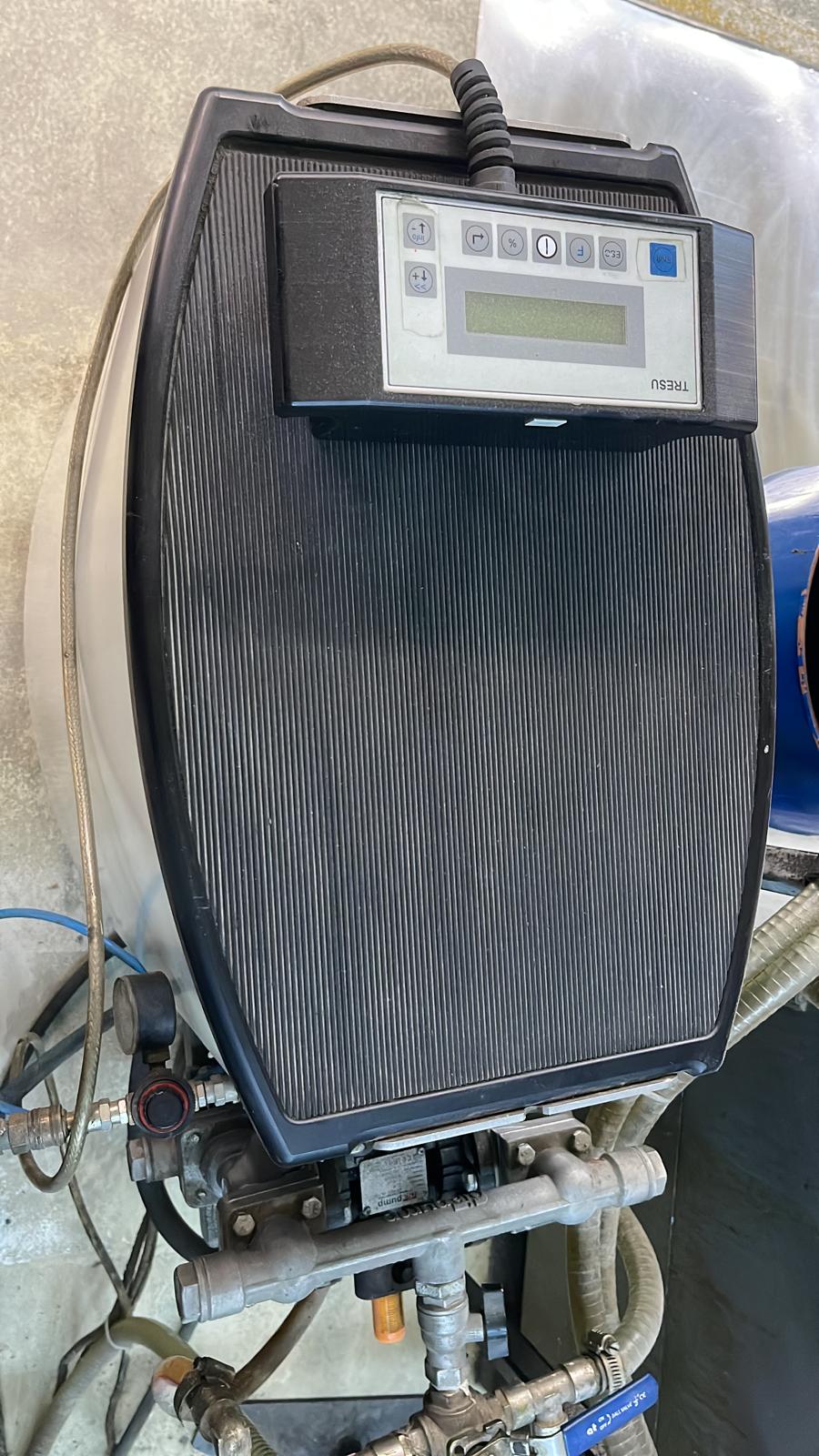

CombiStar CAN : Technotrans ink temp control combined with damping refrigeration + Alcosmart; functions remote controlled by console
ZDT preparation after unit 1°, 2°, 3°, 4°, 5°, 6°

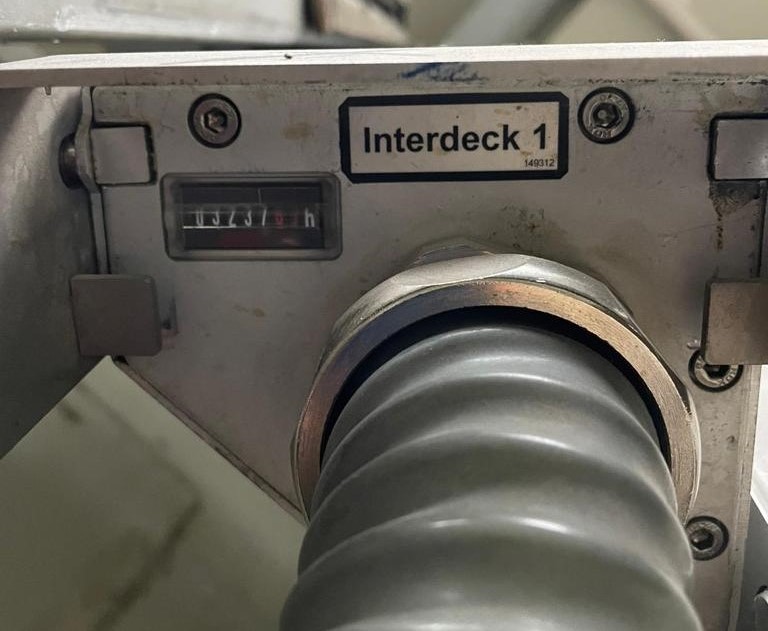

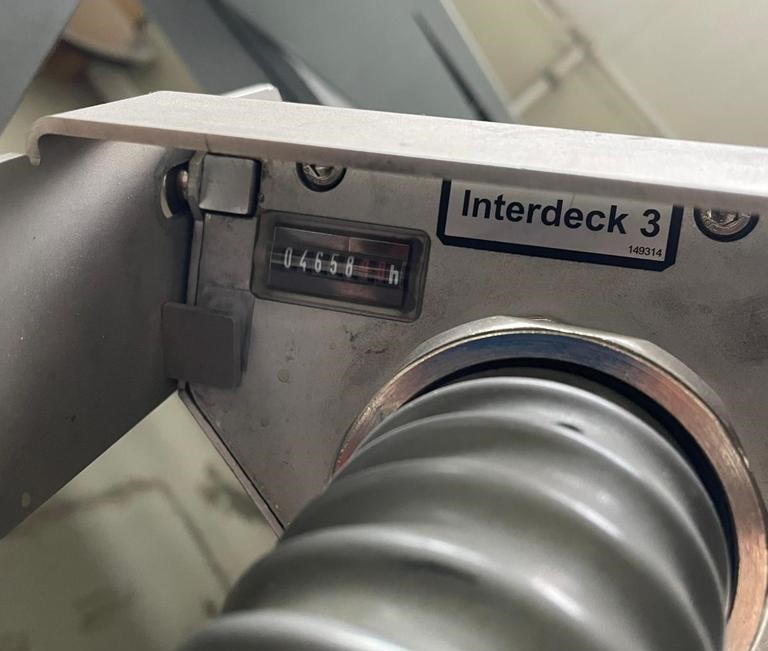

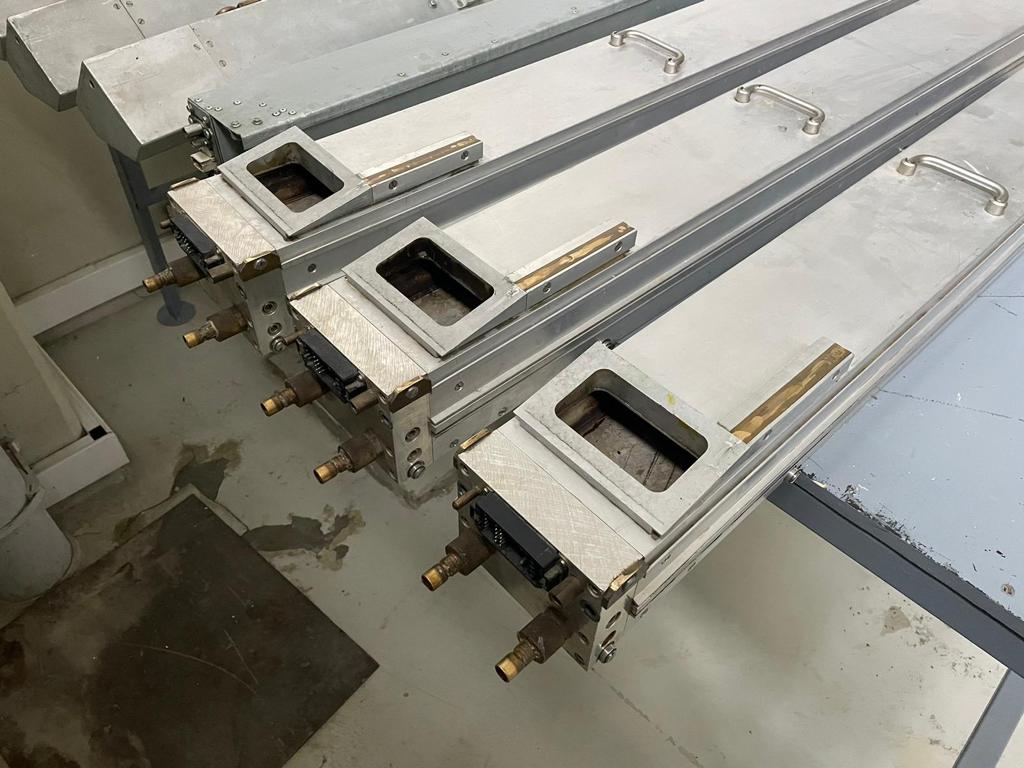

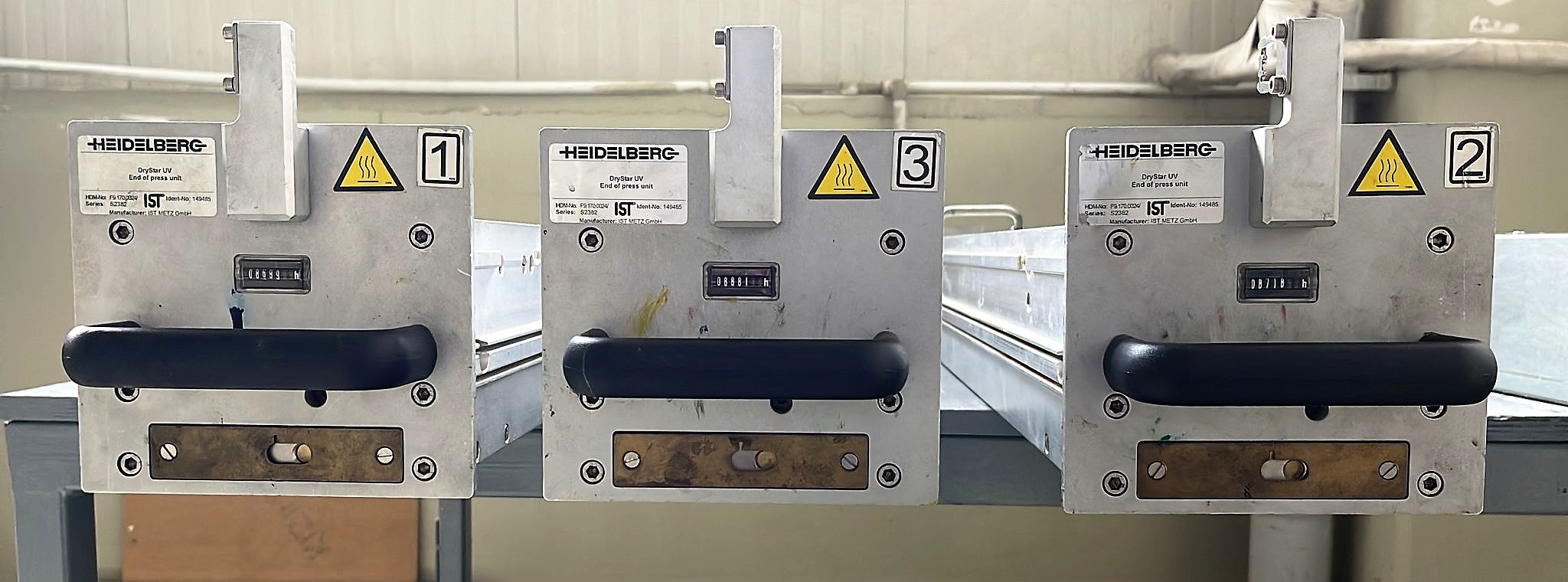

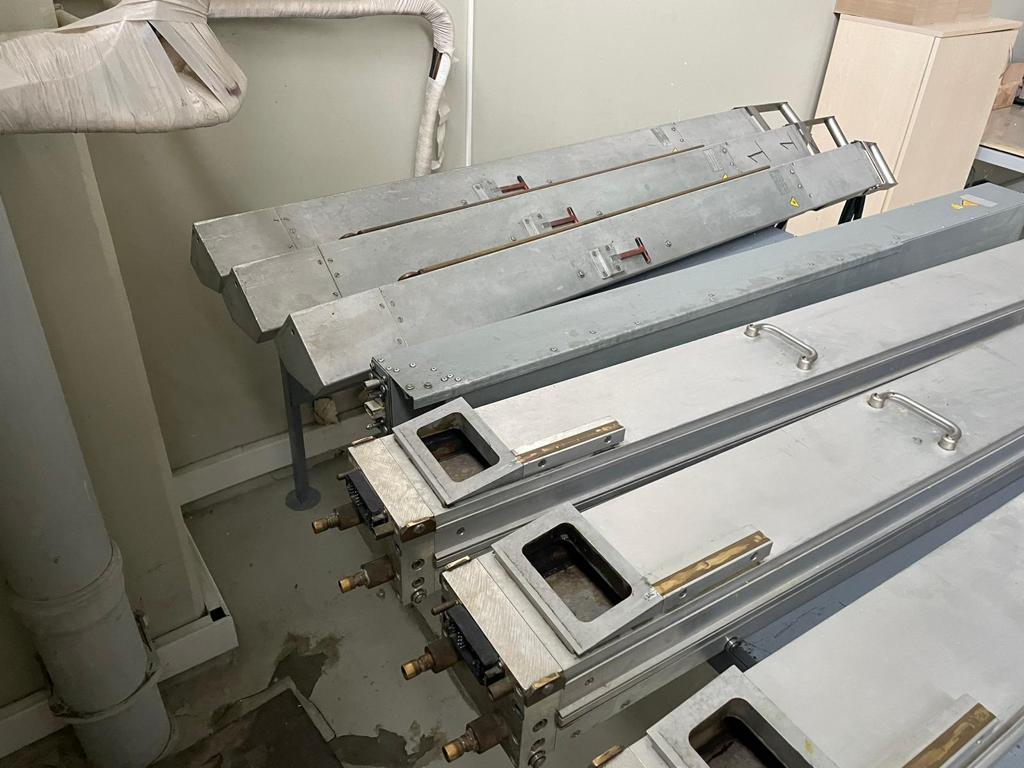

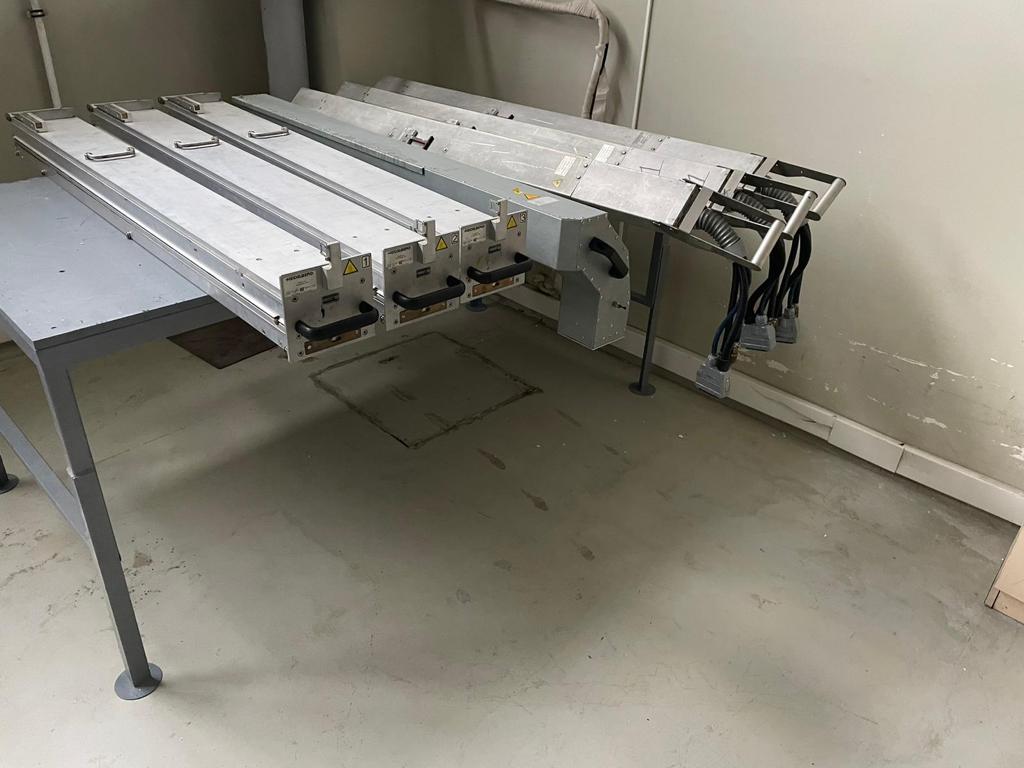

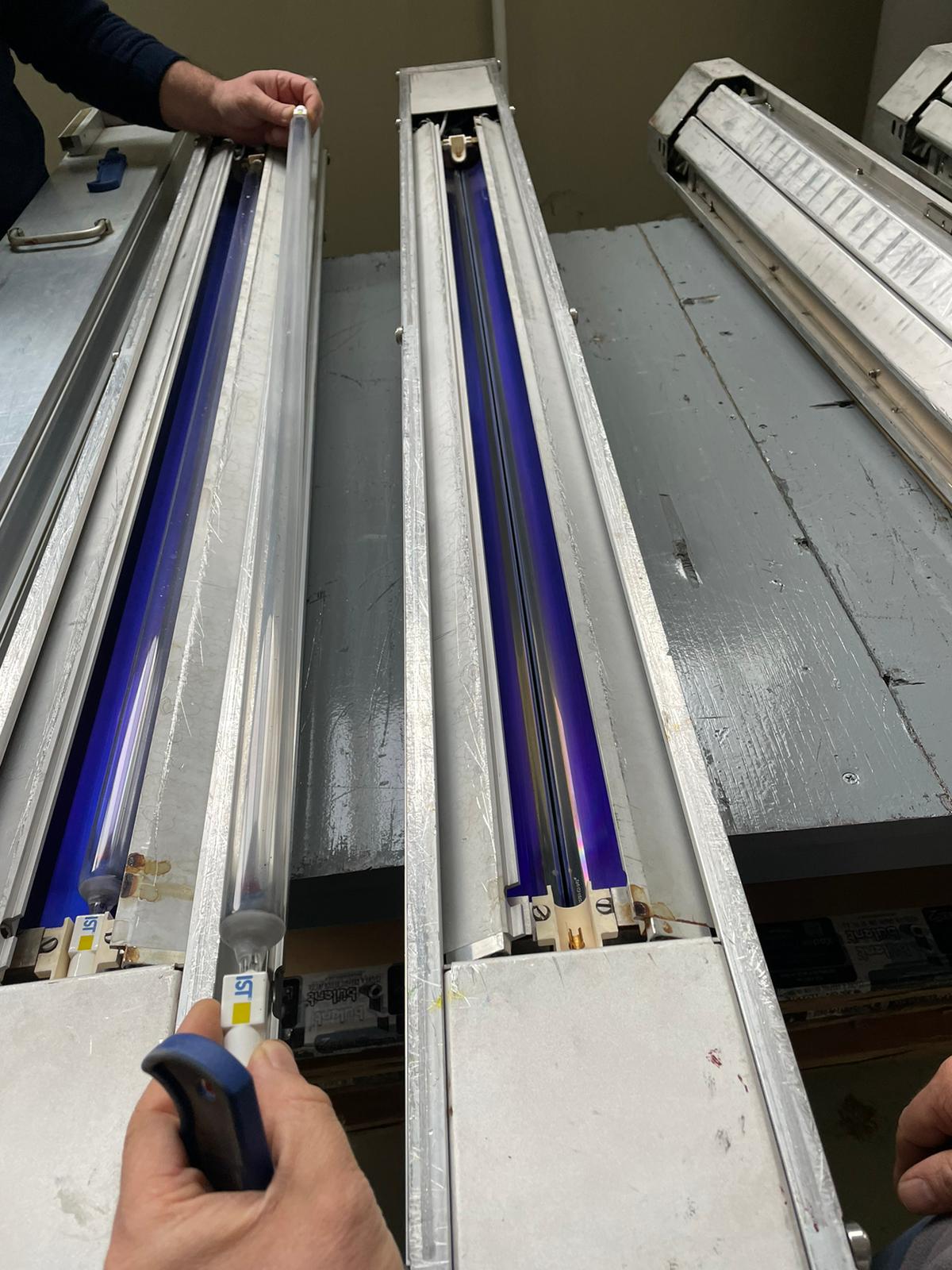

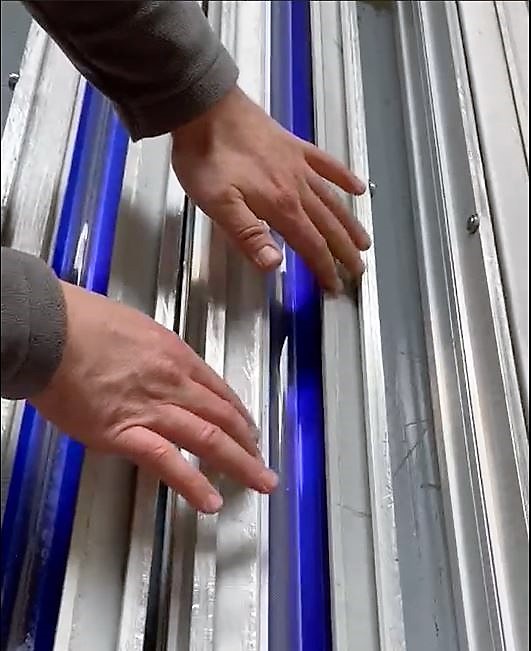

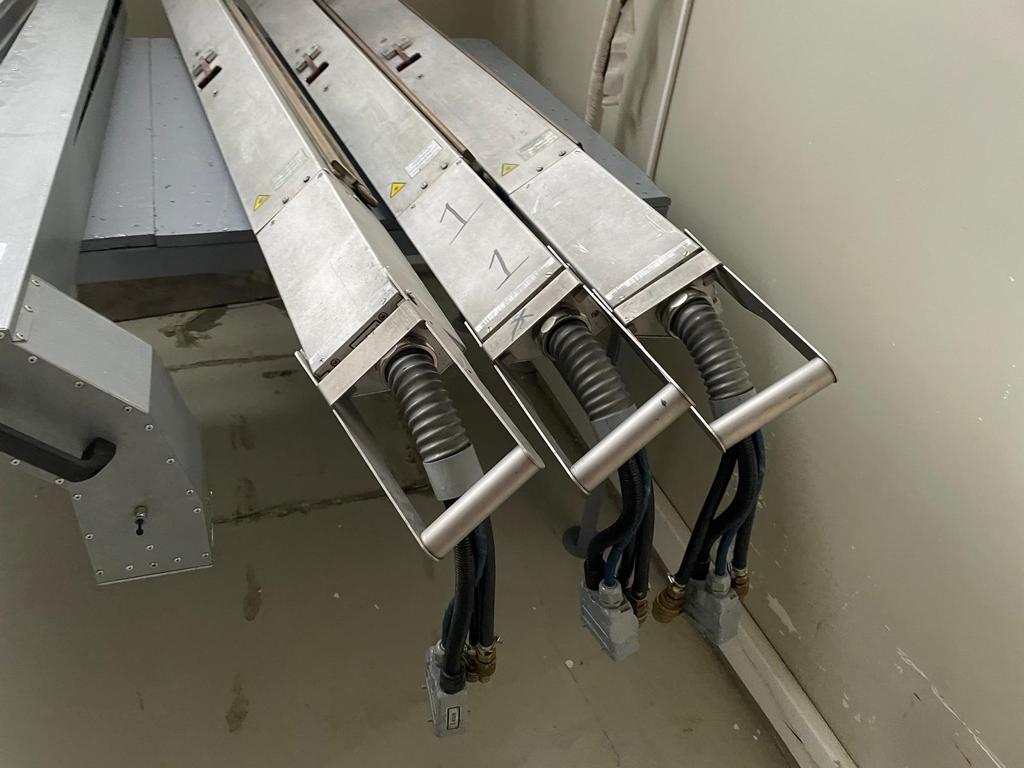

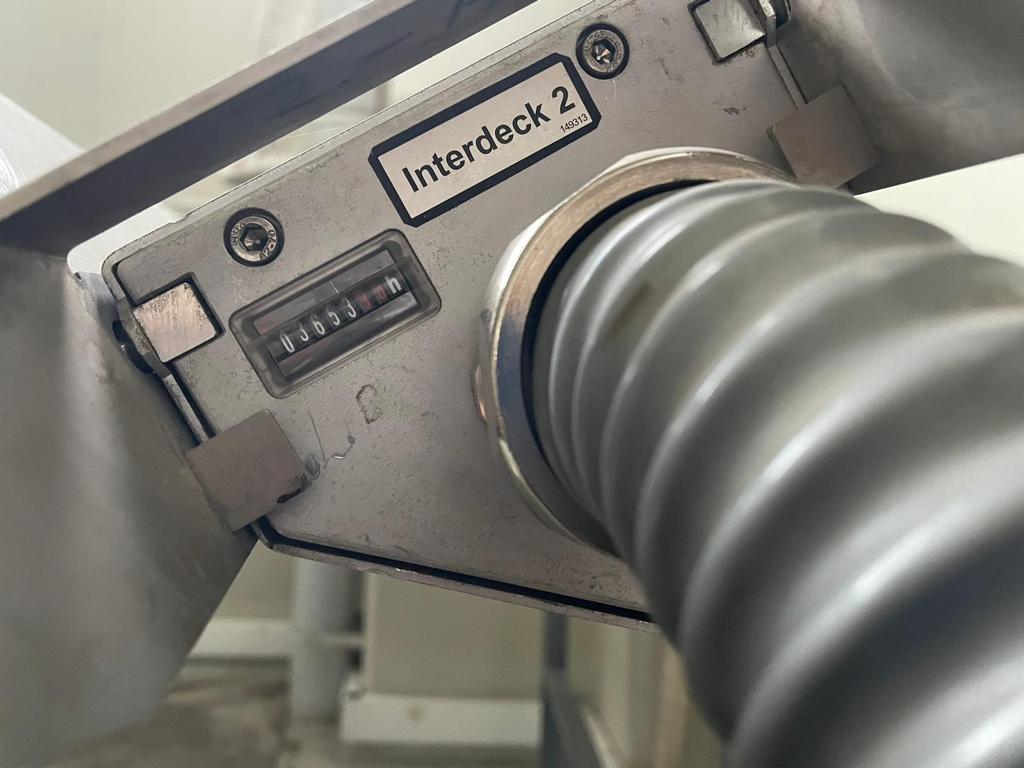

No. 3 x IST/UV interdeck dryers to put in all transfer positions (full flexibility)
No. 3 x IST/Hot Air interdeck dryers to put in all transfer positions (full flexibility)

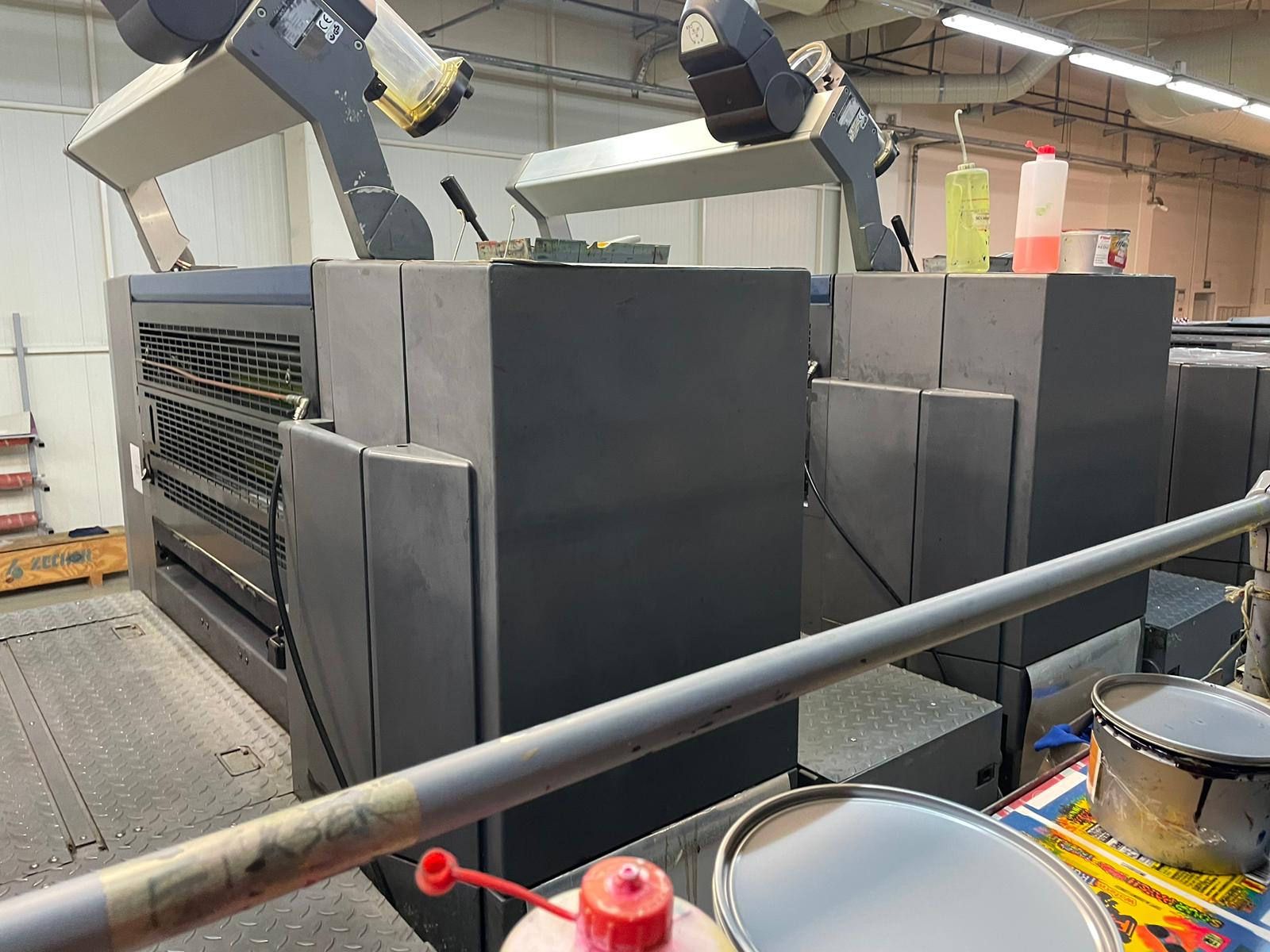

No. 2 Varnishing units 550 l/h chambered doctor blades system with remote diagonal register and anilox rollers
Varnishing metering last coating FLEXOKIT

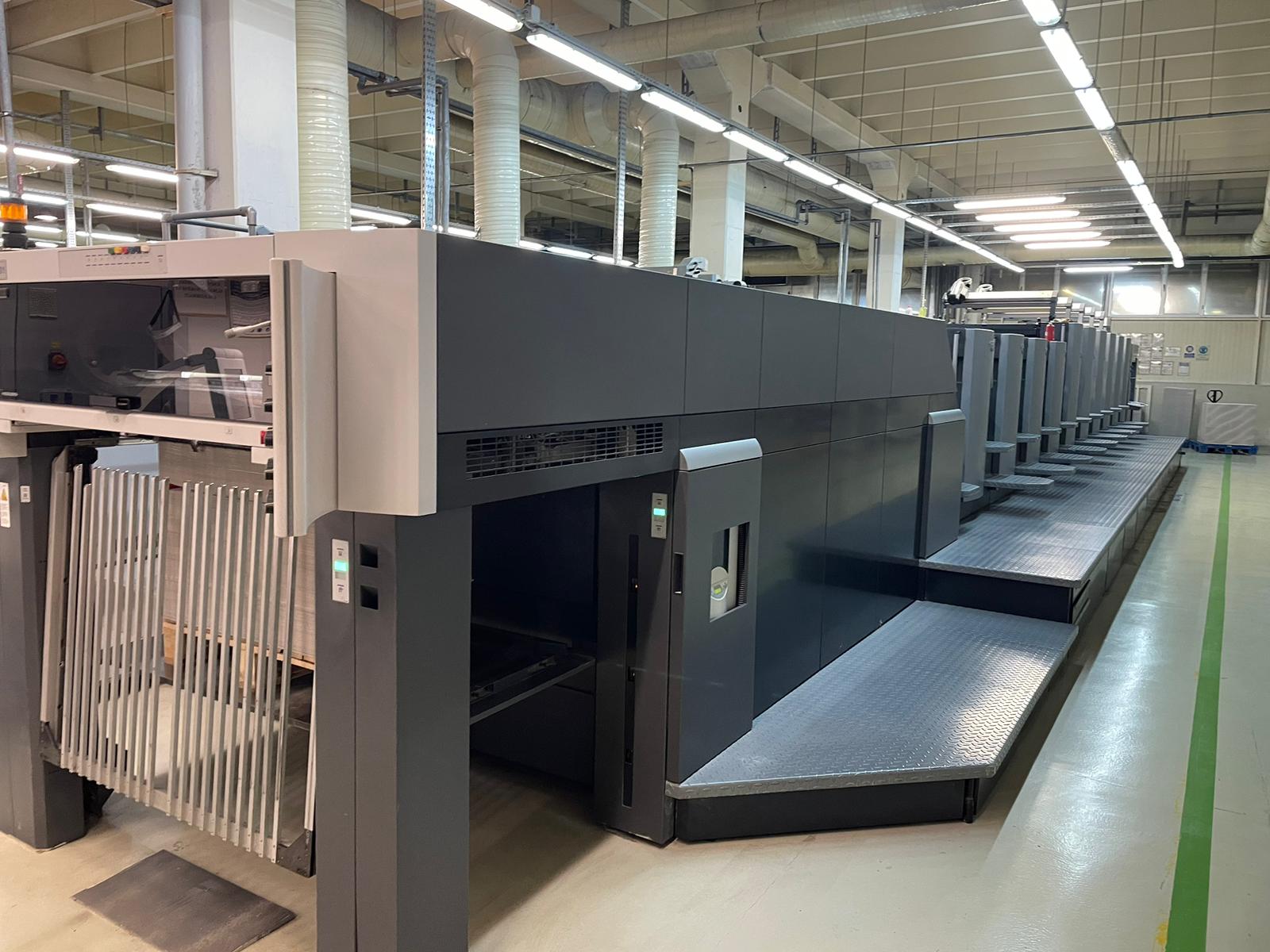

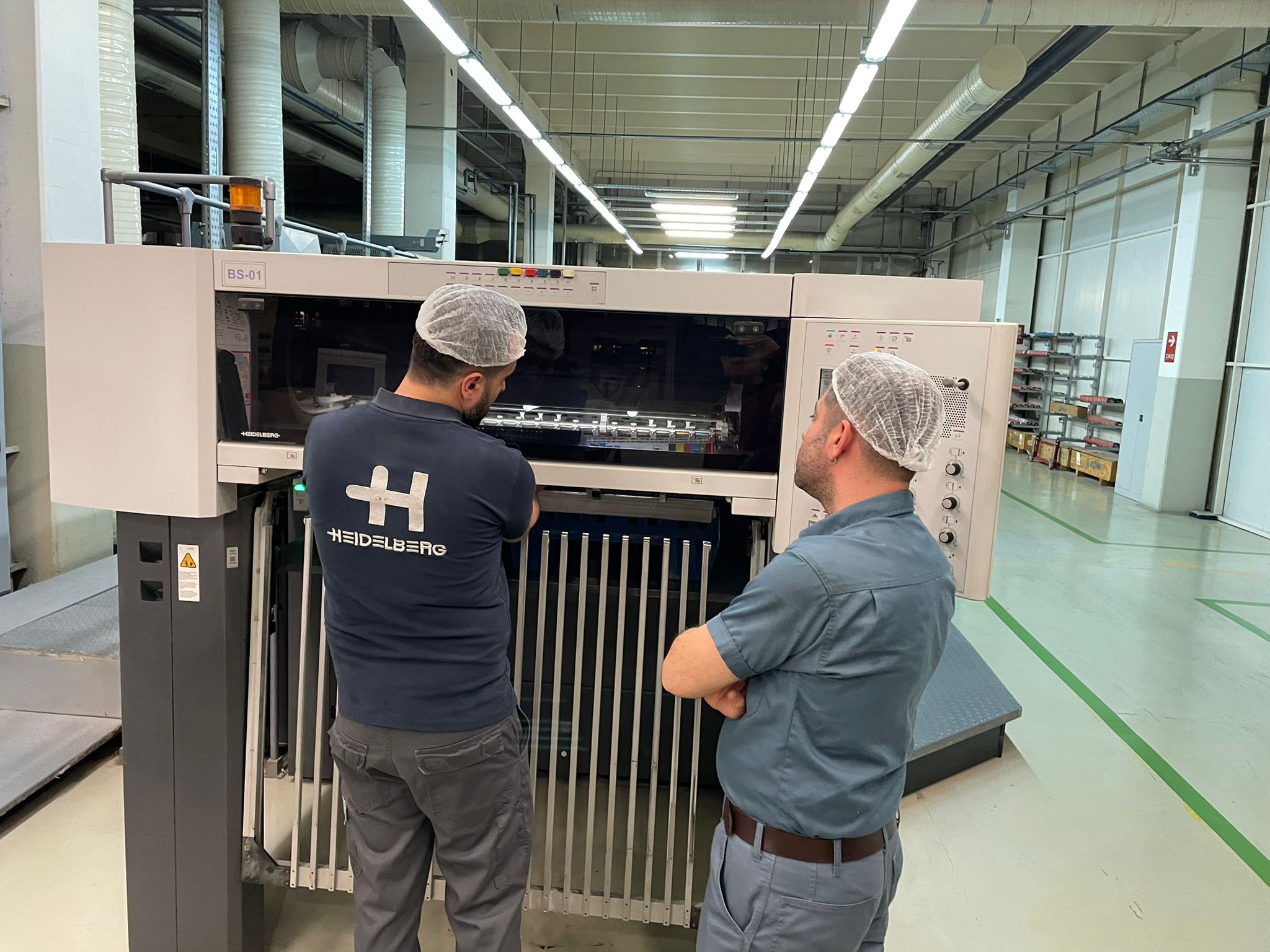

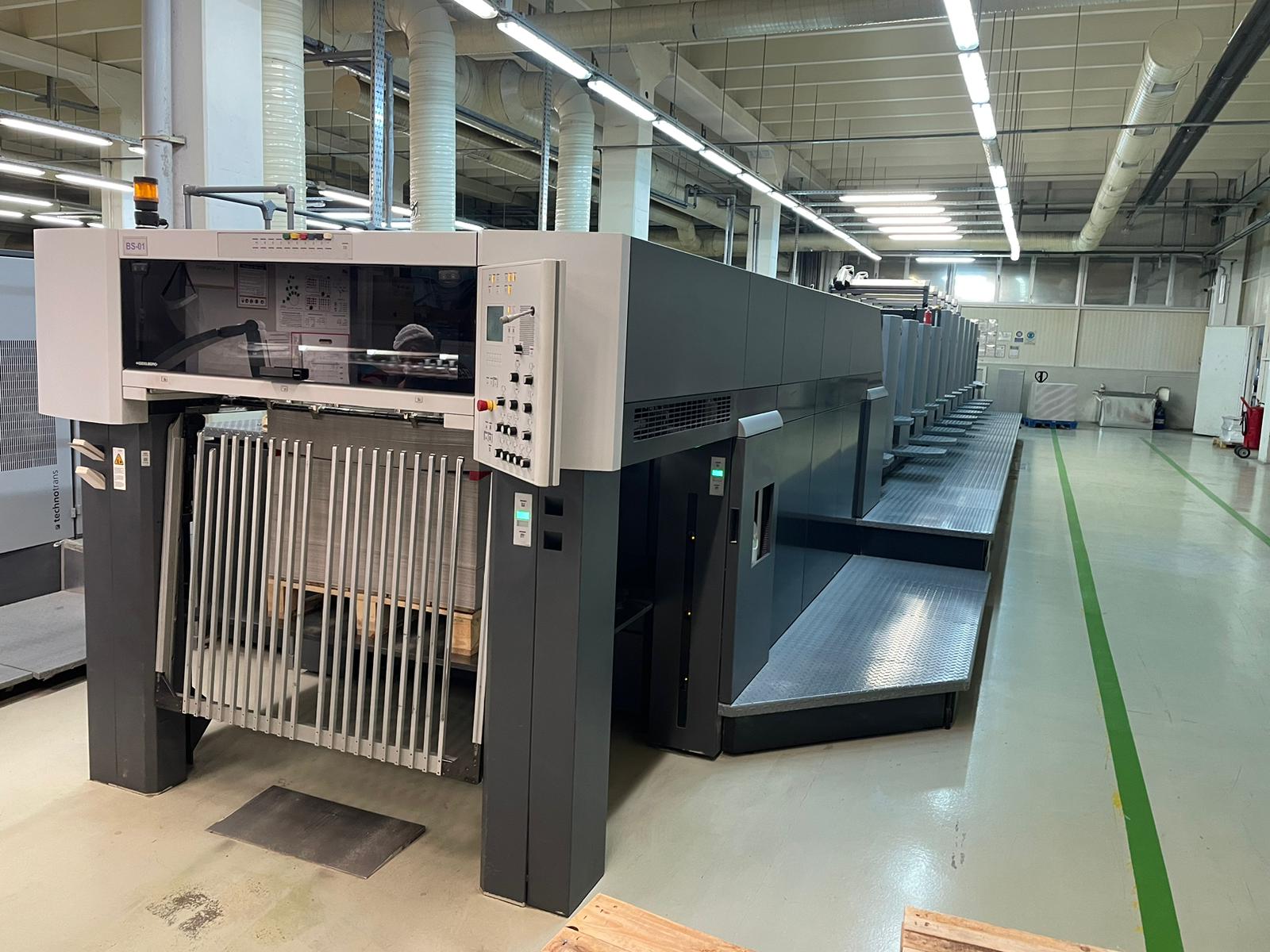

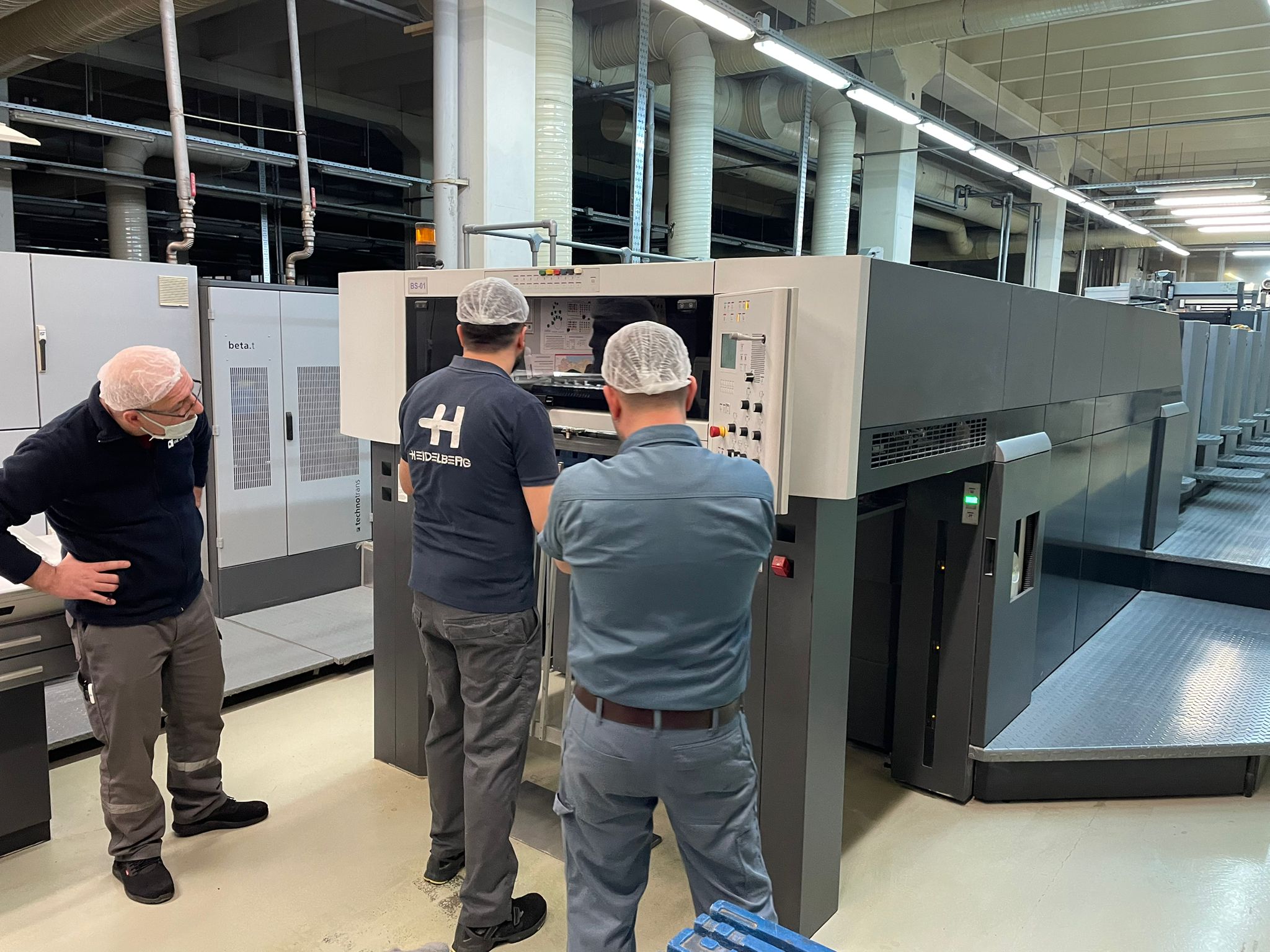

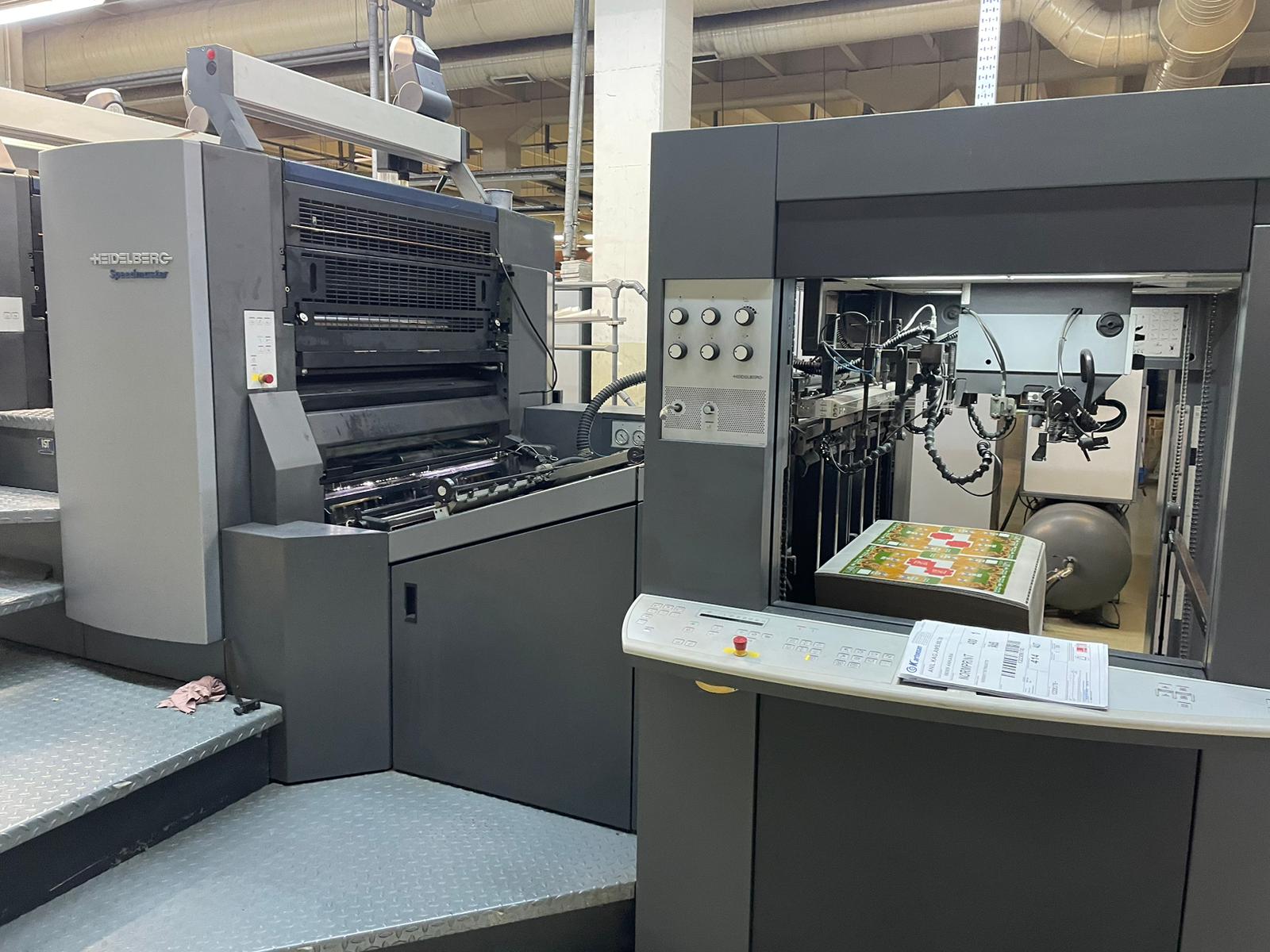

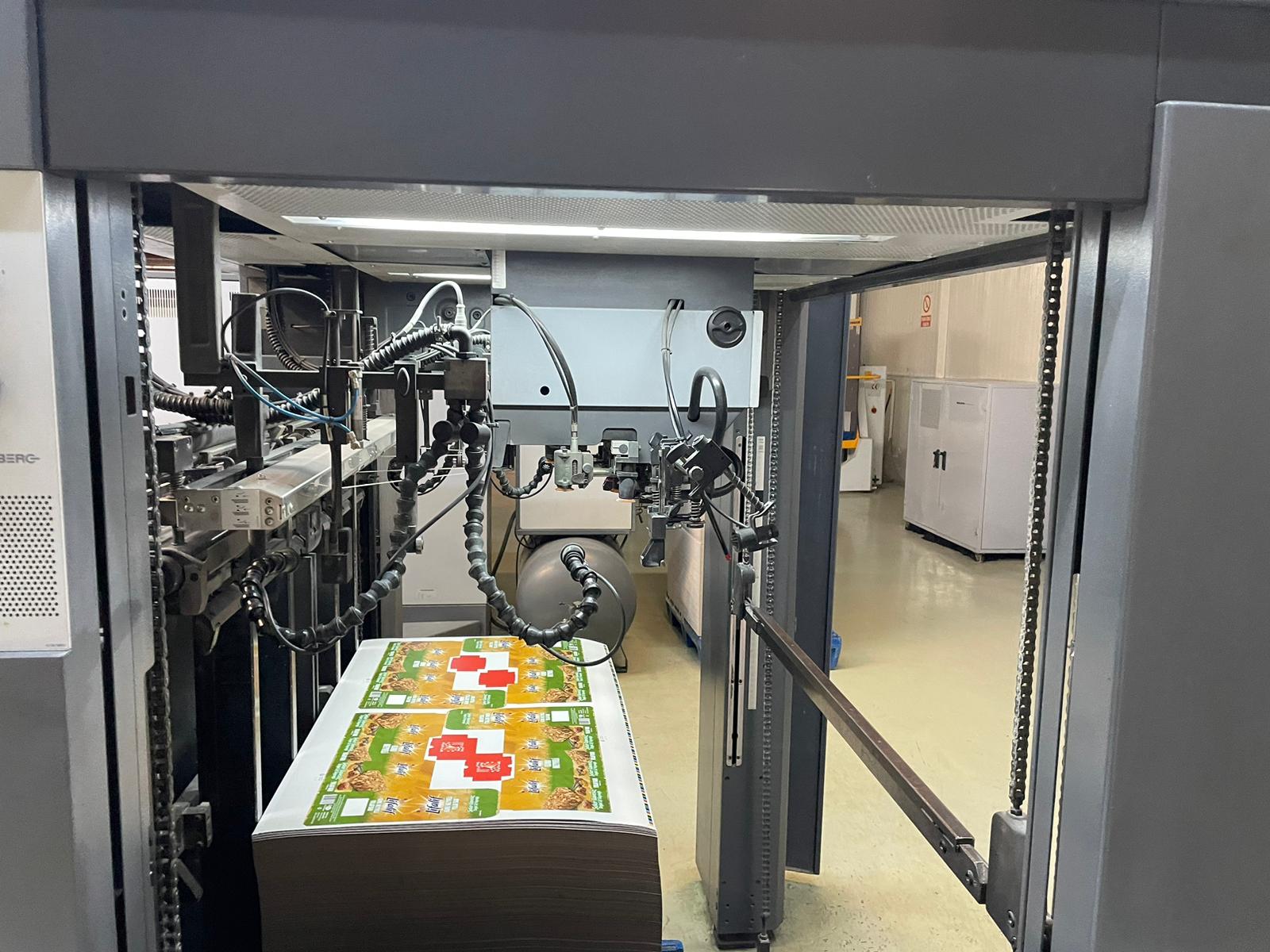

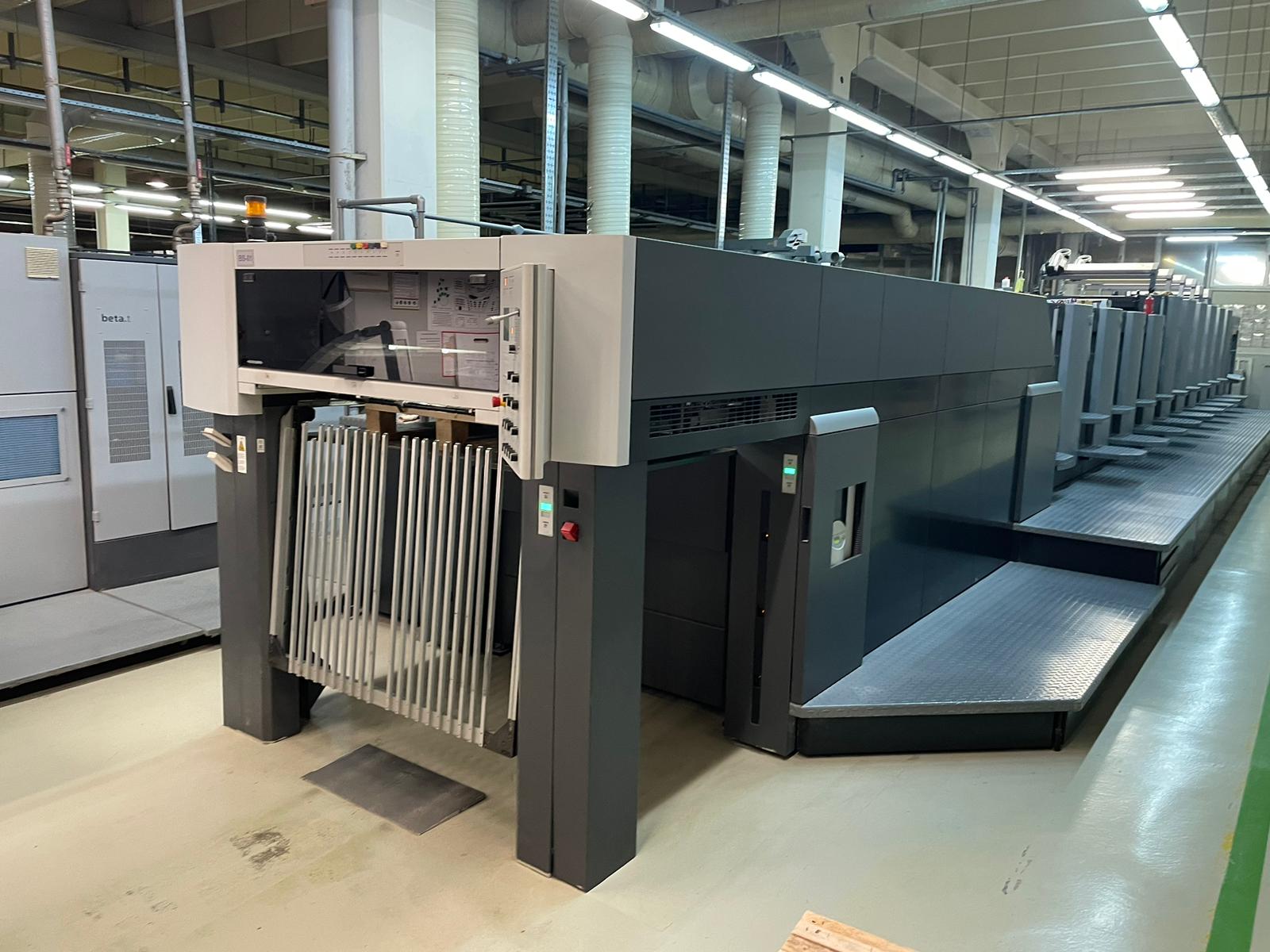

Preset Plus Delivery : a lot of preset functions and memorization, aereodinamic grippers system, slow down system by CP2000, panel in delivery
CleanStar Compact : filter for powder spray suction

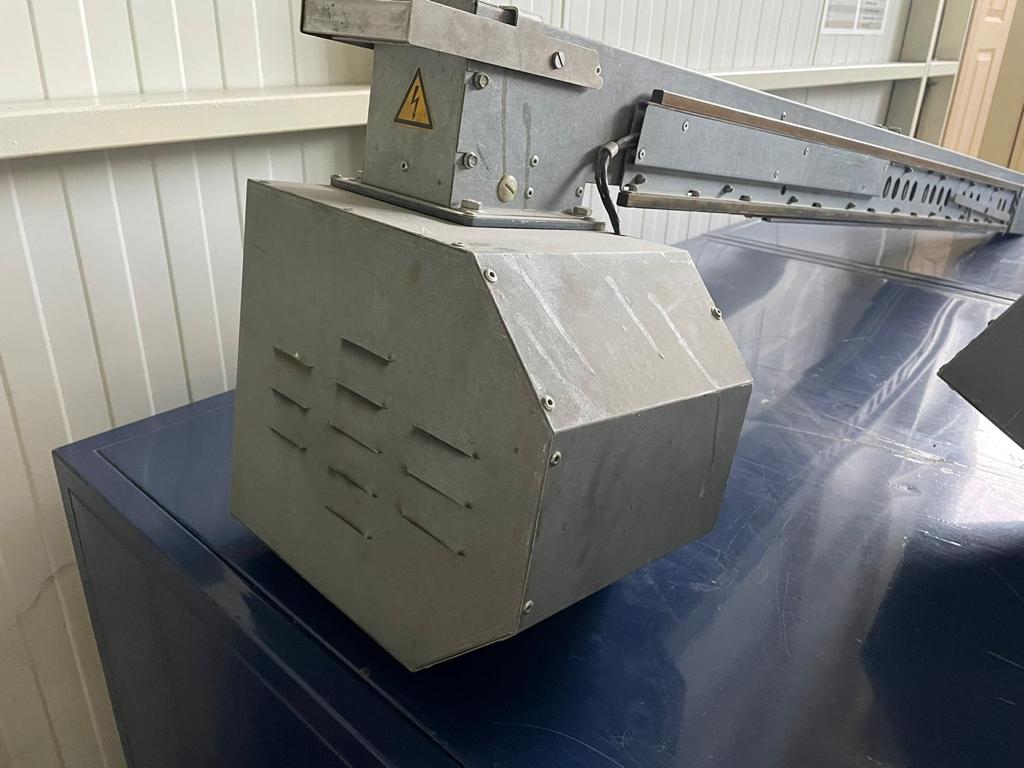

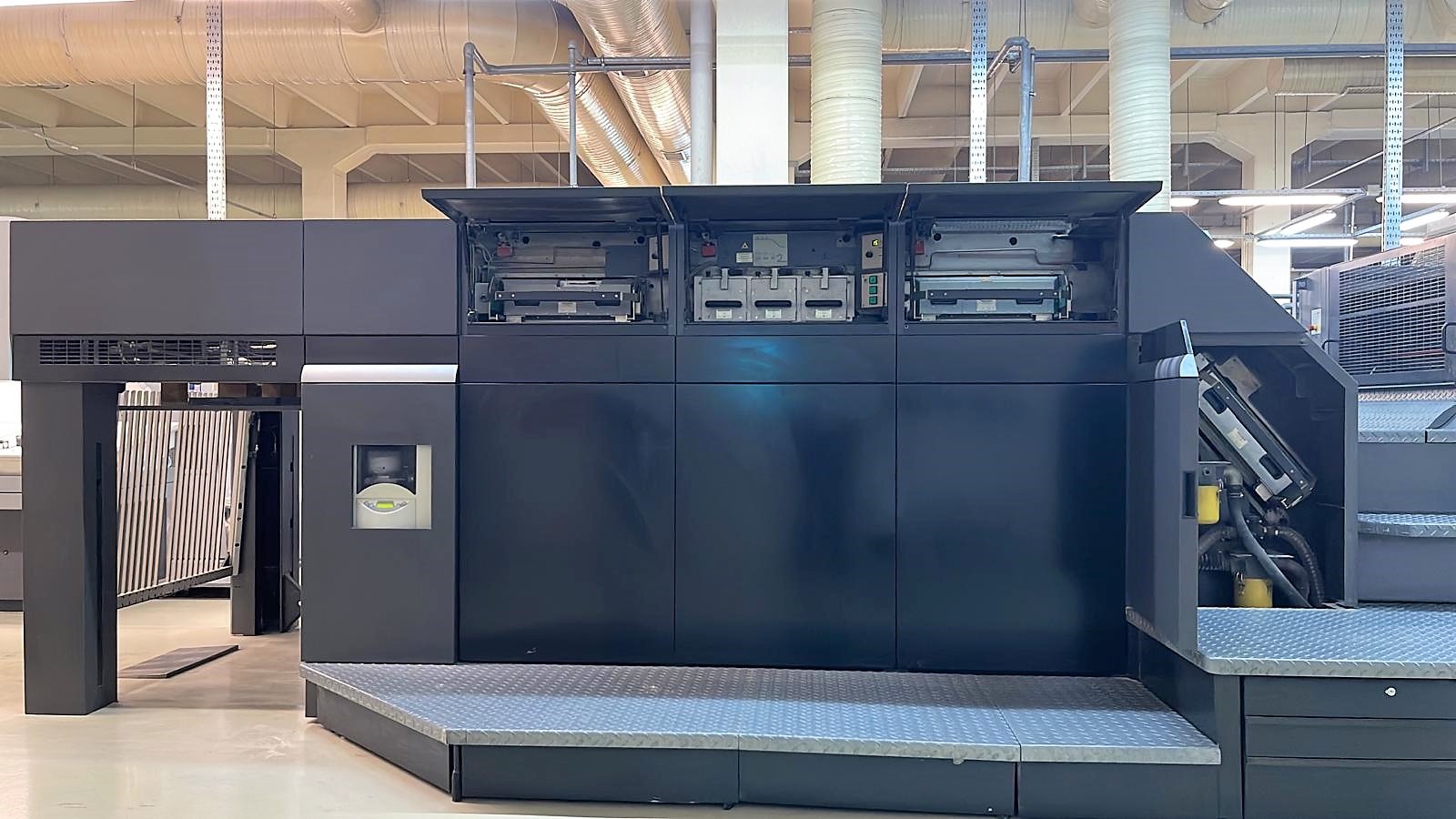

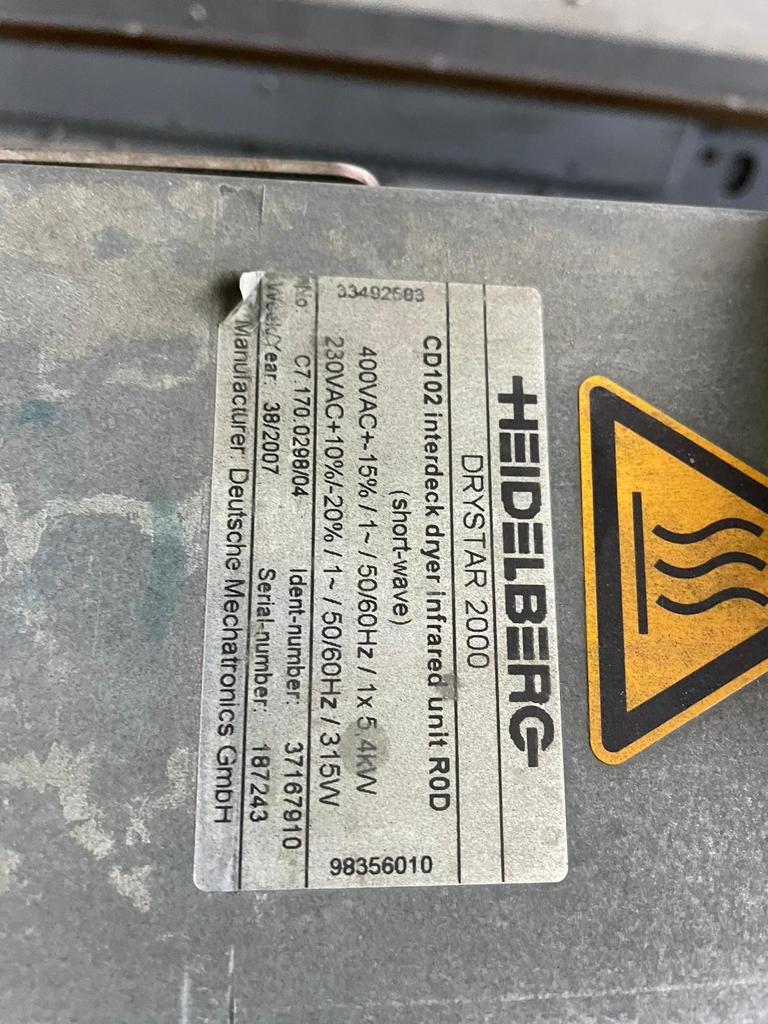

DryStar Combination CanOpen 4 modules: slide-in (Pos.1) 6xIR/HL, slide-in (Pos. 2) HL, slide-in (Pos. 3) UV lamps 200w/cm, slide-in (Pos. 4) enviromental air

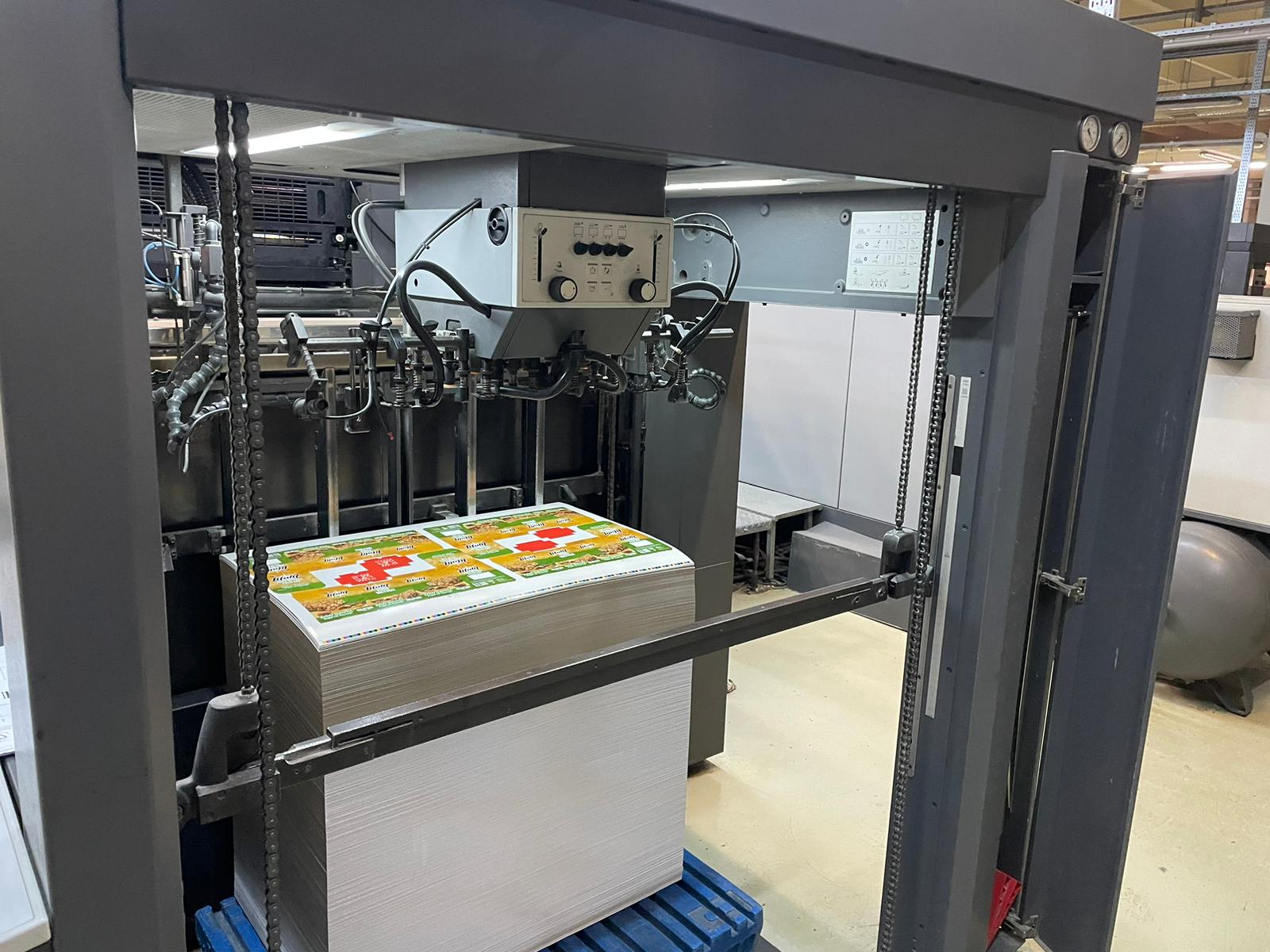

Non-Stop in delivery
PowderStar Weko AP 500
Delivery with UV package
Sheet slow-down device suction drum 9 mm
AirStar : central air box water cooled
ScrollStar : Atlas Copco compressor

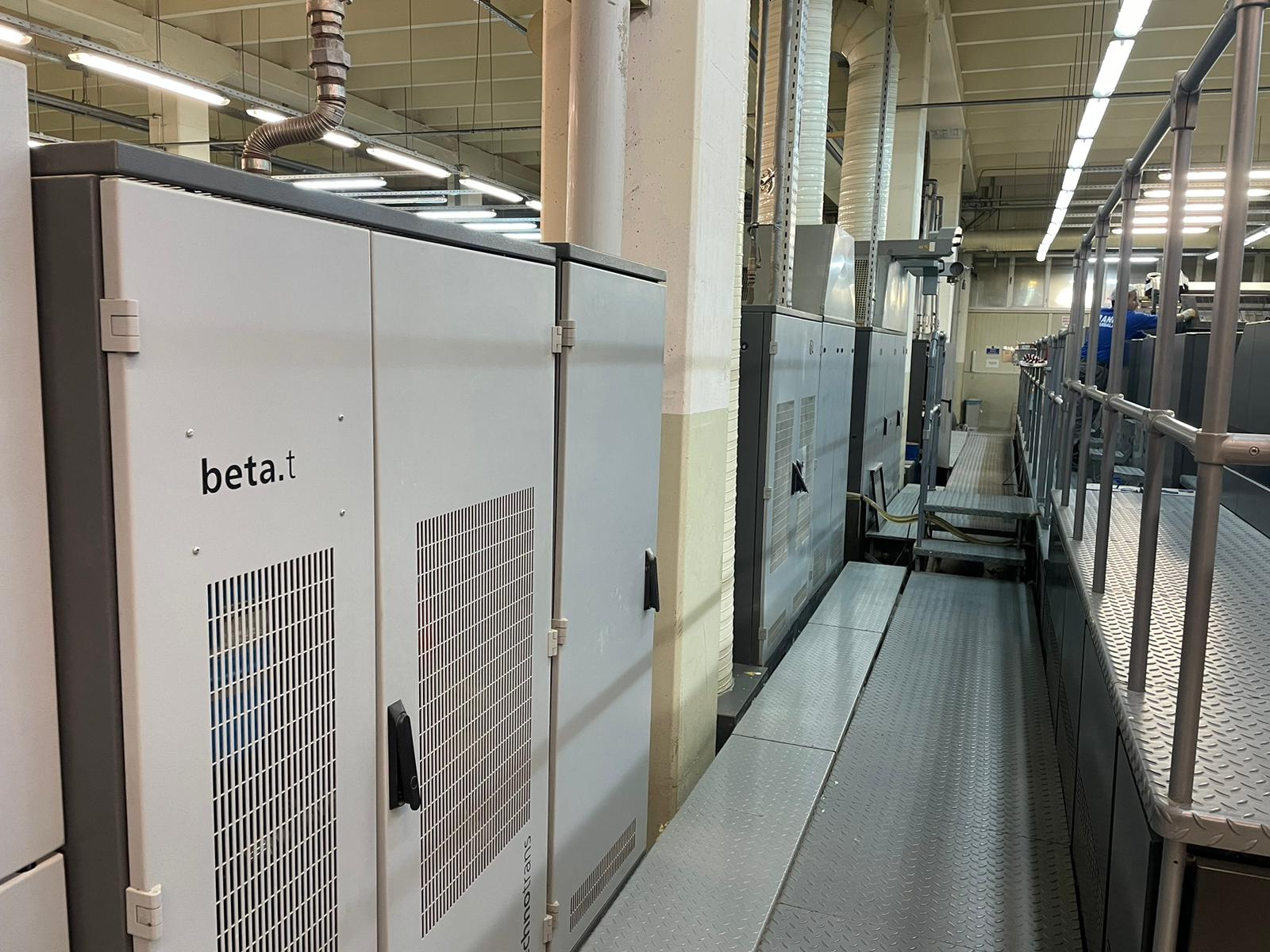

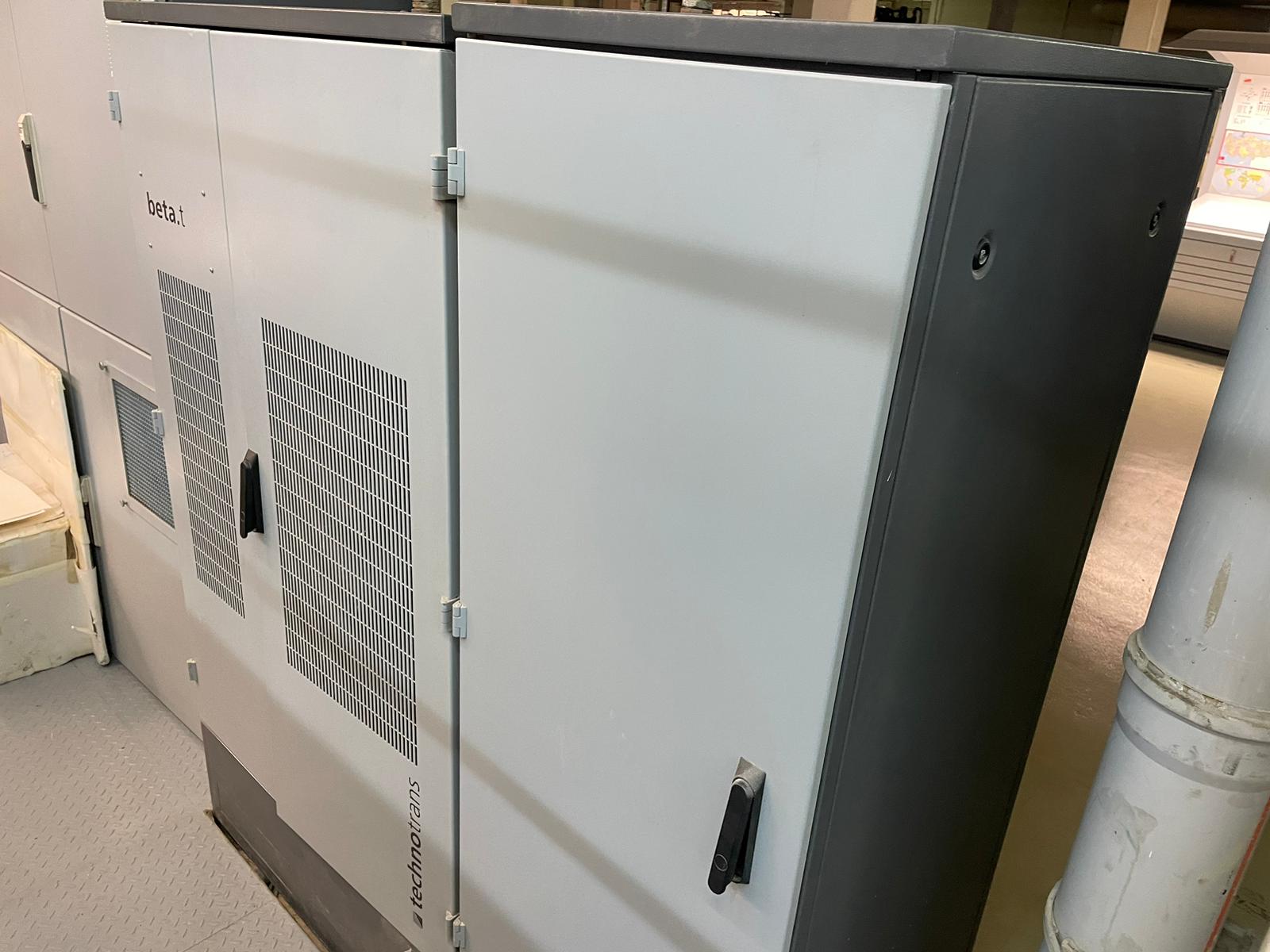

Technotrans Beta.t : Water refrigeration cabin for UV Dryer
15.000 speed/h
Intercom system: Microphone communication system
UV basic equipment
Unit 8° Y: DryStar with 1 IR lamps (fix) + 1 module IR/hot air (removable)
Unit 9° Y: DryStar with 1 IR lamps (fix) + 1 module IR/hot air (removable)

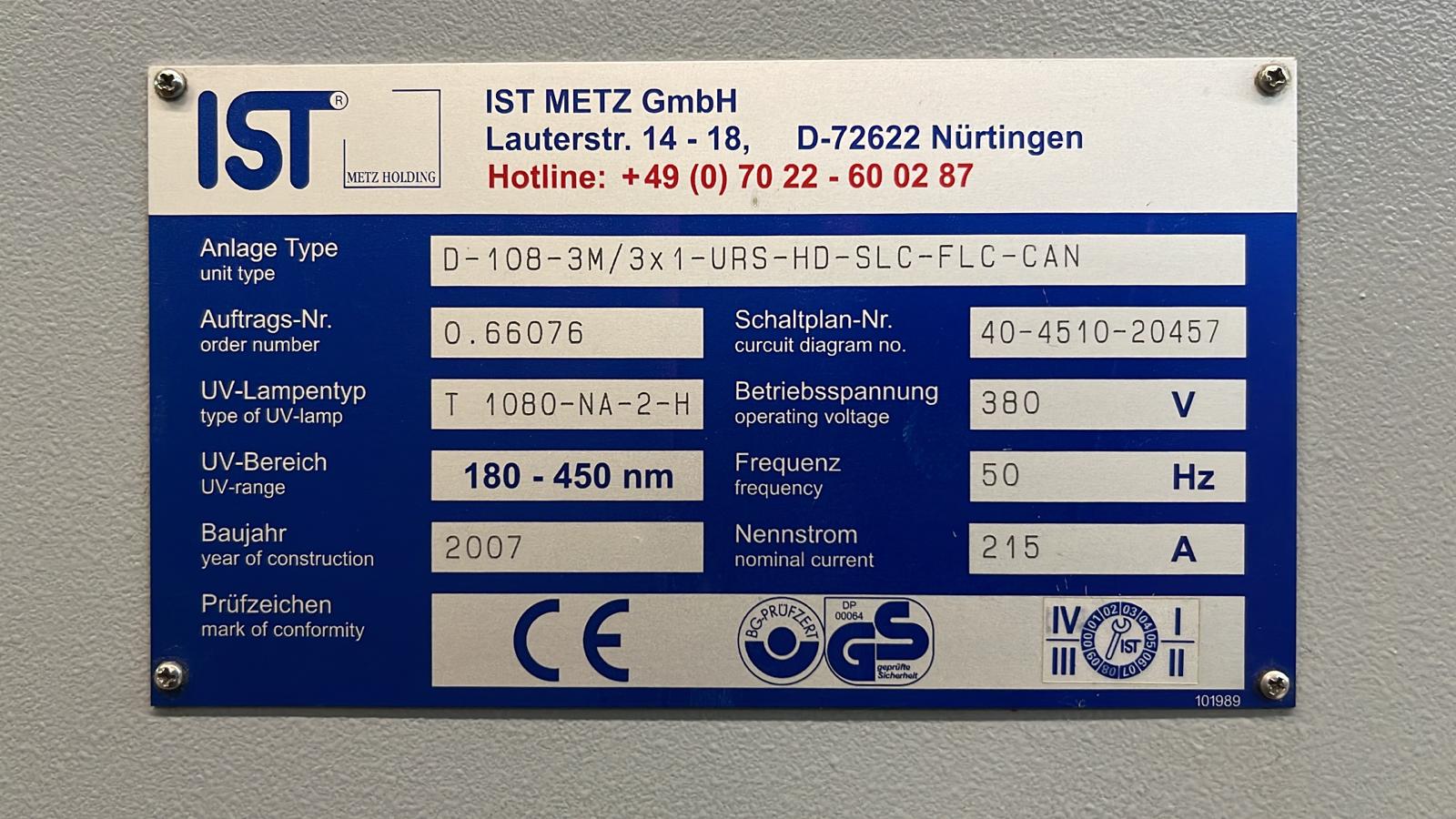

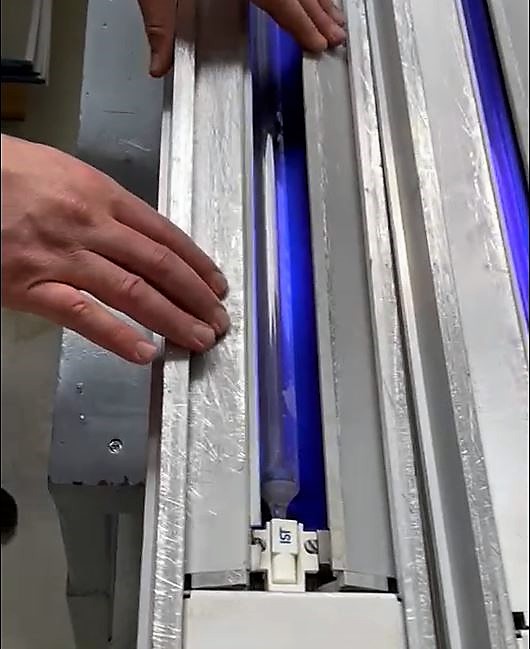

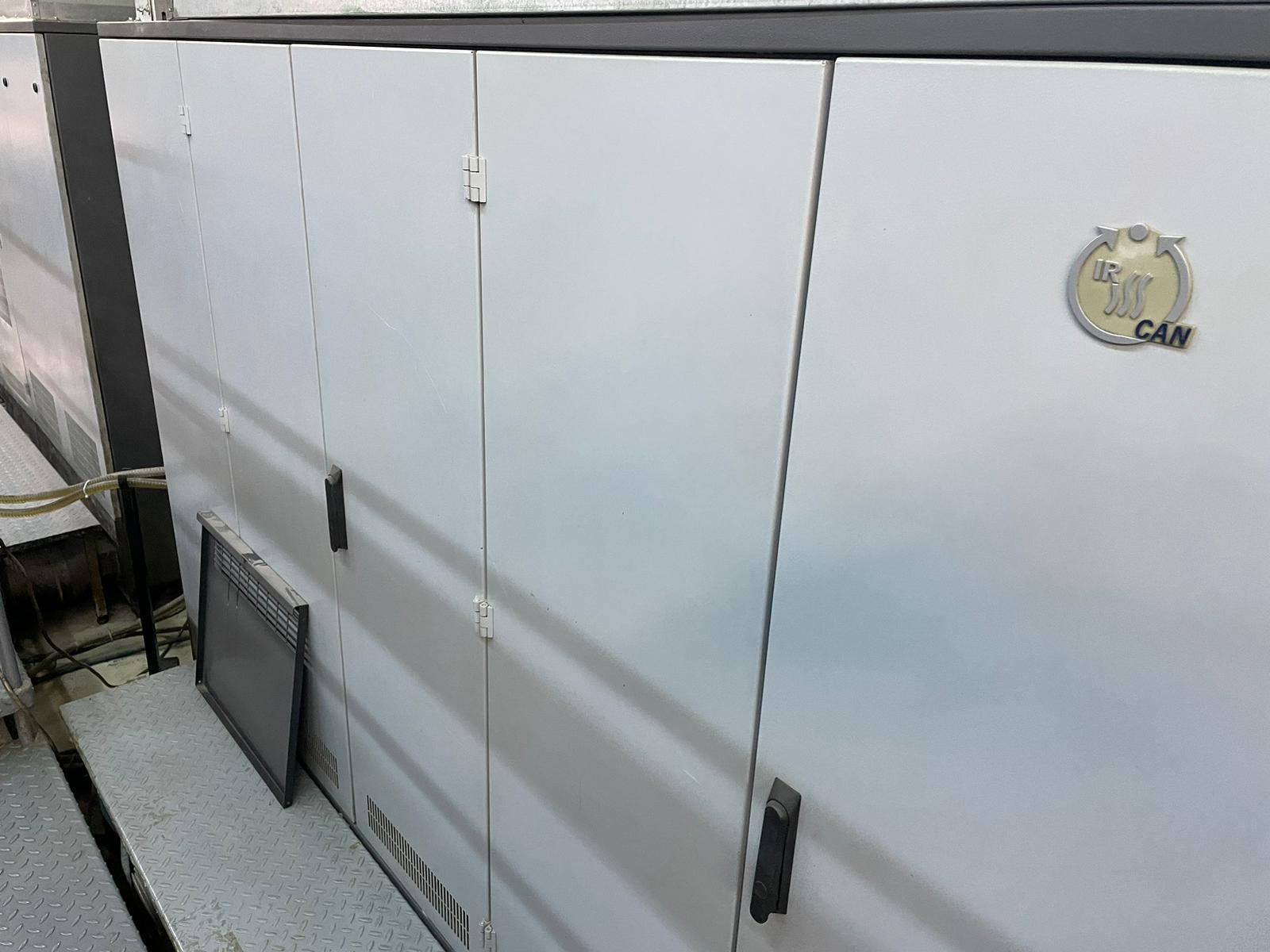

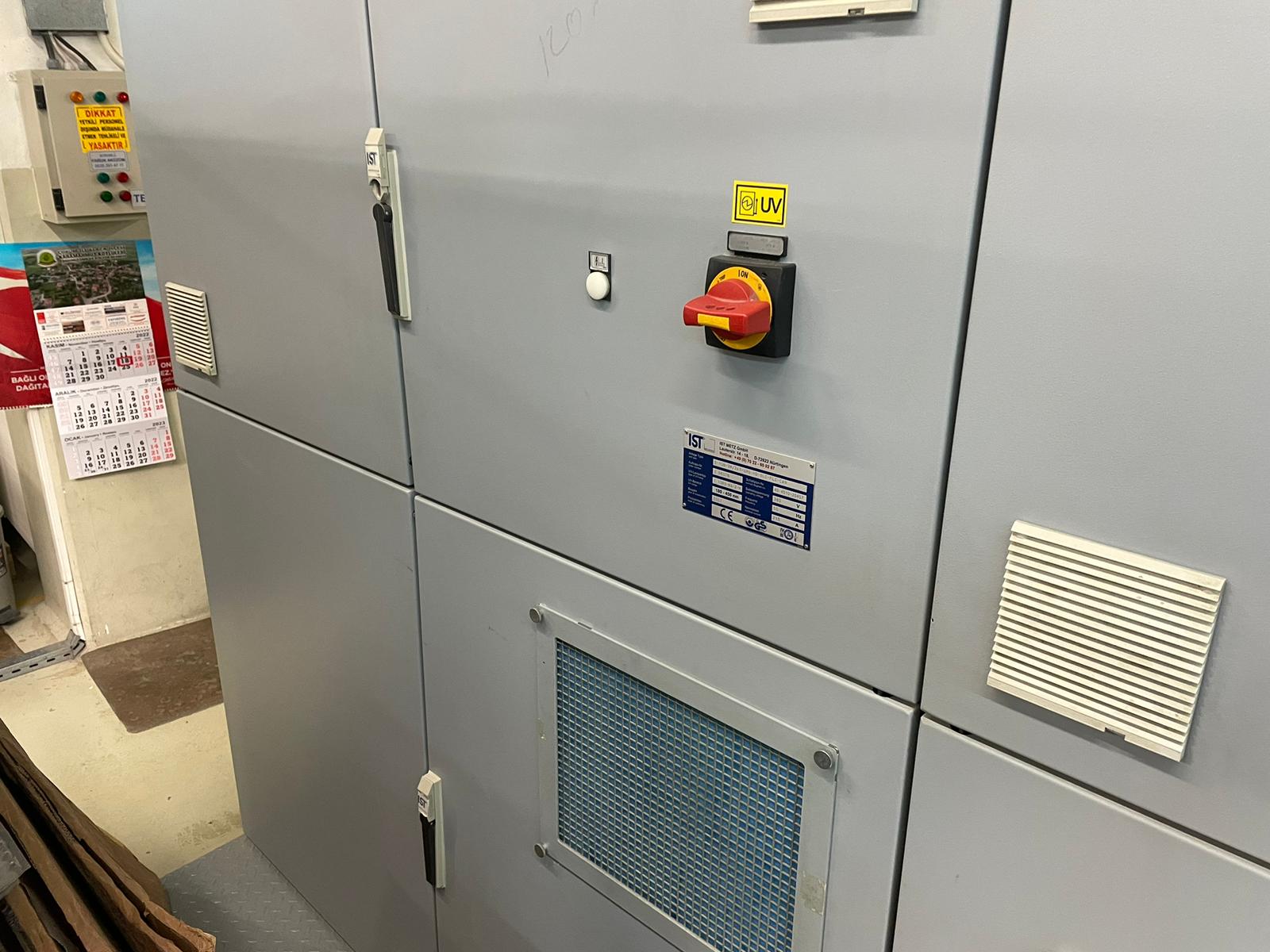

UV IST mod. D-108-3M/3x1-URS-HD-SLC-FLC-CAN
