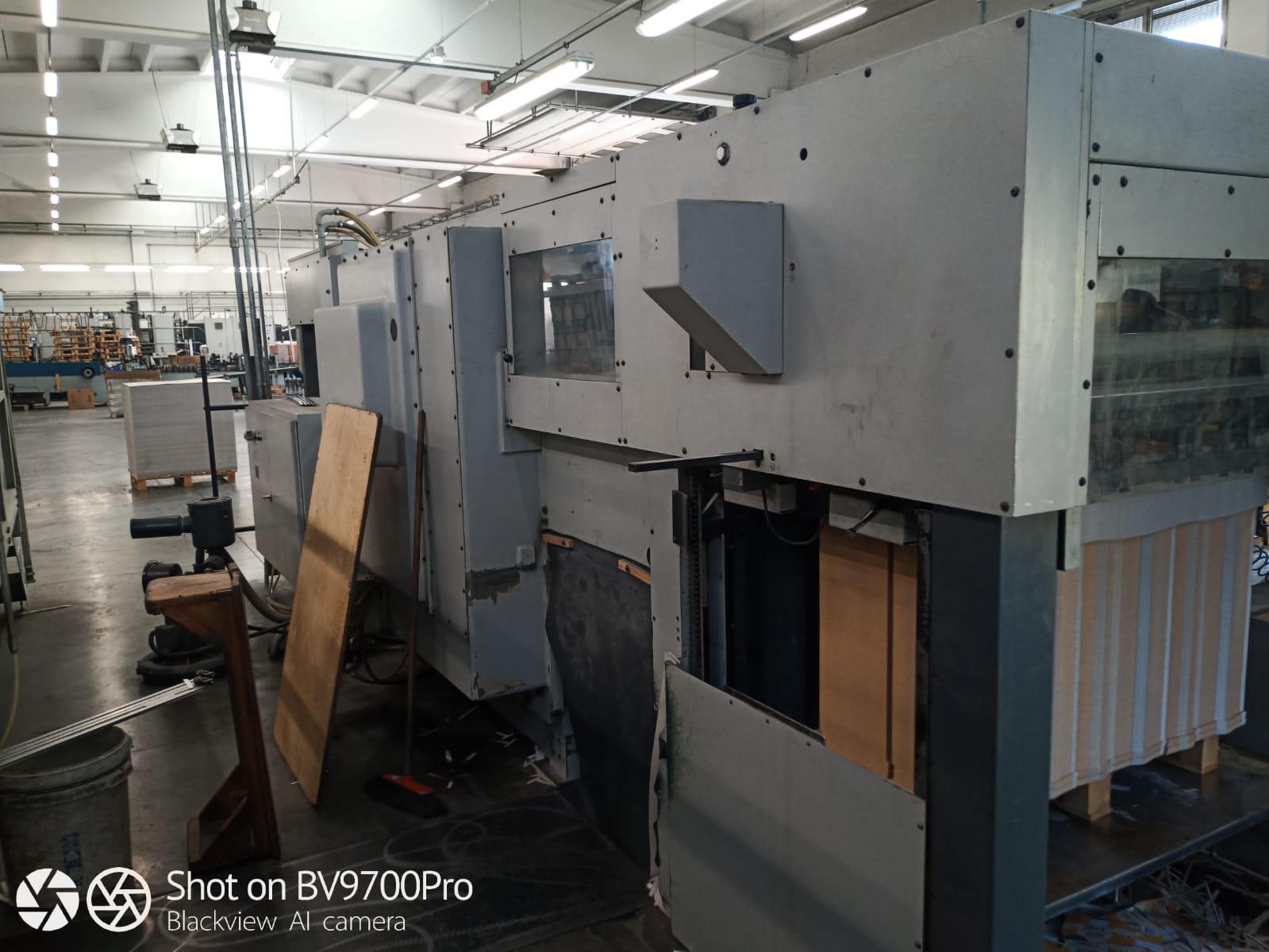

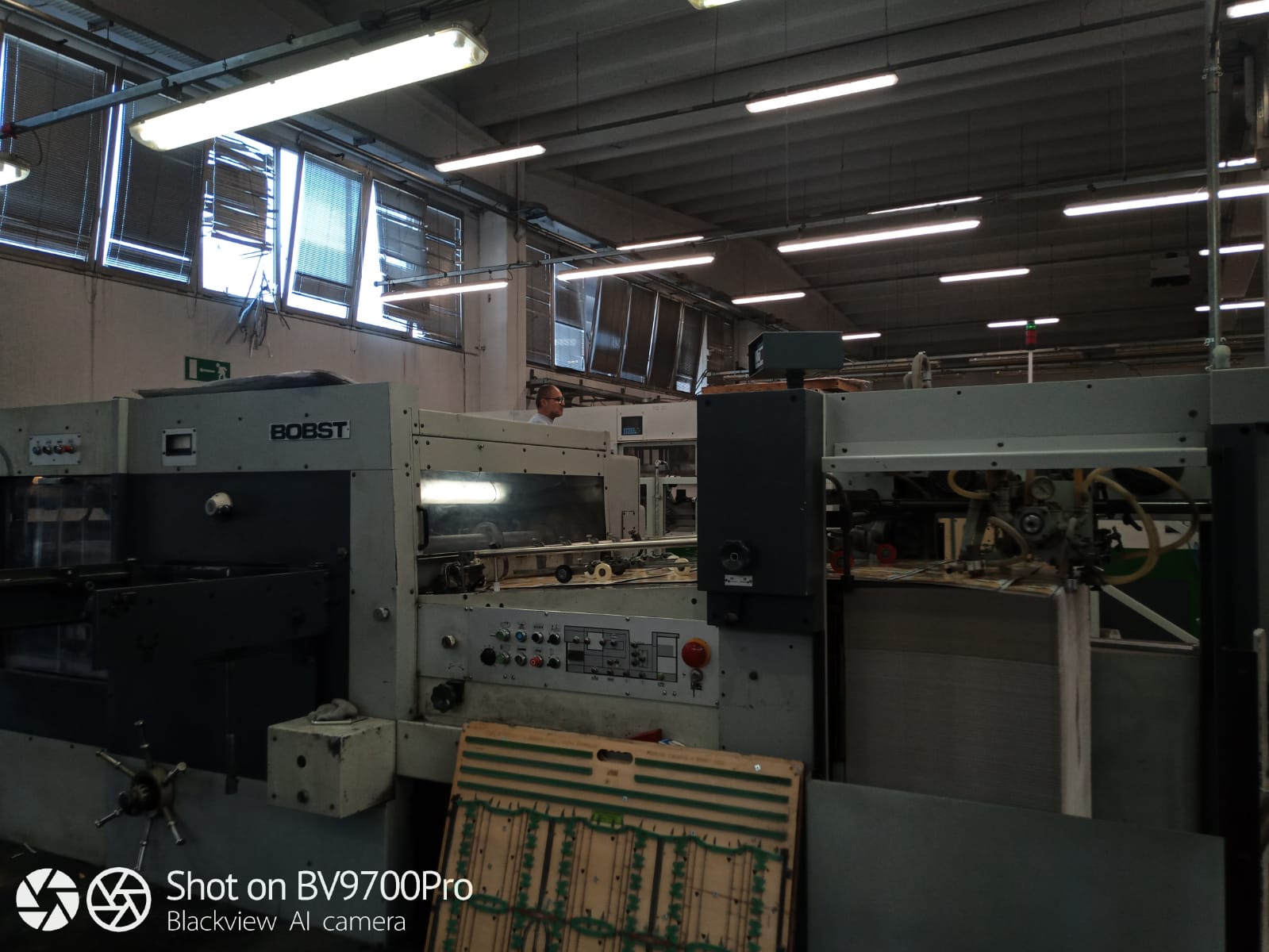

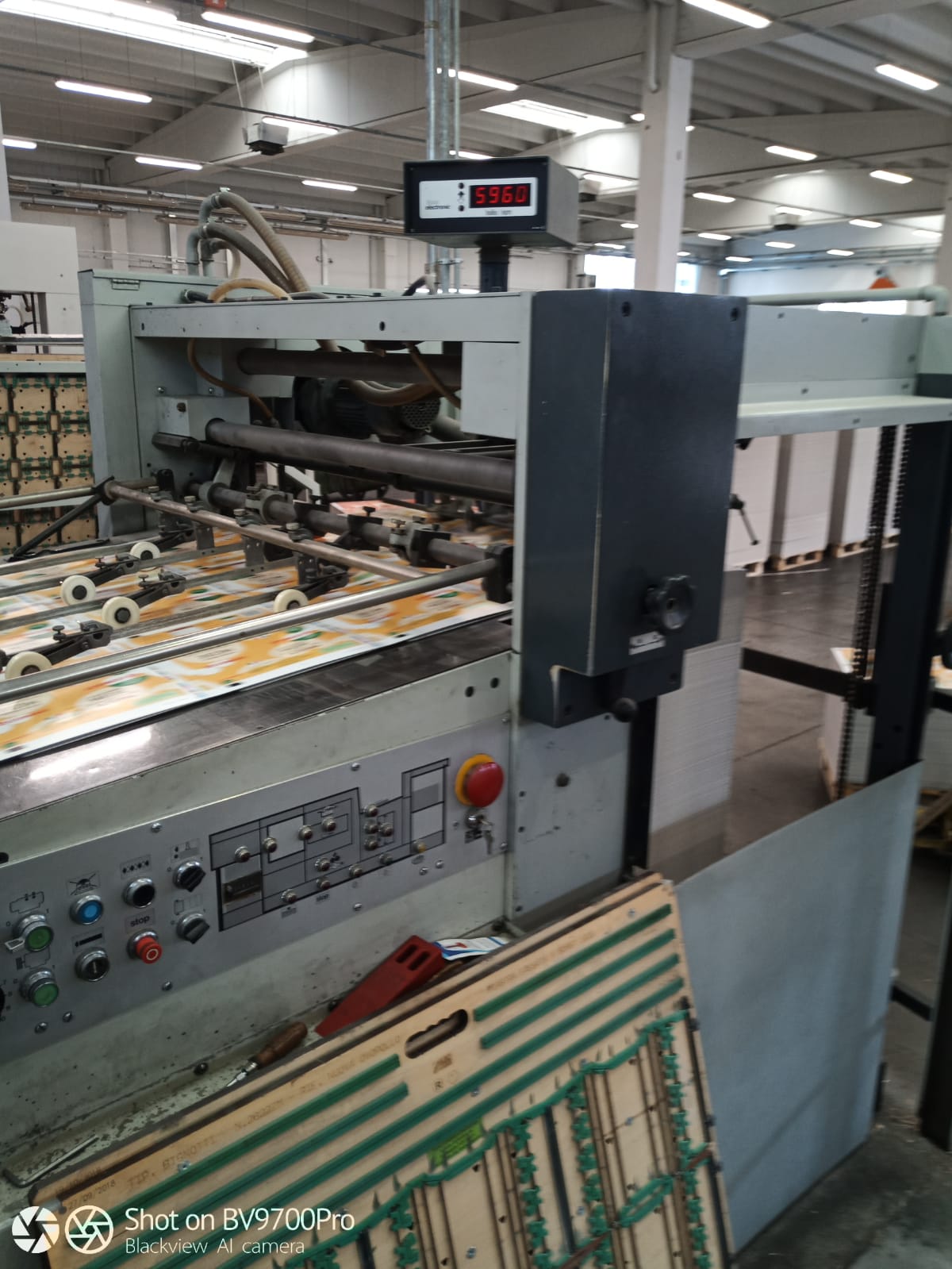

Bobst SP 102 E
| Reference | 23036348 |
|---|---|
| Manufacturer | Bobst |
| Model | SP 102 E |
| Year | 1984 |
| Serial Number | 057104102 |
Accessories
- Pull lay operator side
- Standard Feeder with all its equipment
- Sheet slow-down device on feeder
- Advance and delay adjustment sheet device
- Non-stop on feeder with swords
- Push lay opposite operator side
- 1 die-cutting upper stripping frame
- Diecutting chase (fixed bottom plate)
- Normal die cutting plate 4 mm
- Centerline
- 1 lower stripping frame with all its standard equipment
- Non-stop delivery with belt convey
- Cutting force 250 TON
- Board quality processable : carta (min. 80g/m²); cartone (250/2000 g/m²); corrugato E e B (max 4 mm.)
- Cutting size : with front trim ( max. 705 x 1020 mm.); without front trim (max. 720 x 1020 mm.)
- 7.500 speed/h (depending on cardboard and type of iob feature)
- Pile height at feeder : With non-stop system (max. 1100 mm.) - Without non-stop system (max. 1.400 mm.)
- Compete with aluminium bars, needles supports and needles
- All books, electrical scheme, manual instruction books, spare parts books and standard tools
- Adjustable grippers 8-17 mm
