Heidelberg XL75-5 LX3 C-Hybrid

Type5 colors
ModelXL75-5 LX3 C-Hybrid
Serial NumberLS000022
N.of Impressions85

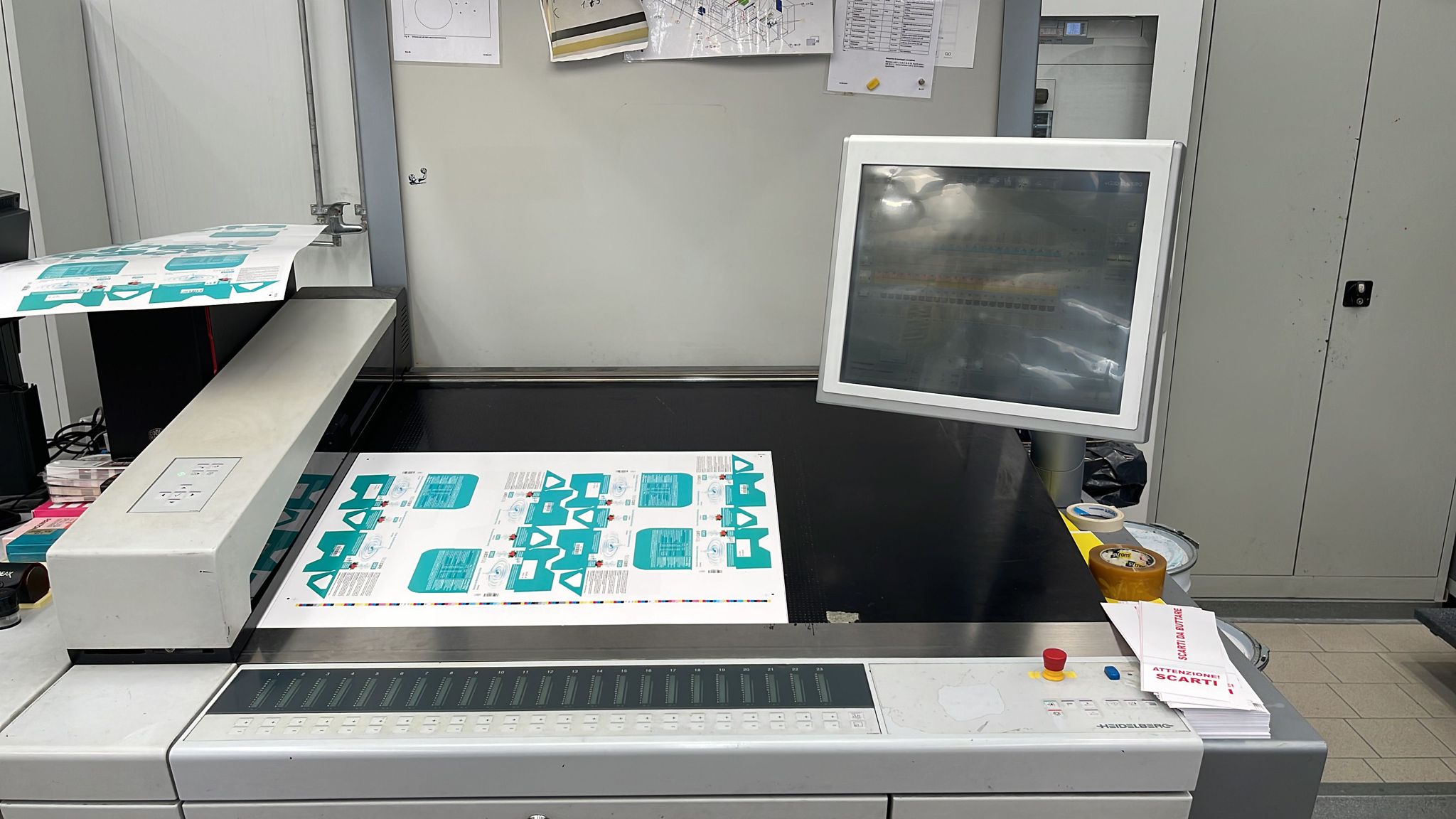

  • Prinect Press Center console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization
  • Prinect Press Center MasterLevel
  • Axis Control : spectrophotometric quality control
  • Press Center InstantStar
  • Press Center Color Assistant
  • Prinect Press Center IntantGate
  • Pile height sensor
  • Pneumatic side register control with integrated auto cleaning and double sheet control with direct system
  • Suction belt on feeder
  • Double sheet detector - pulling device
  • Ultrasonic double-sheet detector
  • Antistatic on feeder Advanced
  • StaticStar Compact : No. 2 Eltex ion blowers on feeder, antistatic bars on feeder and delivery
  • Alcolor damping with Vario system
  • Double diameter impression cylinders
  • Double diameter transfer cylinder between printing units, with Air Transfer System with possibility to adjust automatically it based on thickness of material to print
  • Roller wash-up device controlled by Prinect Press Center
  • Blanket and impression cylinders automatic washing devices by Prinect Press Center
  • CombiStar CAN beta.c 160 G: Tecnotrans ink temp control combined with damping refrigeration + Alcosmart AZR
  • No. 2 x IST/UV interdeck dryers to put in all transfer positions (full flexibility)
  • ZDT preparation after unit 1°, 2°, 3°, 4°, 5°

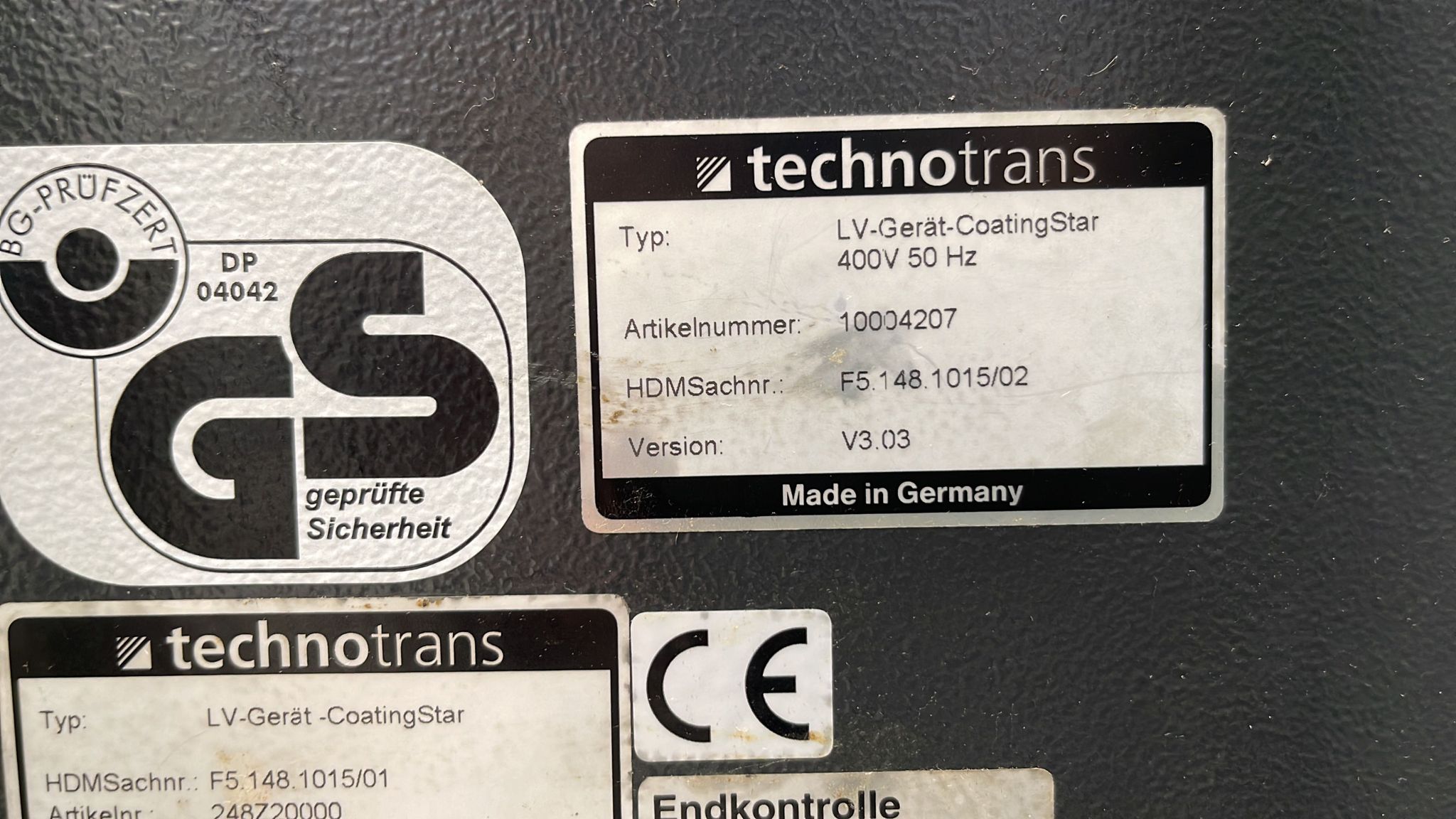

  • Coating Star : heat coater system
  • Varnishing unit, with cooking register, Tresu chambered doctor blade system, with anilox roller
  • Coating pump for dual Hydro and UV circulation system
  • UV package coating unit
  • Weko AP232 powder spray device
  • Delivery with UV package

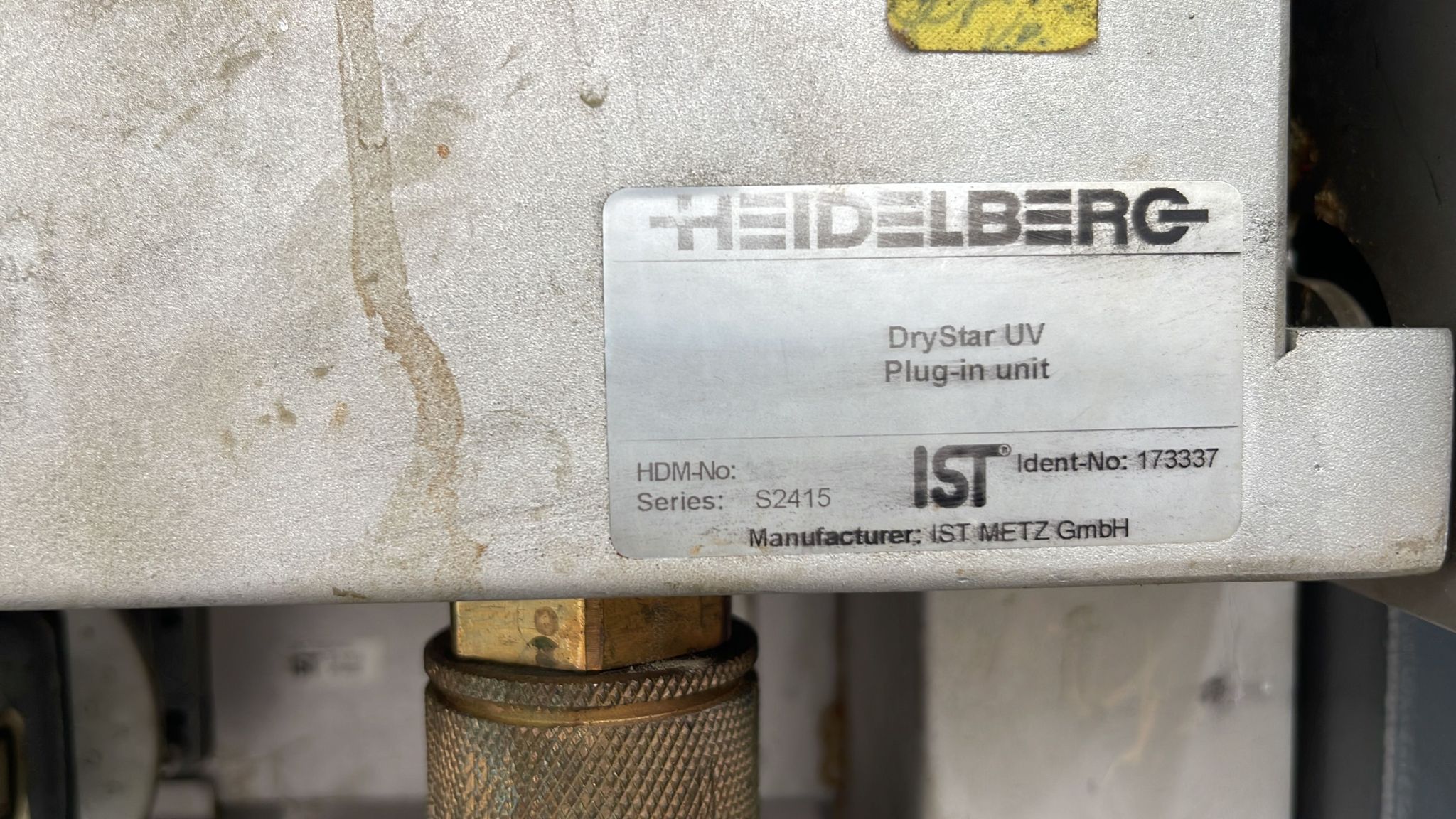

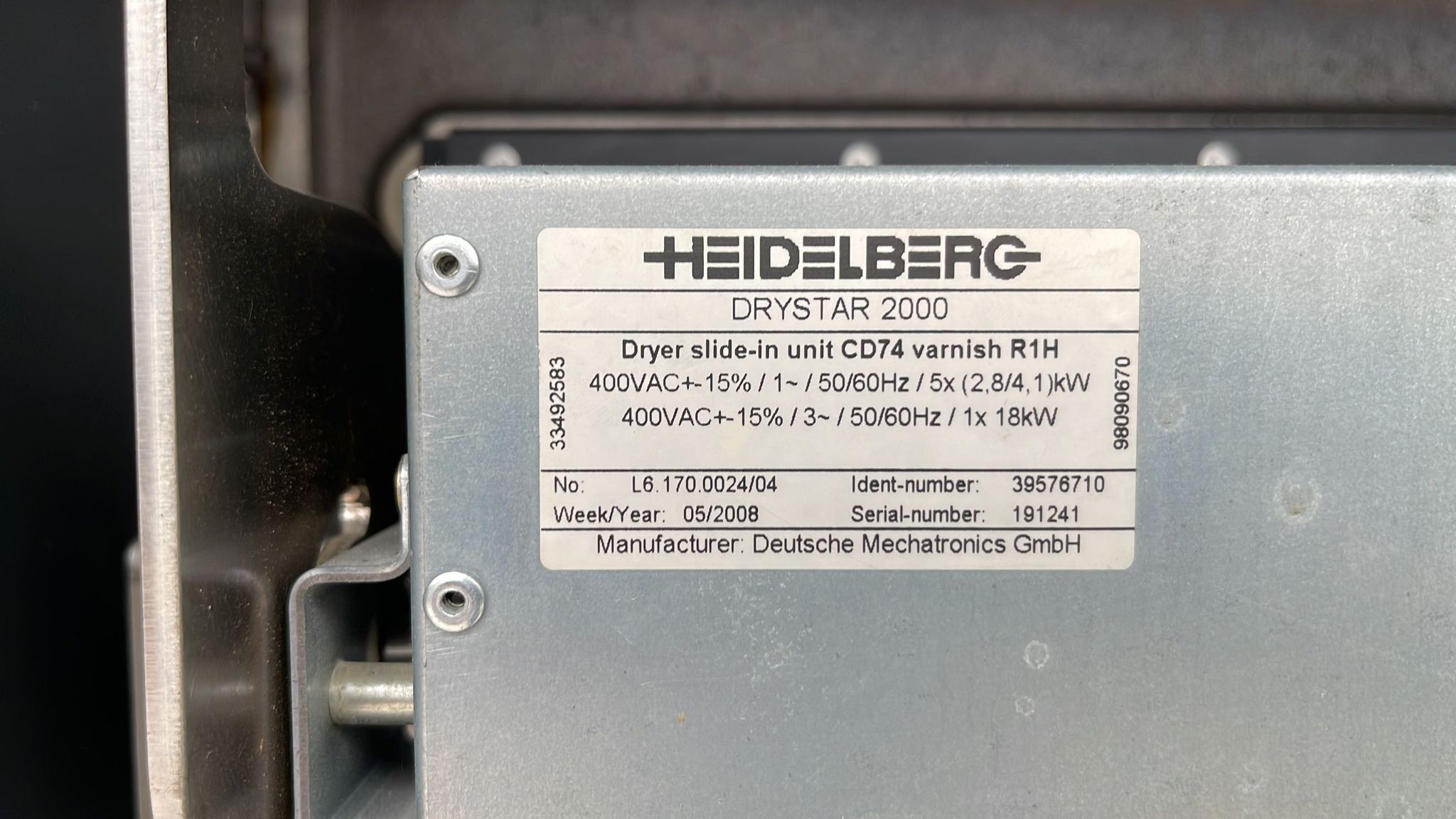

  • DryStar 2000 Combination via CanOpen (5 slide-in dryers) : pos. 1 dryer slide-in unit IR/HA hot air; pos. 2 HA hot air; pos. 3 dryer slide-in unit IR/HA hot air; pos. 4 No. x2 IST UV lamps; pos. 5 KL cold air
  • ScrollStar : Atlas Copco compressor

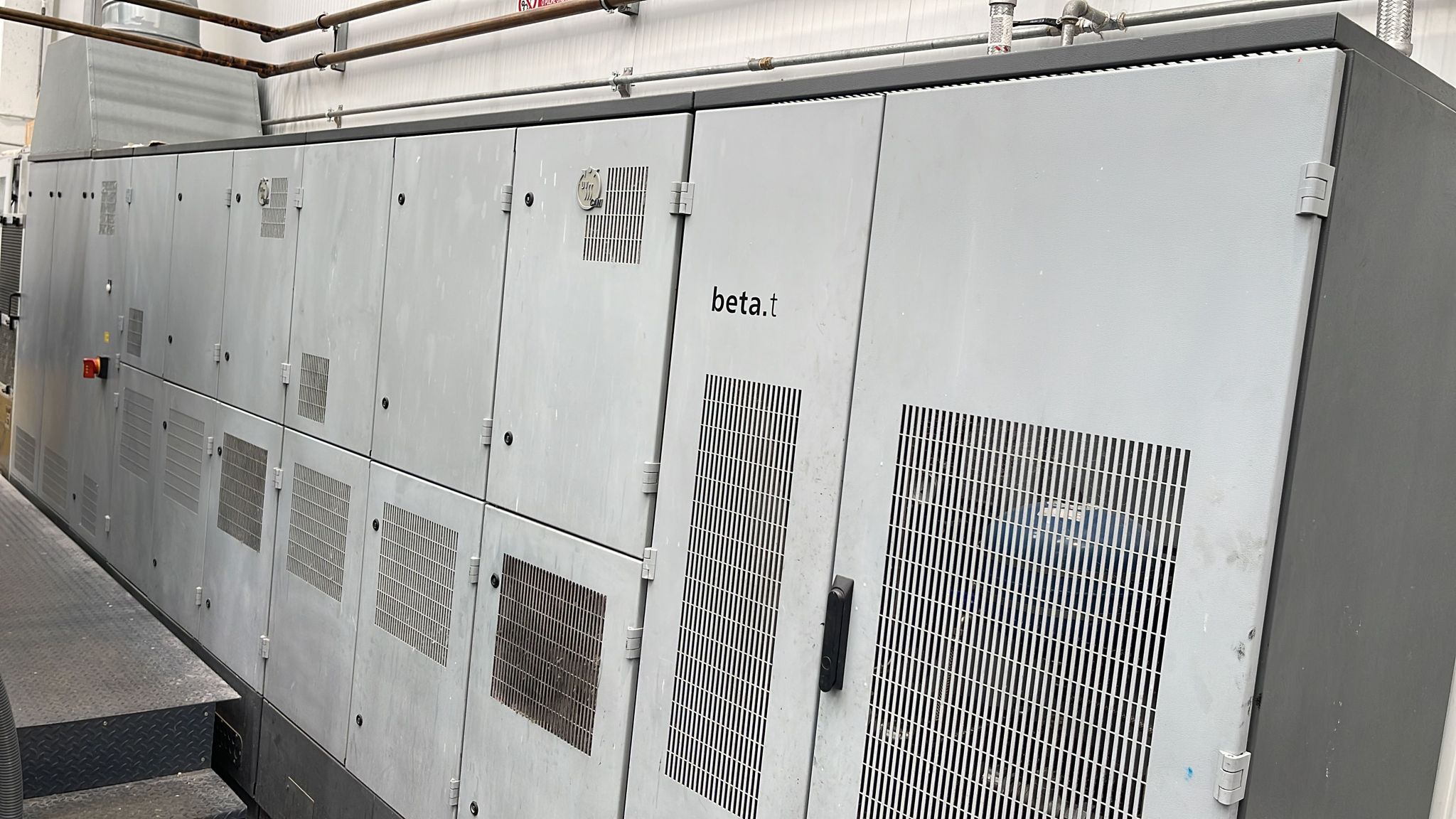

  • Technotrans Beta.t
  • AirStar : central air box water cooled
  • Speed 15.000 c/h
  • Preset : automatic size device on feeder & delivery with pressure adjustment by Prinect
  • UV basic equipment
