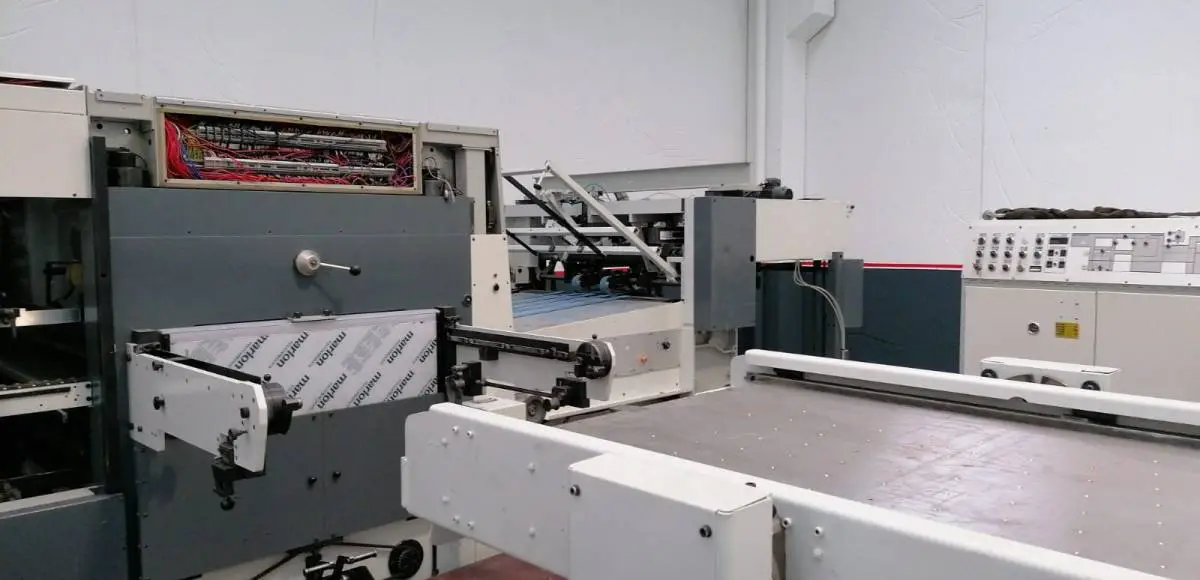

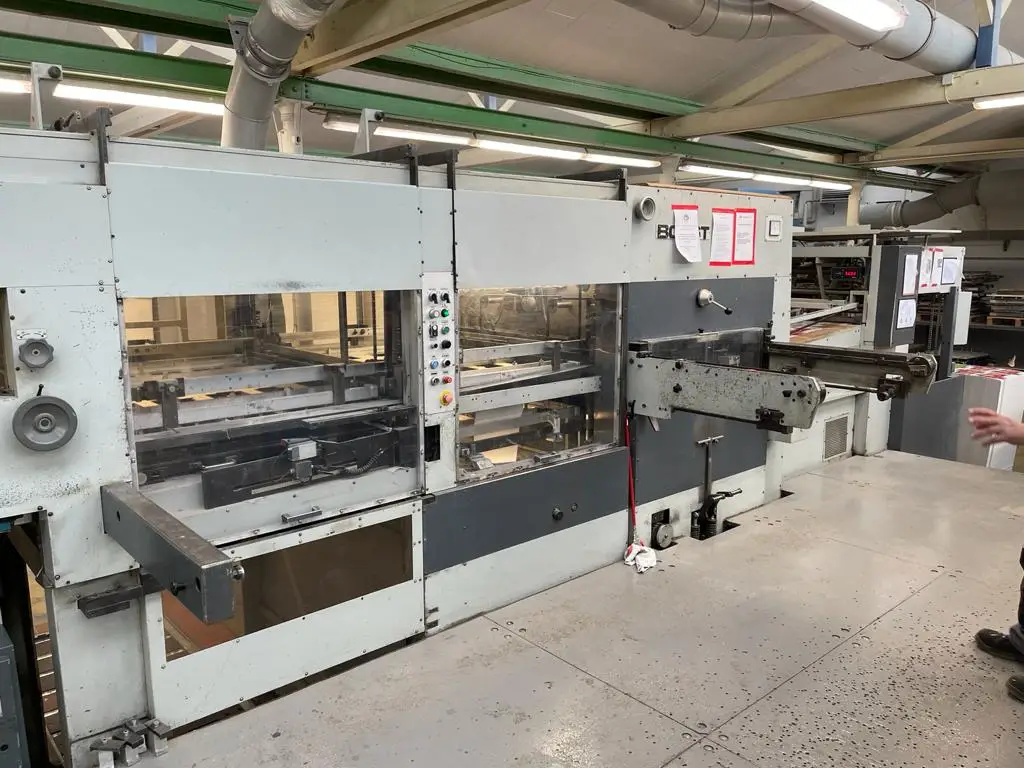

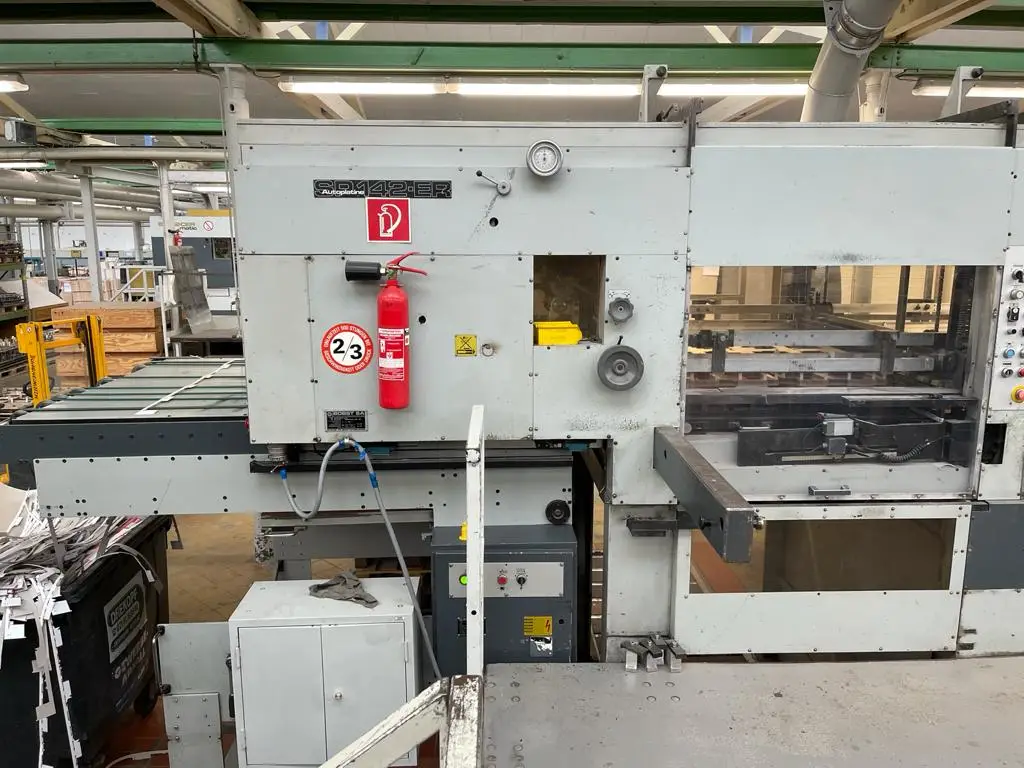

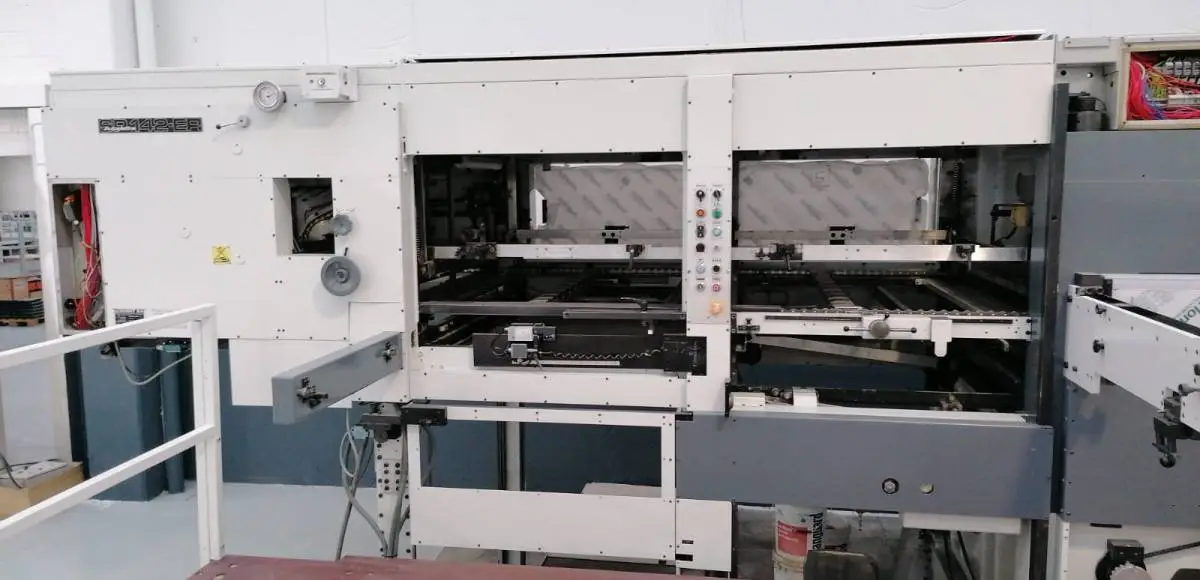

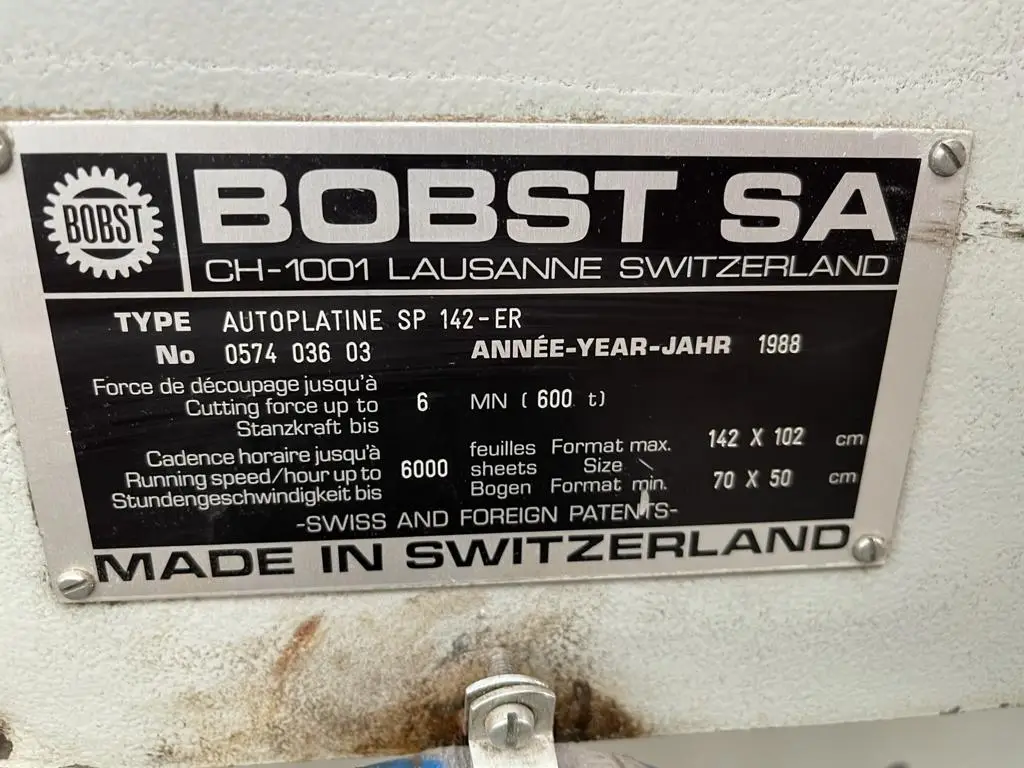

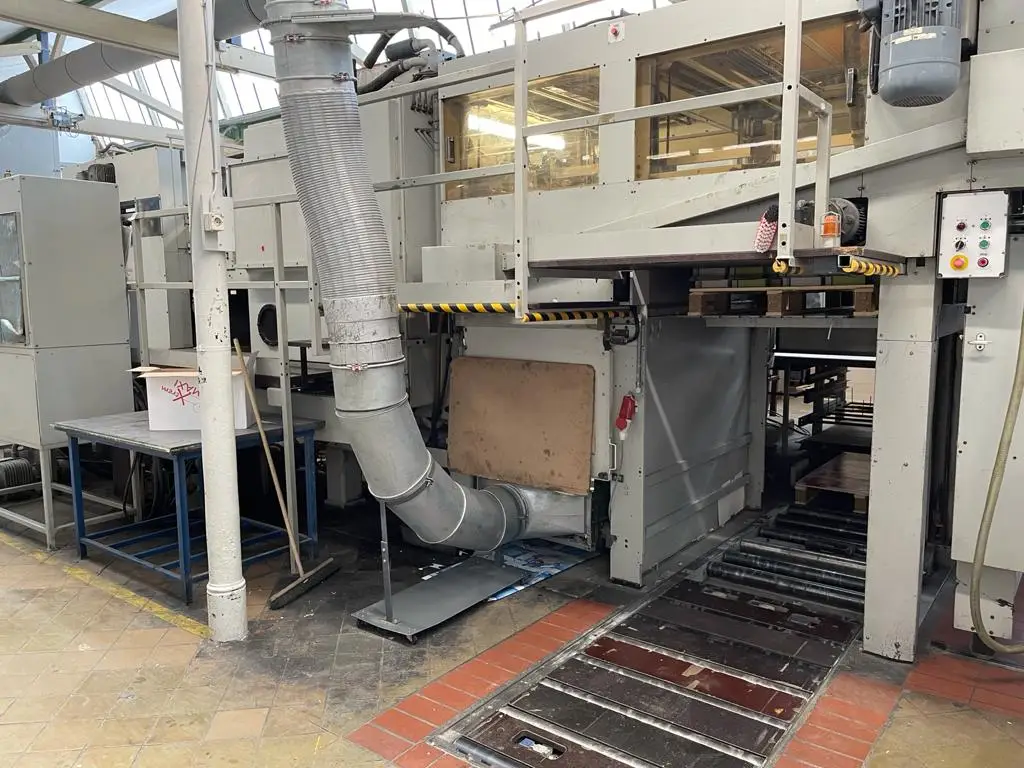

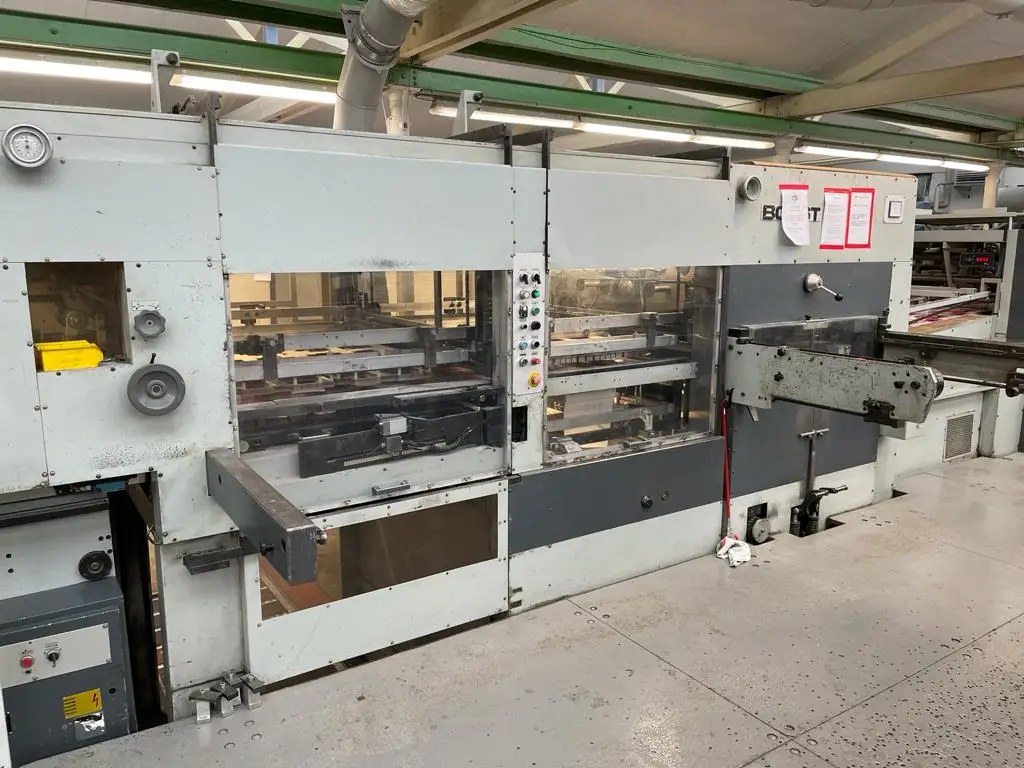

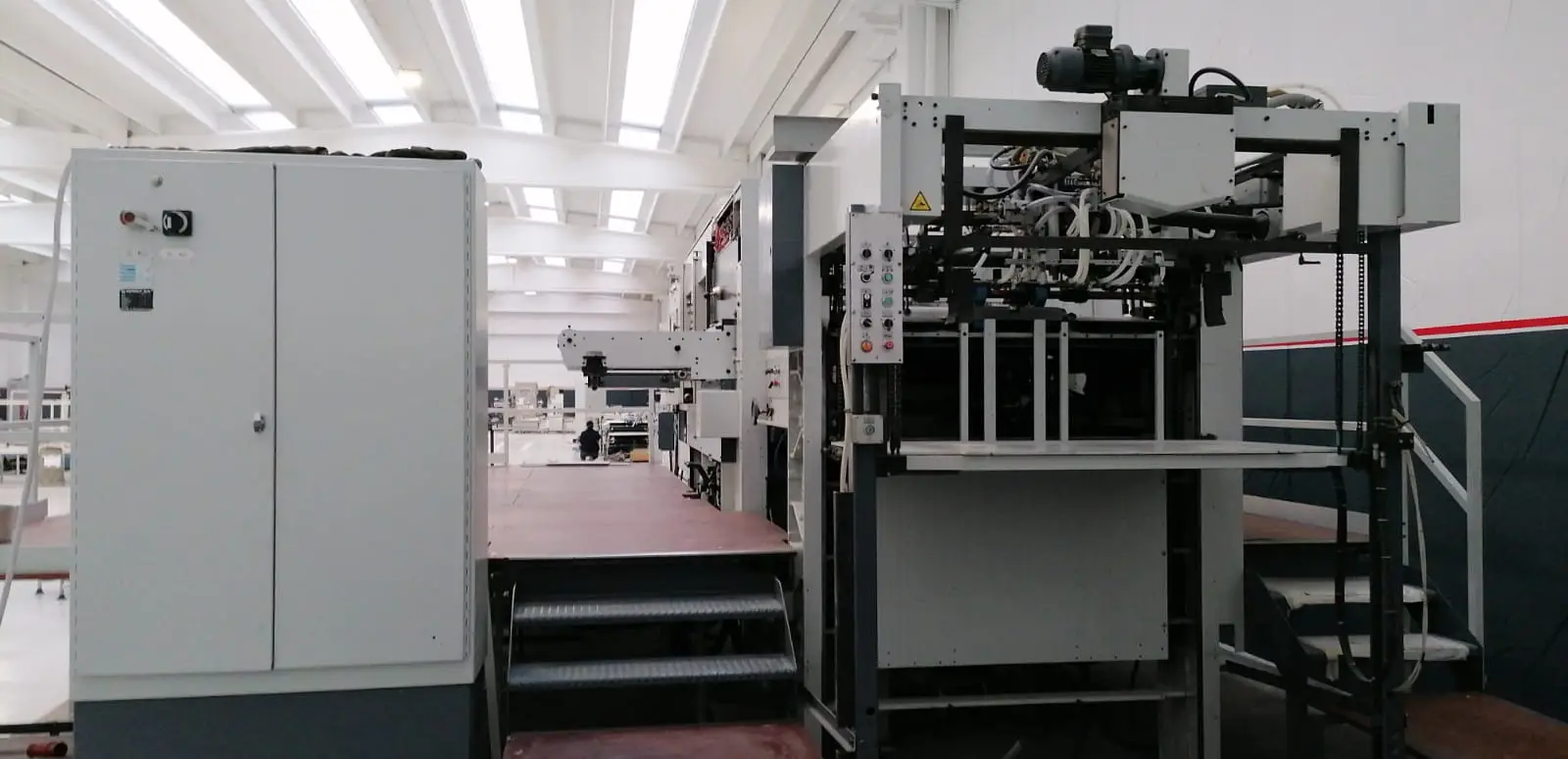

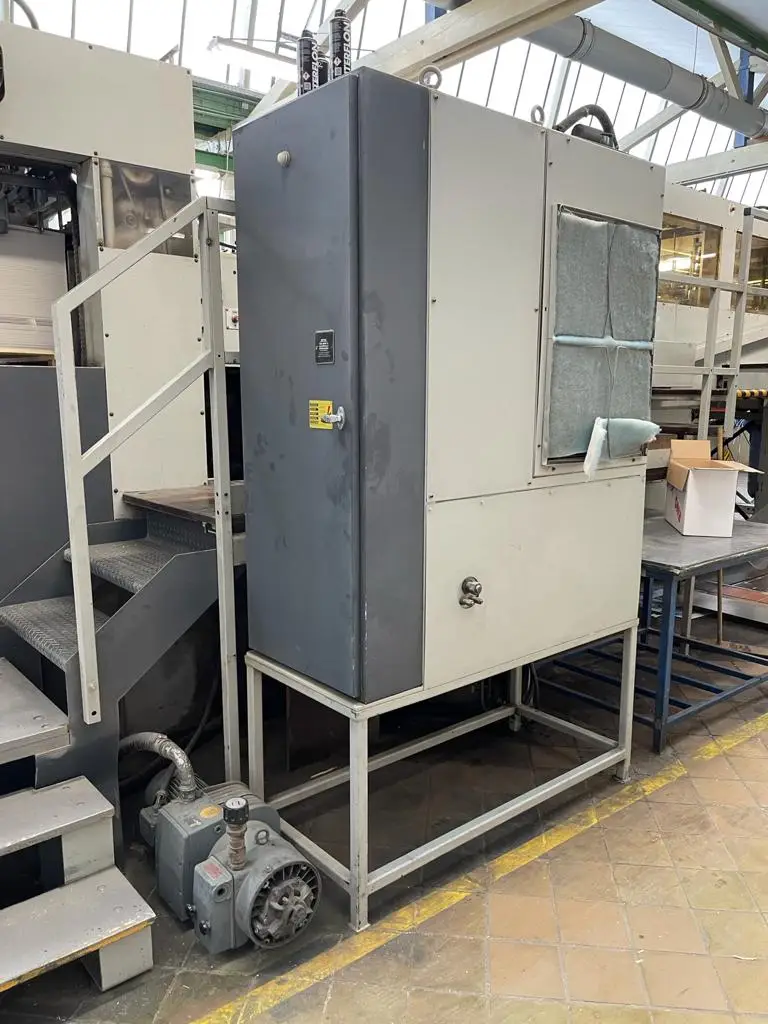

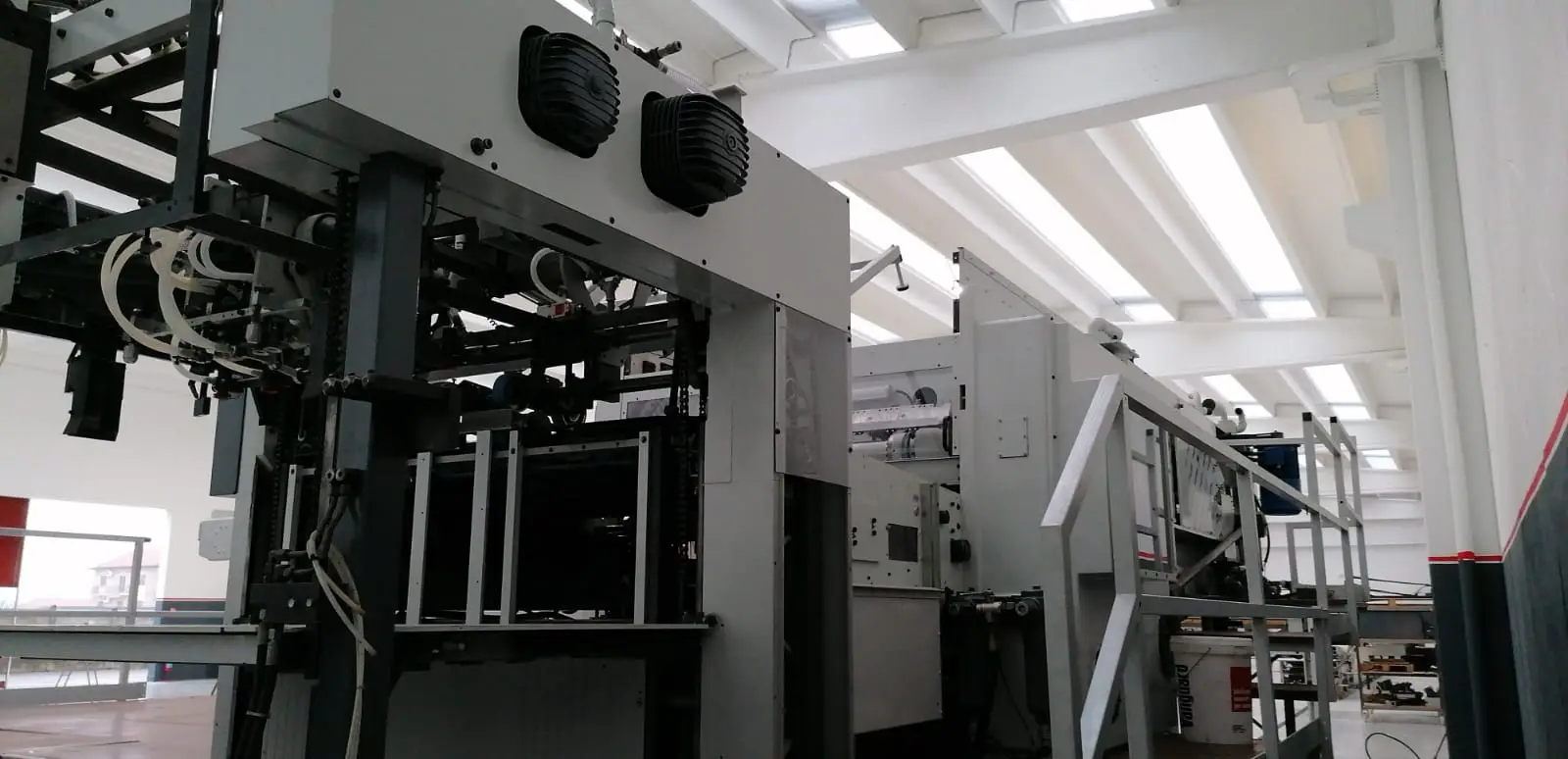

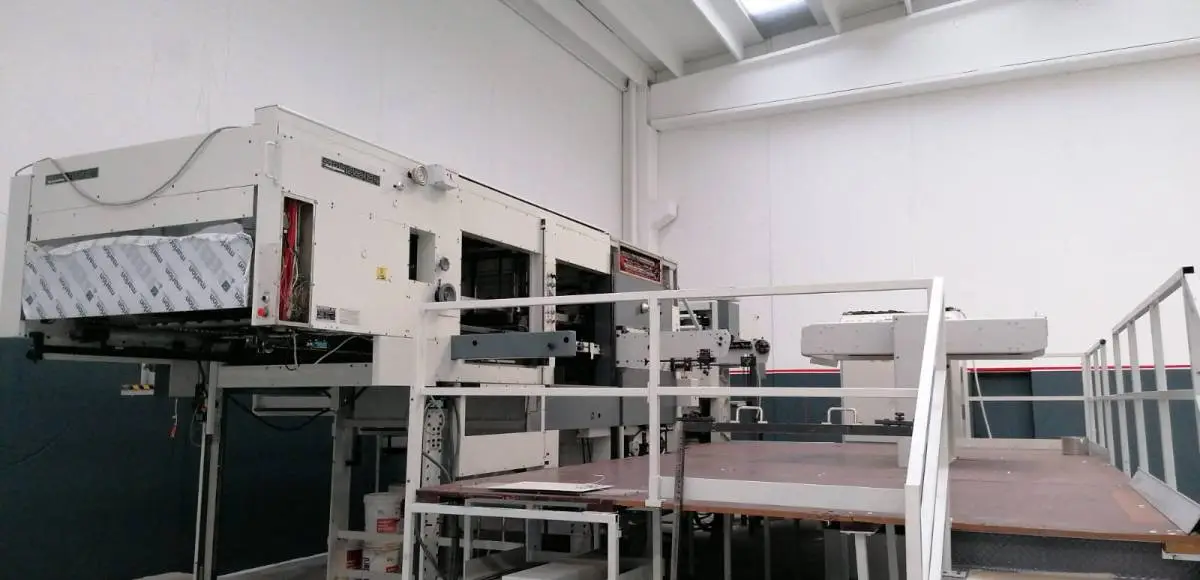

Bobst SP 142 ER  1988

Blanking station. Less manual work. Higher productivity. Better safety. A blanking station is an important feature that automatically separates the die-cut products (such as cardboard or paperboard blanks) from the waste, creating a clean, efficient process for high-volume production. The addition of blanking stations to die-cutting machines is part of a broader industry trend towards automation and streamlining workflows, reducing manual labour, and improving overall production efficiency. By integrating blanking stations, Bobst is meeting the growing demand for more automated, faster, and efficient solutions, especially in industries like packaging and printing where time and precision are crucial. This also reflects the increasing focus on reducing material waste, enhancing productivity, and lowering costs for manufacturers, all of which are key competitive advantages in the market. The move to sell more machines with blanking stations aligns with the industry’s broader push towards automation and smart manufacturing solutions. It helps companies save time, reduce human error, and enhance overall efficiency, while also improving safety on the production floor. Key benefits – Blanking station on die-cutting machines: Automatic separation of finished blanks from waste Cleaner and more organized delivery, ideal for high-volume production Reduced manual handling on the production line Improved overall production efficiency Faster production cycles with consistent precision Reduced human error Lower material waste Increased productivity Reduced operating costs Improved operator safety Aligned with automated and smart manufacturing processes

MACHINE SPECIFICATION

ManufacturerBobst
ModelSP 142 ER
TypeDie Cutting/fustellatrici

TECHNICAL DATA

Max sheet size1020 x 1420
Min sheet size500 x 700

Accessories

  • Machine
    • Centerline system for quick job changeover
    • Bobst-Electronic for the machine control

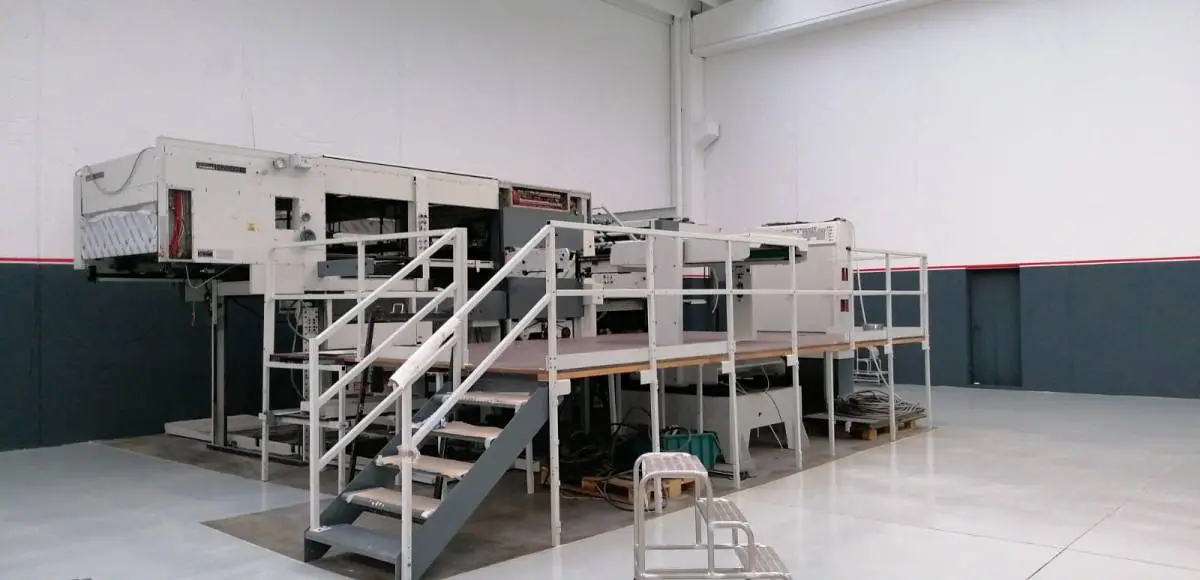

    • ELEVATED 650 mm
    • OIL CONDITIONER BOX

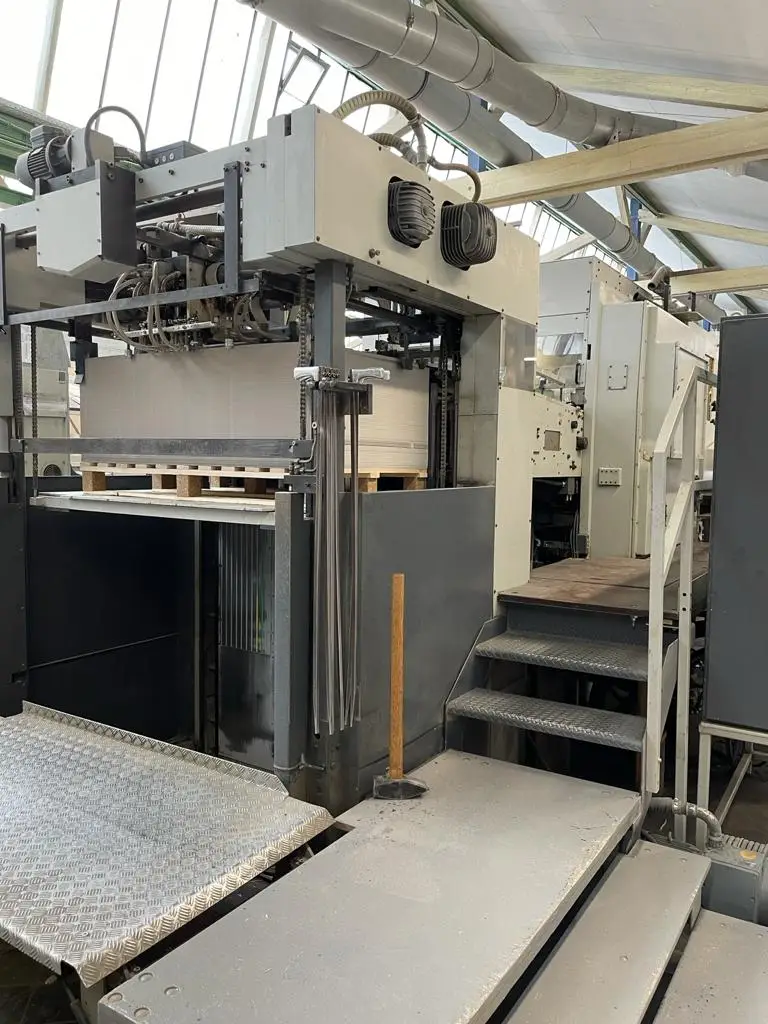

  • Feeder
    • Motorized suction head unit
    • Pile feeder with automatic lateral moving
    • Non-stop on feeder with swords
    • Universal Feeder
    • synchronization to adjust the arrival of sheets to the registers

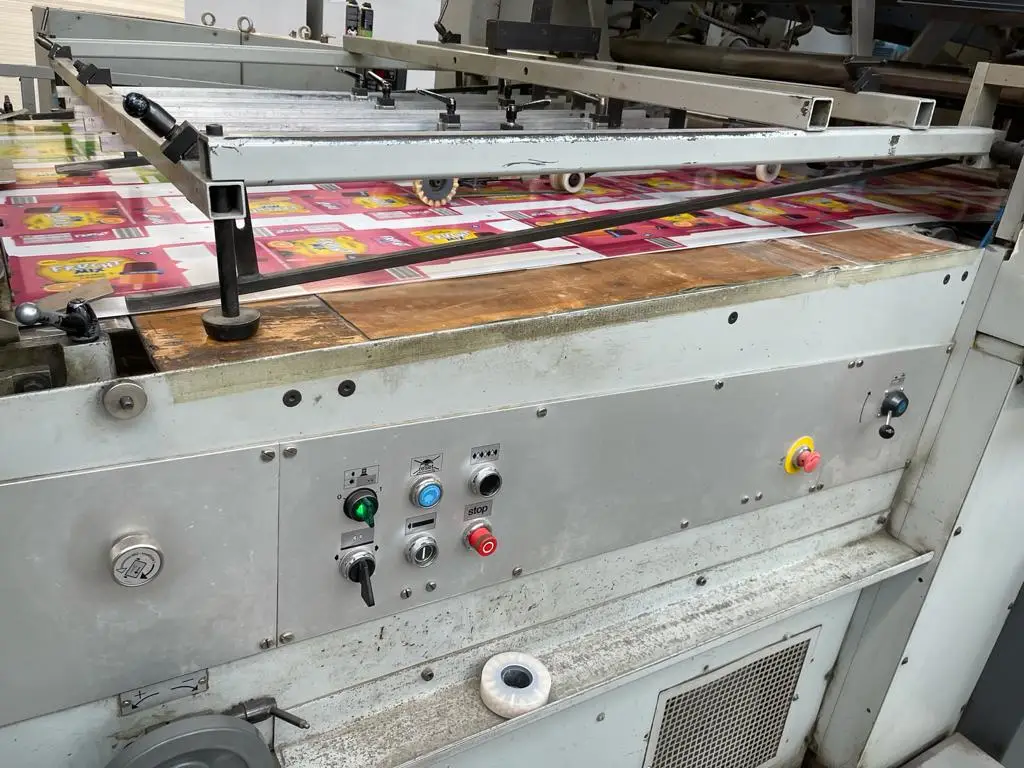

  • Introduction table
    • Adjustable sheet synchronizer while running, allows to adapt the feeder cycle to that of the platen
    • Feed table with 4 front lays, adjustable in pairs with front register control
    • Feed table with "Pull" guide (OS) adjustable according to Centerline marks, with side register control
    • PULL LAY OPERATOR OPPOSITE SIDE (OOS)
    • PUSHING LAY FOR CORRUGATE OPPOSITE OPERATOR SIDE (OOS)
    • Electronic double sheet device
    • Sheet-hold down device (Introduction sheets guide in gripper)
    • D-7 REINFORCED SHEET TRANSPORT EQUIPMENT for rigid and corrugate cardboard included:
    • Upper frame with pneumatic lifting device
    • Side-guided carrying straps
  • Platin
    • Support plate with micrometric centering of the cutting sheet for thin plates, thickness 1 mm
    • RESOCELL 22.5mm with 4mm compensation plate and 1mm metal sheet
  • Stripping Station
    • 3 points on lock system on ejection unit
    • UPPER PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS

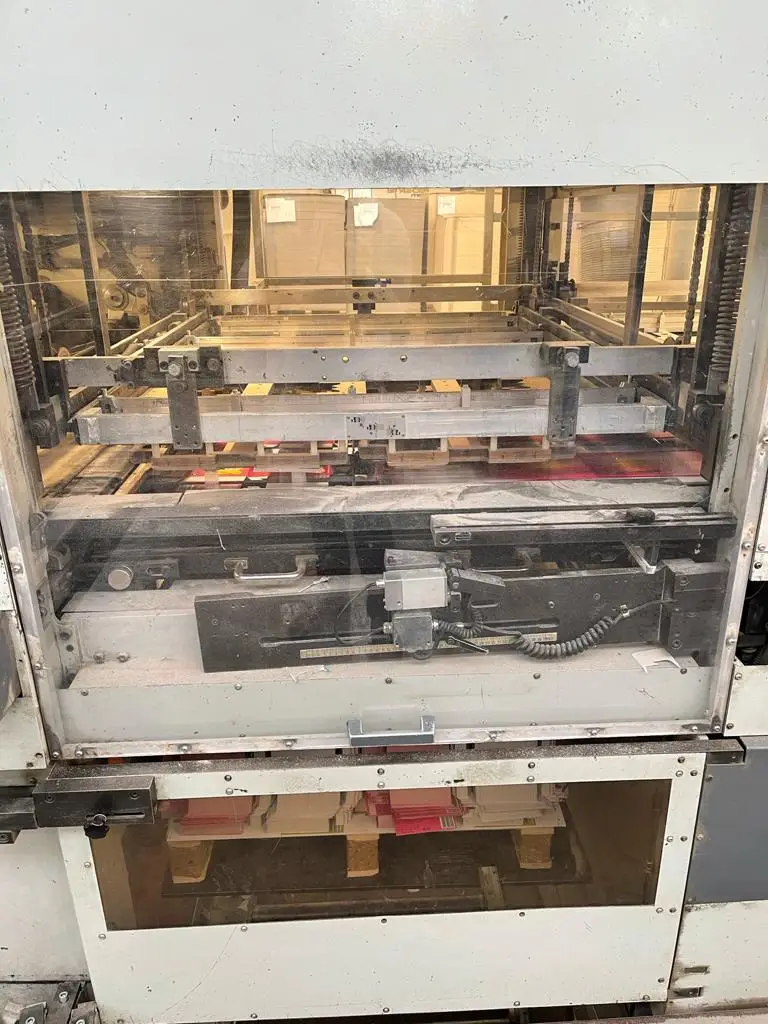

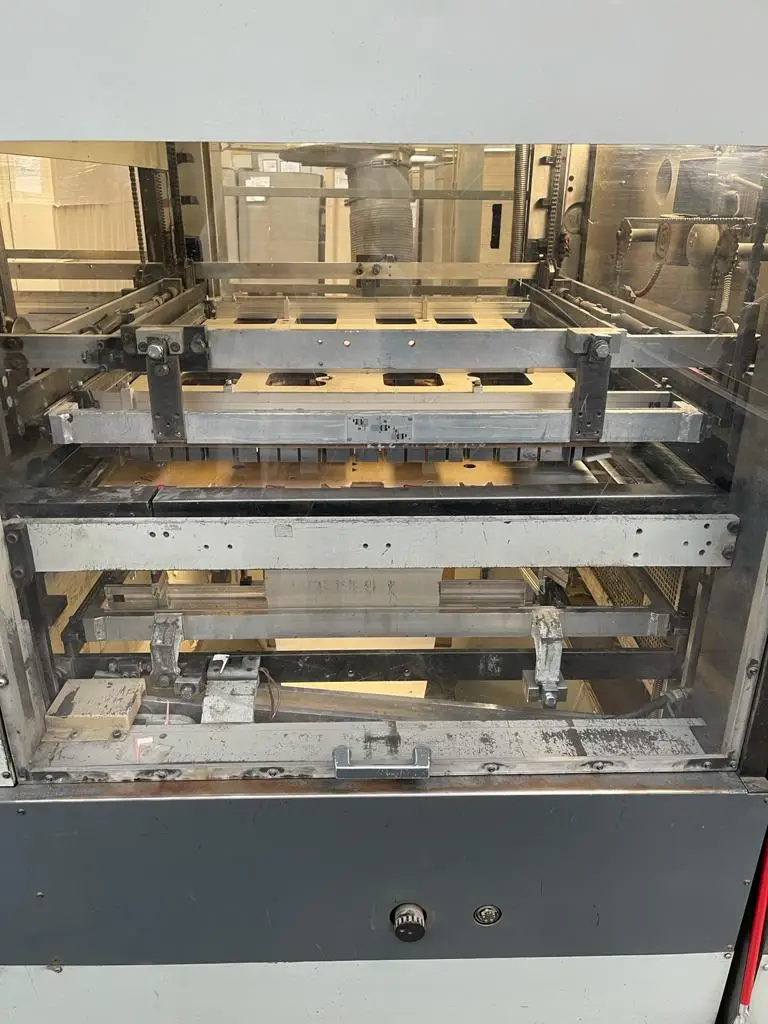

  • Blanking Station
    • 3 points on lock system on blanking unit
    • Universal lower tool for blanket
    • SHEET BRAKES DEVICE BY "BERNOULLI" SYSTEM ON BLANKING STATION
    • UPPER PULL-OUT FRAME QUICK LOCK ON BLANKING UNIT WITH ALL ITS TOOLS
  • Delivery
    • Wrapper for interlayer sheet infeed
    • Conveyor for automatic pallet change in delivery
  • Various
    • Speed 6.500 c/h
    • All machine books, manuals and standard accessories

Machine overview

Year1988
Serial Number057403603
N.of working hours106000

Conditions Overview

“EXTRA” Accessories Overview

  • ELEVATED 650 mm
  • OIL CONDITIONER BOX
  • Non-stop on feeder with swords
  • PULL LAY OPERATOR OPPOSITE SIDE (OOS)
  • PUSHING LAY FOR CORRUGATE OPPOSITE OPERATOR SIDE (OOS)
  • D-7 REINFORCED SHEET TRANSPORT EQUIPMENT for rigid and corrugate cardboard included:
  • Support plate with micrometric centering of the cutting sheet for thin plates, thickness 1 mm
  • RESOCELL 22.5mm with 4mm compensation plate and 1mm metal sheet
  • 3 points on lock system on ejection unit
  • UPPER PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS
  • 3 points on lock system on blanking unit
  • Universal lower tool for blanket
  • SHEET BRAKES DEVICE BY "BERNOULLI" SYSTEM ON BLANKING STATION
  • UPPER PULL-OUT FRAME QUICK LOCK ON BLANKING UNIT WITH ALL ITS TOOLS

Reference Overview

Reference21036003
VisibleIn production
AvailabilityImmediately
