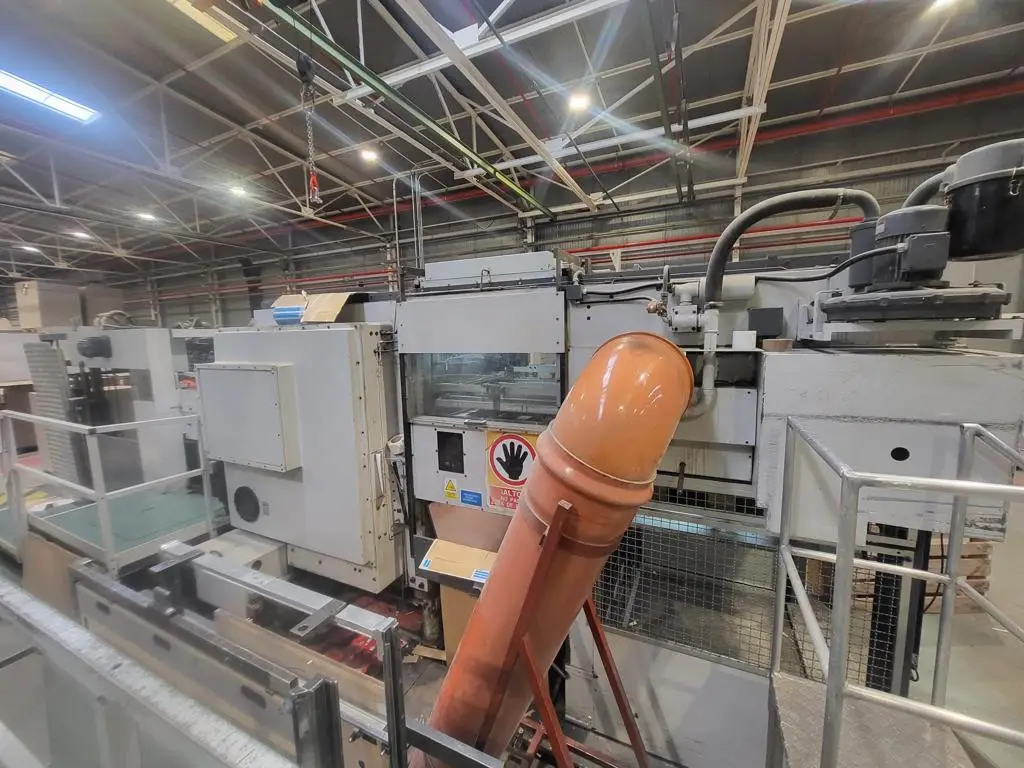

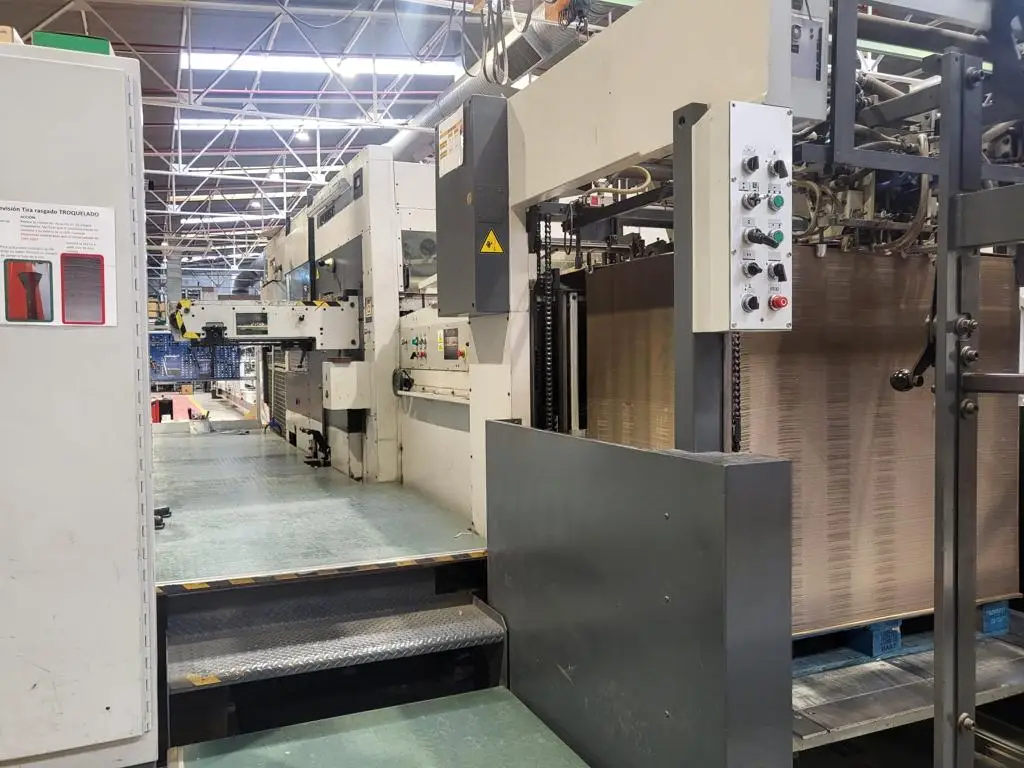

Bobst SP 142 E 1986

The machine was selected and carefully inspected by our engineers prior to purchase.

MACHINE SPECIFICATION

Manufacturer	Bobst
Model	SP 142 E
Type	Die Cutting/fustellatrici

TECHNICAL DATA

Max sheet size	1020 x 1420

Accessories

Console
- Centerline

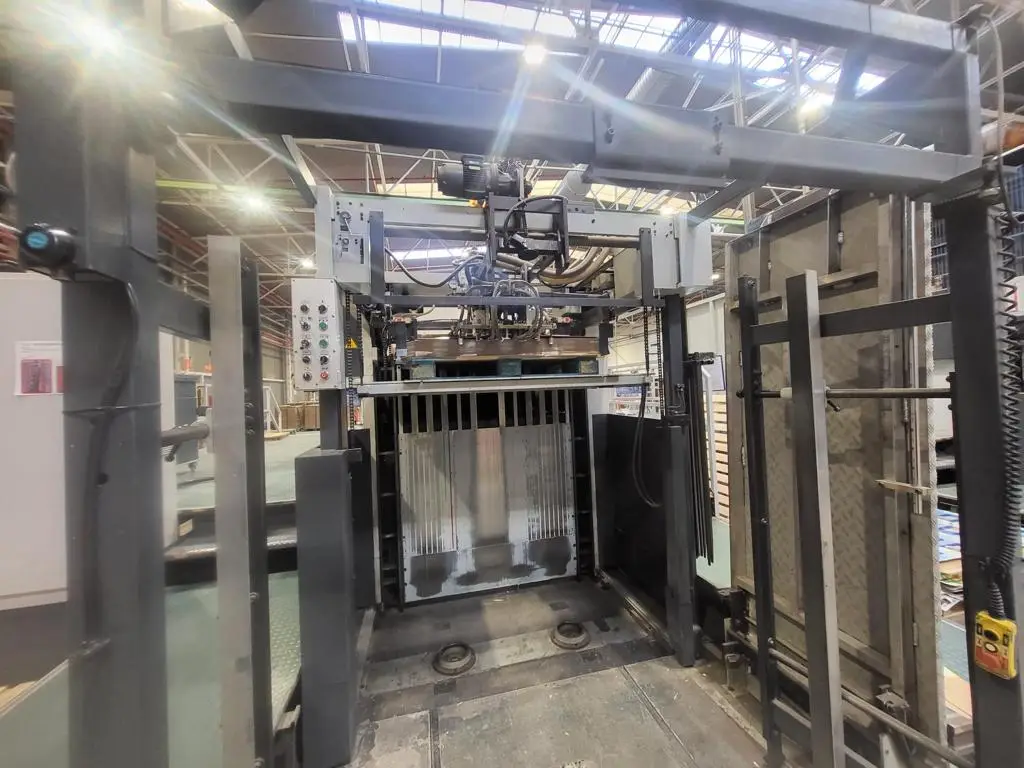

Feeder
- Motorized suction head unit
- Pile feeder with automatic lateral moving
- Universal Feeder
- Non-stop on feeder with swords
Introduction table
- Sheet-hold down device (Introduction sheets guide in gripper)
- Pull-lay operator side (OS) adjustable according to Centerline, with sheet control
- Receiving pull lay of the push lay operator side
- PULL LAY OPERATOR OPPOSITE SIDE (OOS)
- PUSHING LAY FOR CORRUGATE OPPOSITE OPERATOR SIDE (OOS)
- Electronic double sheet device
- D-7 REINFORCED SHEET TRANSPORT EQUIPMENT for rigid and corrugate cardboard included: Introducers and upper belts - Upper transport elements (wide belts)
- Adjustable sheet synchronizer while running, allows to adapt the feeder cycle to that of the platen
- Feed table with 4 front lays, adjustable in pairs with front register control
- Side-guided carrying straps
Platin
- E-5 COMPENSATING PLATE. THICKNESS 4 MM. IN GROUND STEEL
- E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS
Stripping Station
- 1 "GRID" UPPER PULL-OUT FRAME WITH ALL ITS STANDARD TOOLS
- CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS
- F-8 1 LOWER STRIPPING PULL-OUT FRAME WITH ALL ITS TOOLS
- F-22 Fastening equipment for stripping die (including crossbars and clamps)
- F-35 FASTENING EQUIPMENT FOR UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING (TO FIX STRIPPING TOOL TO THE UPPER PULL-OUT FRAME QUICK LOCK)
- F-2 : N. 1 Upper pull-out frame
- F-81 LOWER STRIPPING EQUIPMENT for waste stripping INCLUDING crossbars, pins and supports (installed on central pull-out frame F-8)
- Micrometric system with compensating plate and 1 mm small metals sheet
Delivery
- Non-stop delivery with belt convey
- Safety sensors in delivery
- Guillotine device for front trim
Various

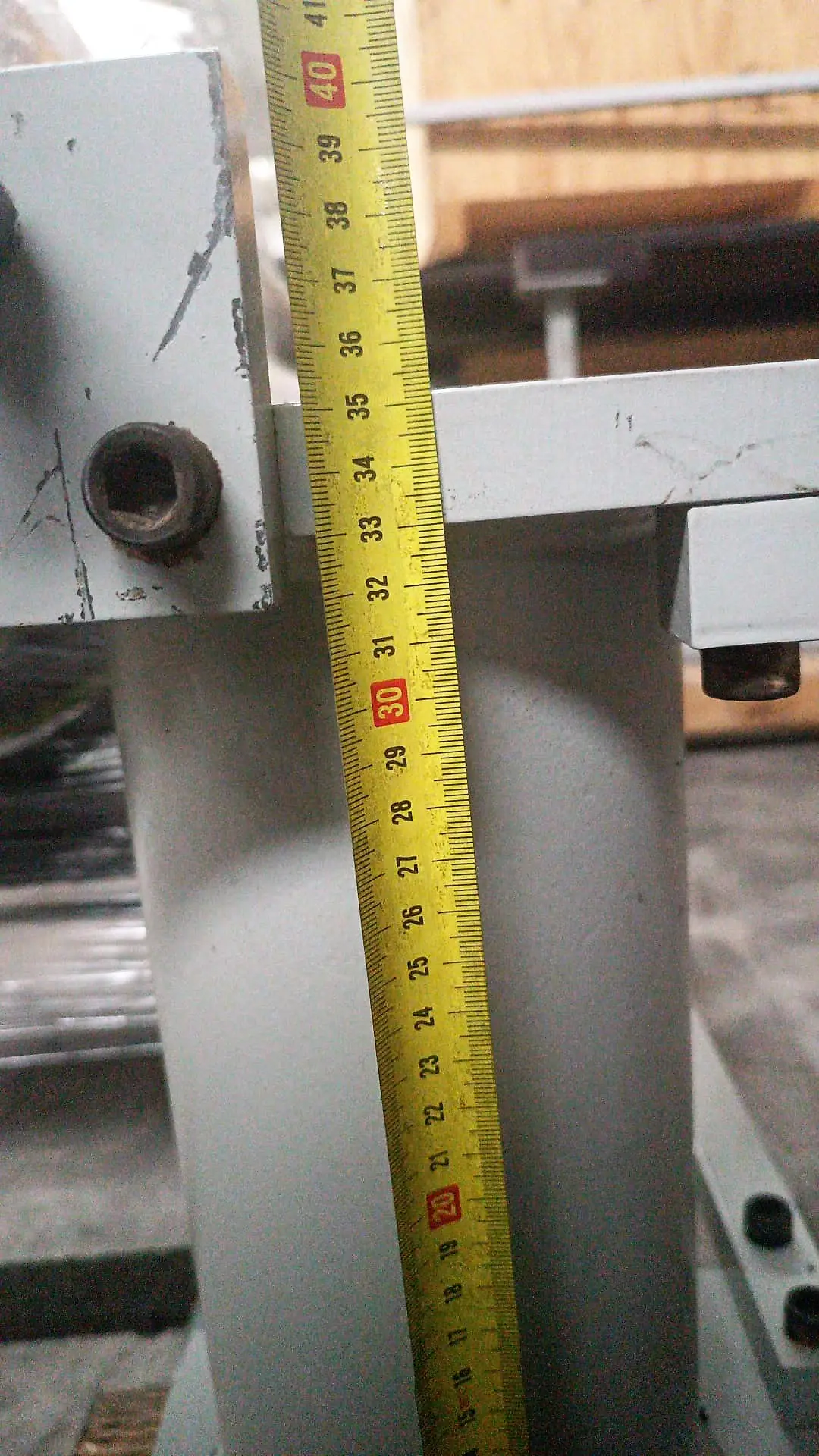

- Elevated 350 mm

Machine overview

Year	1986
Serial Number	057402711

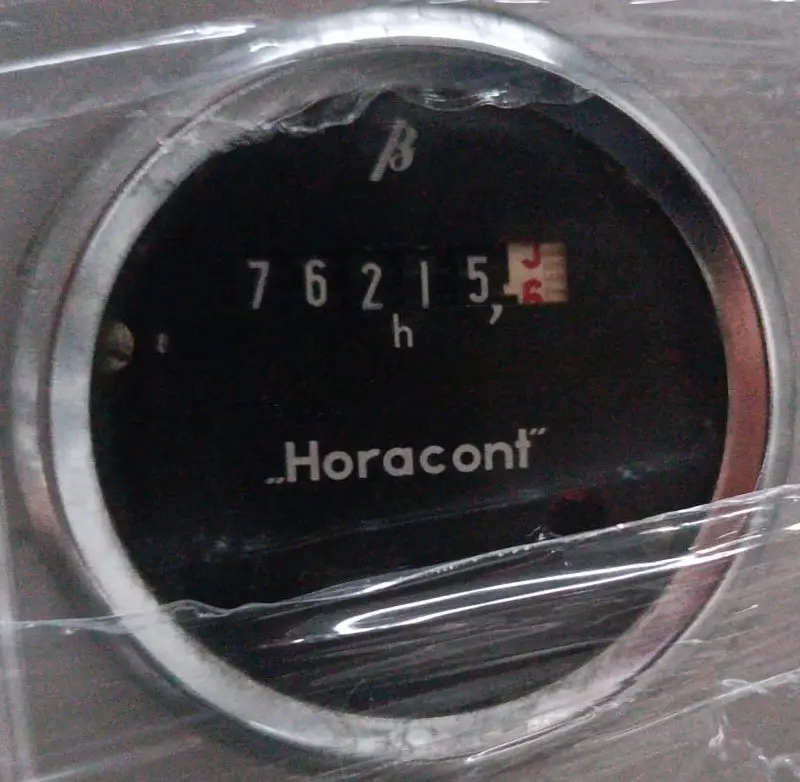

N.of working hours	76215

“EXTRA” Accessories Overview

Non-stop on feeder with swords
Receiving pull lay of the push lay operator side
PULL LAY OPERATOR OPPOSITE SIDE (OOS)
PUSHING LAY FOR CORRUGATE OPPOSITE OPERATOR SIDE (OOS)
D-7 REINFORCED SHEET TRANSPORT EQUIPMENT for rigid and corrugate cardboard included: Introducers and upper belts - Upper transport elements (wide belts)
E-5 COMPENSATING PLATE. THICKNESS 4 MM. IN GROUND STEEL
E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS
1 "GRID" UPPER PULL-OUT FRAME WITH ALL ITS STANDARD TOOLS
CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS
F-35 FASTENING EQUIPMENT FOR UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING (TO FIX STRIPPING TOOL TO THE UPPER PULL-OUT FRAME QUICK LOCK)
Micrometric system with compensating plate and 1 mm small metals sheet
Safety sensors in delivery
Guillotine device for front trim
Elevated 350 mm

Reference Overview

Reference	23036346
Visible	Sbm Rebuilding Center of Robecco sul Naviglio (MI)
Availability	Immediately
