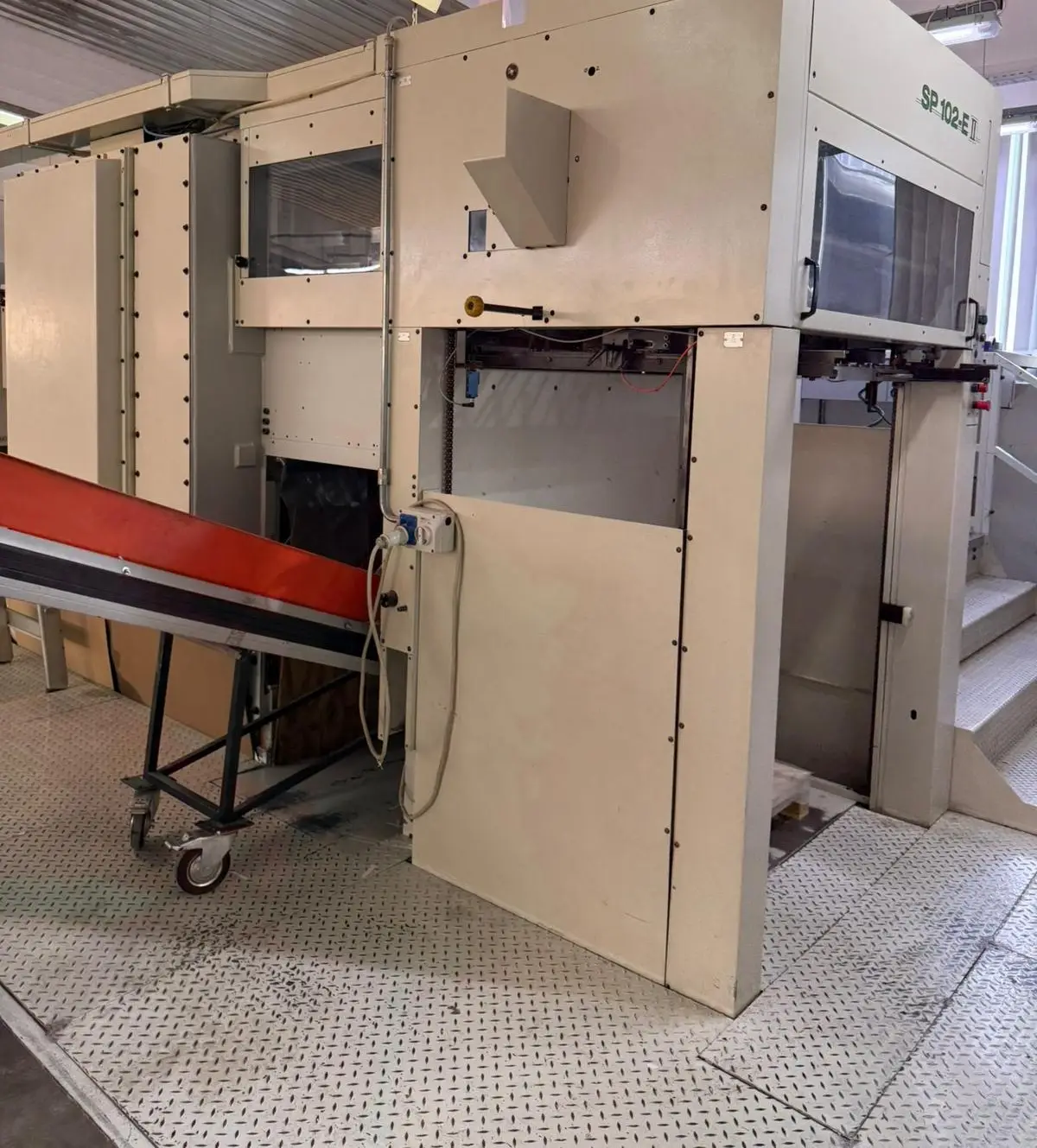

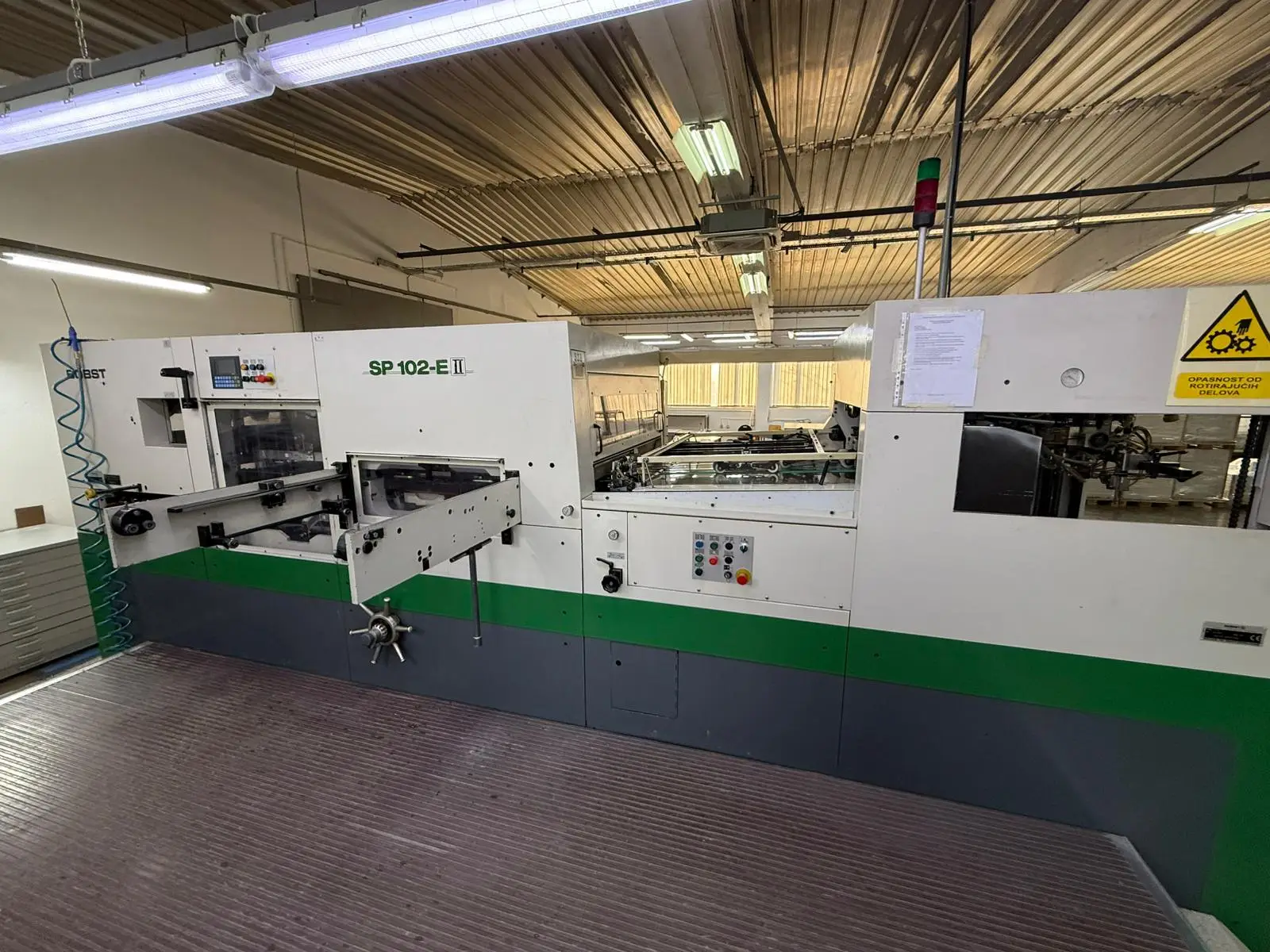

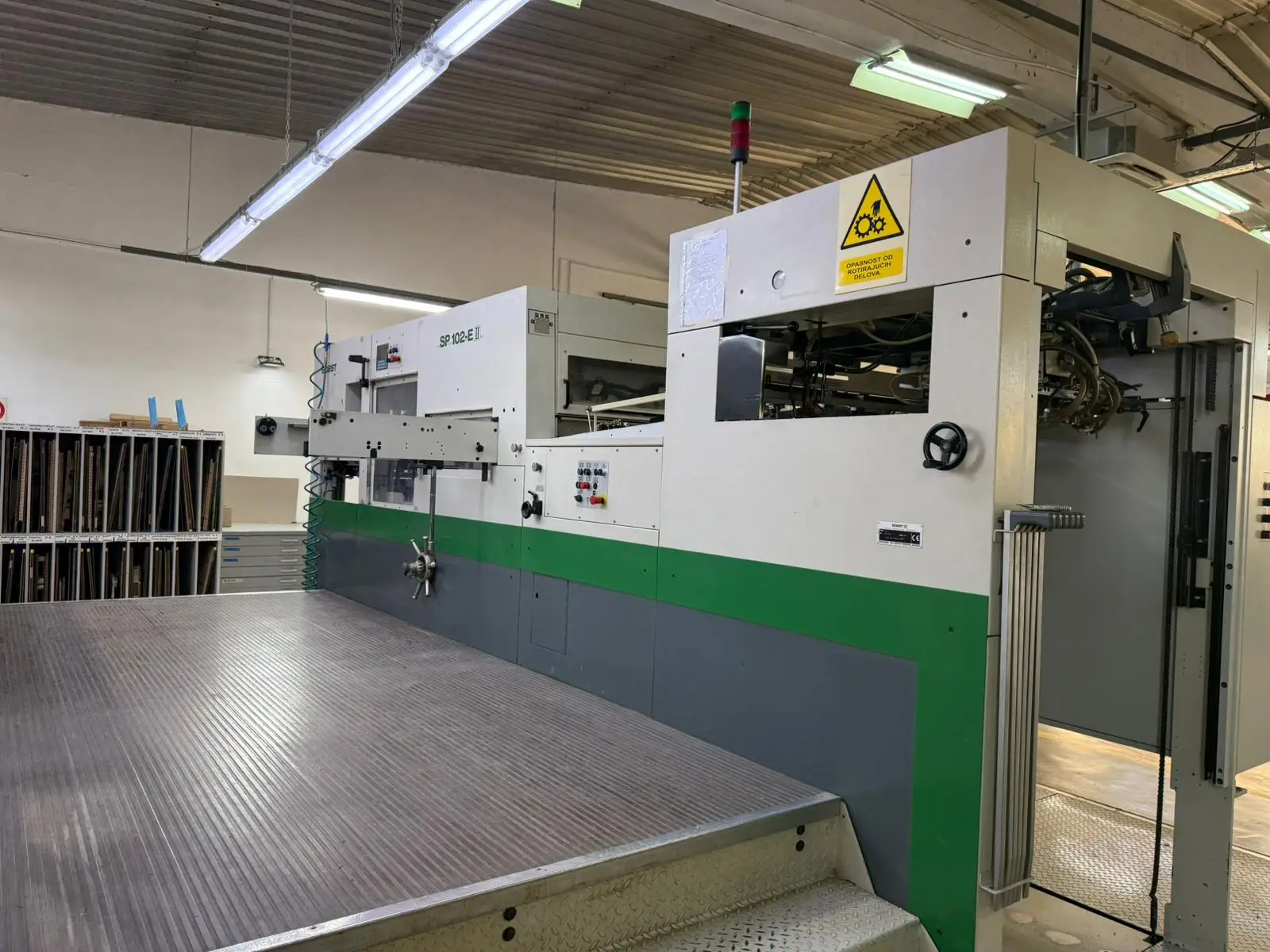

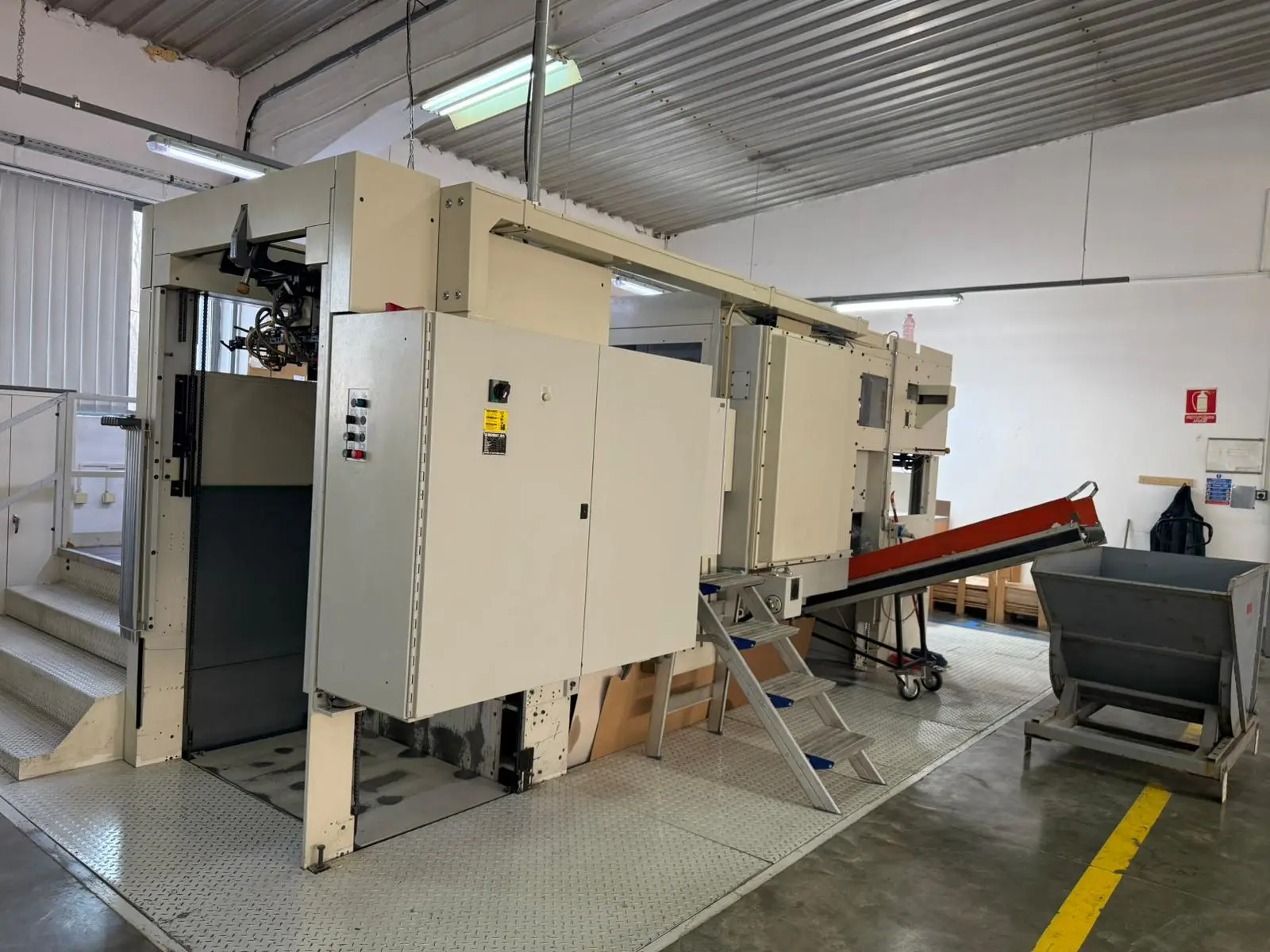

Bobst SP 102 E II 1999

The machine was selected and carefully inspected by our engineers prior to purchase.

MACHINE SPECIFICATION

Manufacturer	Bobst
Model	SP 102 E II
Type	Die Cutting/fustellatrici

TECHNICAL DATA

Max sheet size	72 x 102

Accessories

Machine
- 1 Centerline system for quick job changeover
- All books, electrical scheme, manual instruction books, spare parts books and standard tools
- Electronic device for sheet travel control
- Adjustable centering on stripping station and on delivery
- Control cabinet cooling unit
- Suction unit
- Main motor asynchronous with frequency converter control
- Bobst-Electronic for the machine control
- Bernoulli (Blower system for thin paper)
Feeder
- Non-stop feeder with swords
- Pull lay operator side
- Pile tray wit handle allowing manul lateral correction of the pile during production
- Pile lifting controlled by pressfoot
- Real pile guides (OS and OOS)
- Side blowers adjustable with Centerline marks
- Safety system for lowering the pile tray
Introduction table
- Covered with an anti-static stainless steel plate
- Synchronization device timing the sheet arrival against the front lays when the machine is at a standstill, allows you to adapt the feeder cycle to that of the platen
- 4 Front lays, adjustable in pairs with front register control, with sheet presence
- Double sheet detector
- Sheet-hold down device (Introduction sheets guide in gripper)
- Upper transport equipment for paper, paperboard and corrugated board
Platin
- Grippers re-opening device
- Equipment centering and locking
- Locking of the chase against the upper beam
- Resocell: synthetic material supporting plate, Thickness 23,5 mm
- E-1 1 UPPER FRAME WITH FIXED BOTTOM. BOTTOM SHEET, 2 MM THICK AND SYNTHETIC PROTECTION PLATE, 1 MM THICK
- 1 Cutting plate (E-4)
- Upper chase-fixed bottom (E-1)
Stripping Station
- 1 Upper pull-out frame (F-2)
- 1 Upper stripping equipment (F-21) required to create a waste stripping tool, including crossbars, clamps, stripper holders and stripping pins of 3, 5 and 10 mm of diameter
- 1 Fastening equipment for stripping die (F-22) Including crossbars and clamps
- 1 lower pull-out frame (F-8)
- F-81 lower stripping equipment for waste stripping (F-81) Including crossbars, pins and supports
- CENTRAL PULL-OUT FRAME QUICKLOCK (STRIPPING)
- F-76 FASTENING EQUIPMENT FOR STRIPPING TABLE ON CENTRAL PULL-OUT FRAME QUICK LOCK It allows to equip a stripping table to install it on central pull-out frame quick-lock
Delivery
- Non-stop delivery with grill

Machine overview

Year	1999
Serial Number	053204802
N.of working hours	59000

“EXTRA” Accessories Overview

Bernoulli (Blower system for thin paper)
Non-stop feeder with swords
Upper transport equipment for paper, paperboard and corrugated board
CENTRAL PULL-OUT FRAME QUICKLOCK (STRIPPING)
Non-stop delivery with grill

Reference Overview

Reference	25036615
Visible	In production
Availability	Immediately
