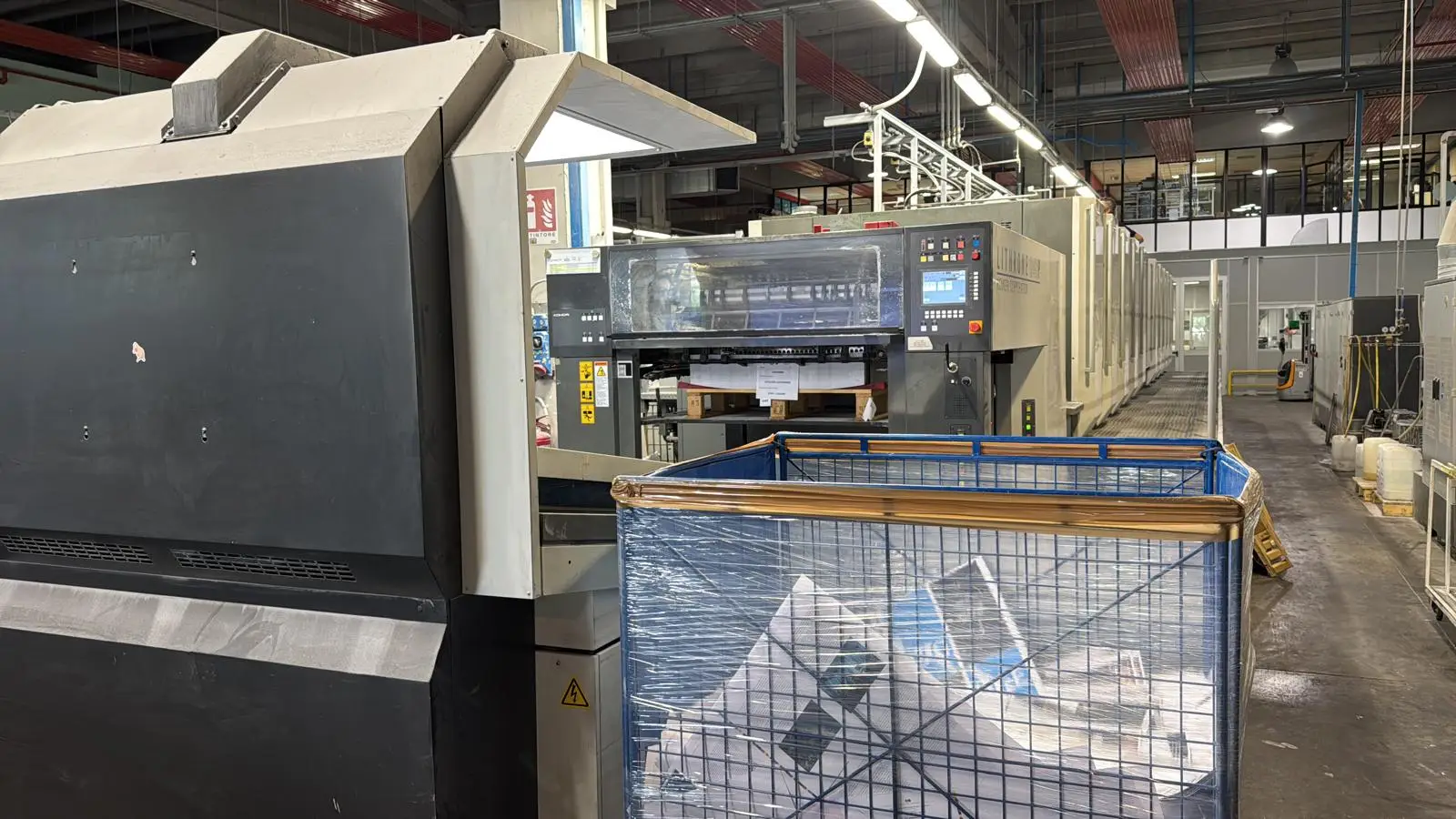

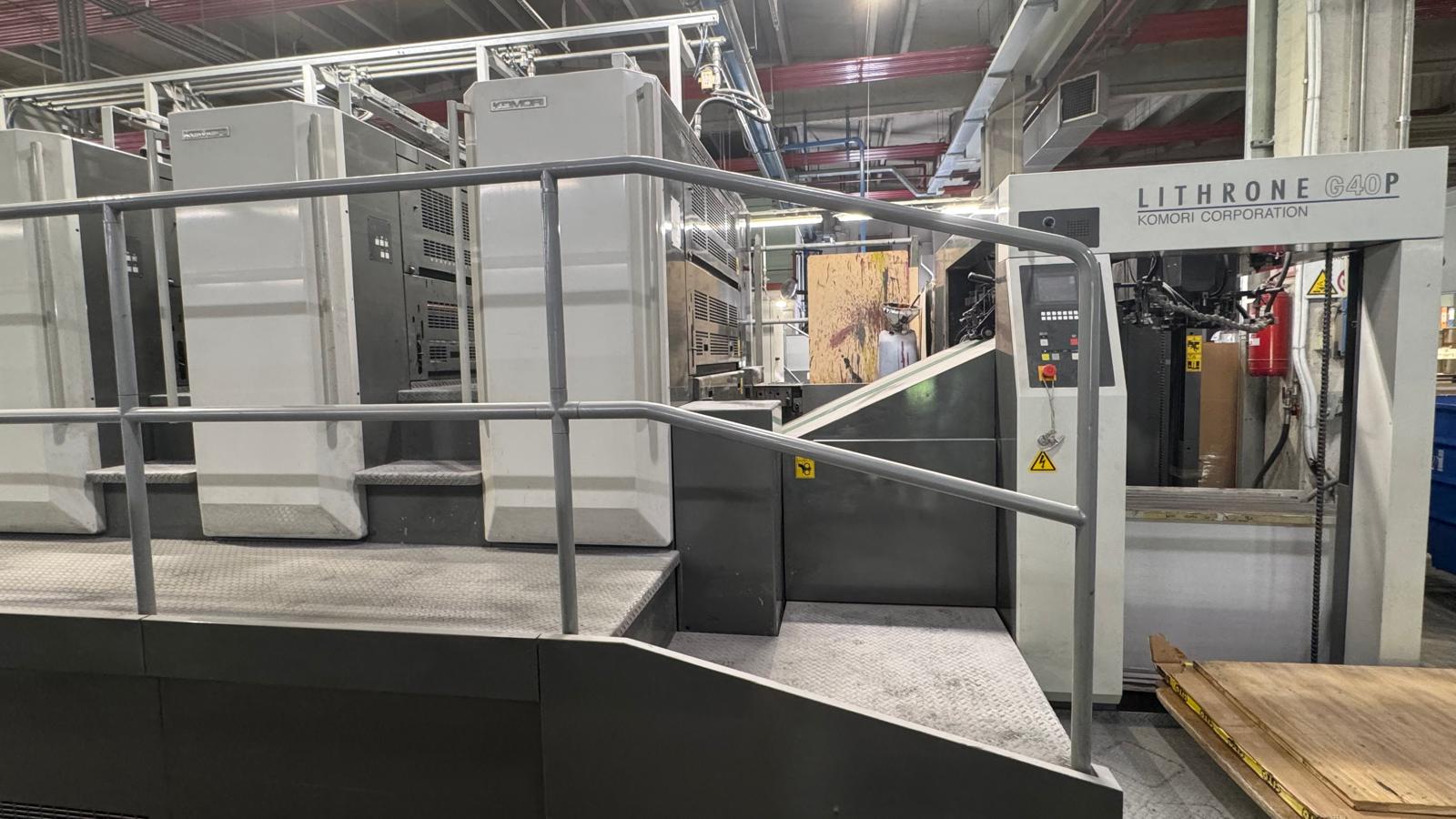

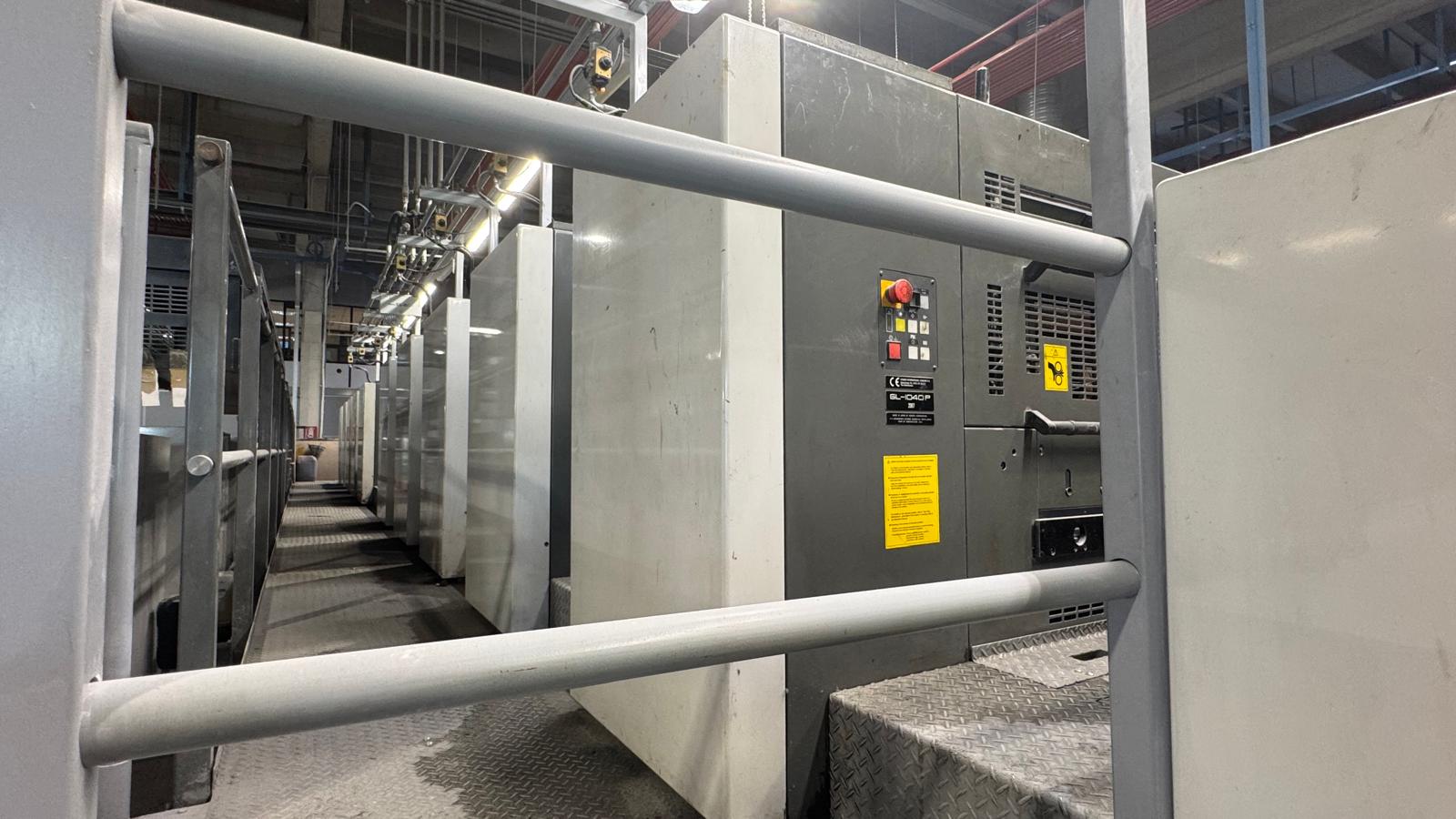

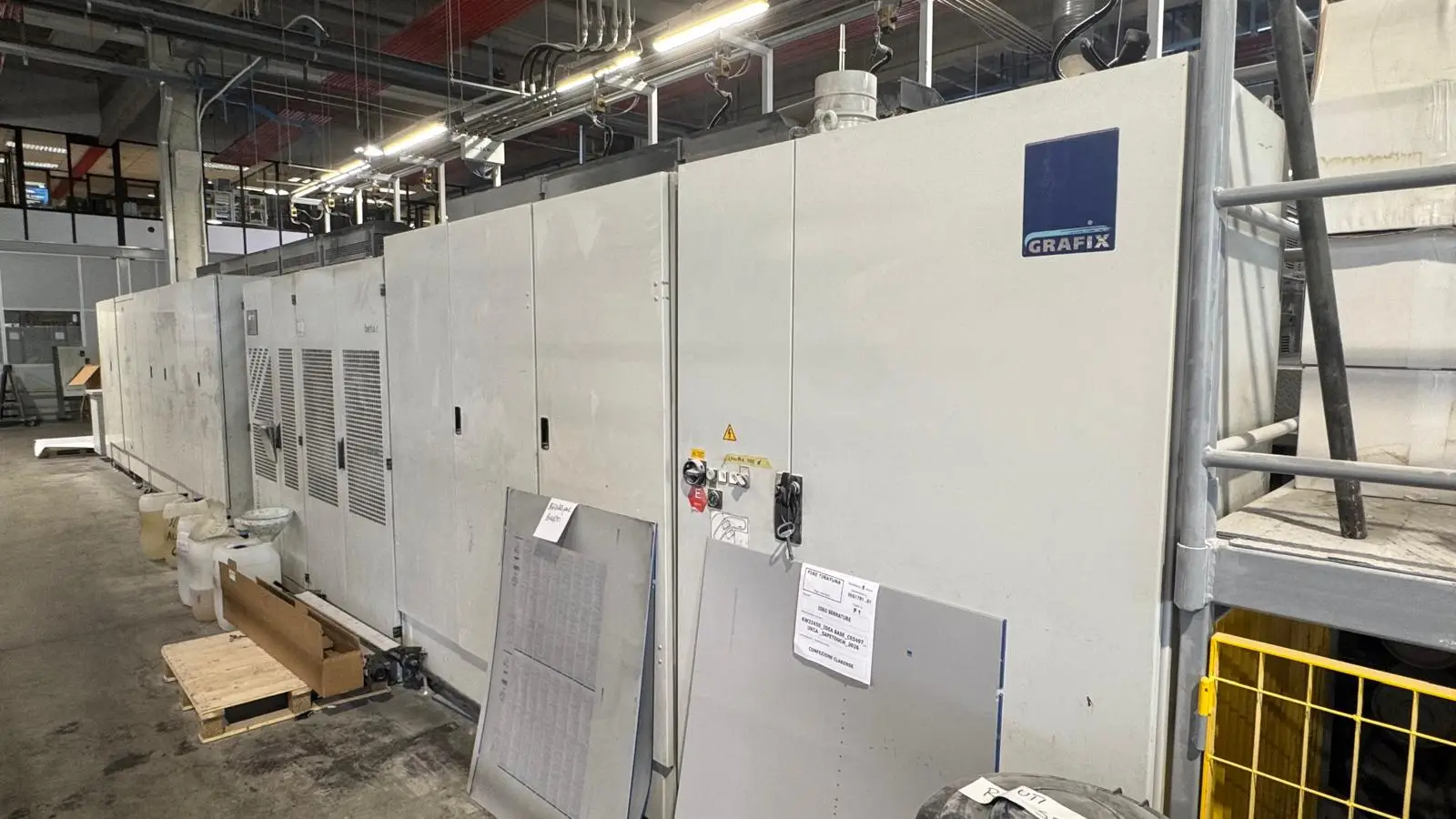

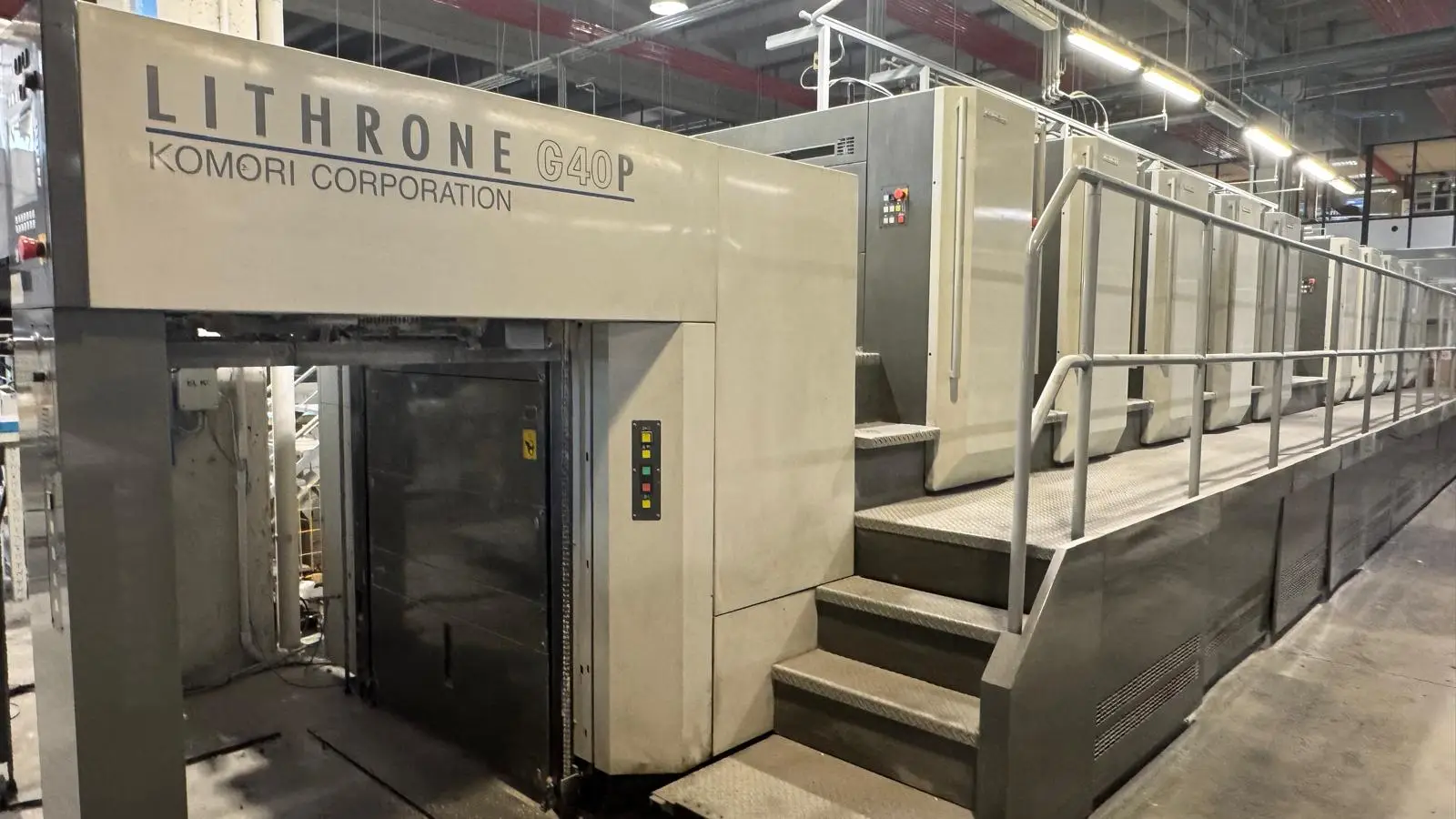

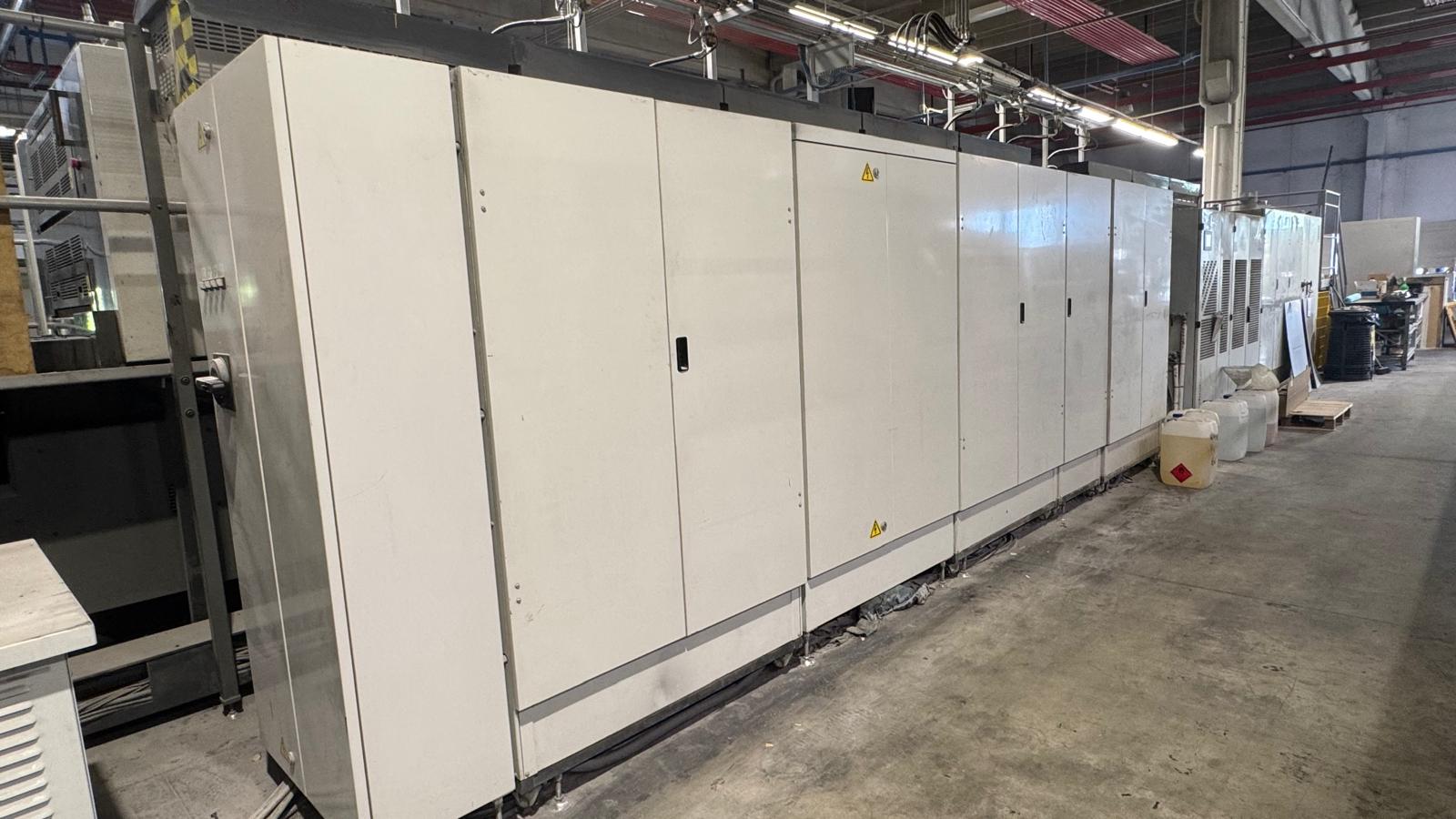

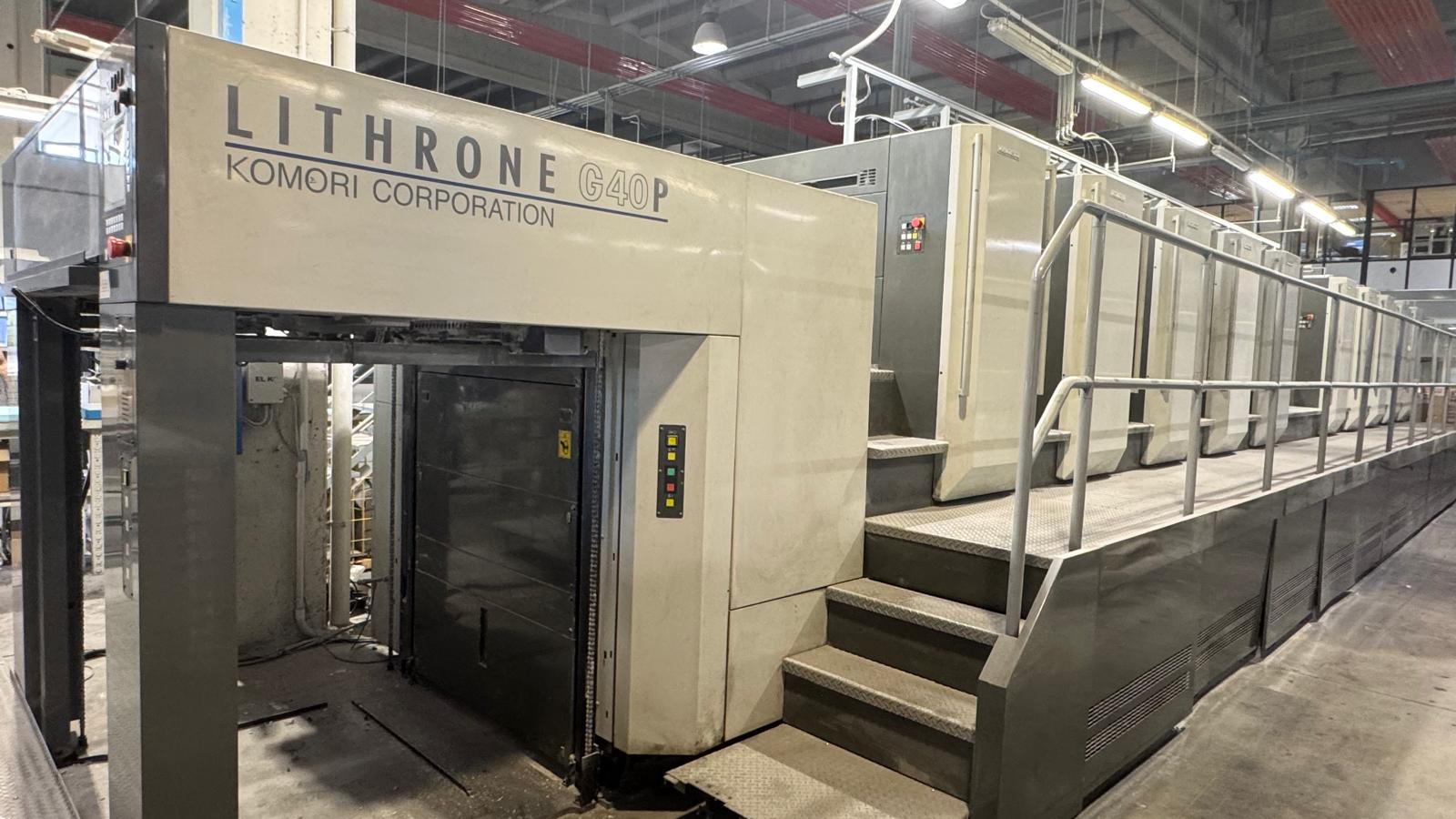

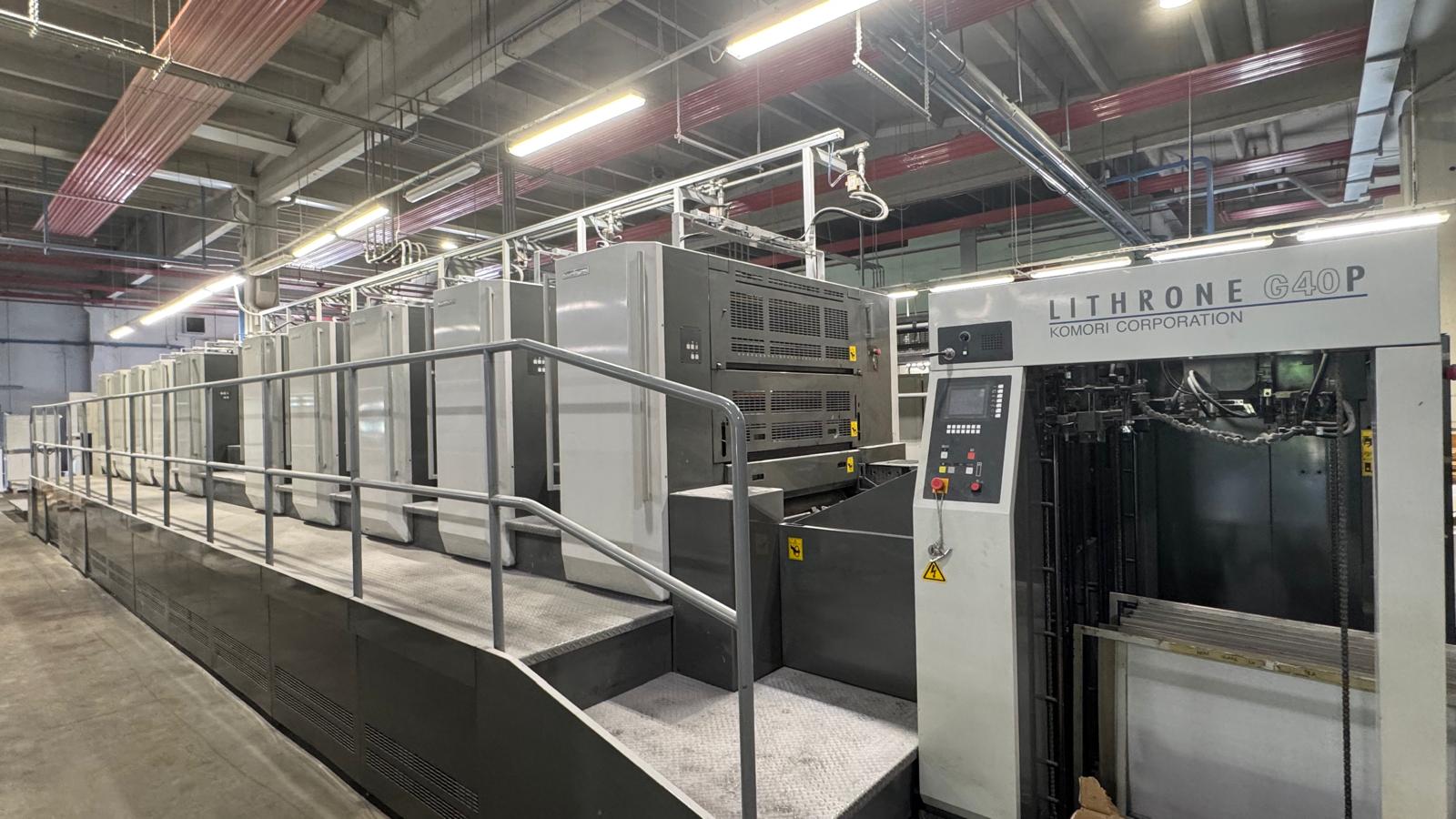

Komori GL 40-10 P H 2014

The machine was selected and carefully inspected by our engineers prior to purchase.

MACHINE SPECIFICATION

Manufacturer	Komori
Model	GL 40-10 P H
Type	Sheetfed Offset/Offset a foglio

TECHNICAL DATA

Max sheet size	720 x 1030
Min sheet size	360 x 520
Max print size	710 x 1020 (700 x 1020 perfecting)
Material Thickness	0,06 - 0,6 mm
Plate size	800 x 1030

Accessories

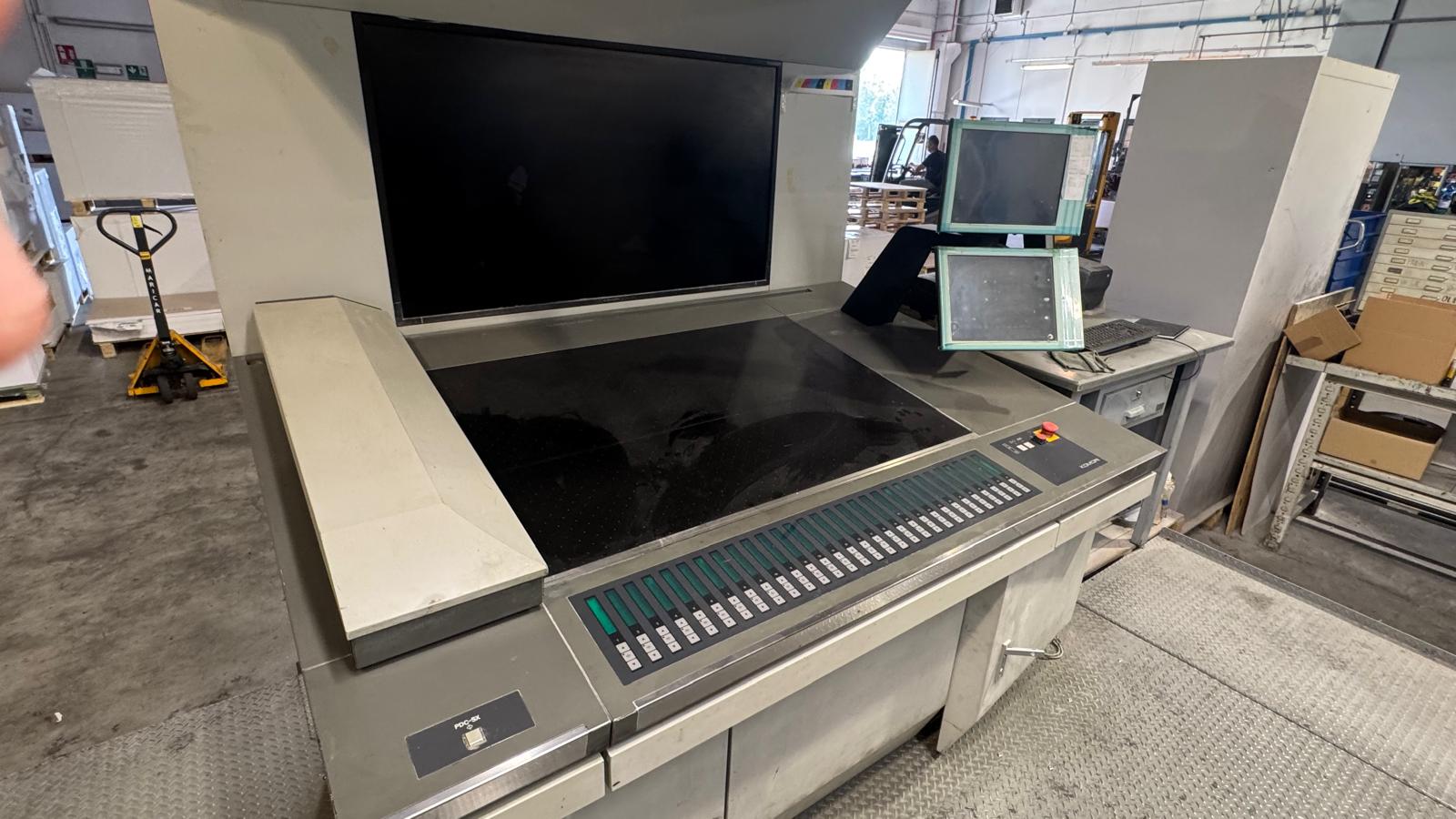

Console
- PQC-S: touch console for ink, axial, circumferential diagonal + all wash-up remote control, etc.
- KMS V : Komori Monitoring System (Jobs, Report, Manteinance, Errors)
- KHS-AI : Komori High Performance System - Advance Interface for Self-learning Function

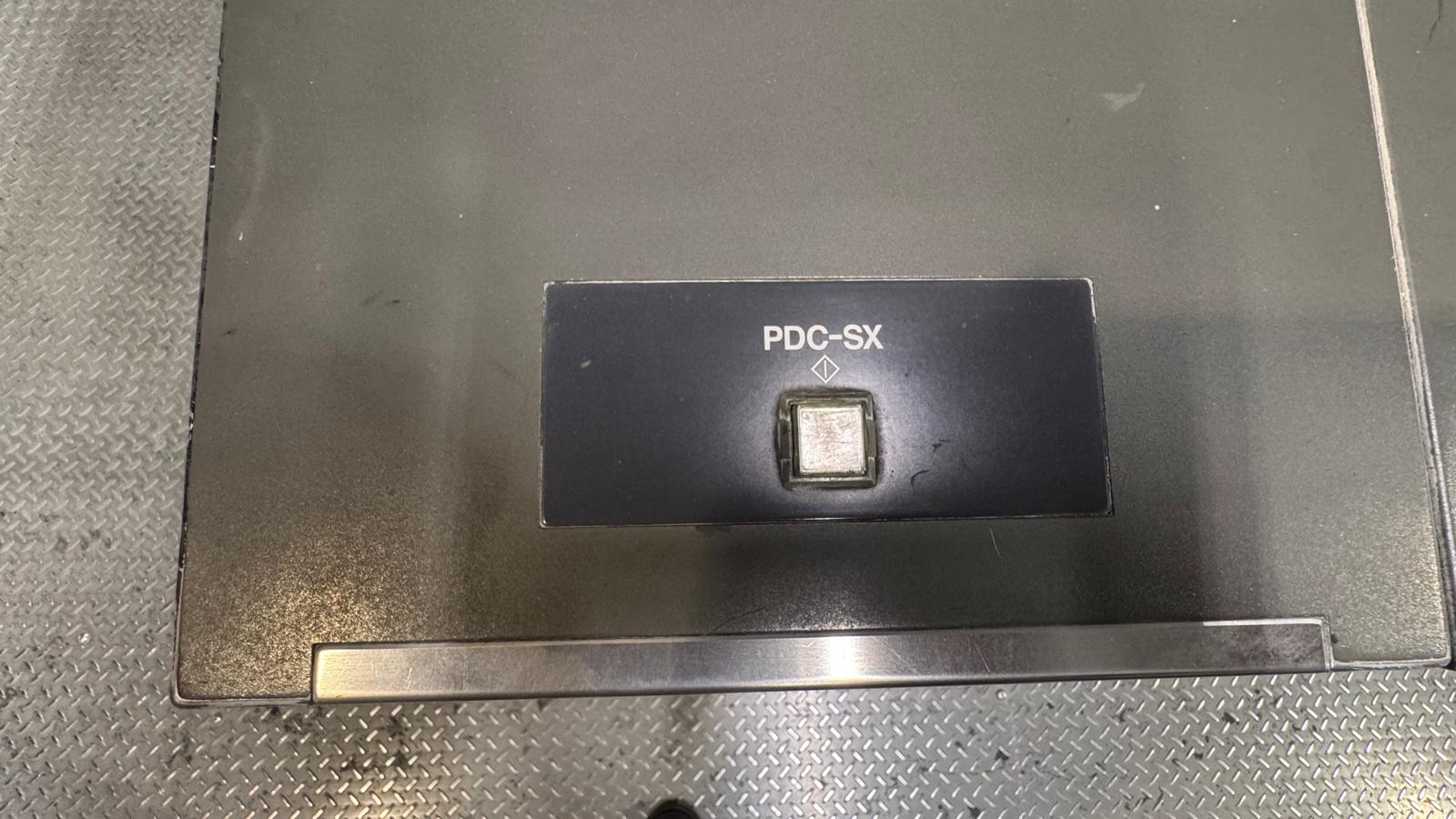

- PDC-SX: Auto Tracking Spectrophotometer Control
- KID SCREEN: Wide Screen Komori for operative informations connected to KHS-AI and PDC-SX
- K-Station
- K-Navigator
- AMR (Automatic Make Ready): automatic preset for pressure, size format, autoplate, ink, etc,.

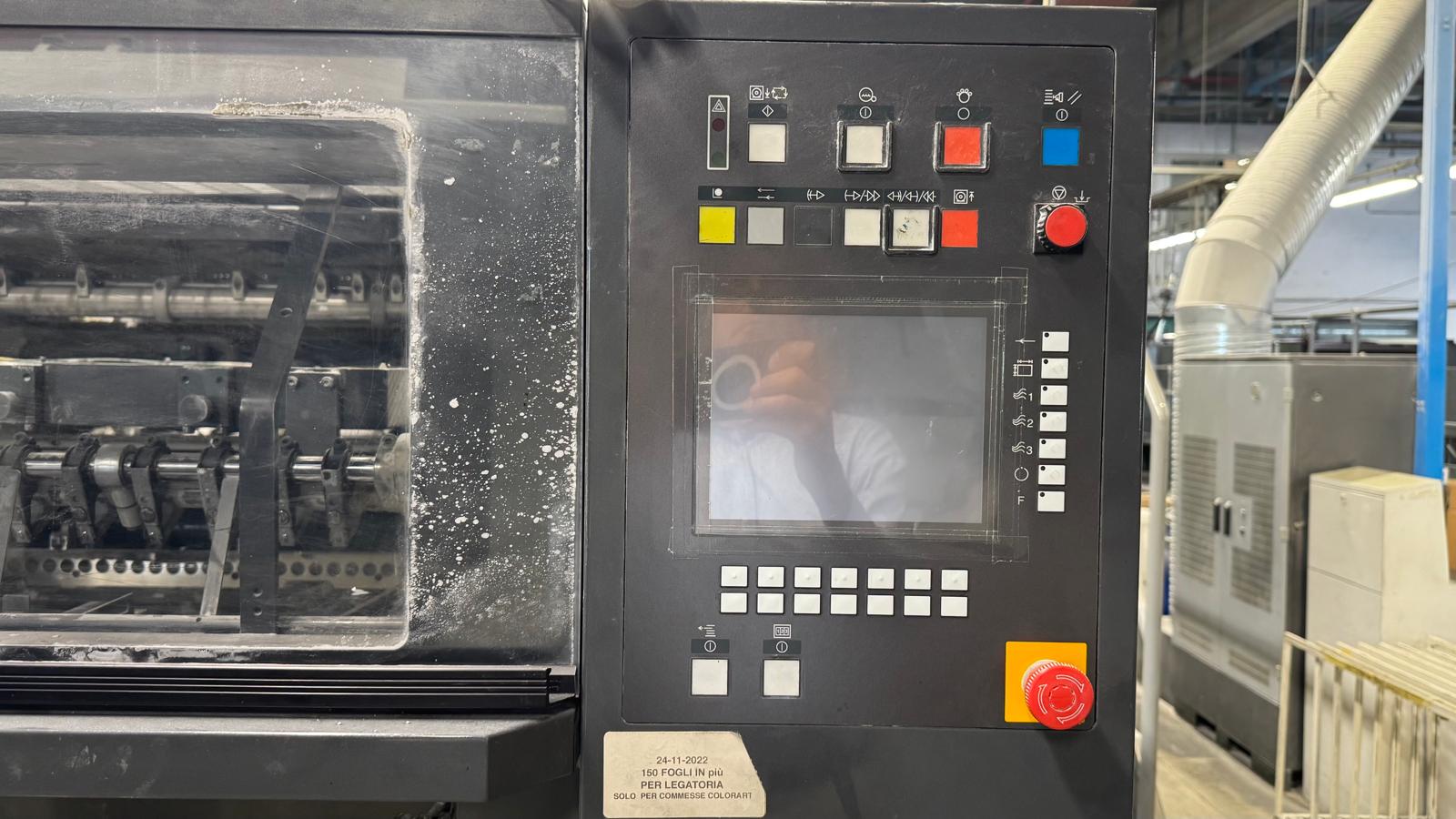

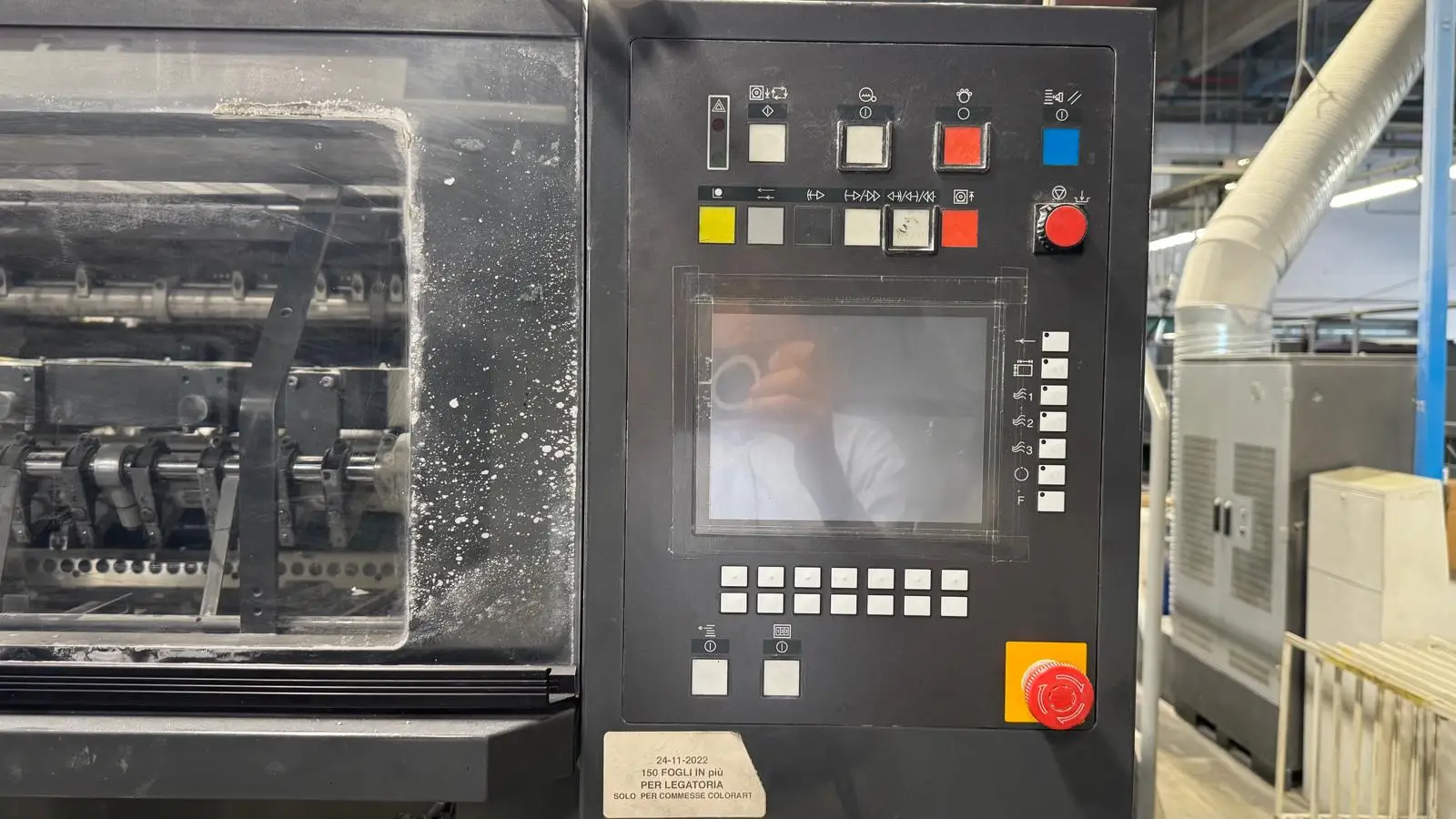

Feeder
- Antistatic on feeder
- Suction belt on table feeder
- Preset : automatic size adjusting on feeder
- Mechanic double sheet control
- Ultrasonic double-sheet control
- Pile alignment on feeder
- Pneumatic side lay
- Preset for lateral blower air
- Double feeler foot with antistatic ionizing blower
- Micrometric adjustment of the lateral pull pay by touch panel +/- 3 mm.
- Optical fiber precision photocell system for front and side control + safety photocell for the sheet in advance
- Paper deformation compensator placed on the infeed cylinder with remote control
- Diagonal movement of the sheet grip mm. 0.3 on feeder with remote control
- Automatic machine lock through over-register sensor
- Mechanical sheet stop in case of misregistration or crooked sheet

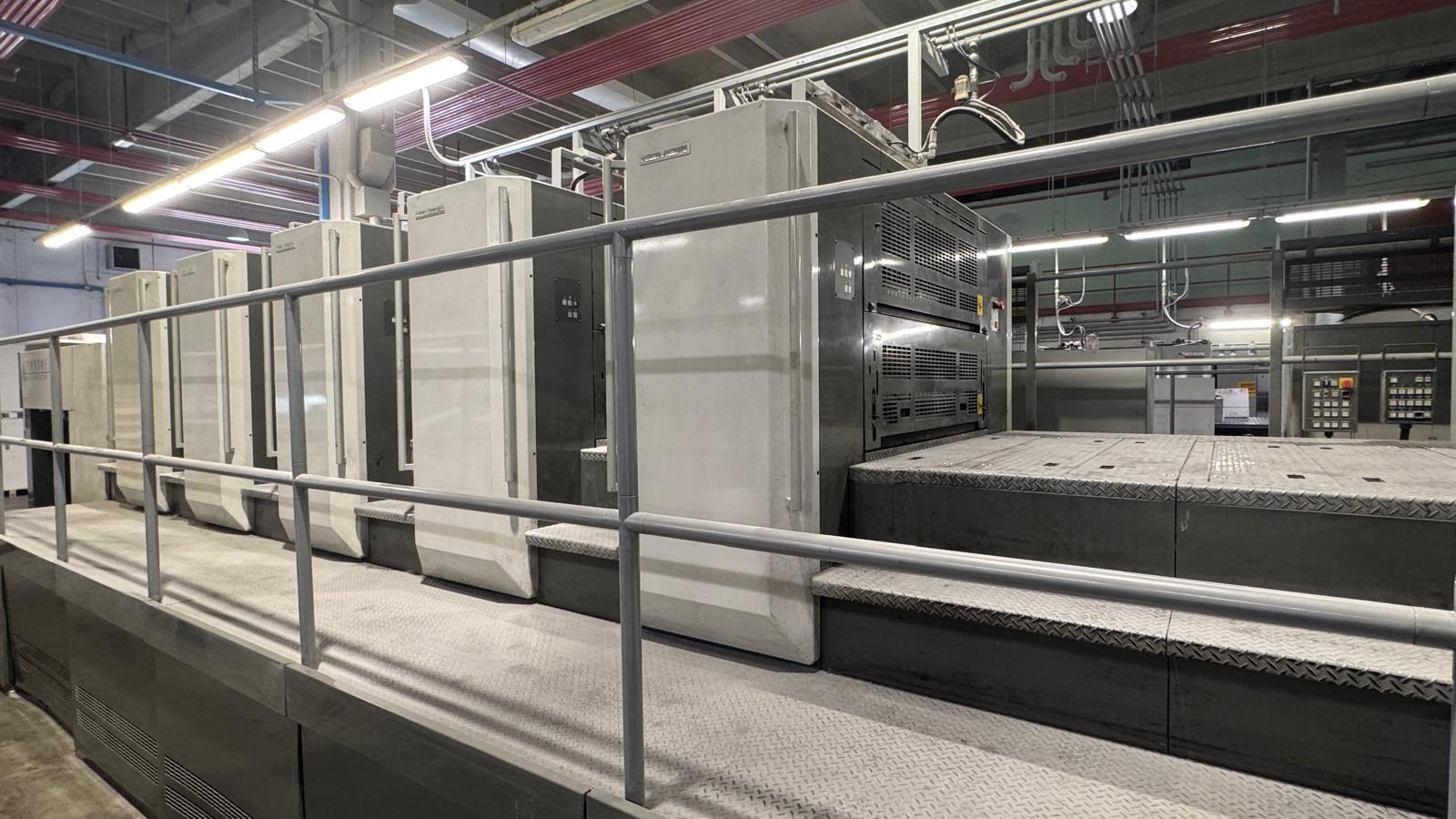

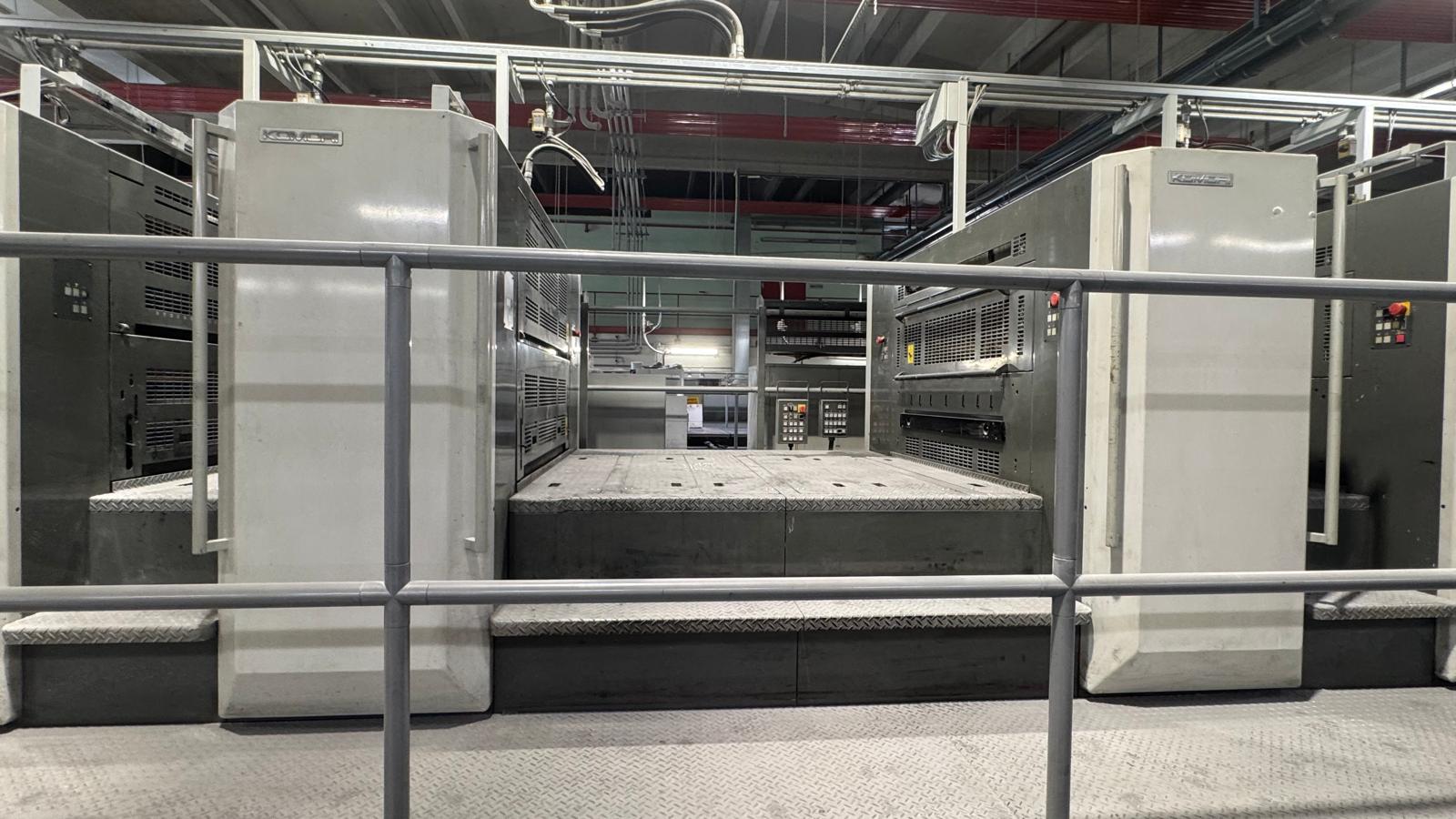

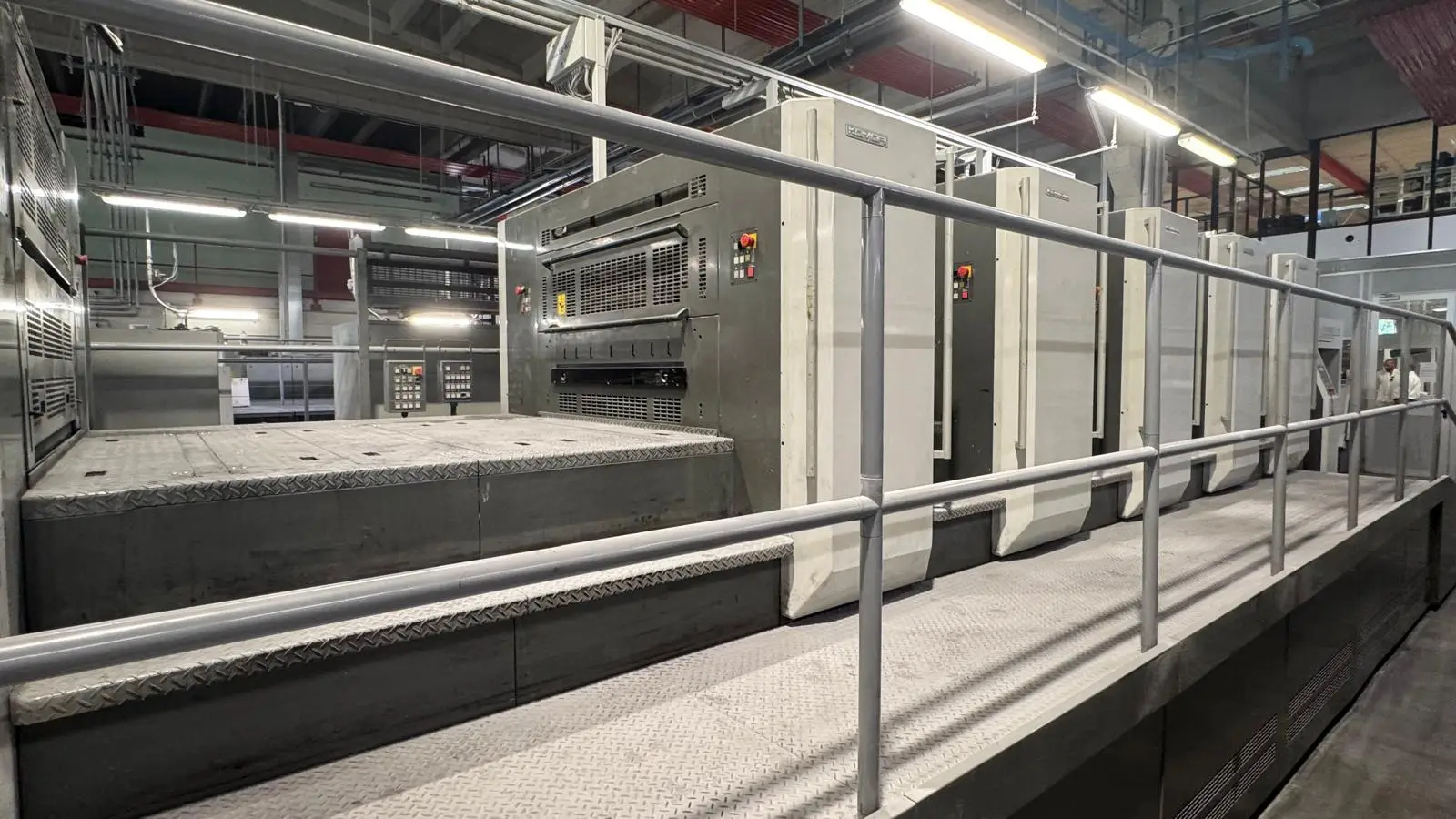

Printing Units

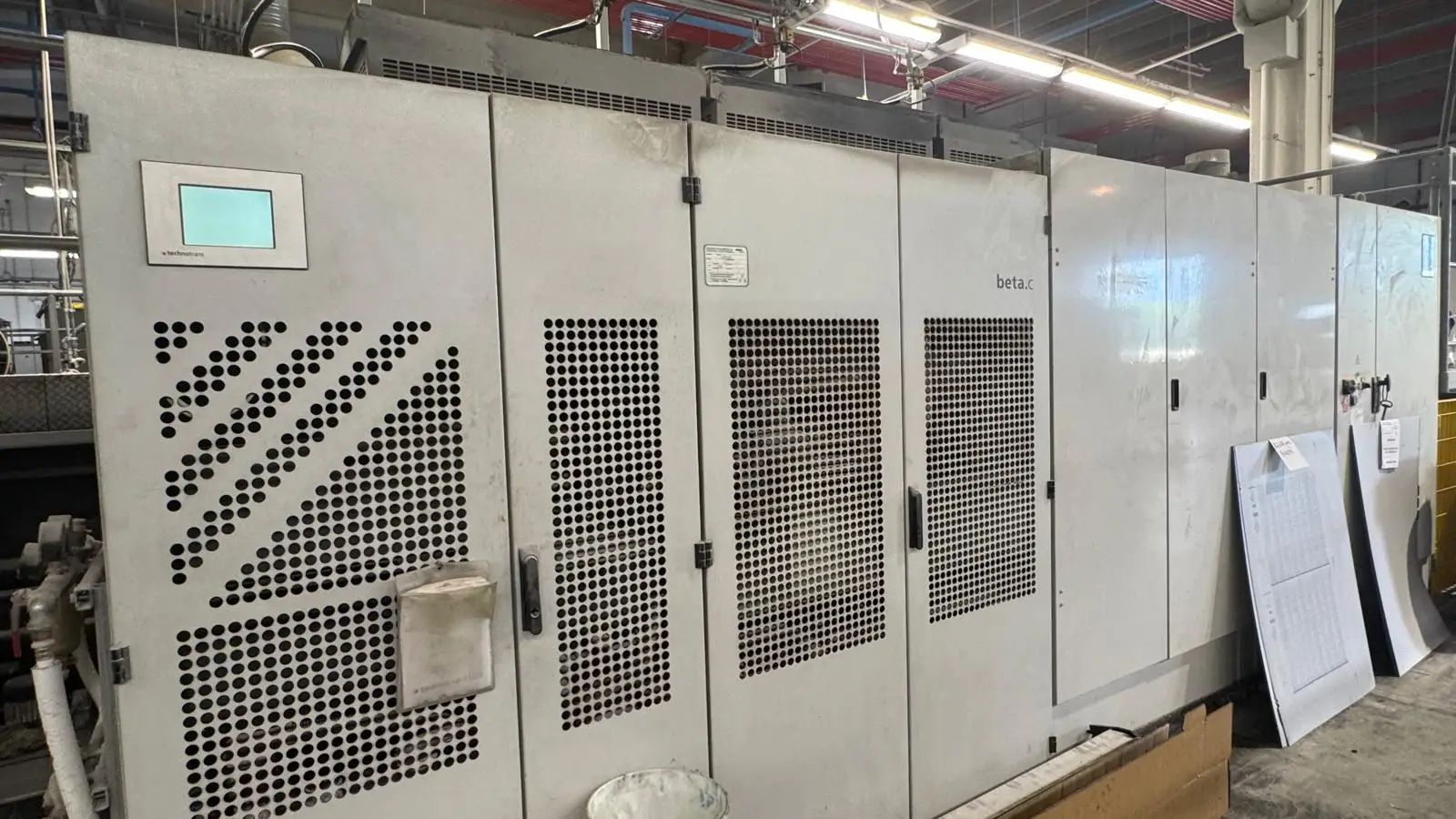

- Technotrans Beta.c ink temp control combined with damping refrigeration + Automix
- Komorimatic damping
- Automatic roller wash-up device
- Automatic blanket washers with cloth
- Automatic impression cylinder washers with cloth
- Double diameter impression cylinders with anti-rust treatment
- Solid transfer cylinders
- Plate cylinders with anti-rust treatment
- Blanket cylinders with anti-rust treatment
- Sheets guide on transfers after the perfecting
- Adjustment of the height of the strokes of the transfer gripper' bars
- Speed Reduction : dampening roller with reduced peripheral speed
- Unhinging of the manual dosing roller only on the motor side
- Inks disconnect device in all the units
- Inking unit with remote distributor-roller adjustment between gripper and tail
- 3 Ink Oscillating Form Roller Refrigeration complete with ink temperature control
- Ink ductor drum motorized
- A-APC asynchronous plate change asynchronous in 75 sec.
- 8/0 ; 4/4 Fully Automatic perfecting device
- Pressure Preset
- Size Preset
- Anti carryover rollers B and C with manual on / off insertion system

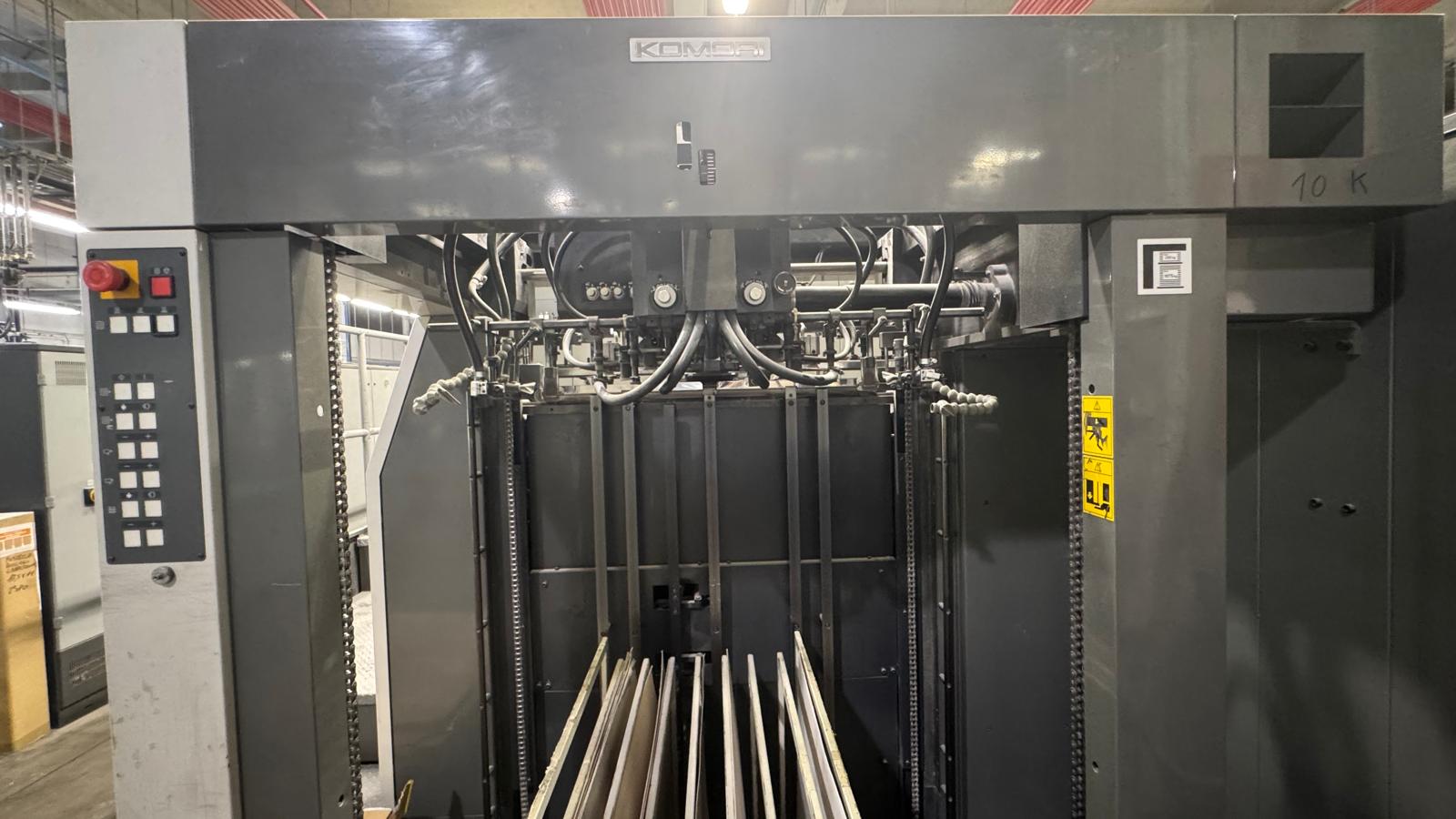

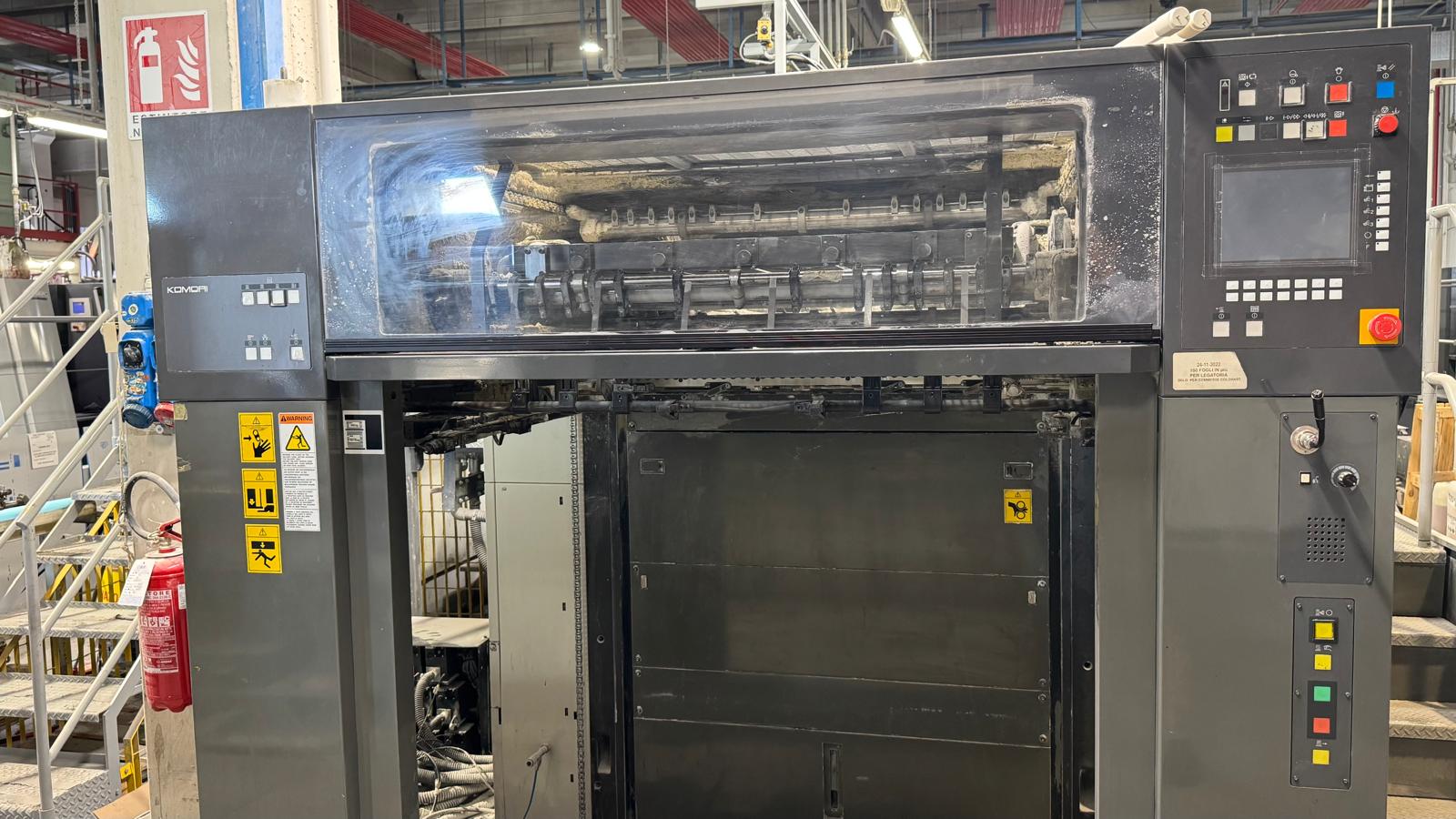

Delivery
- Sheet decurler
- Antistatic in delivery
- Motorized, programmable grippers opening command cam adjustment with speed compensation in delivery
- Commands for attaching / detaching inking rollers and wetters for rapid de-inking

Machine overview

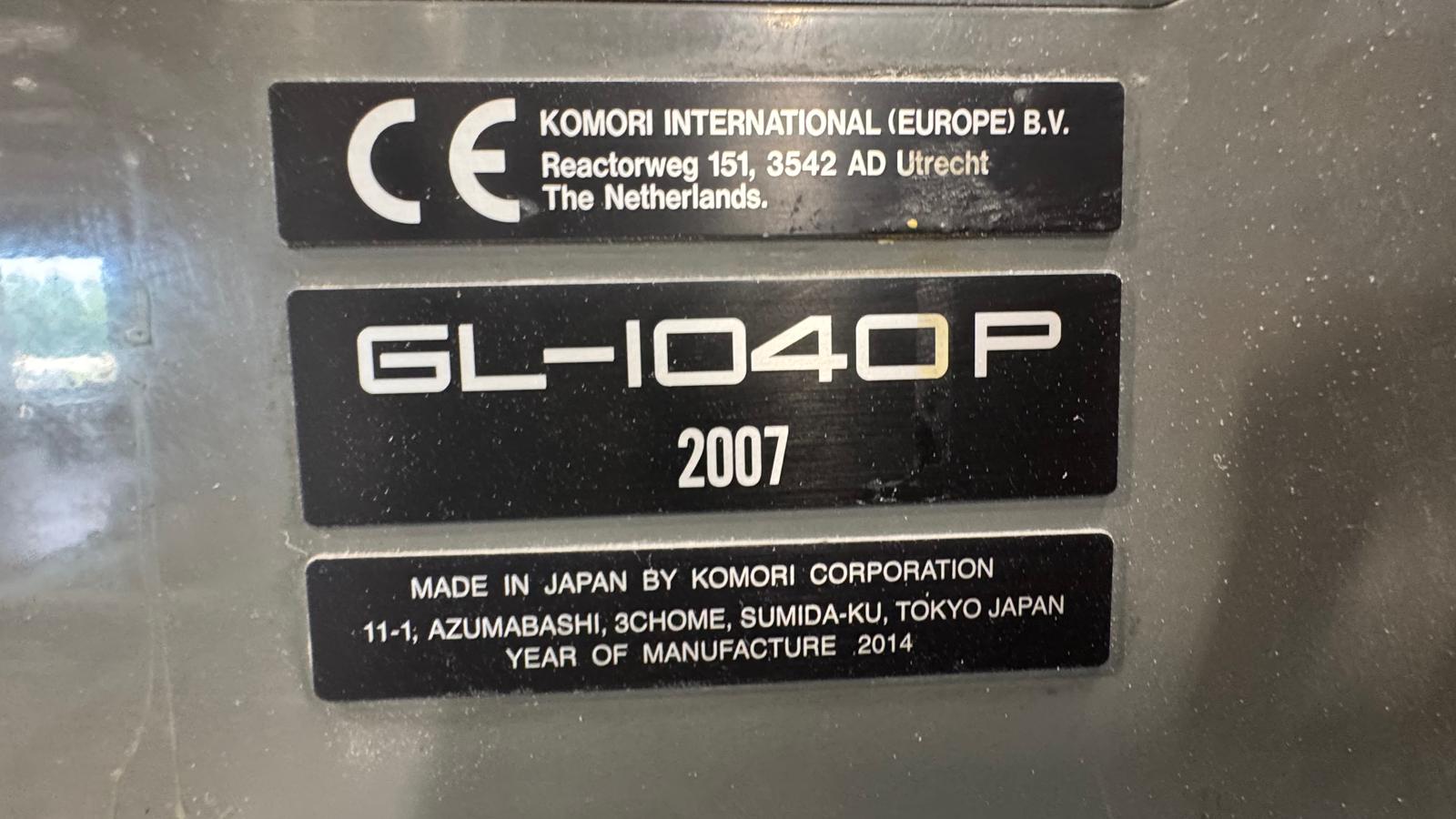

Year	2014
Serial Number	2007
N.of Impressions	180 mio.

“EXTRA” Accessories Overview

A-APC asynchronous plate change asynchronous in 75 sec.
8/0 ; 4/4 Fully Automatic perfecting device

Reference Overview

Reference	24036468
Visible	In production
Availability	Immediately
