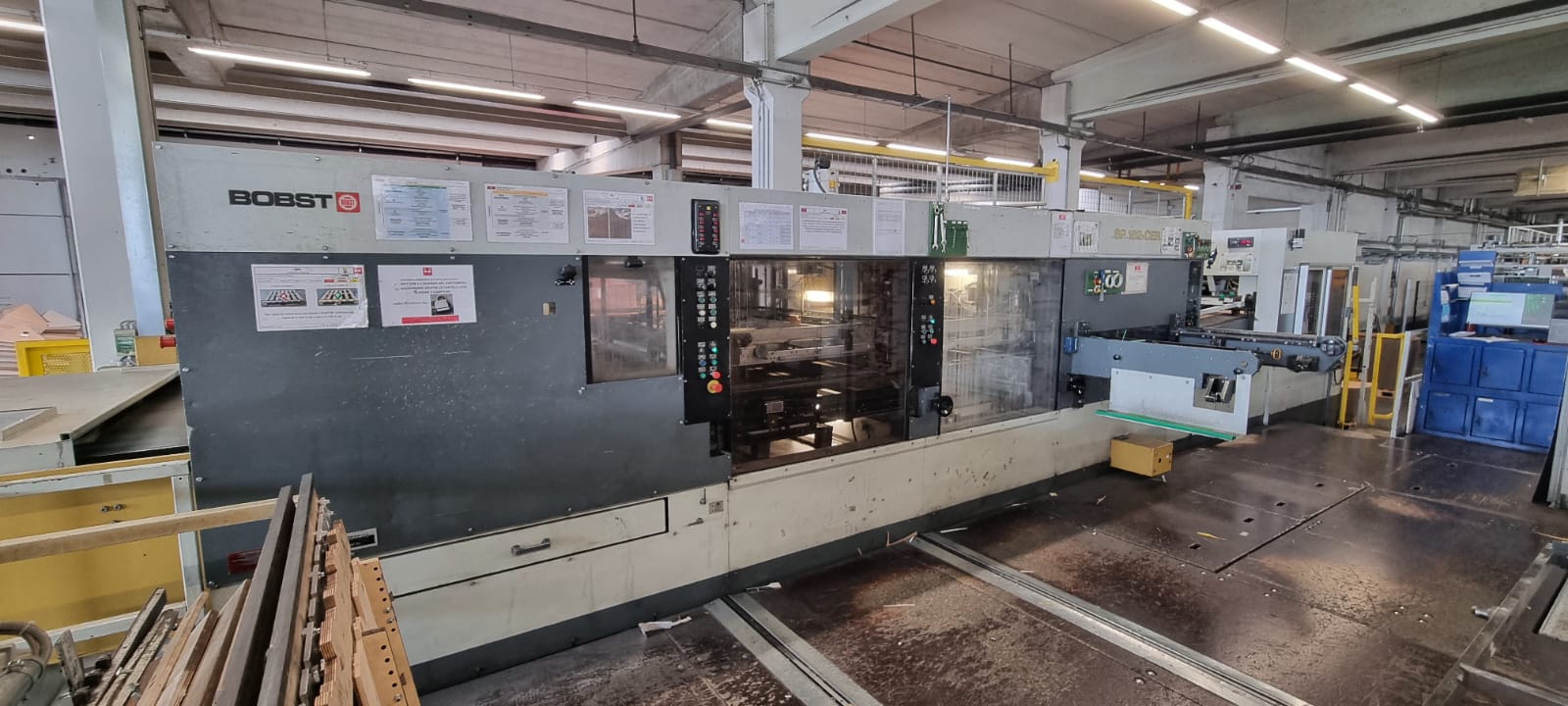

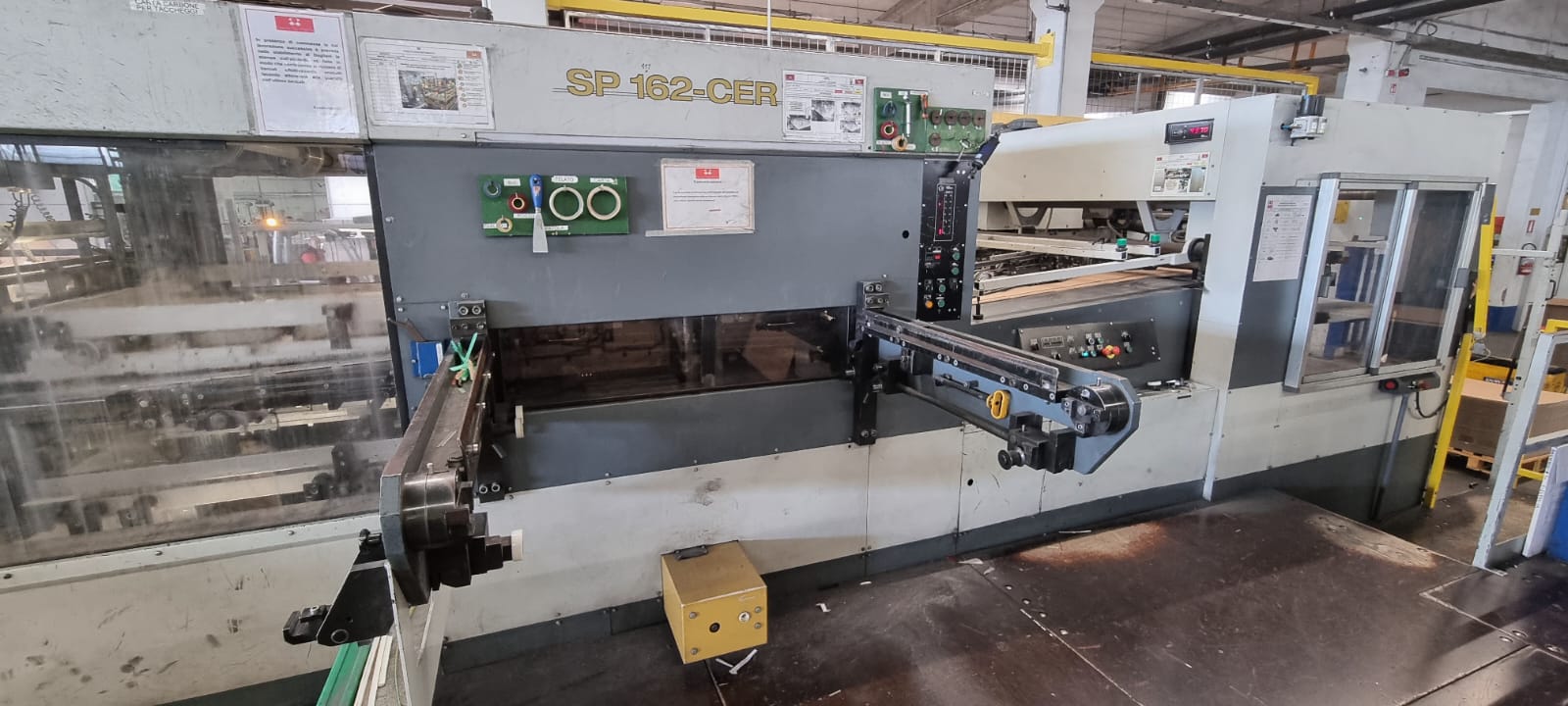

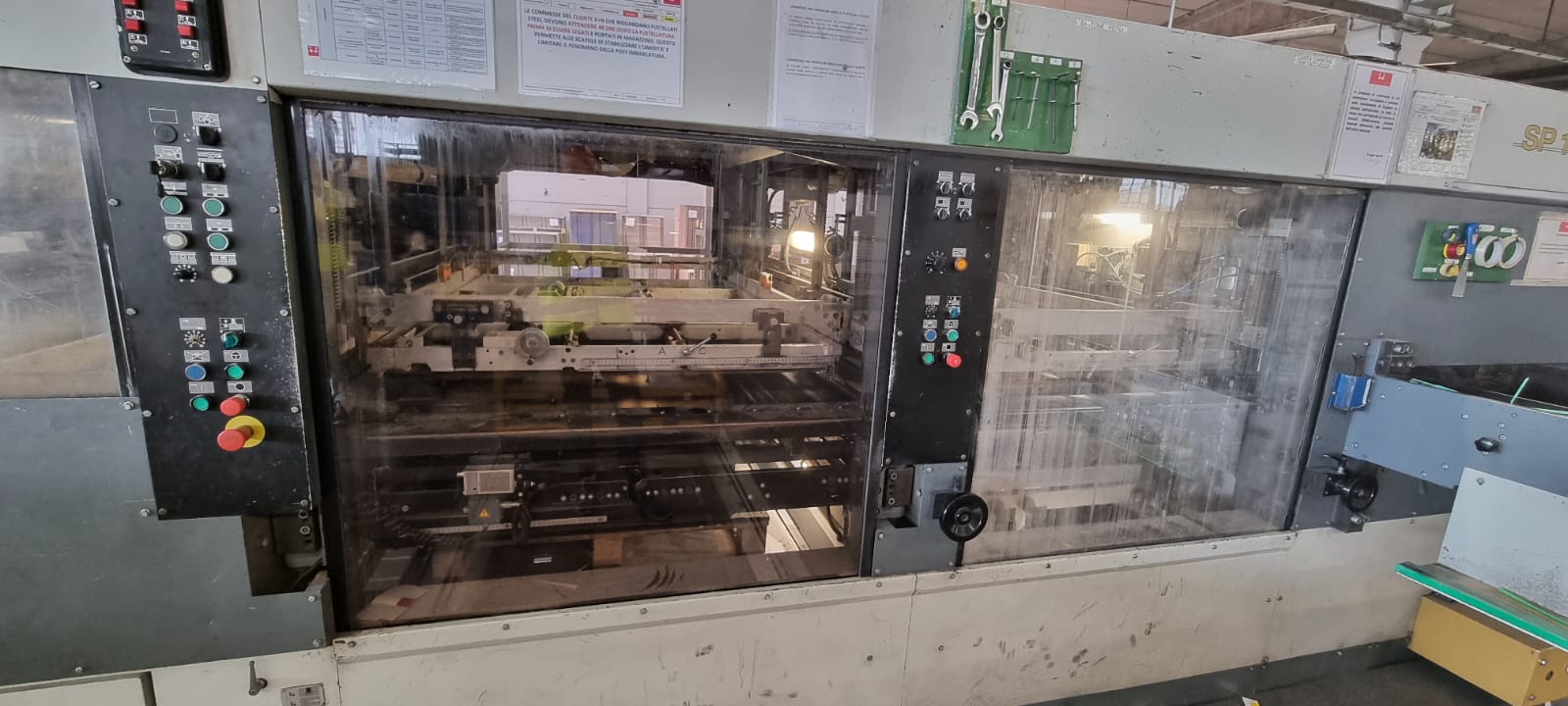

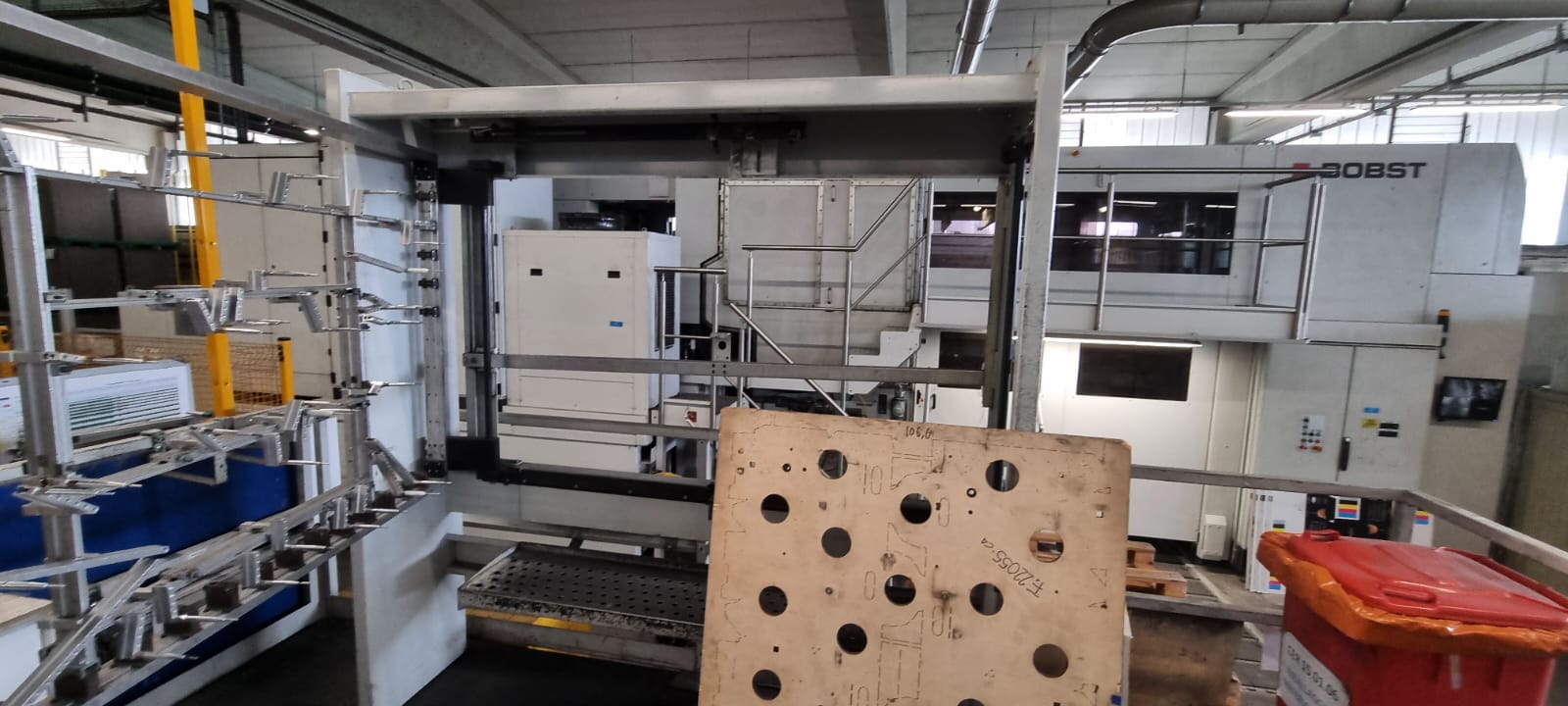

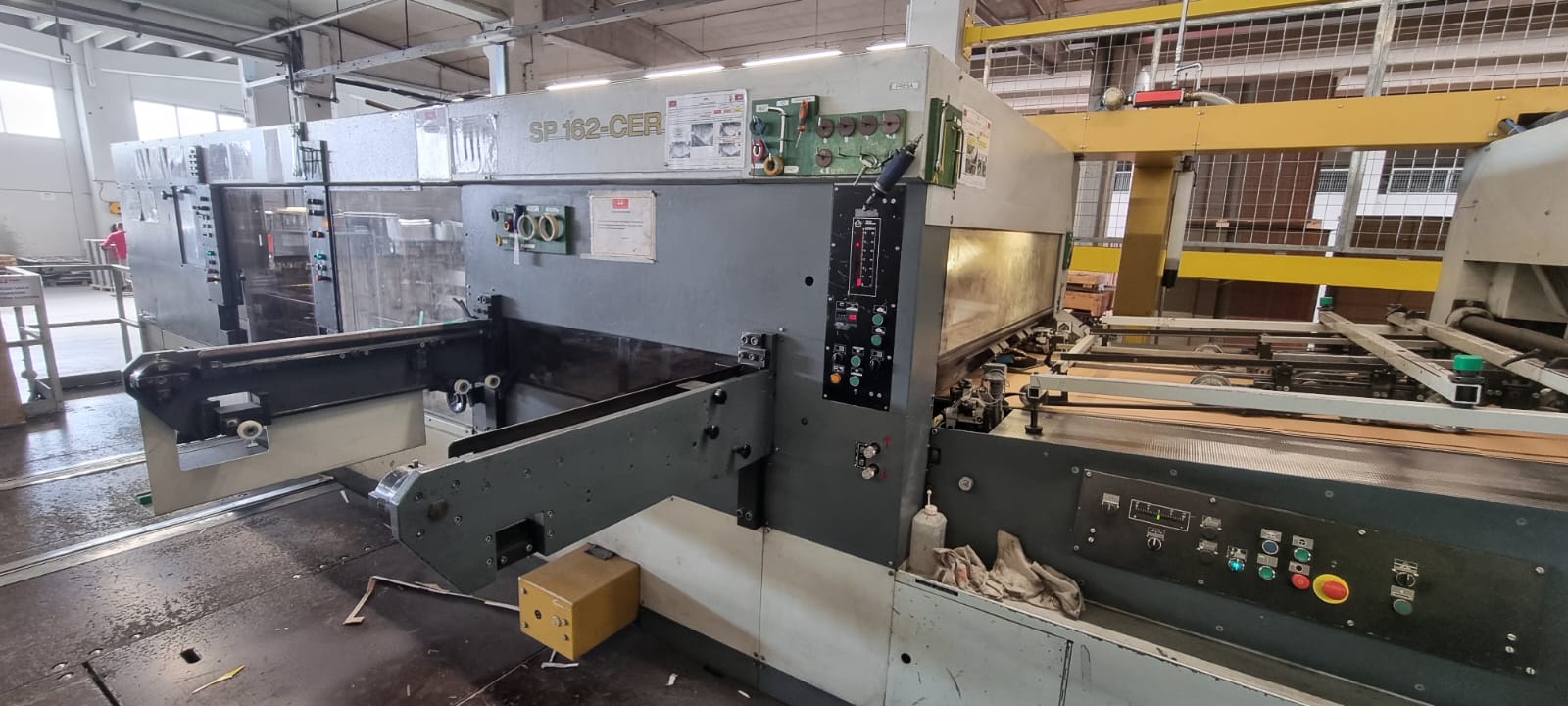

Bobst SP 162 CER 2004 ref.25036583 Enlarge

Bobst SP 162 CER  2004

The machine was selected and carefully inspected by our engineers prior to purchase.

MACHINE SPECIFICATION

ManufacturerBobst
ModelSP 162 CER
TypeDie Cutting/fustellatrici

TECHNICAL DATA

Accessories

  • Machine
    • Platform with safety bar

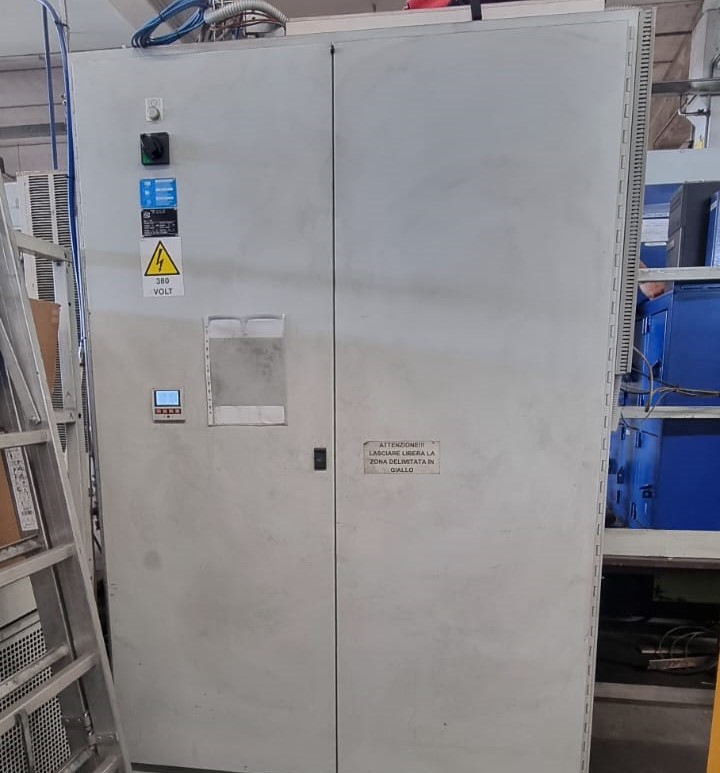

    • Control cabinet cooling unit
    • Gripper bars
    • Bobst-Electronic system for managing the machine
    • Main motor with frequency converter control
    • Centerline system for quick job changeover
    • Electronic device for sheet travel control

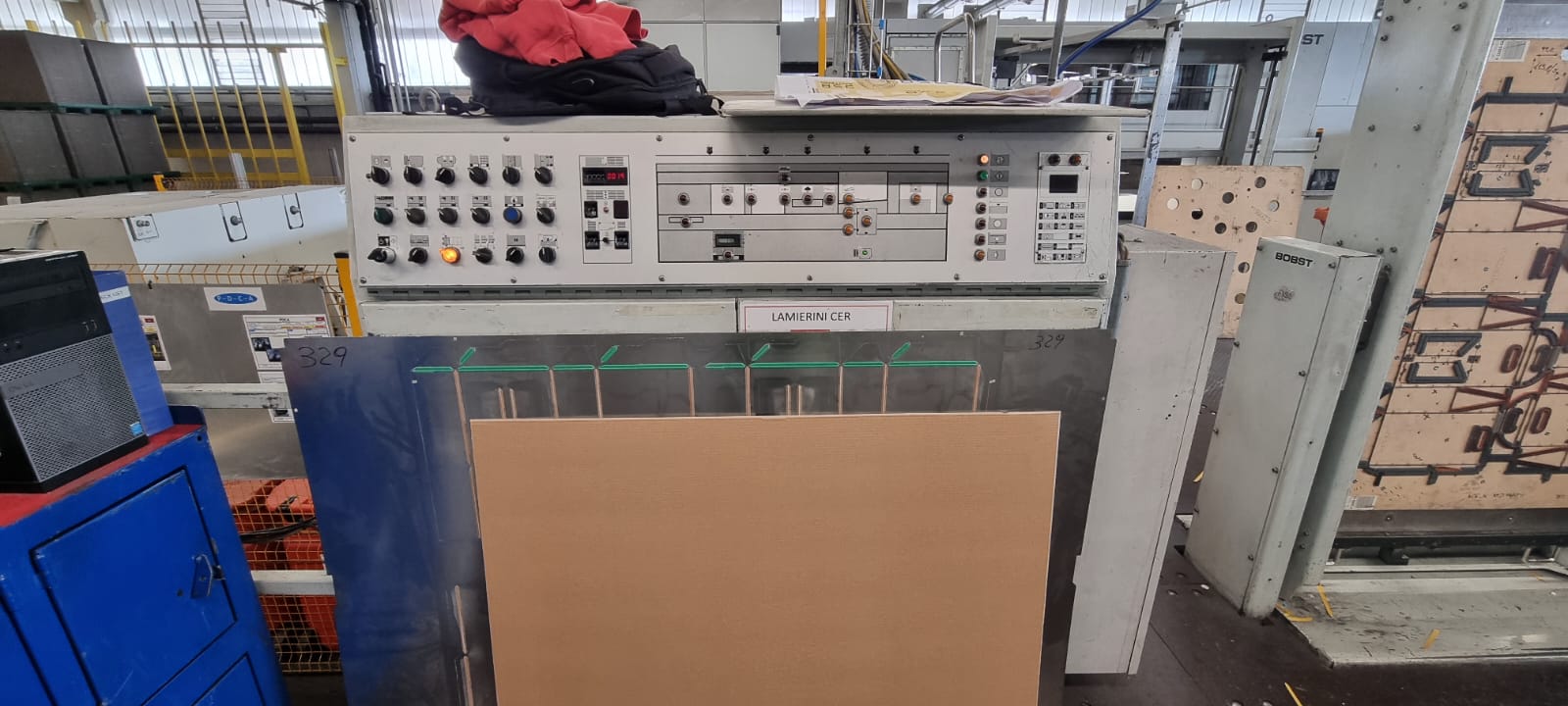

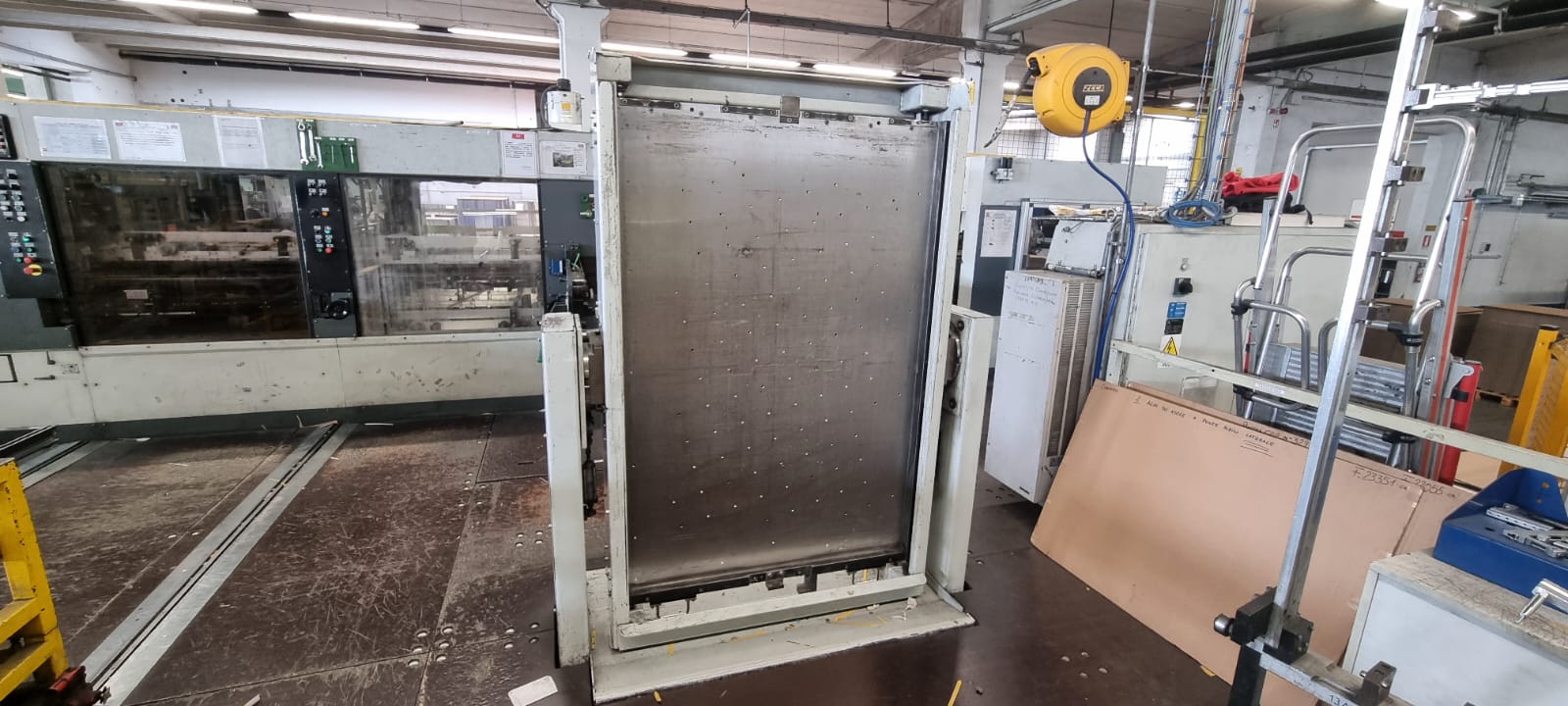

    • CHASE CHANGER : allows the change and preparation of the chase and the die cutting corresponding to the next job (Includes an increase in the surface of the platform)
    • SETTING TABLE (MASKED PREPARATION FOR NEXT JOB EJECTION)

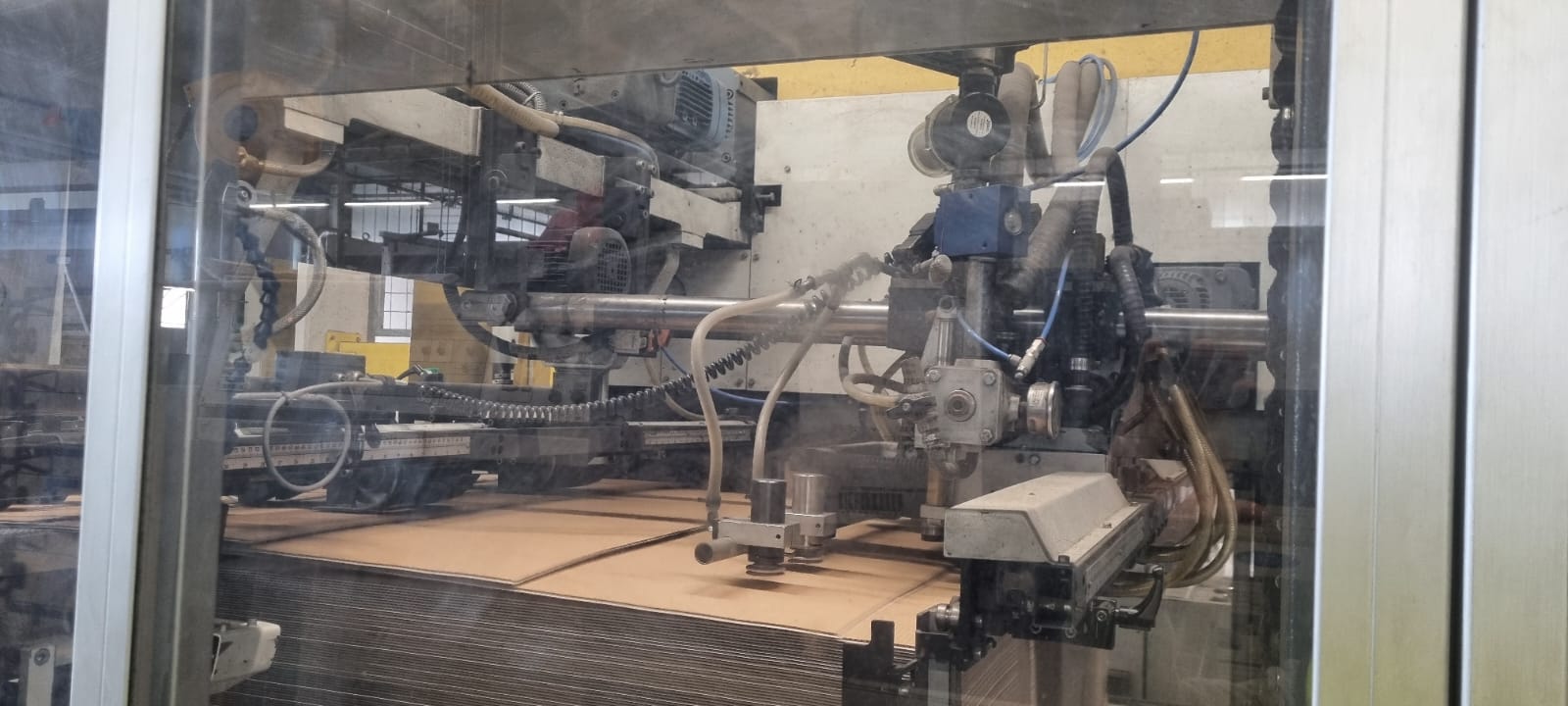

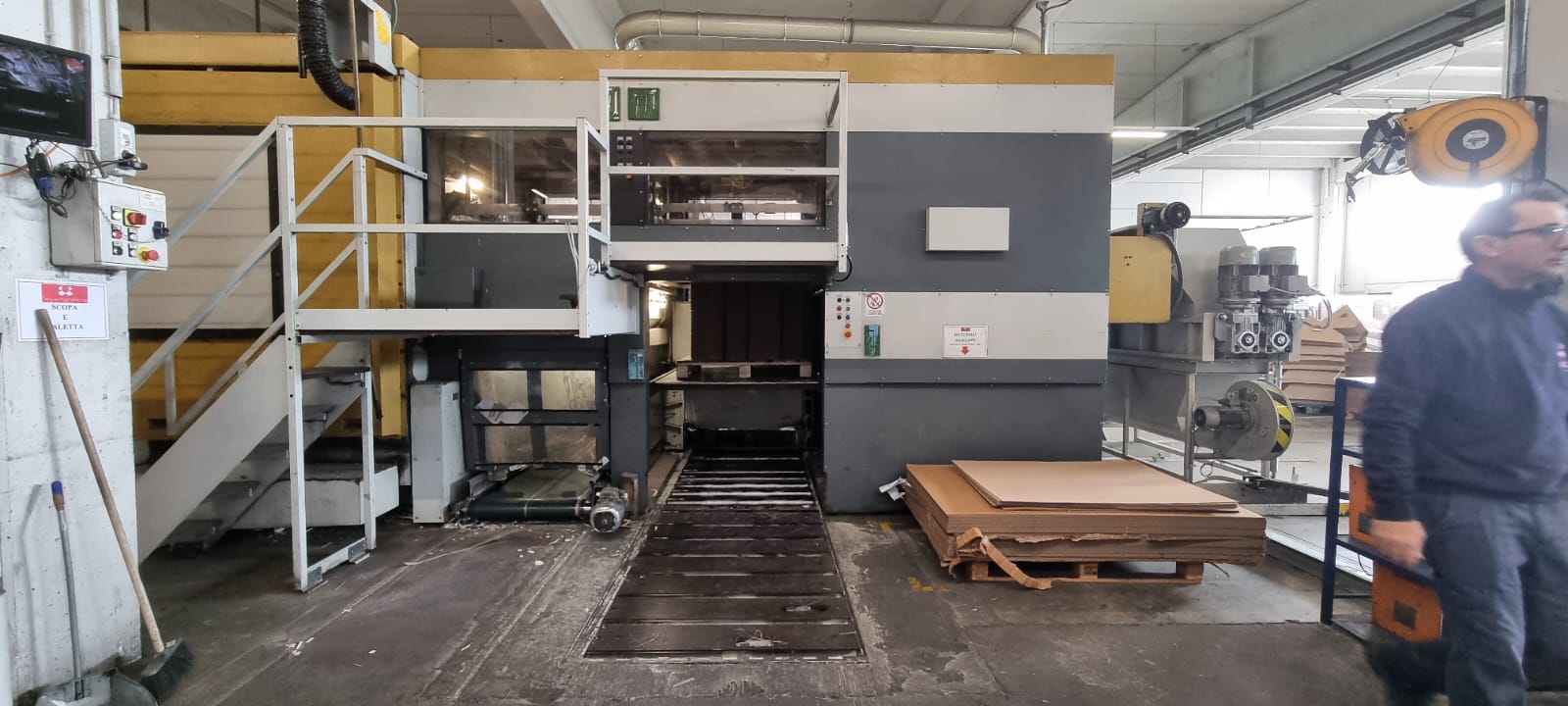

  • Feeder
    • Manual Non-Stop device
    • Automatic lateral pile adjusting using non-contact probes (with photocells)
    • Side blowers adjustable with Centerline marks

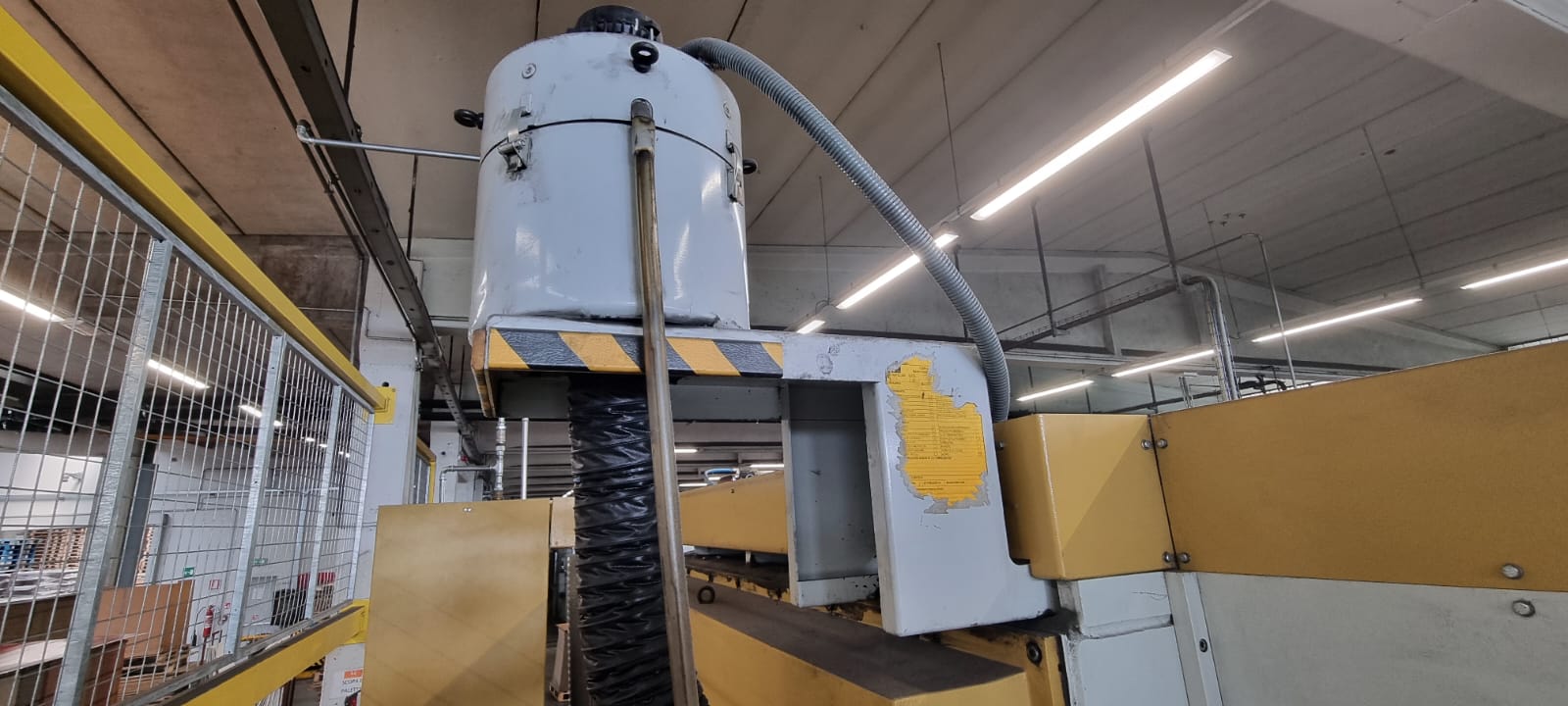

    • Suction unit
    • Synchronization device timing the sheet arrival against the front lays when the machine is at a standstill
    • Feed table with pre-register device that ensures smooth arrival of the sheets to the front teams
    • Control of the height of the pile on the front edge thanks to a photoelectric cell, with interlocking of the suction unit position according to the top and rear part of the pile
    • Safety system for lowering the pile tray

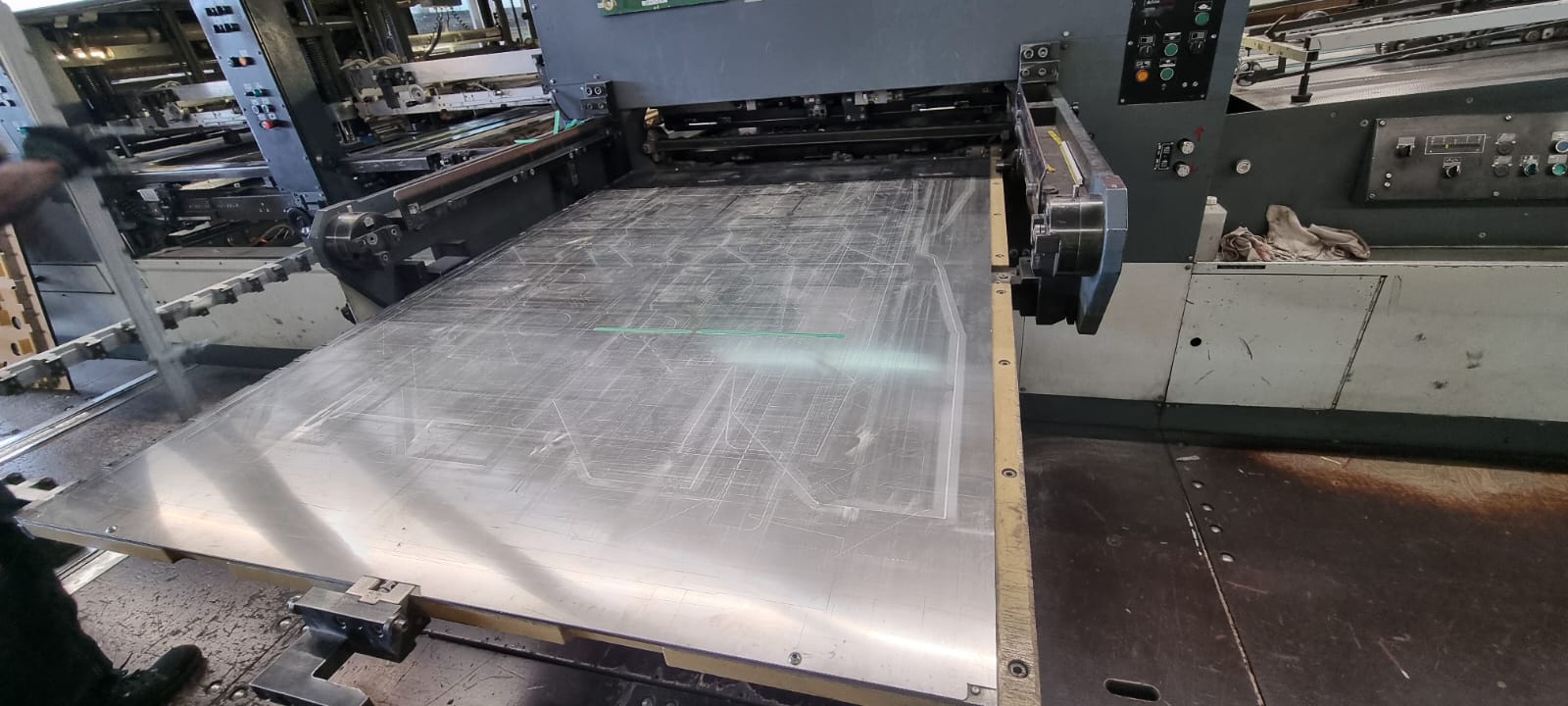

  • Introduction table
    • Feed table covered with an anti-static stainless steel plate
    • Sheet synchronizer for adjustable running which allows you to adapt the cycle of the feeder to that of the platen with LED indicator
    • Laterally guided transport belts with automatic disengagement
    • Feed table covered with an anti-static stainless steel plate
    • Feed table with laterally guided transport belts with automatic disengagement

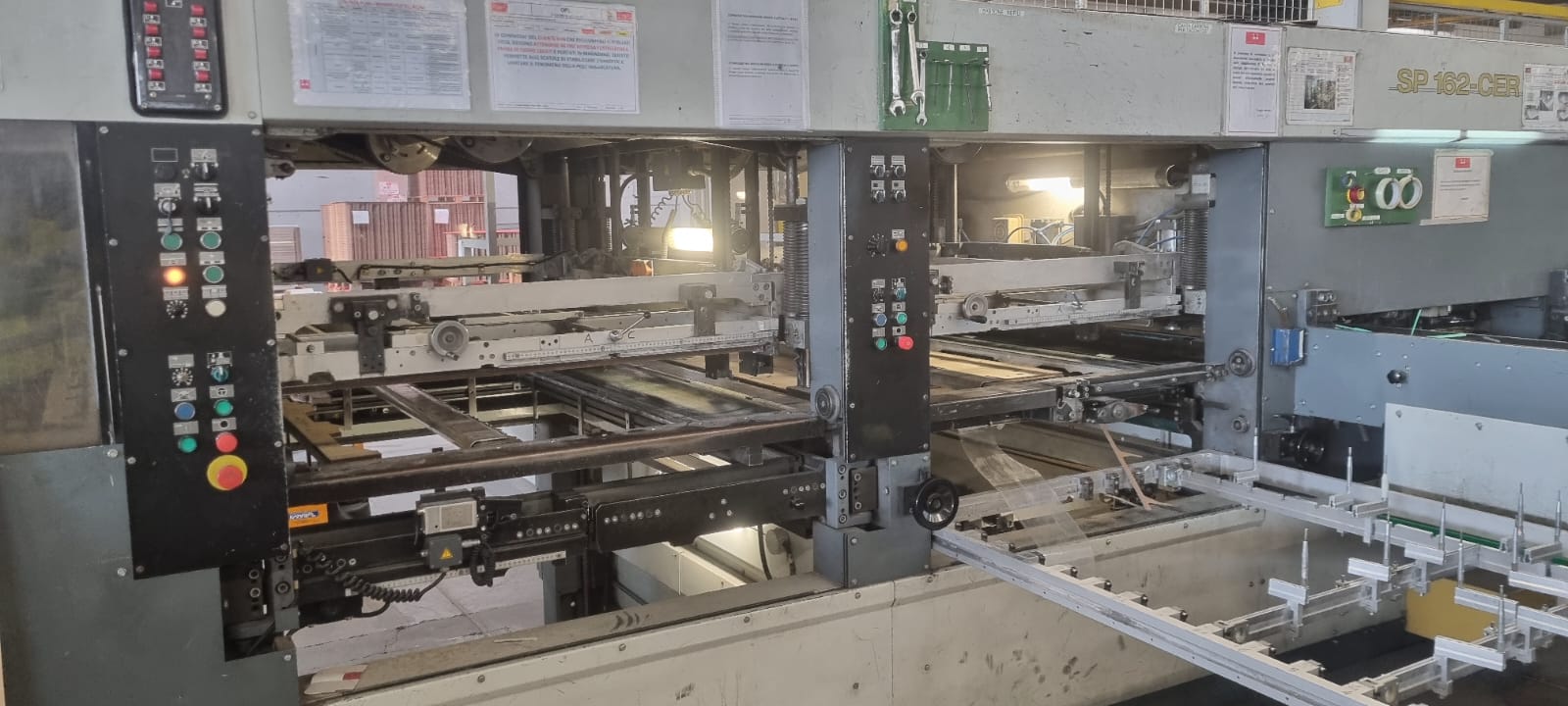

  • Platin
    • Die-cutting device without gripper band

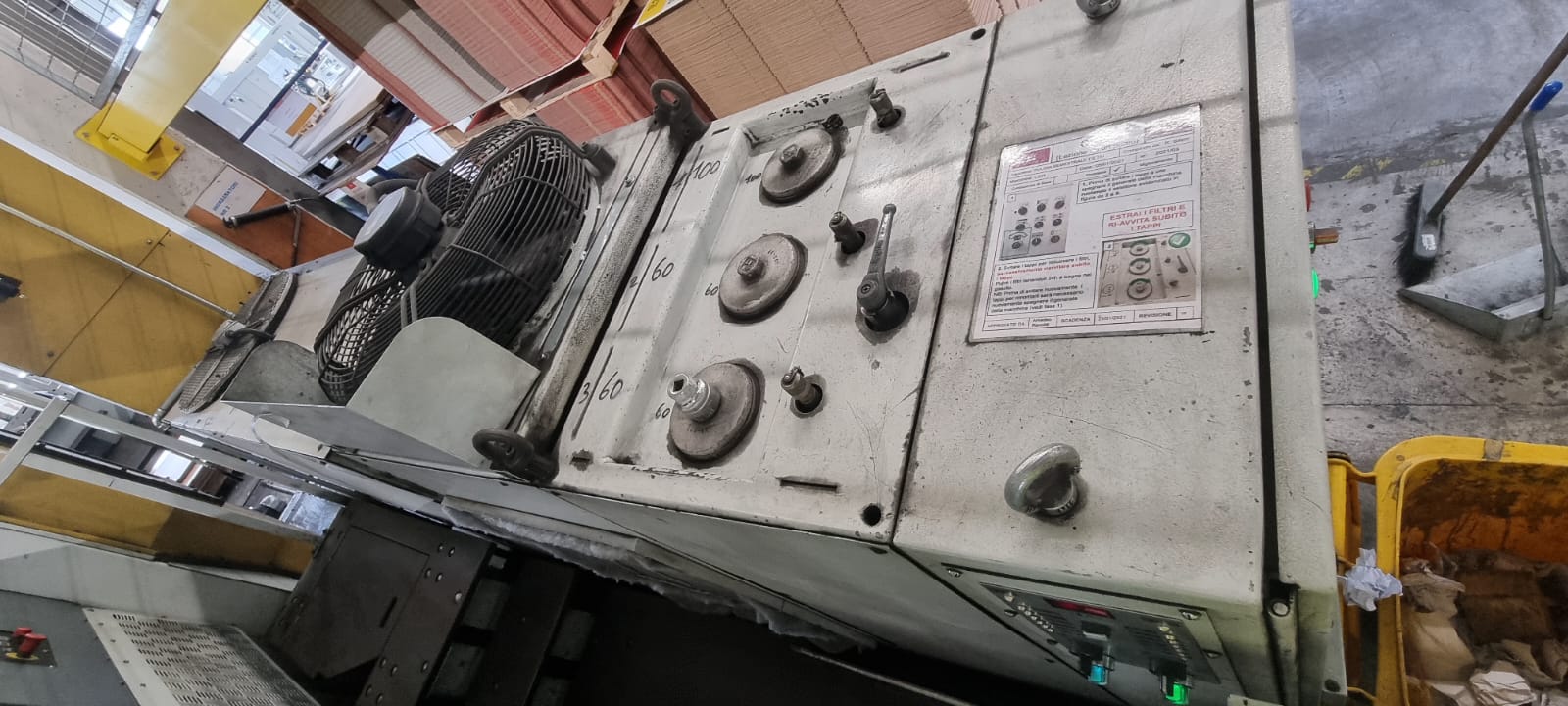

    • Oil conditioning unit for die cutting stability. Machine oil temperature maintenance system with temperature display. Programmable preheating system
    • Centering and closing the die-cutting equipment
    • Automatic closing of the frame and support plate
    • Closing of the frame towards the upper block
    • Measurement of the die-cutting force using an electronic probe
    • Support plate in synthetic material. For the vacuum system
    • Motorized cutting force adjustment Via button
    • Braking device via "Bernoulli" system
    • 2 Upper frames with fixed bottom (E-1). Bottom sheet, 2 mm thick and synthetic protection plate, 1 mm thick
    • 2 Cutting plates (E-4)
    • Gripper reopening device
  • Stripping Station
    • 3 drawer frame system
    • Braking device via "Bernoulli" system
    • 1 Upper drawer frame (F-2)
    • Upper extraction equipment (F-21). Equipment needed to make an extraction tool, including bars, fixing brackets, extractor holders and sets of extractors of 3, 5 and 10 mm diameter
    • Fixing material for extraction tool (F-22). Including fixing bars and brackets
    • 1 Central drawer frame
    • 1 Extraction table fastening material (F-75)
    • 1 Lower drawer frame (F-8)
    • 1 Lower Extraction Equipment (F-81). Trim extraction equipment, including rods and telescopic needles

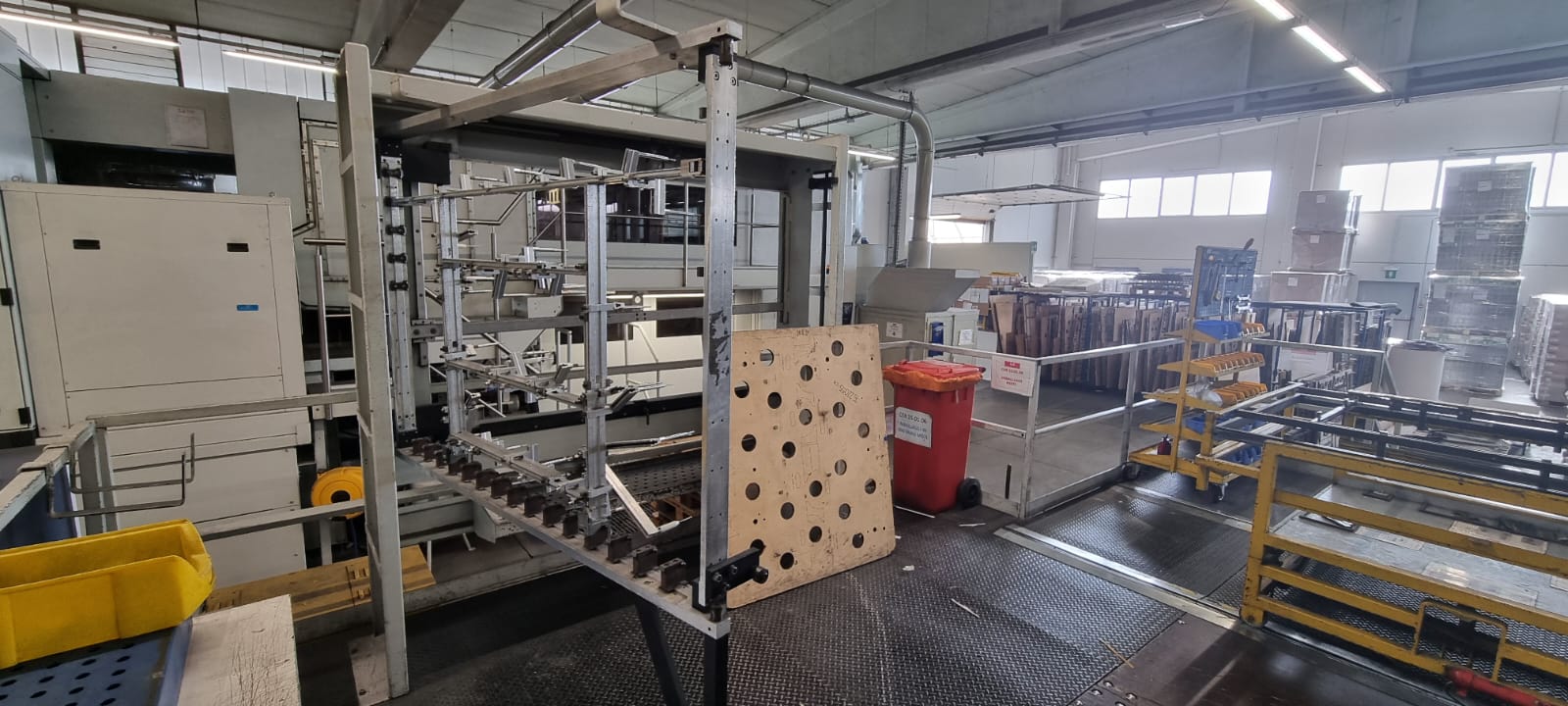

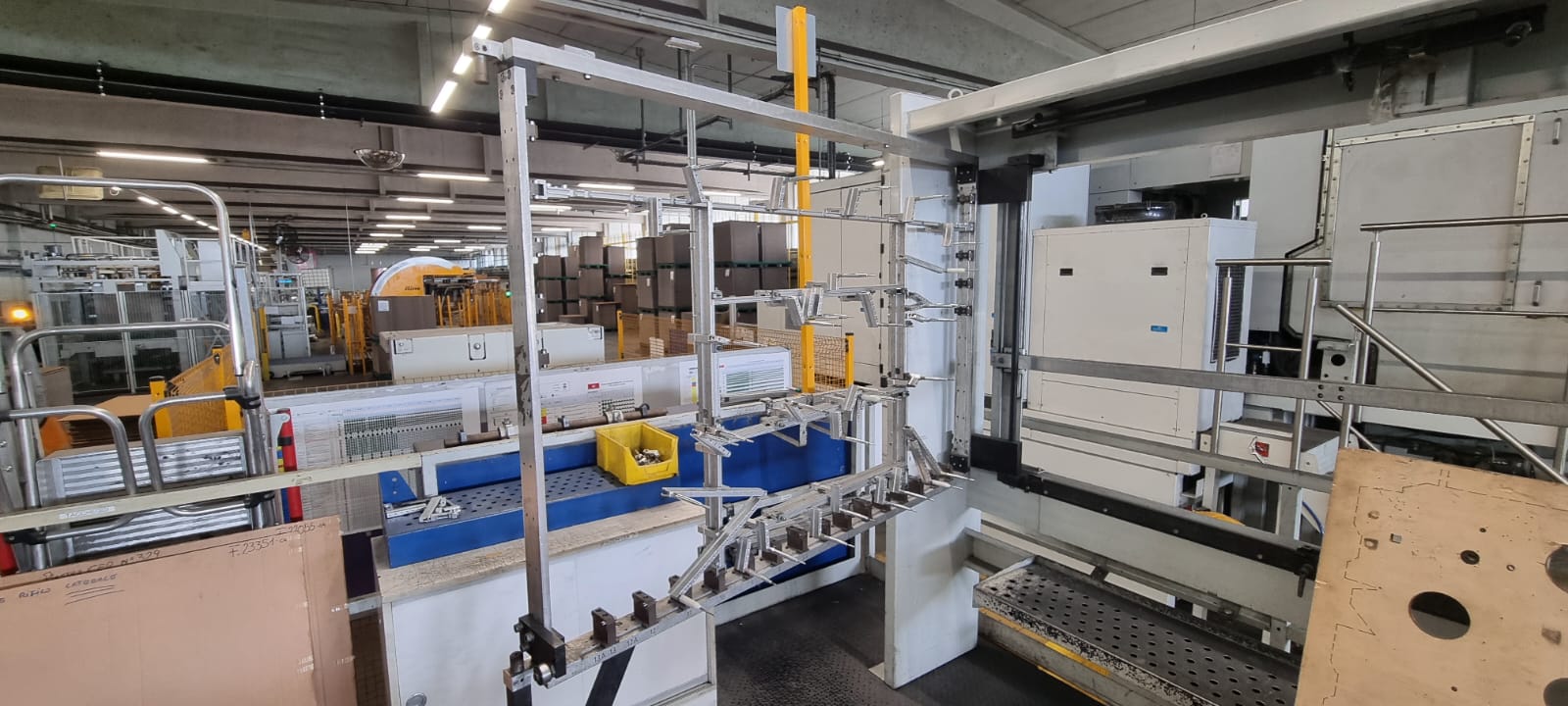

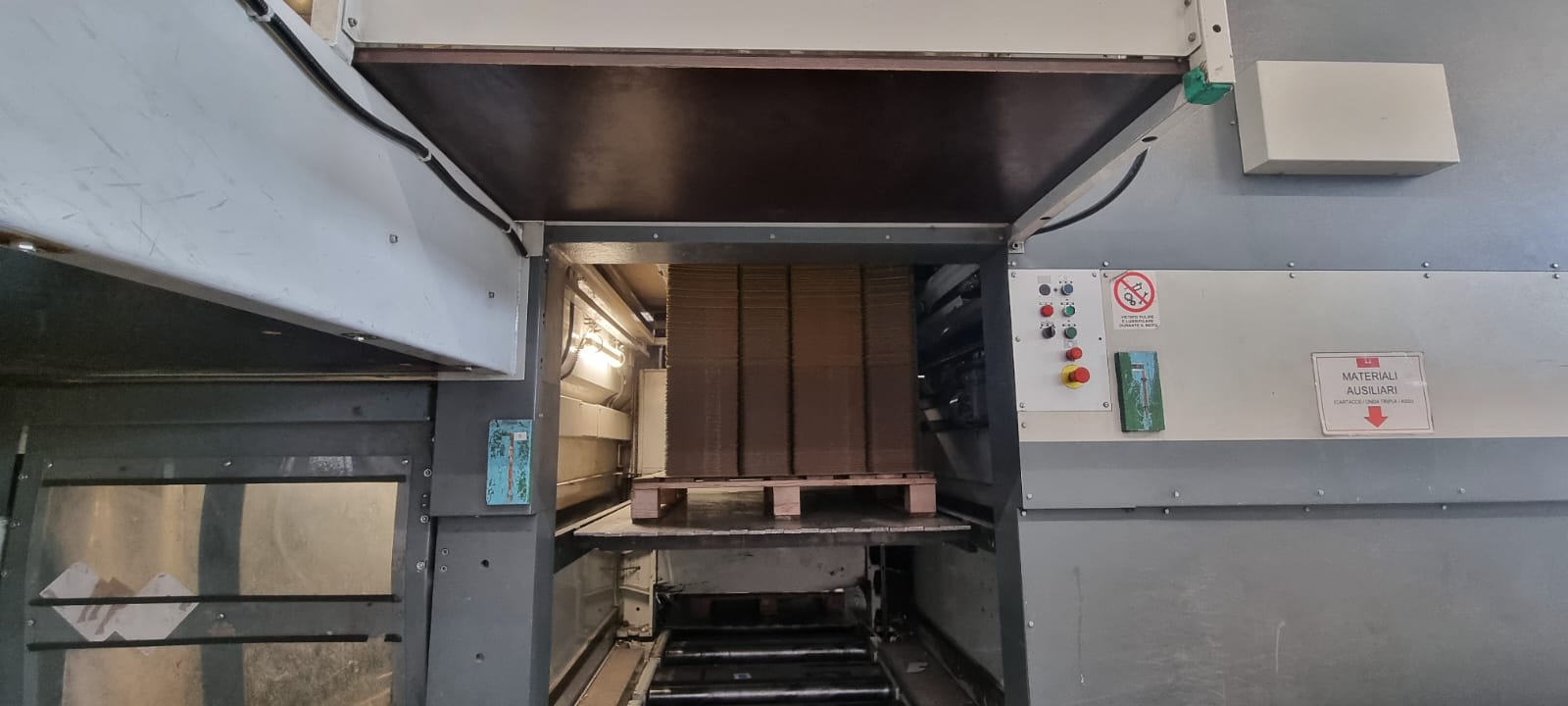

  • Blanking Station
    • Automatic sheet insertion device
    • Drawer sheet device with electrical control of the presence of the sheet in the drawer
    • Clamp opening device that allows the sheets to arrive in the stack
    • Automatic pallet change device. With photoelectric cell safety barrier (non-conductor side)
    • Automatic Non-Stop Device
    • Non-stop bars in high and low positions
    • Stack raising safety device
    • Belt for evacuation of trimmings or residual grid located at the end of the machine. It also allows the removal of a sheet with non-separated poses, for quality control
    • Residual grid braking brush
    • Braking device via "Bernoulli" system
    • 1 Upper drawer frame (H-21)
    • 1 Universal upper tool (H-25). Equipment necessary for the creation of a pose separation tool
    • 1 Fixing material of a separating tool (H-26). For fixing the upper separation tools of fabricated poses. Recommended for repetitive work.
    • 1 bottom drawer frame with fastening material (H-5). Allows you to attach a lower separation tool to manufactured poses
    • 1 Adjustable lower tool (H-6). Adjustable tool includes: - universal frame (H-61) - material that allows you to assemble the separation grid

Machine overview

Year2004

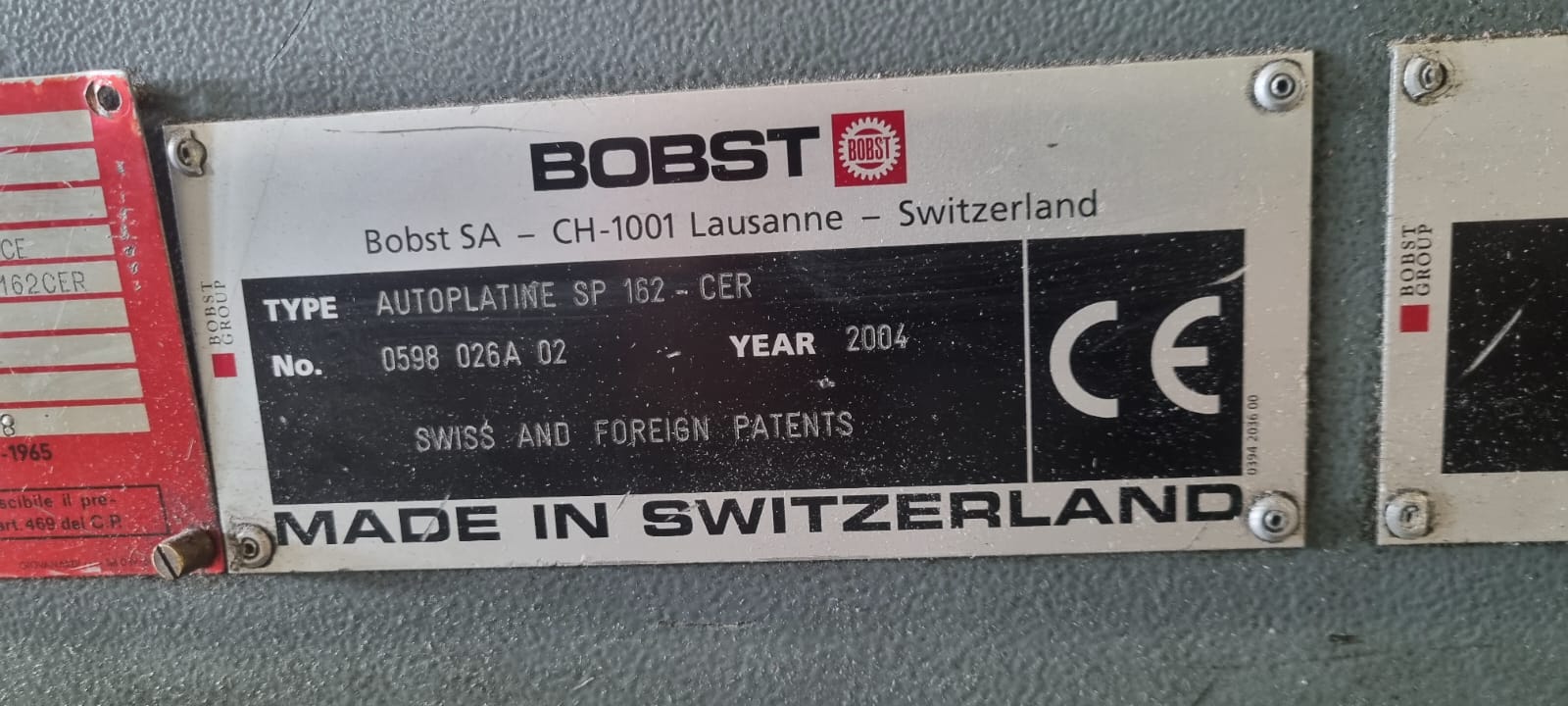

Serial Number0598026A02

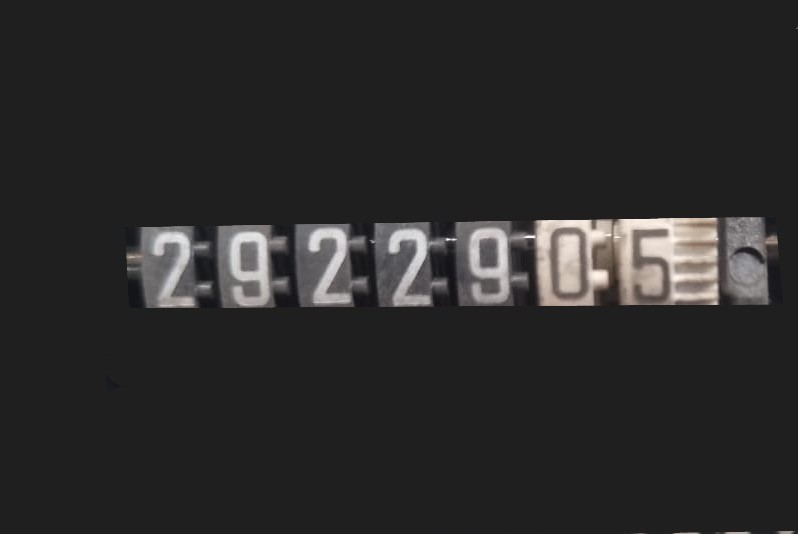

N.of working hours29000

“EXTRA” Accessories Overview

  • CHASE CHANGER : allows the change and preparation of the chase and the die cutting corresponding to the next job (Includes an increase in the surface of the platform)
  • SETTING TABLE (MASKED PREPARATION FOR NEXT JOB EJECTION)

Reference Overview

Reference25036583
VisibleIn production
Availability31/12/2025
