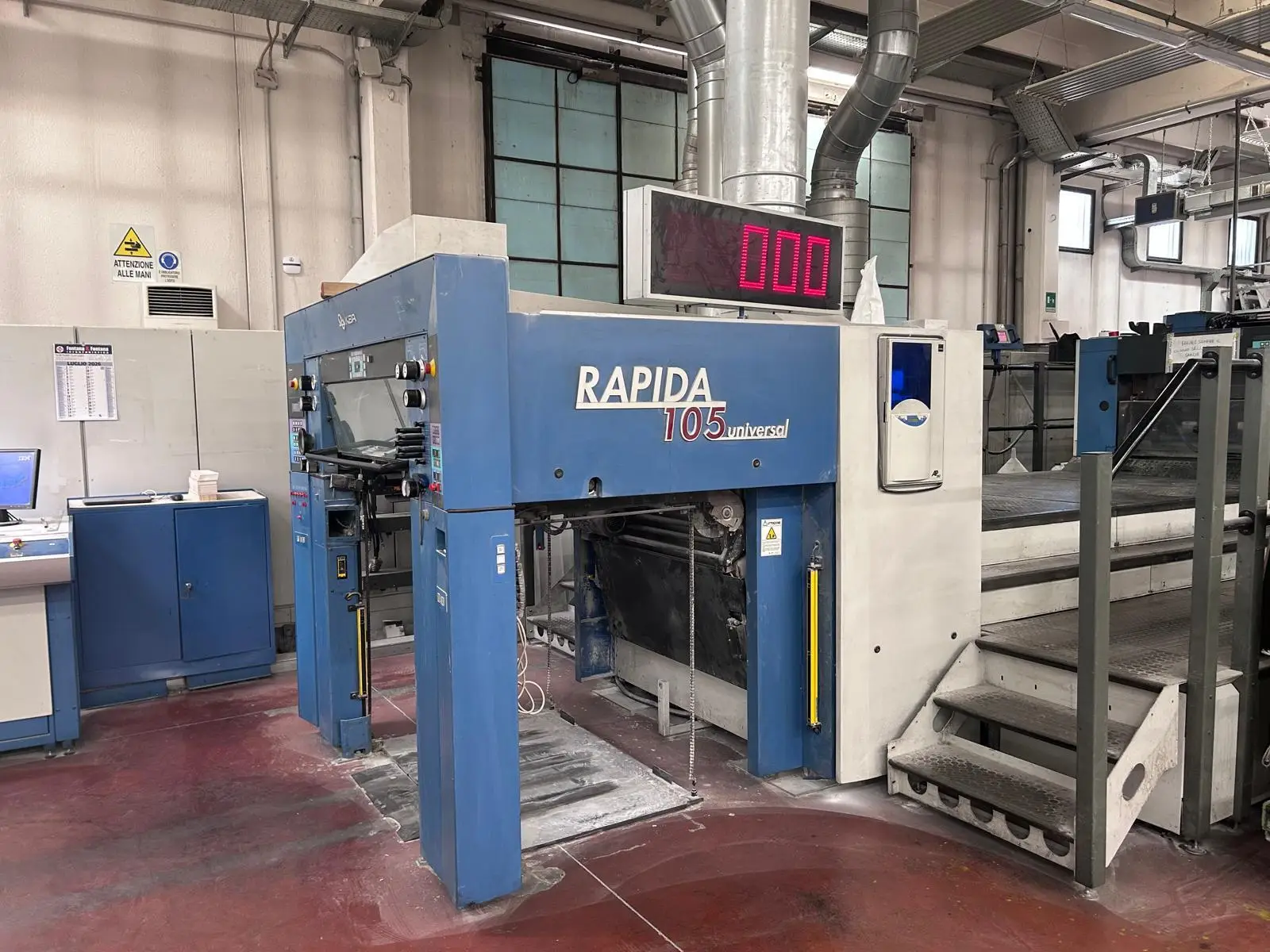

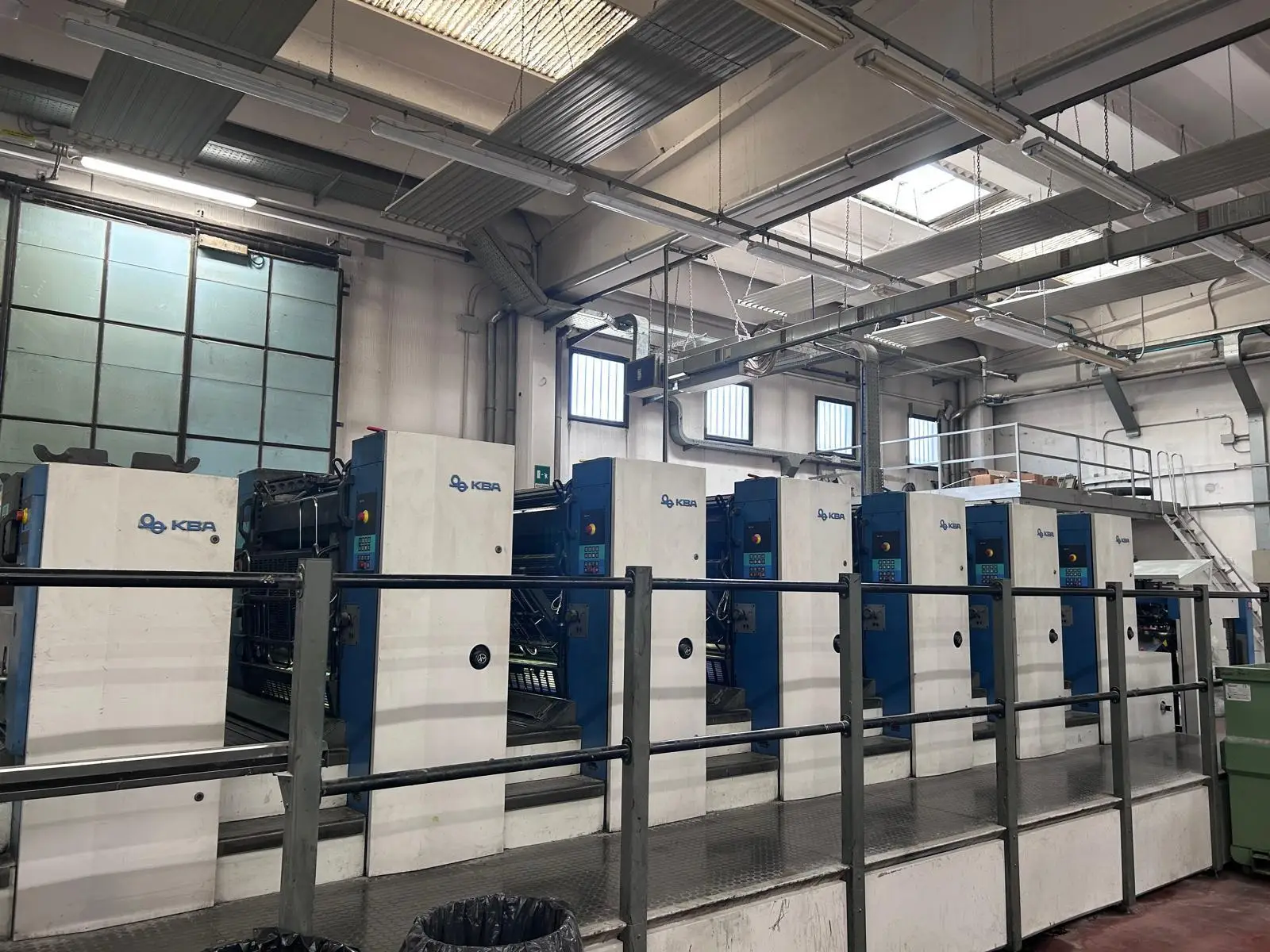

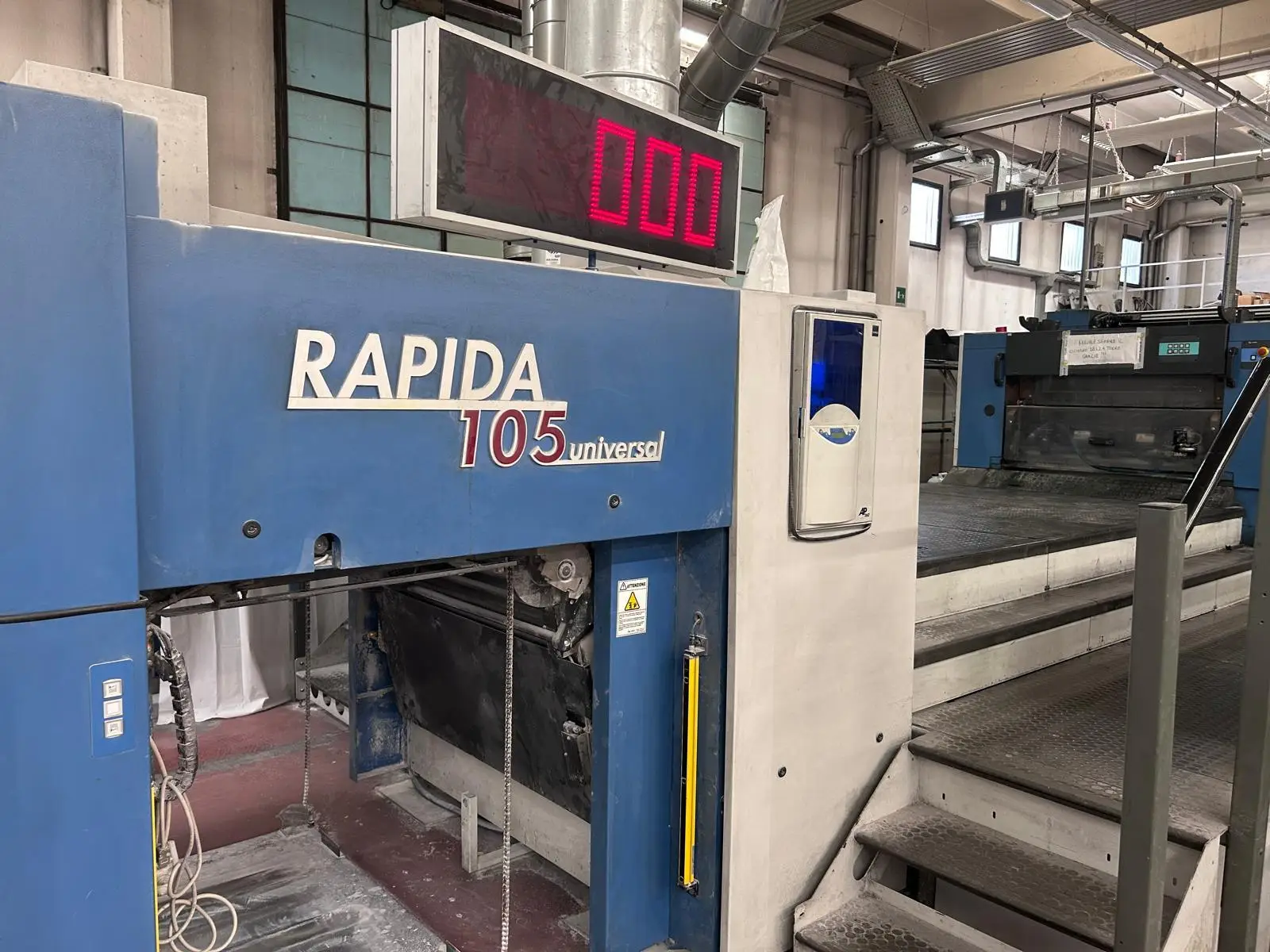

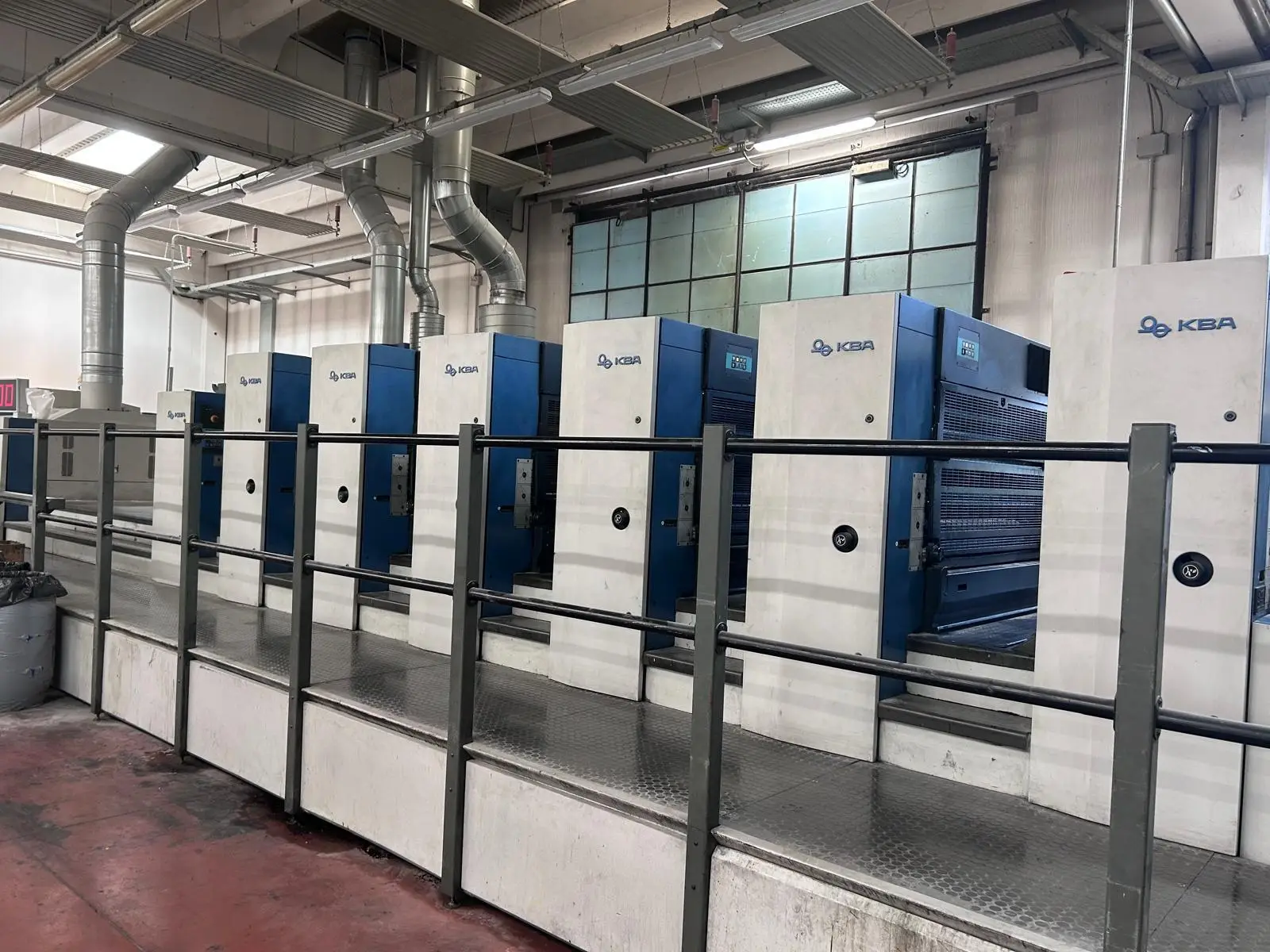

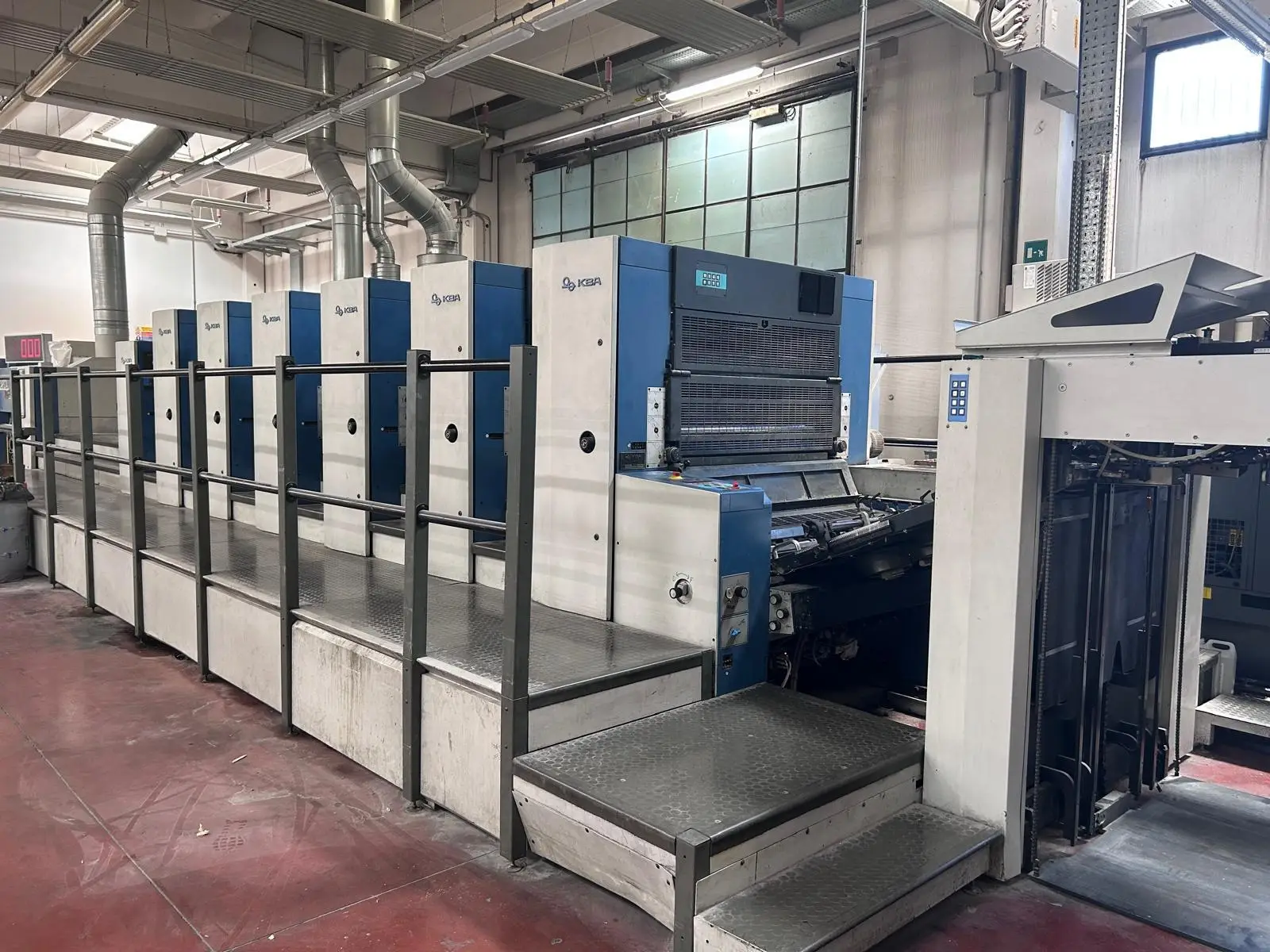

KBA RAPIDA 105 U-6-L-ALV2-CX 2007

The machine was selected and carefully inspected by our engineers prior to purchase.

MACHINE SPECIFICATION

Manufacturer	KBA
Model	RAPIDA 105 U-6-L-ALV2-CX
Type	Sheetfed Offset/Offset a foglio

TECHNICAL DATA

Max sheet size	740 x1.050
Min sheet size	360 x 520
Max print size	710 x 1030

Accessories

Machine
- CX (cardboard device up to 1,2 mm)
- Hybrid Machine
- Electrical cabin with cooling device
Console
- COLORTRONIC : ink, damping and axial, circunferential, diagonal register remote control
- Ergotronic Basic Console : Monitor 17", ink doser Colortronic, lamp 5000°K, hard disk
- Console "Professional"
- DENSITRONIC - S: with spectral and dynamic ink zone control (Table 120 x 162)
Feeder
- Suction belts on feeder
- Double sheet electronic detection
- Side lays control
- Pneumatic side lays
- Ultrasonic sensor double-sheet control
- Non-stop on feeder
- KERSTEN antistatic on feeder
Printing Units
- Varidamp damping
- Automatic roller wash-up device
- Chromed impression cylinders
- Air-fed sheet guide plate beneath the transfer drum ("suction air cushion")
- Printing Unit prepared for UV
- Pneumatic ink agitator
- 2 x UV Grafix intermediate dryer units
- 4 x additional interchangeable positions for intermediate UV dryer
- APL Automatic Plates Change
- Baldwin blanket cylinder/ink wash-up devices
- Baldwin impression cylinder wash-up devices
- Baldwin Multiliner combined cooling unit for inking and dampening systems, including pH and conductivity monitoring and control by console.
- Anti carryover rollers with oscillation movement
Varnishing units
- Varnishing unit, with axial, circumferential and cooking register, with semi-automatic plate change, with Tresu chambered doctor blade system, with anilox roller
- Dual varnishing circulation circuit and varnishing temperature control unit
- Rapid sheet tensioning for plate on varnishing towertower
- Varnishing Unit prepared for UV
Delivery
- Final IR – hot air – UV dryer at the extended delivery
- Non-Stop Rollo in delivery
- Weko AP 260 Ionojet powder spray with inclusion in the control panel
Peripherals
- Damping solution preparation by console (Balwin Basicliner with BC 713 and AMX 226D)
- Dual UV washing circuit
- Rietschle Air Center central air cabinet
Various
- ACS (Air Cleaning System)

Machine overview

Year	2007

“EXTRA” Accessories Overview

CX (cardboard device up to 1,2 mm)
Hybrid Machine
Electrical cabin with cooling device
Console "Professional"
DENSITRONIC - S: with spectral and dynamic ink zone control (Table 120 x 162)
Non-stop on feeder
KERSTEN antistatic on feeder
Printing Unit prepared for UV
Pneumatic ink agitator
2 x UV Grafix intermediate dryer units
4 x additional interchangeable positions for intermediate UV dryer
APL Automatic Plates Change
Baldwin blanket cylinder/ink wash-up devices
Baldwin impression cylinder wash-up devices
Baldwin Multiliner combined cooling unit for inking and dampening systems, including pH and conductivity monitoring and control by console.
Anti carryover rollers with oscillation movement
Varnishing unit, with axial, circumferential and cooking register, with semi-automatic plate change, with Tresu chambered doctor blade system, with anilox roller
Dual varnishing circulation circuit and varnishing temperature control unit
Rapid sheet tensioning for plate on varnishing towertower
Varnishing Unit prepared for UV
Final IR – hot air – UV dryer at the extended delivery
Non-Stop Rollo in delivery
Weko AP 260 Ionojet powder spray with inclusion in the control panel
Damping solution preparation by console (Balwin Basicliner with BC 713 and AMX 226D)
Dual UV washing circuit
Rietschle Air Center central air cabinet
ACS (Air Cleaning System)

Reference Overview

Reference	26036730
Visible	In production
Availability	Immediately
