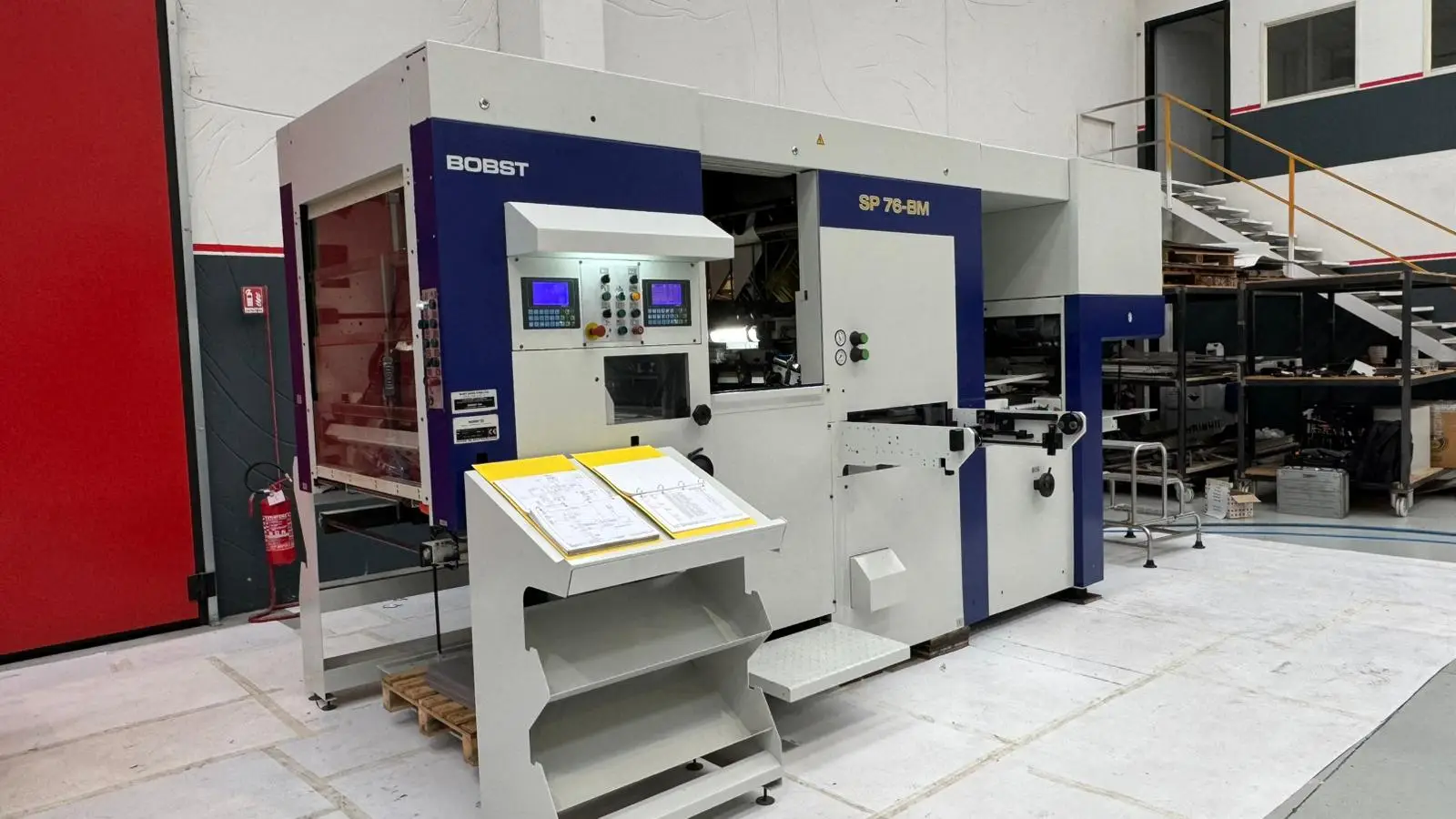

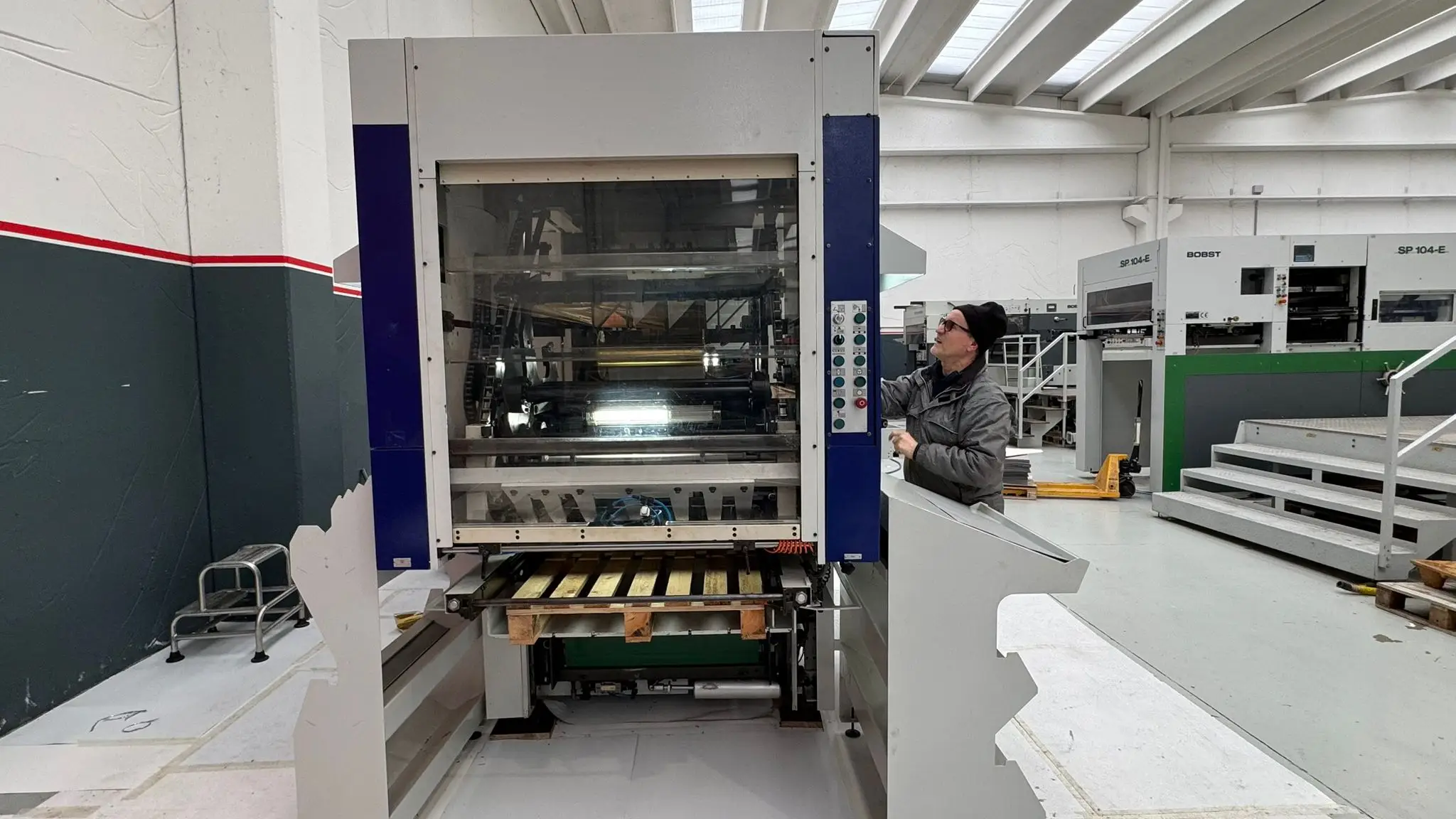

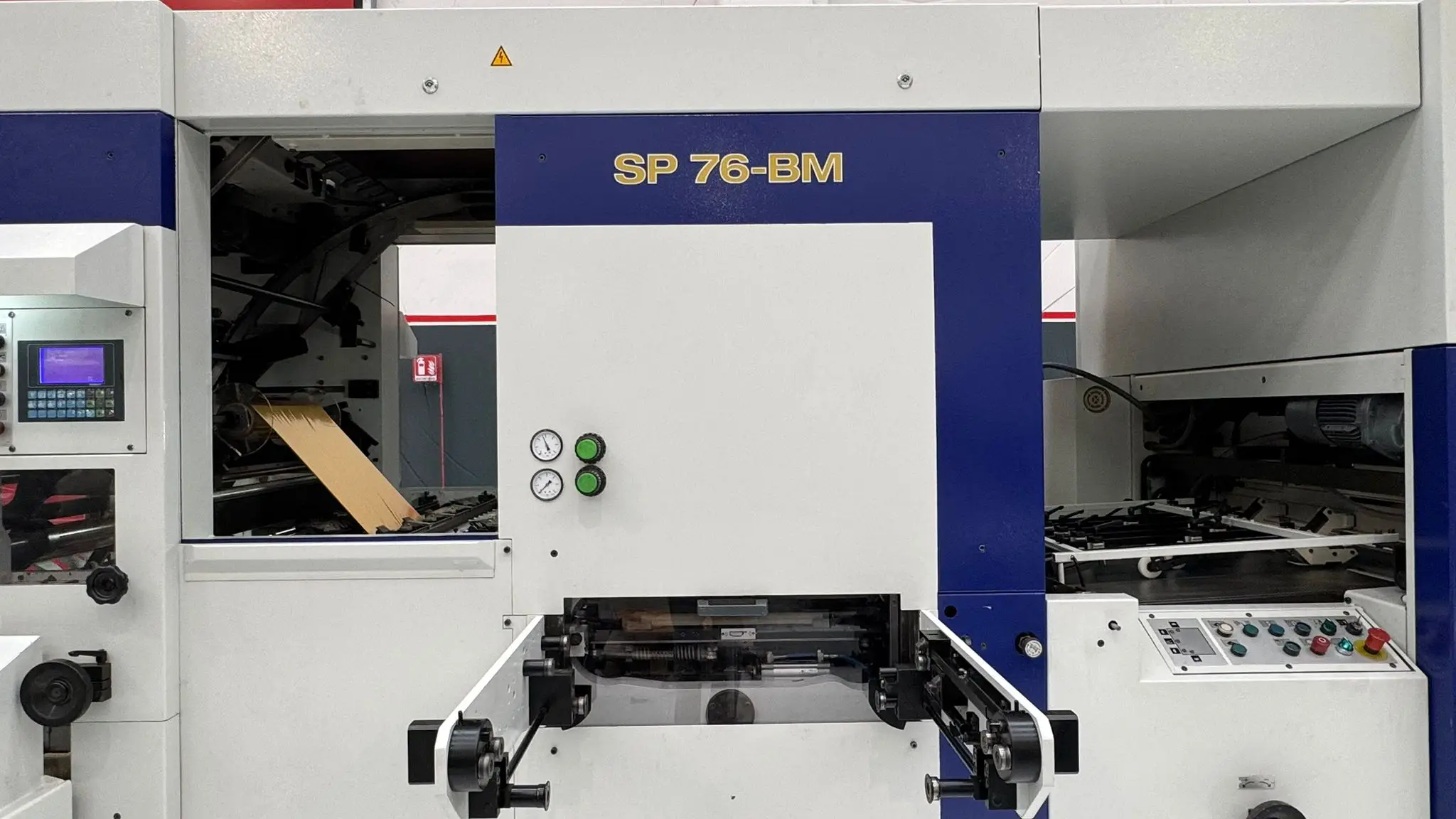

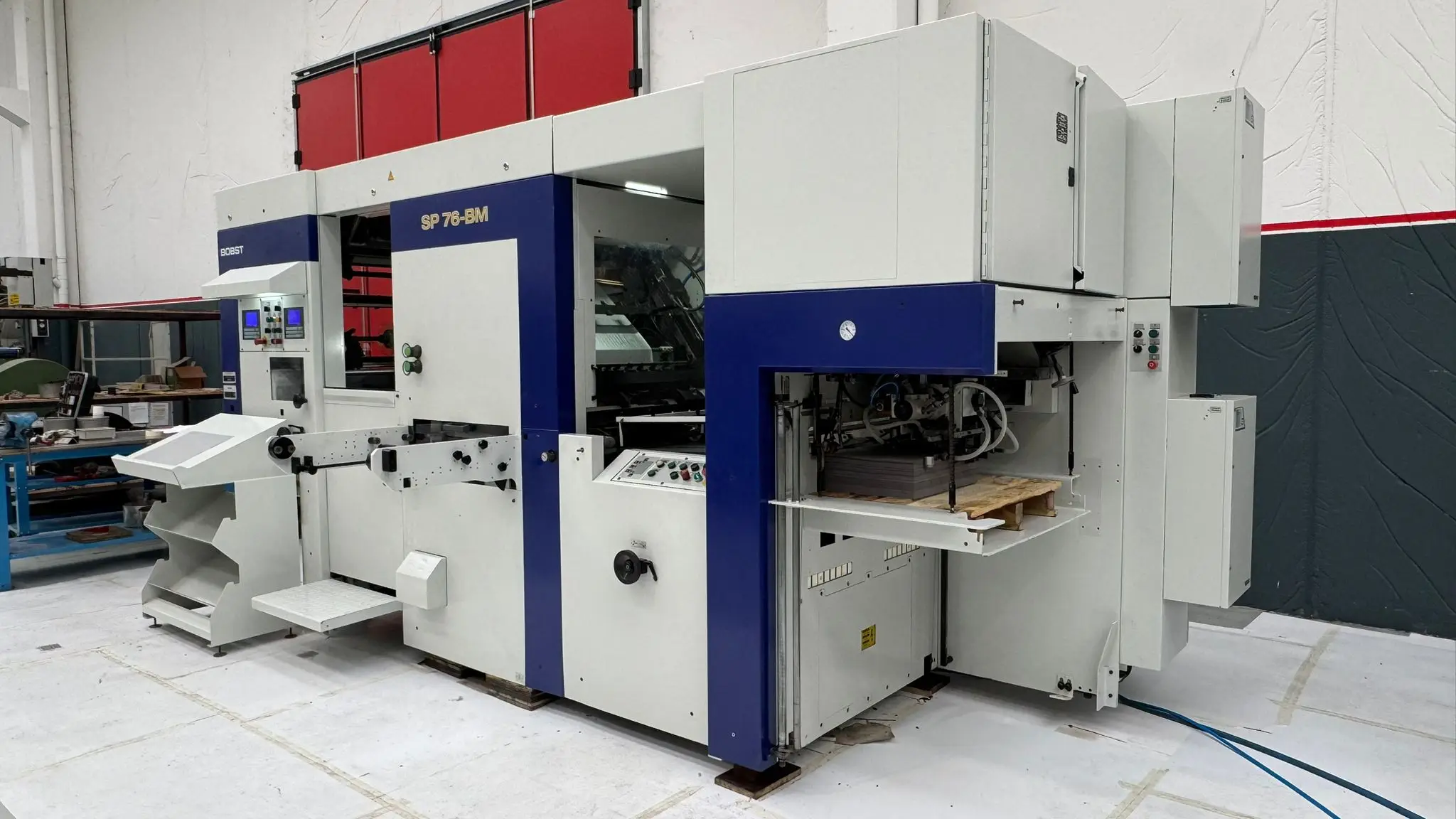

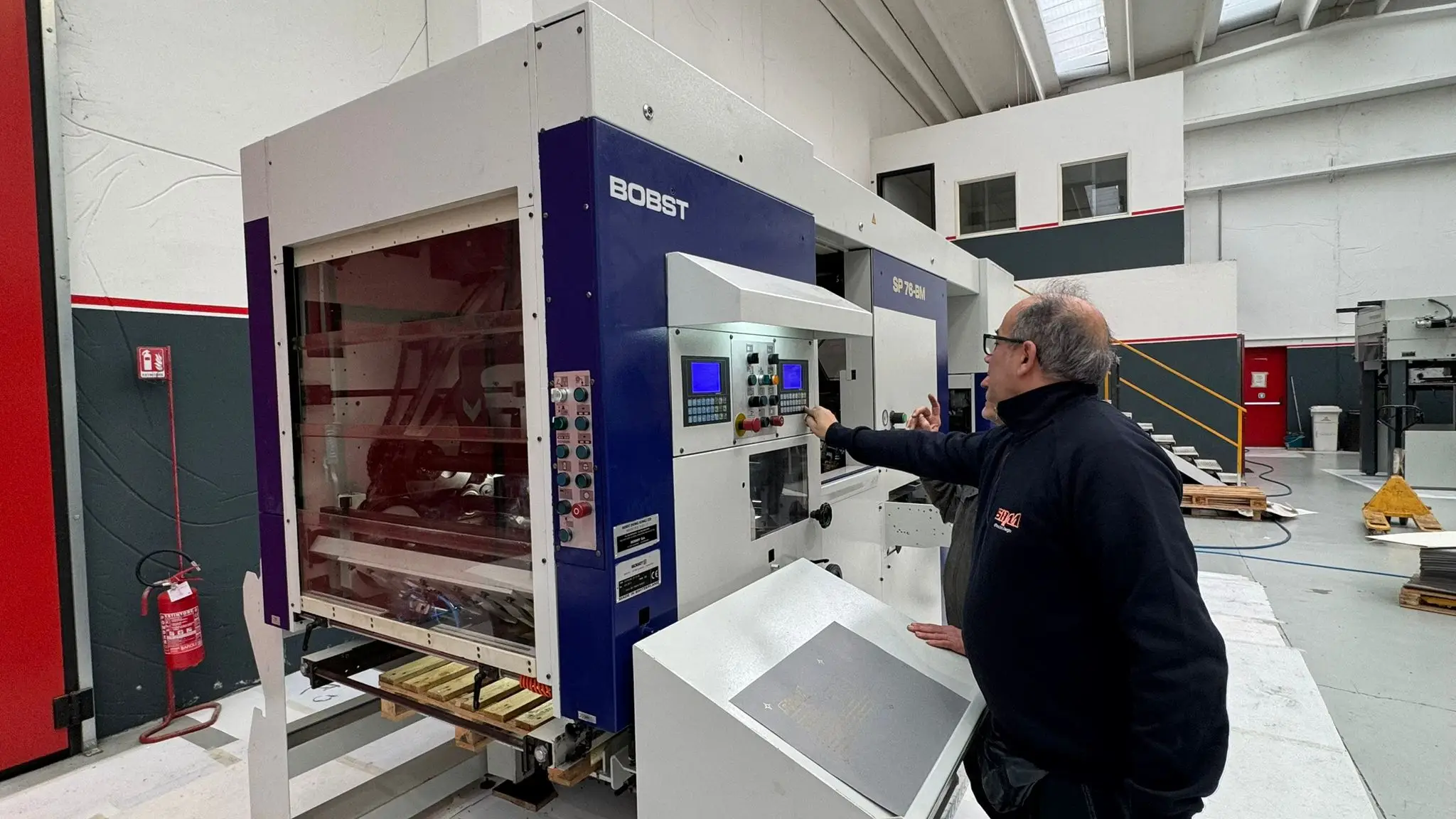

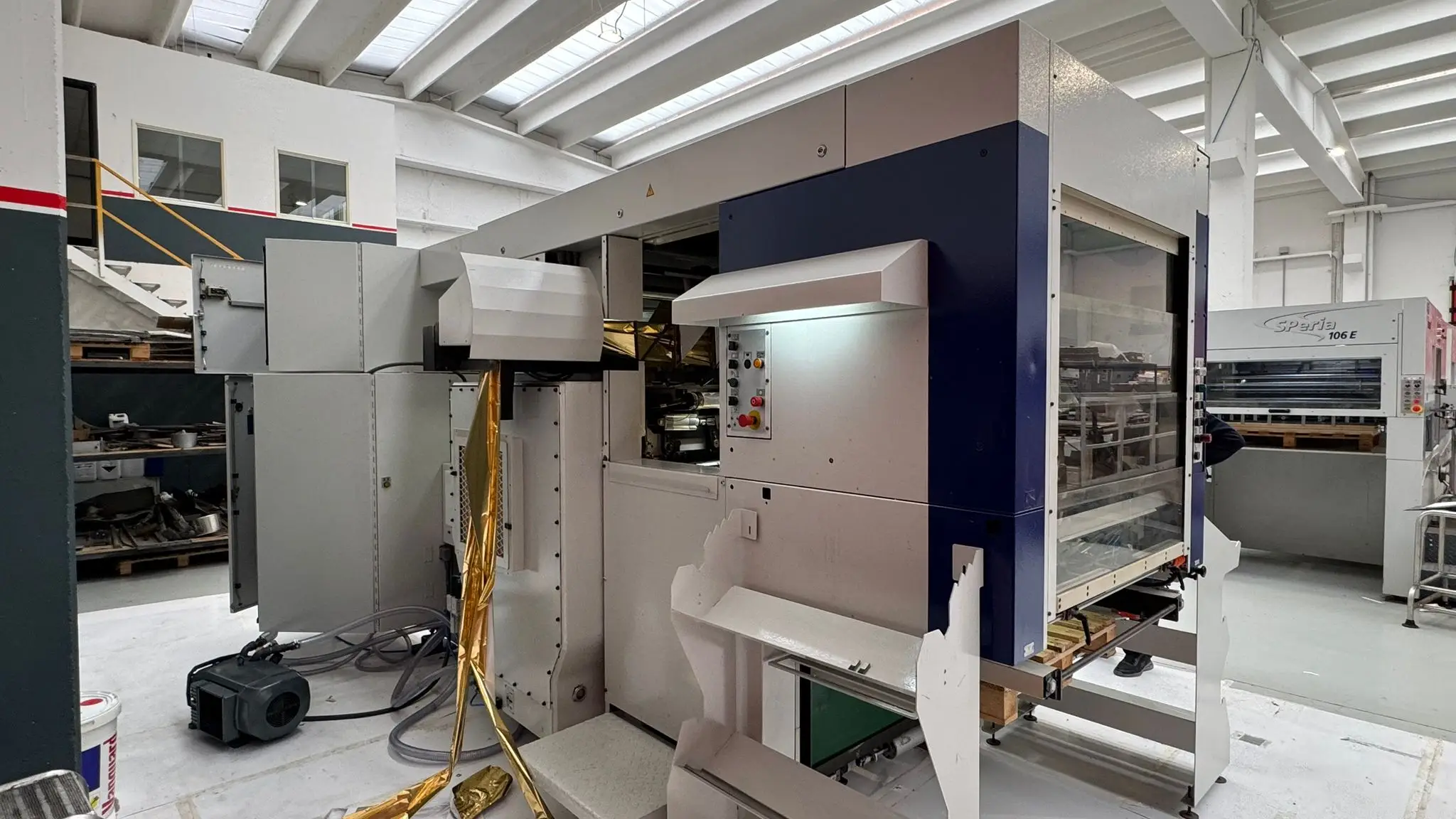

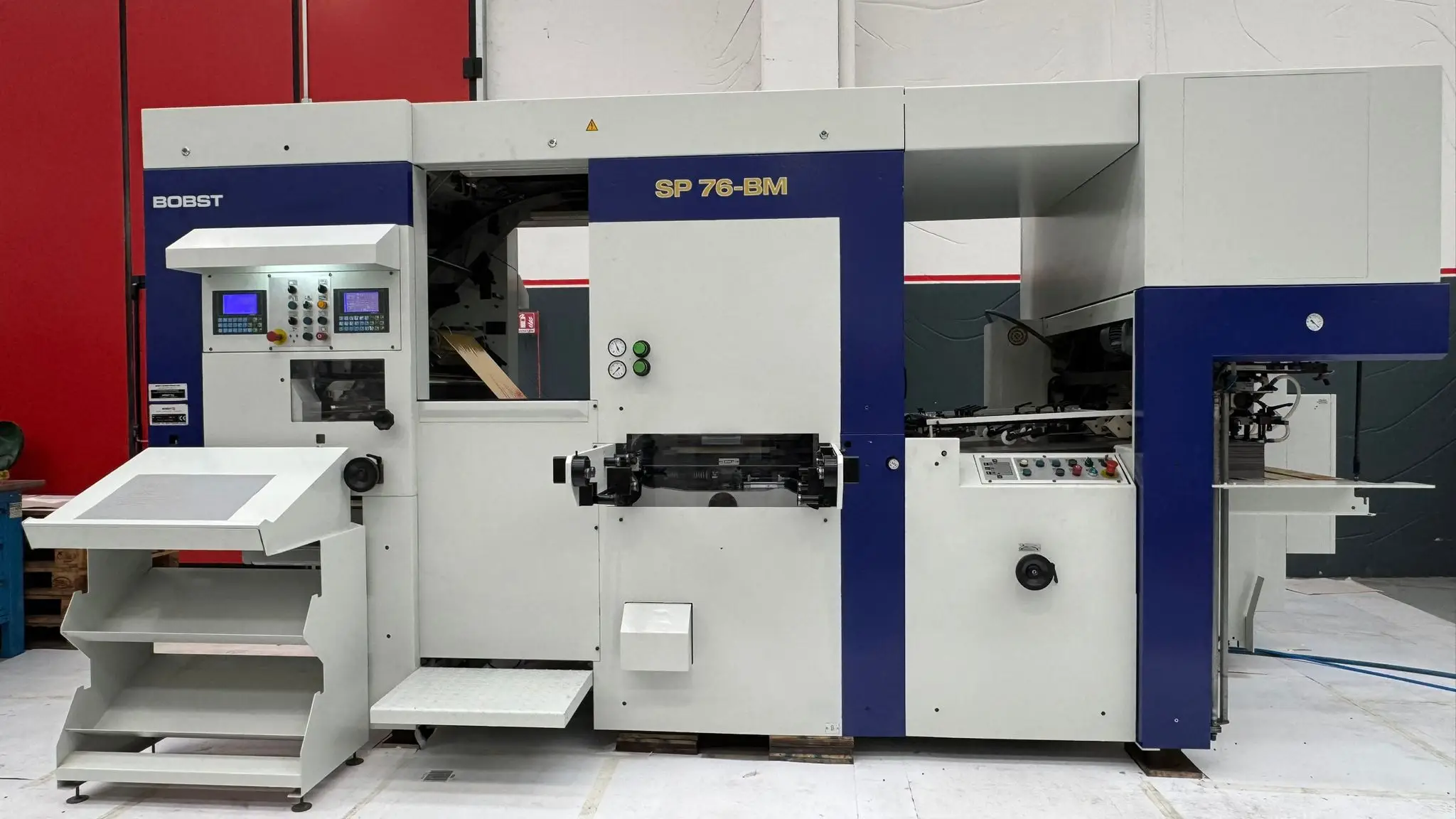

Bobst SP 76 BM 1999

The machine was selected and carefully inspected by our engineers prior to purchase. Subsequently, it underwent a rigorous overhaul process, based on a well-established working protocol. This process involves disassembly in our specialized workshop, thorough cleaning, repainting of components and units, accurate reassembly, and the overhaul or replacement of all non-conforming or damaged parts and mechanisms according to our long and established experience. Each component is adjusted with centesimal precision to ensure compliance with original factory parameters. Finally, the machine is reassembled and subjected to thorough functionality tests and inspections for the best result according to our high quality standards.

MACHINE SPECIFICATION

Manufacturer	Bobst
Model	SP 76 BM
Type	Die Cutting/fustellatrici

TECHNICAL DATA

Max sheet size	560 x 760
Min sheet size	260 x 300

Accessories

Machine
- Electronic device for sheet travel control
- Air conditioning for the electrical cabinet
- Gripper bars

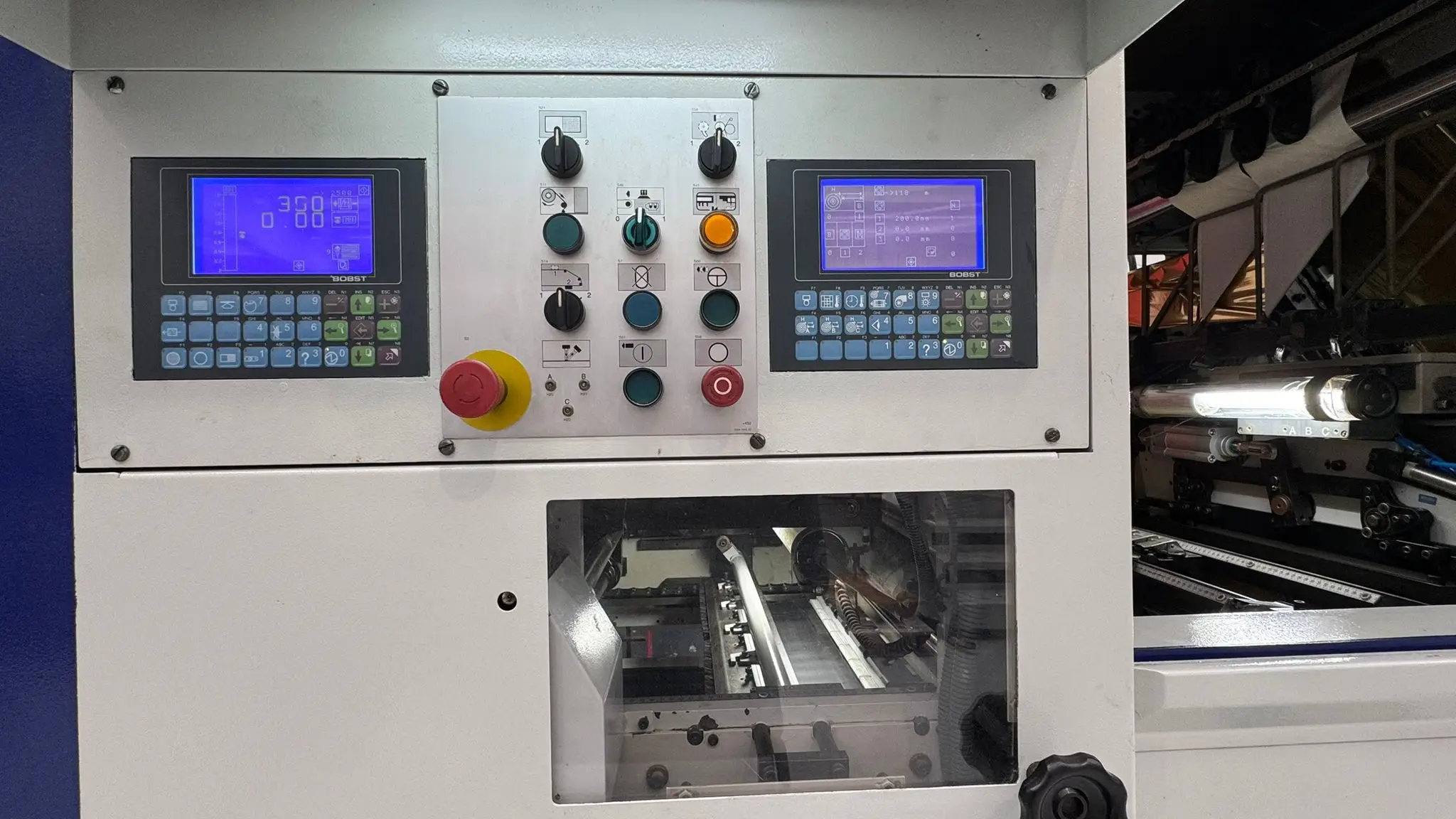

- C.U.B.E. Bobst-electronic for managing the machine
- C.U.B.E. Bobst-electronic for managing the complementary equipment BM
- Main motor
Feeder
- Pile-tray with handle allowing manual lateral correction of the pile during production
- SPECIAL SHEET BREAKER DEVICE. To push the sheets downwards, ensuring good stacking
- NON-STOP FEEDER MANUAL DEVICE
- Adjustable lateral blowers with Centerline references
- Suction unit with multiple adjusting
- Safety system for lowering the pile try
- KERSTEN ANTISTATIC DEVICE ON THE SHEET FEEDER FOR SHEET TRAVEL
Introduction table
- Covered by antistatic steel stainless plate
- Sheet synchronization adjustable during the machine is running for adapting feeder cycle to platin cycle

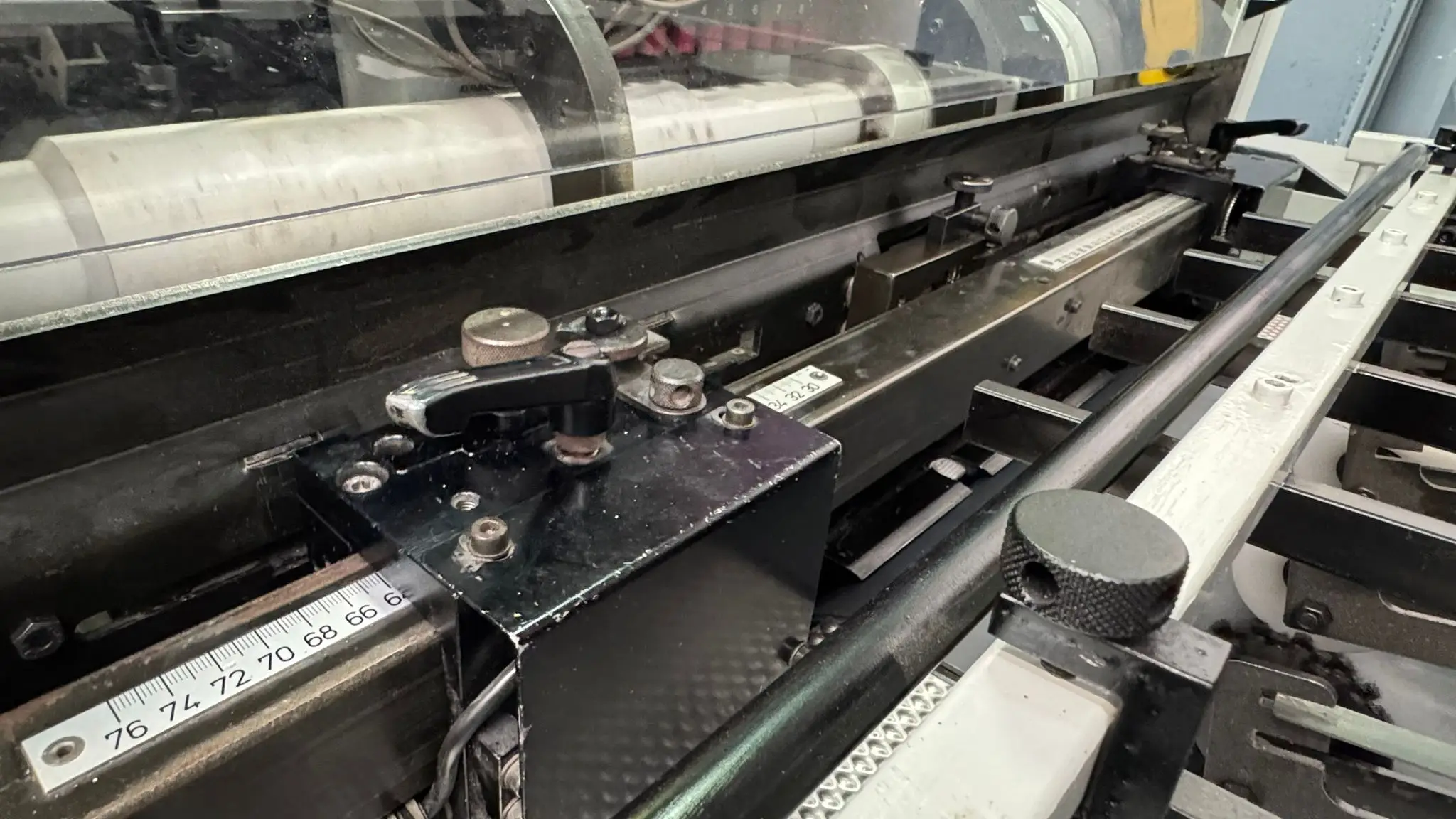

- 4 front lays, adjustable in pairs with front register control
- Pull lay operator side adjustable according to Centerline marks, with side rgister control
- "Double sheet" detector
- Sheet-hold down device (guiding the sheets to front lays)
- Upper frame with manual lifting device
- Upper transport equipment for paper, paperboard
- Transport mat. With lateral guidance

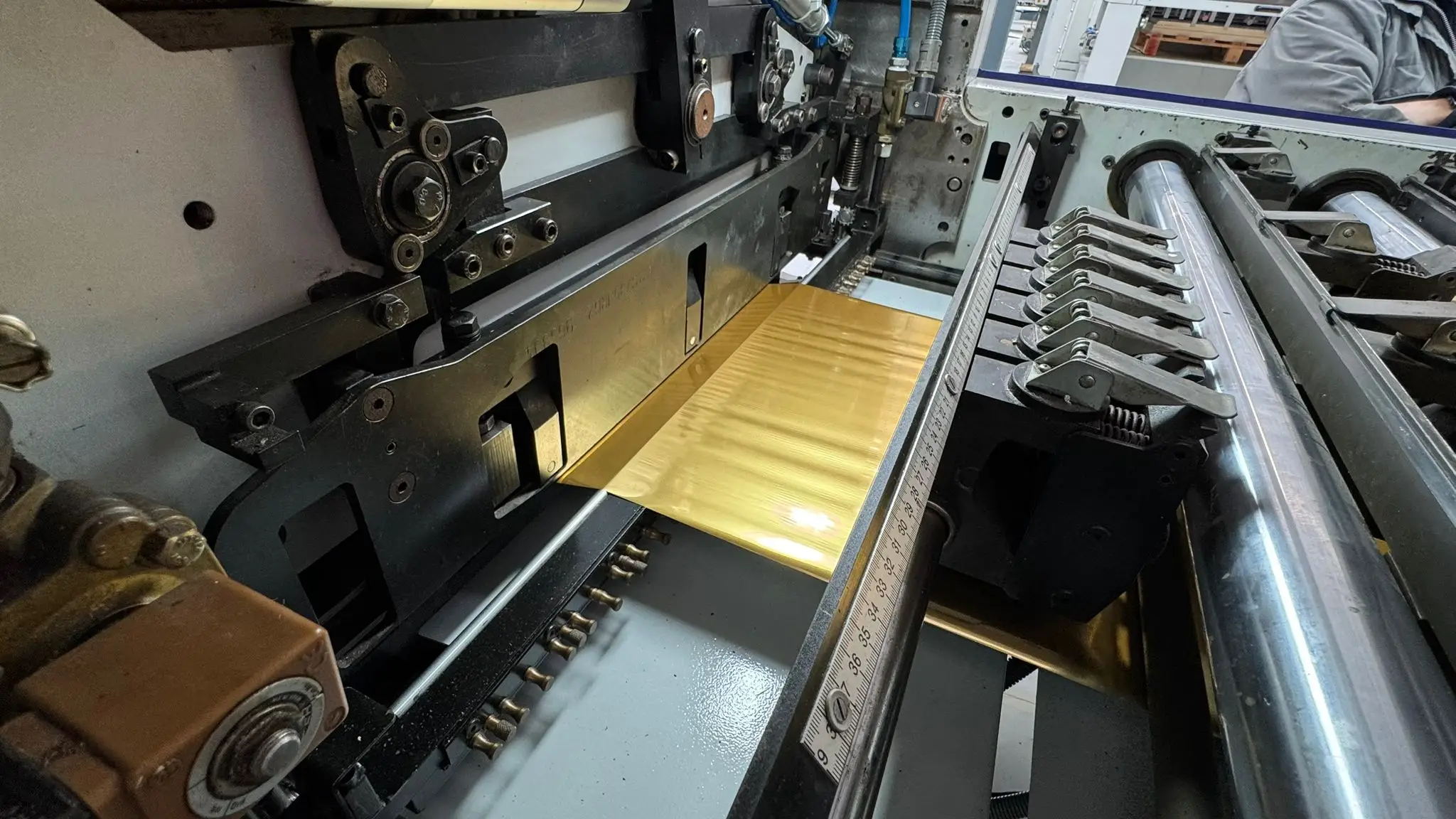

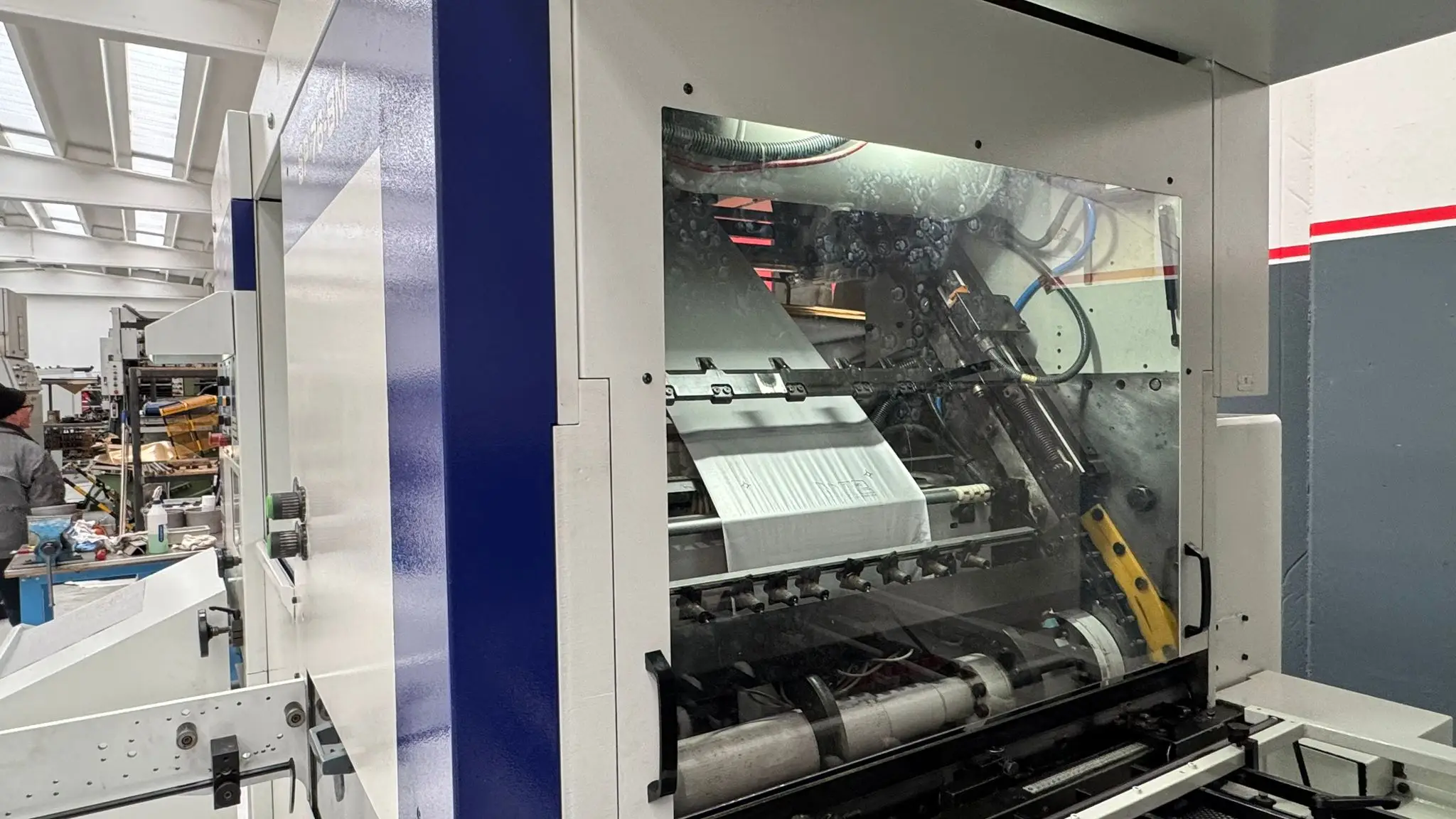

Platin

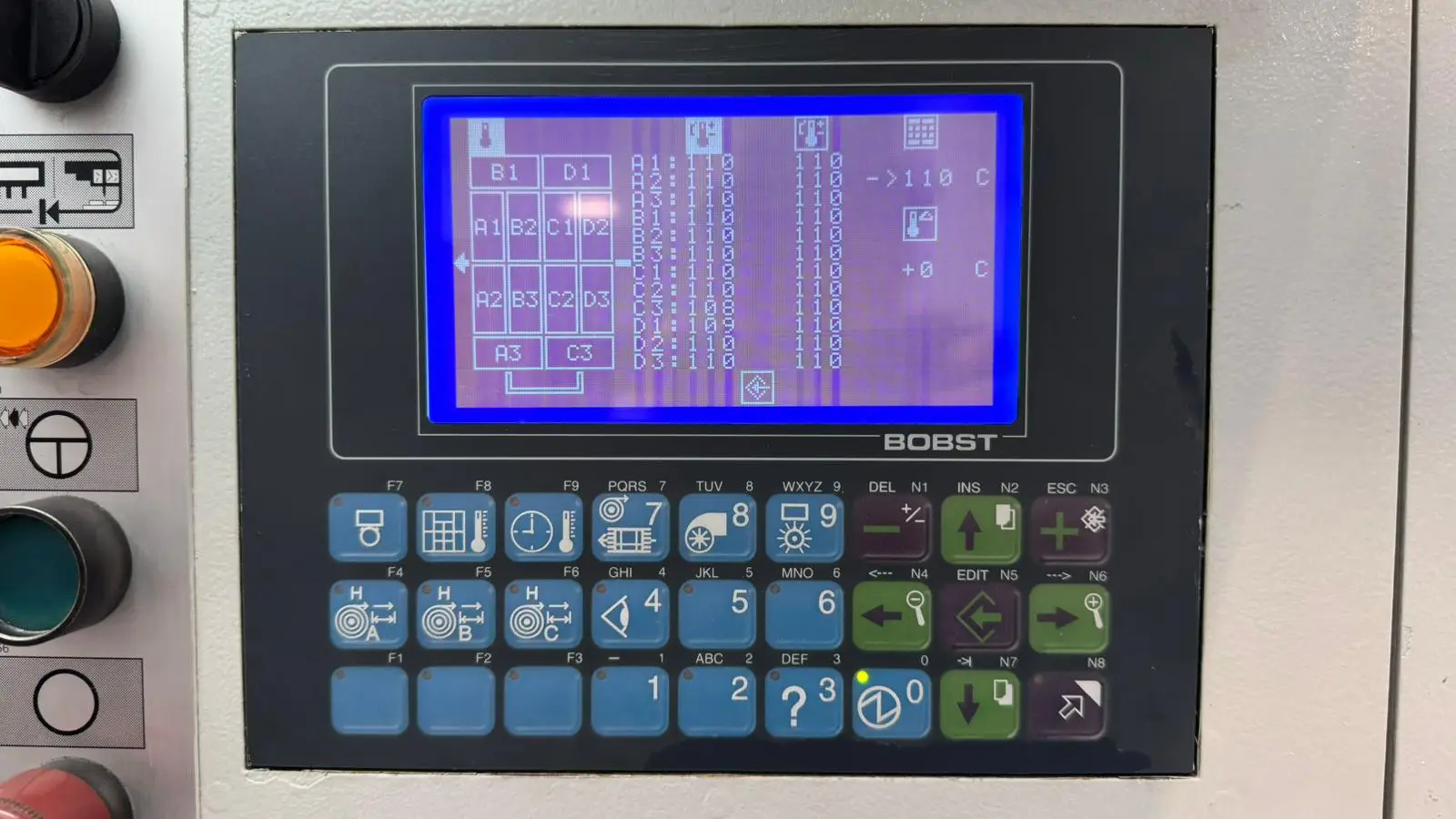

- Heated upper platen with 12 heating zones
- Grippers re-opening device
- Equipment centering and locking
- Locking of the chase against the upper beam
- Measurement of the die-cutting force using an electronic probe
- Synthetic material supporting plate. Thickness 15 mm
- Compensating plate, thickness 2,3 mm
- Compensating plate, thickness 4 mm. It is used as a cutting plate for die cutting

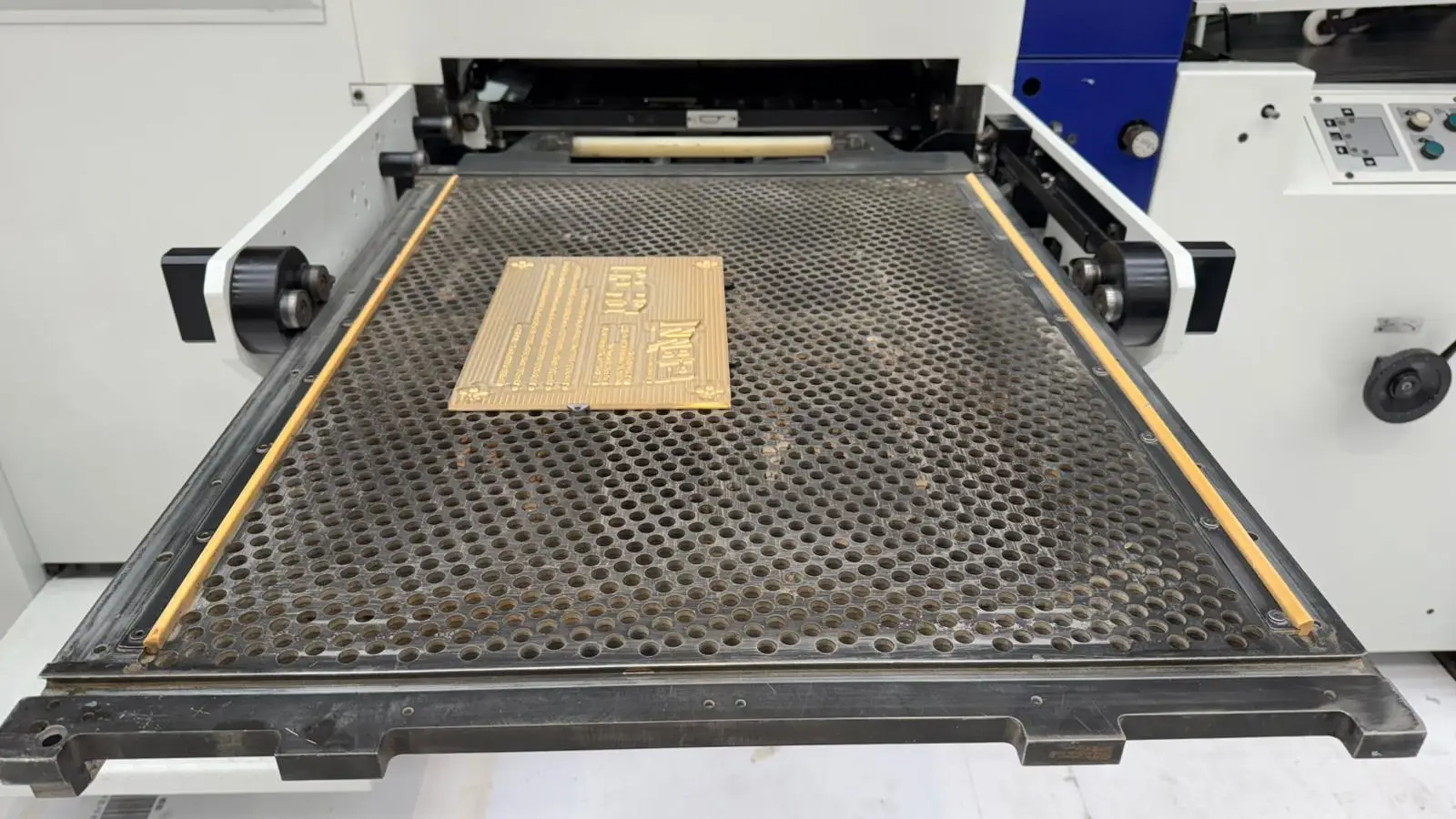

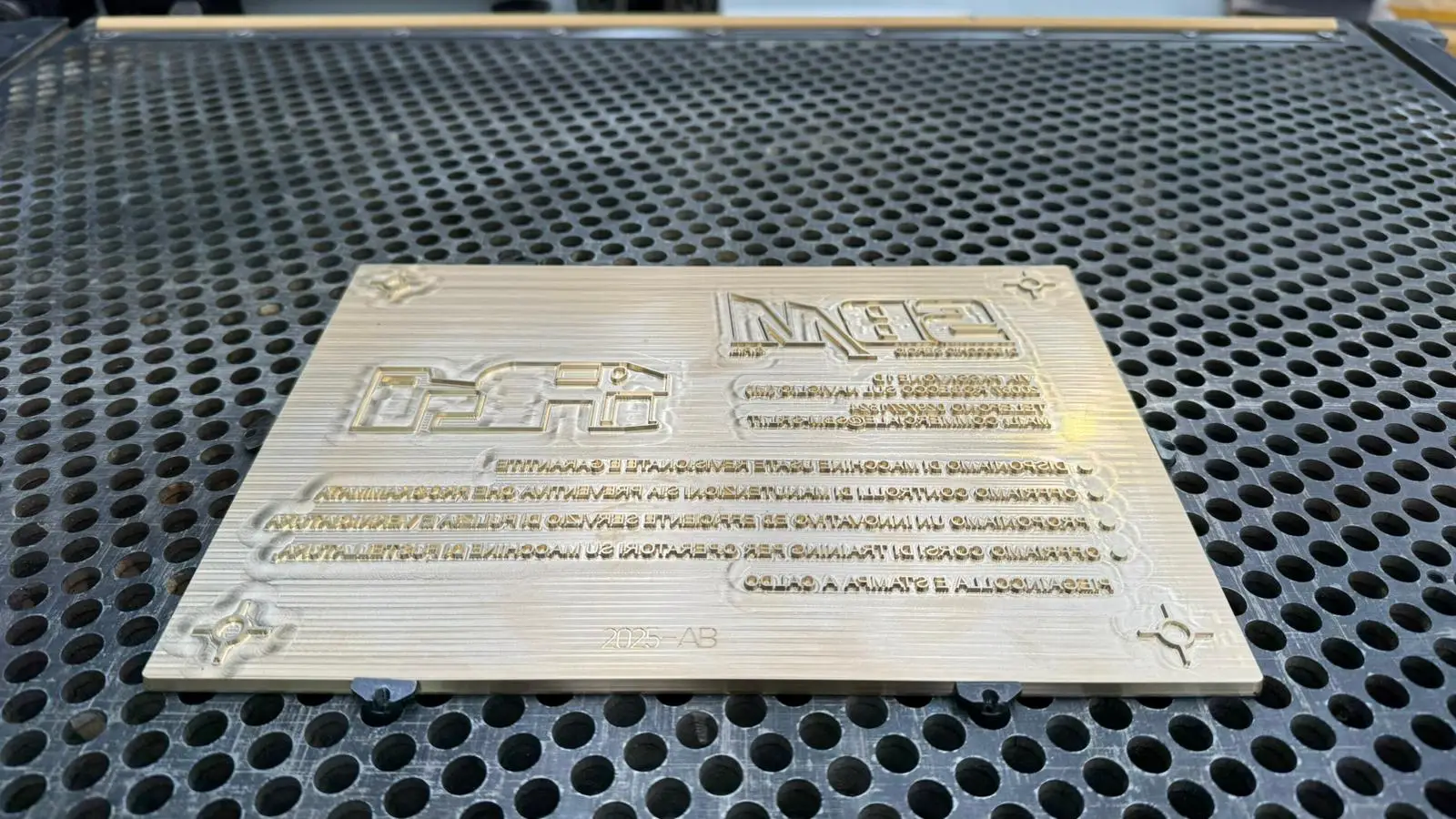

- Honeycomb frame. Includes a series of cliché fixing accessories. To specify: height of the clichés
- COMPENSATING PLATE, THICKNESS 2,3 MM. 1 unit with the basic machine

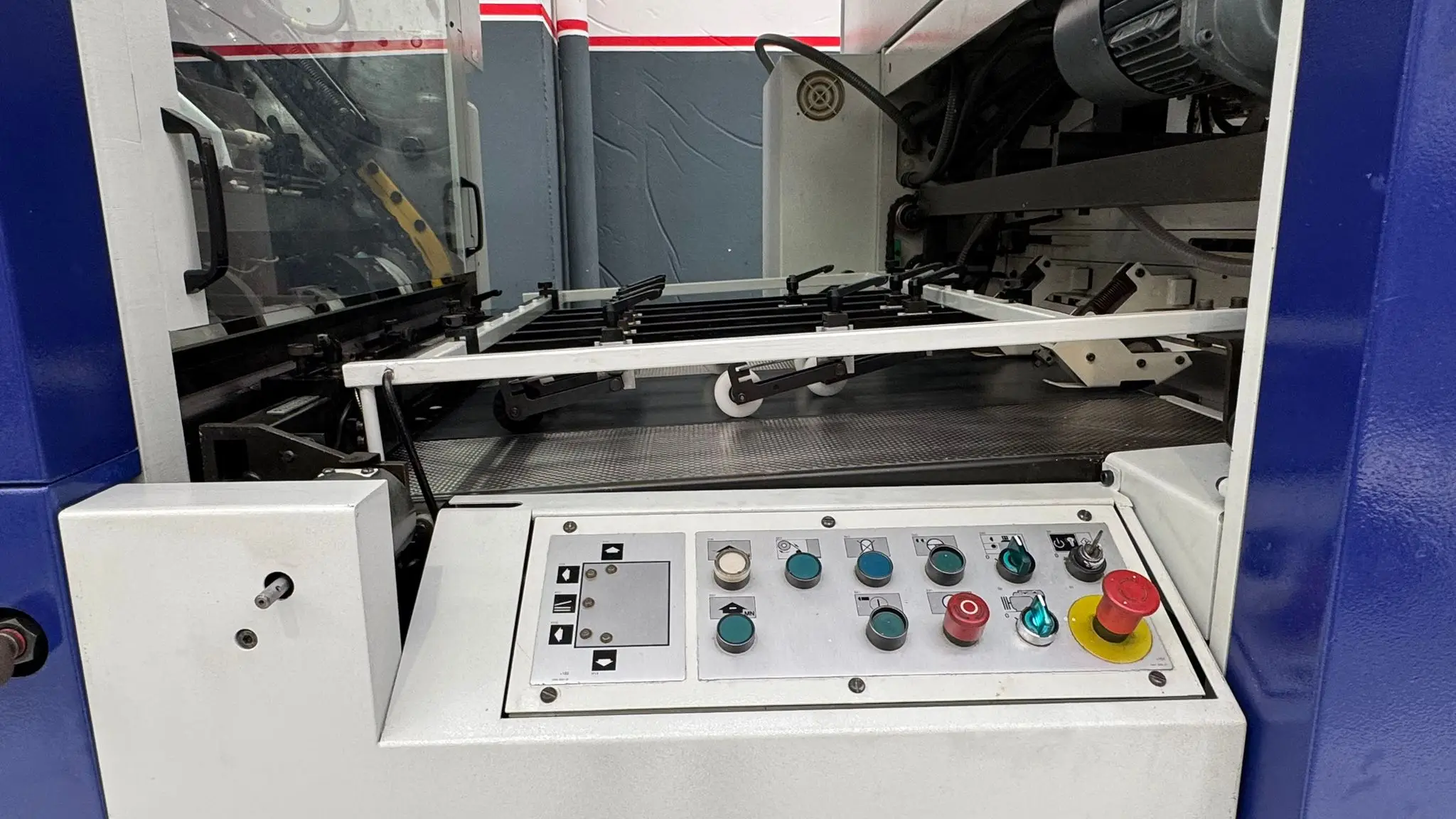

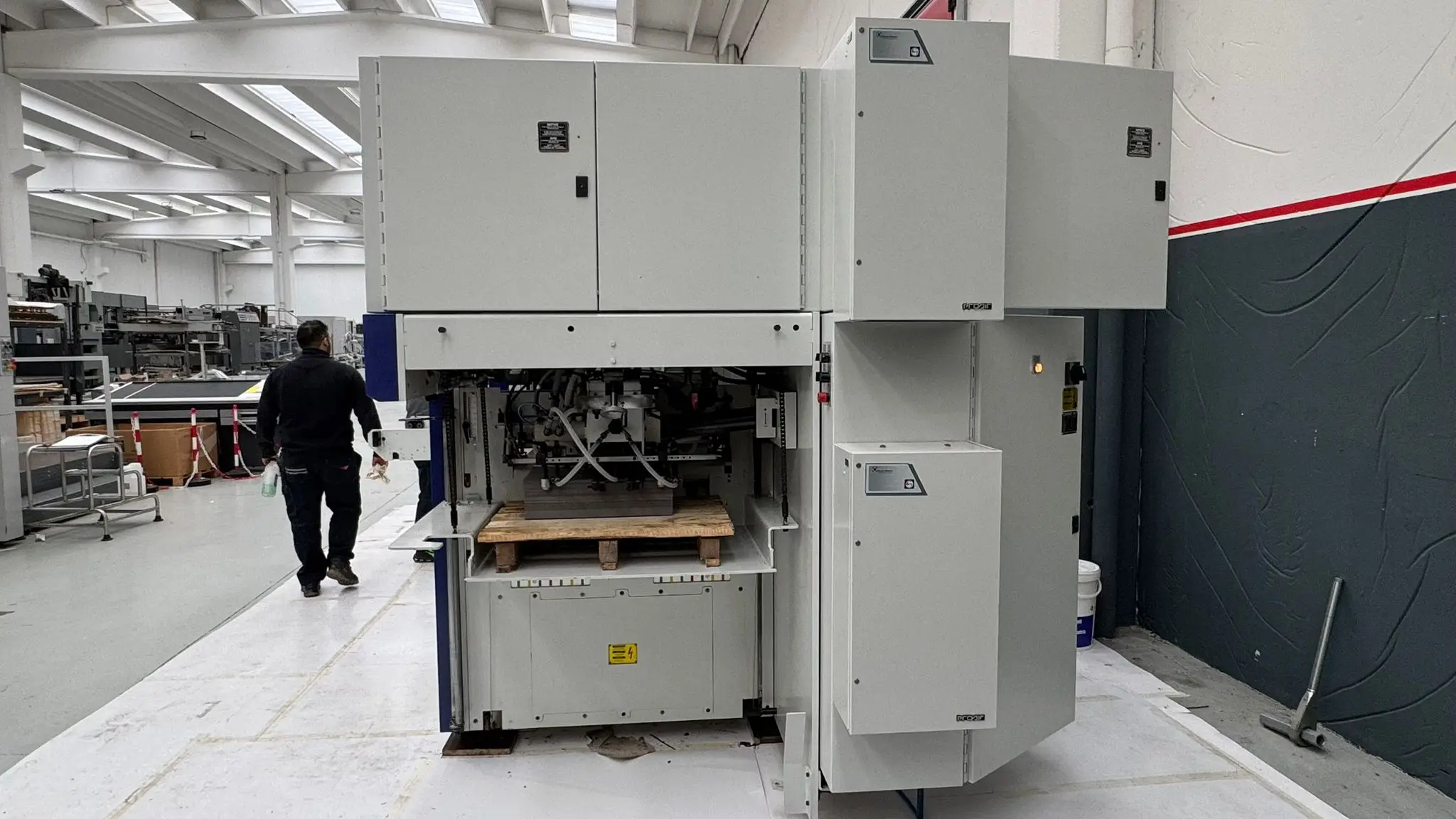

Delivery
- Pile tray
- Braking Brush
- Pneumatically controlled adjustable front joggers
- AUTOMATIC NON-STOP BELT. The belt automatically enters on delivery when the pile of sheets is complete. Facilitates the use of non-stop by eliminating the manipulation of the grid. This mat replaces the Non-stop grille (Standard)
- Pneumatically controlled adjustable lateral and front joggers with Centerline marks

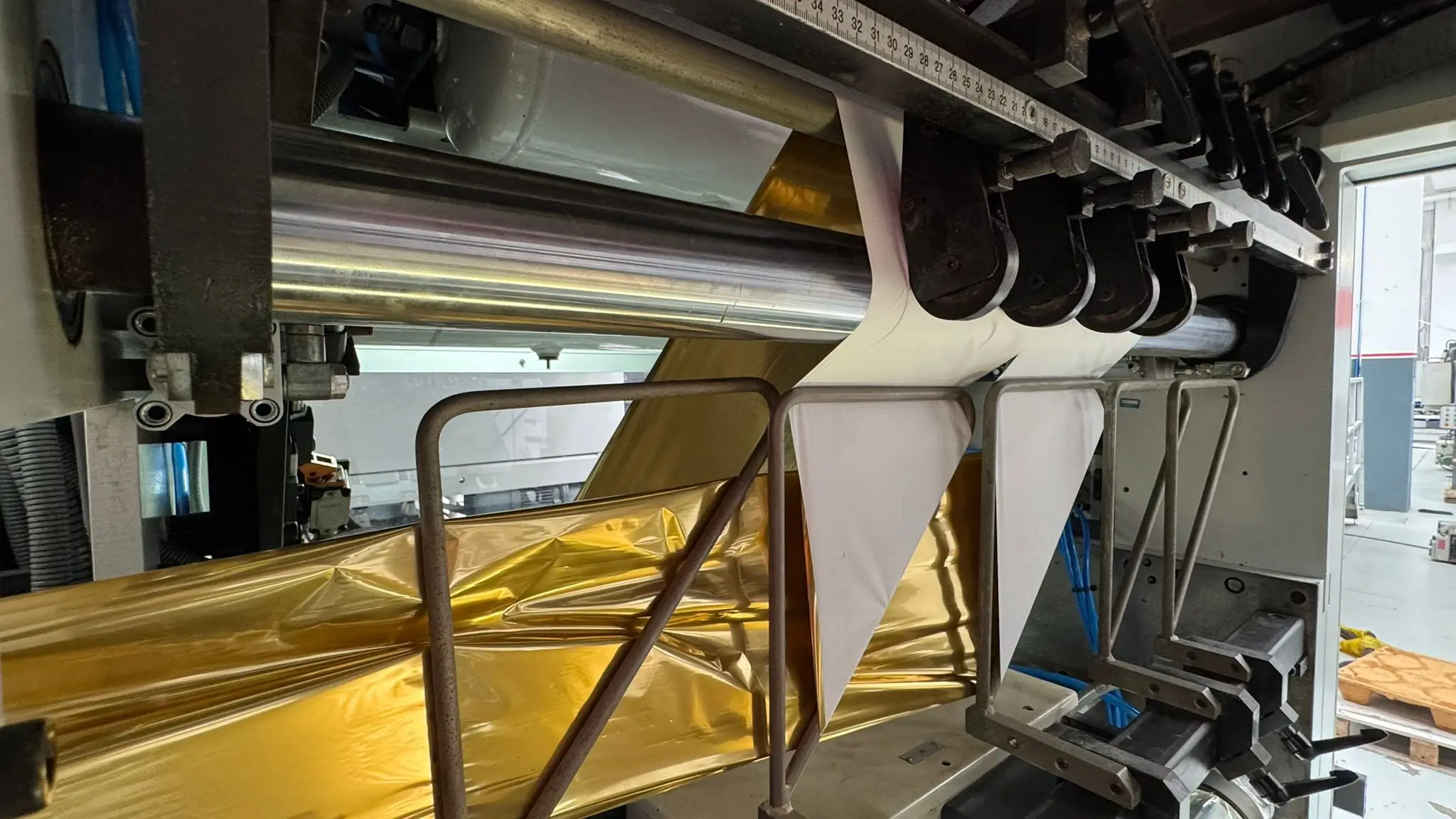

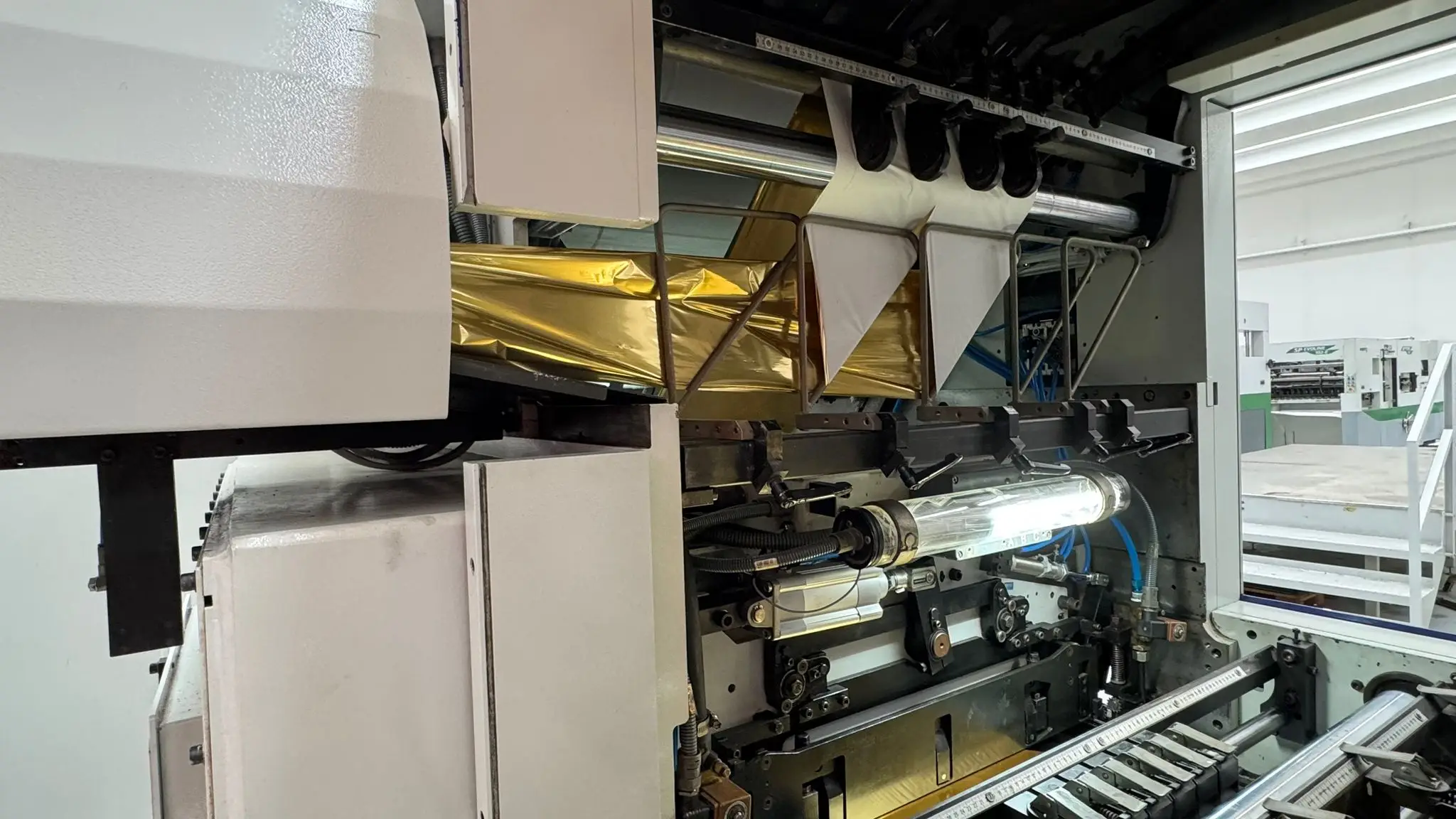

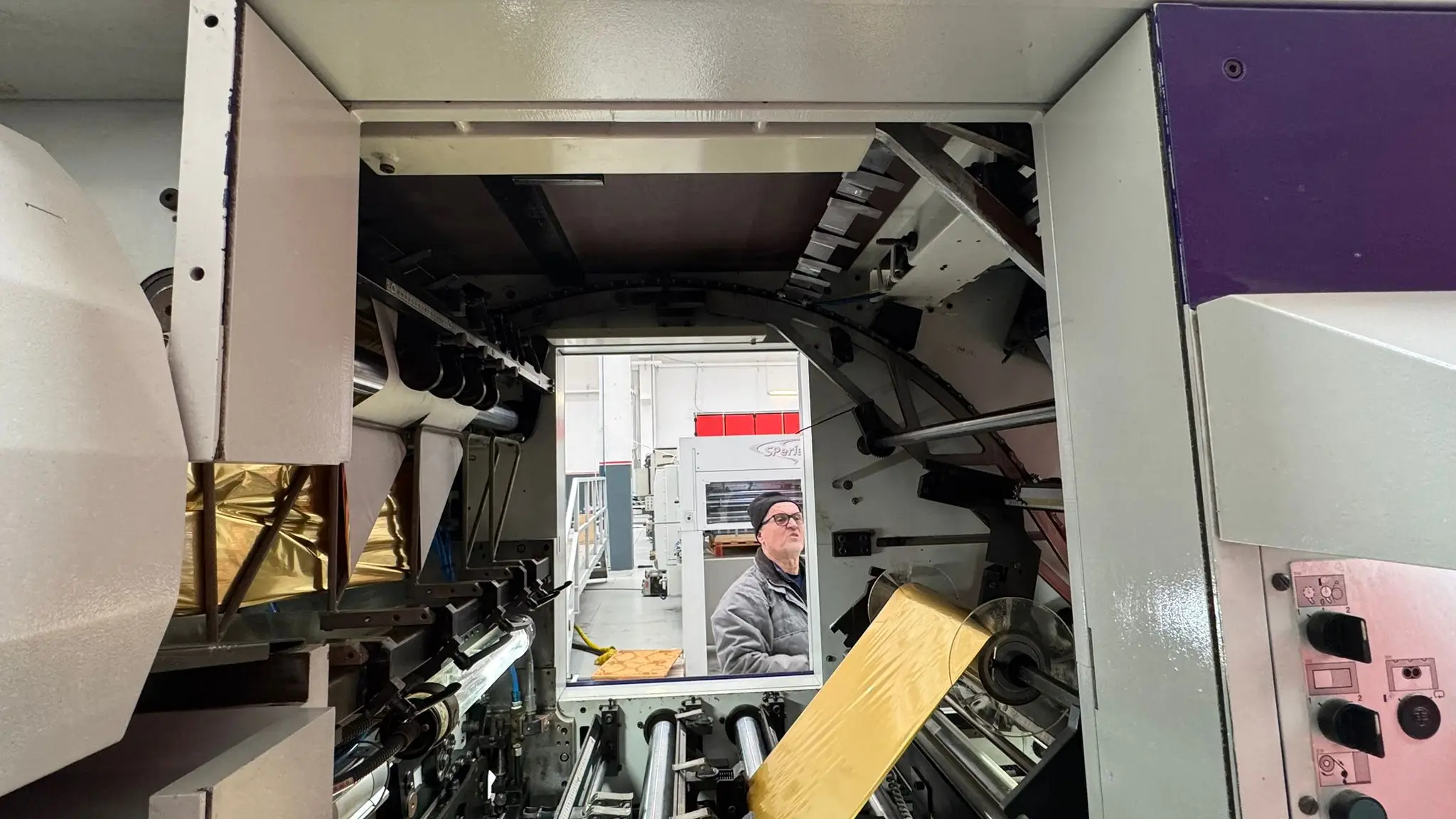

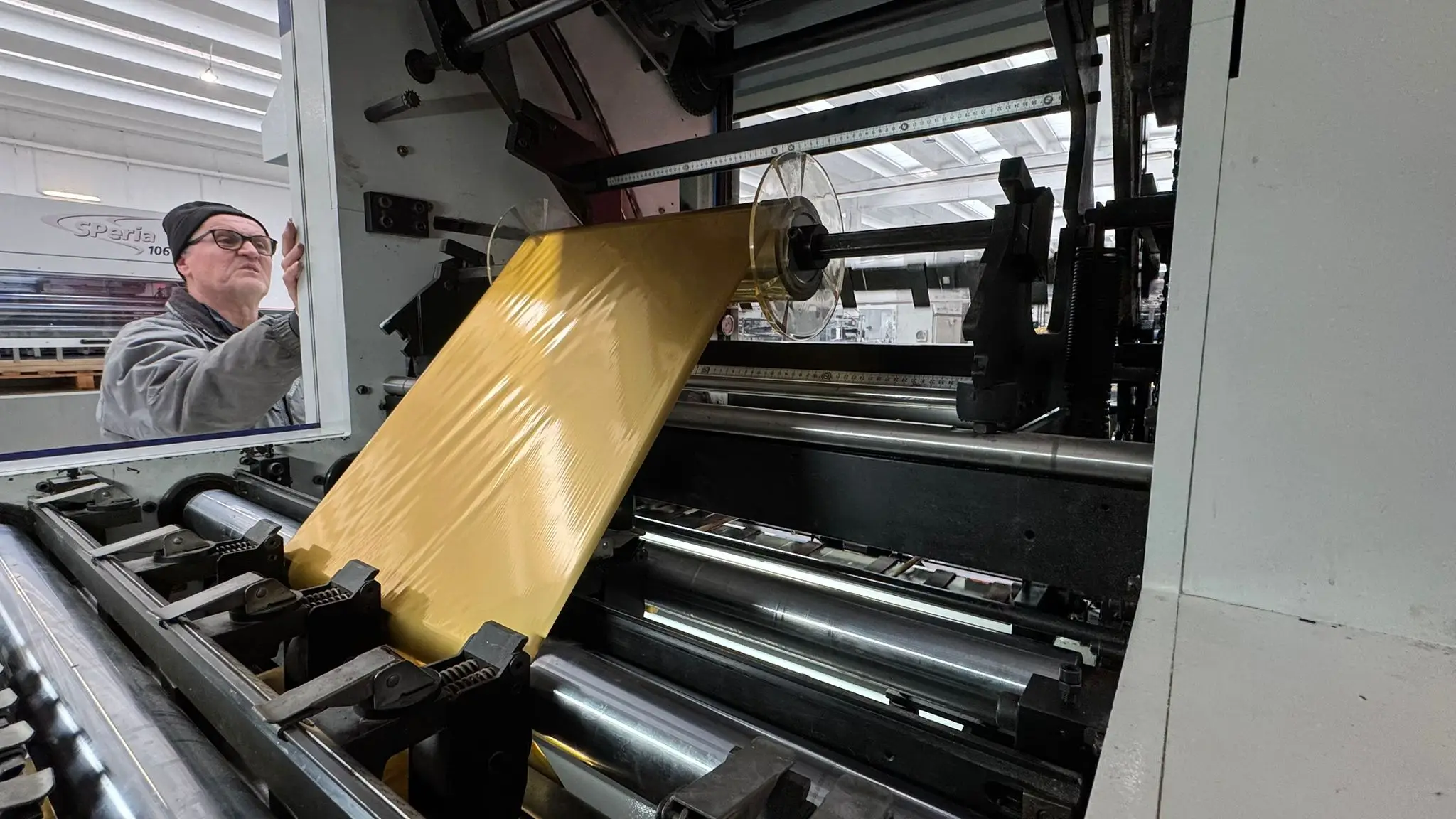

Supplementary equipment "BM"
- 3 shafts for adjusting the advancement of the belts driven by motors
- 3 reel-holder boards
- 6 reel holders 3"
- 6 reel holders 1"
- 10 drive rollers
- 1 automatic device for putting the platen "on and off" pressure
- 1 Margin line. Facilitates the positioning of clichés
- 1 blower with nozzles to detach the belts after printing (mounted on the platen)
- 1 blower inside the platen to stabilize the sheets of paper before printing or die-cutting (mounted on the platen)
- 1 belts guide on the upper post (mounted on the platen)
- 1 belt tension shaft driven by a motor (mounted on the platen)
- 1 bands break control system with 8 photo-electric cells with lateral adjustment for immediate machine stop in case of band breakage
- 1 lateral evacuation device for metal band with rotary brushes at variable speed depending on the advancement of the belts (mounted on the platen)
- 1 longitudinal belts cutting device (mounted on the platen)
Security
- Operator safety devices
- Gripper Bar Chain Slip Clutch
- Handling of the diecutting equipment
- Emergency Stops

Machine overview

Year	1999
Serial Number	057002901

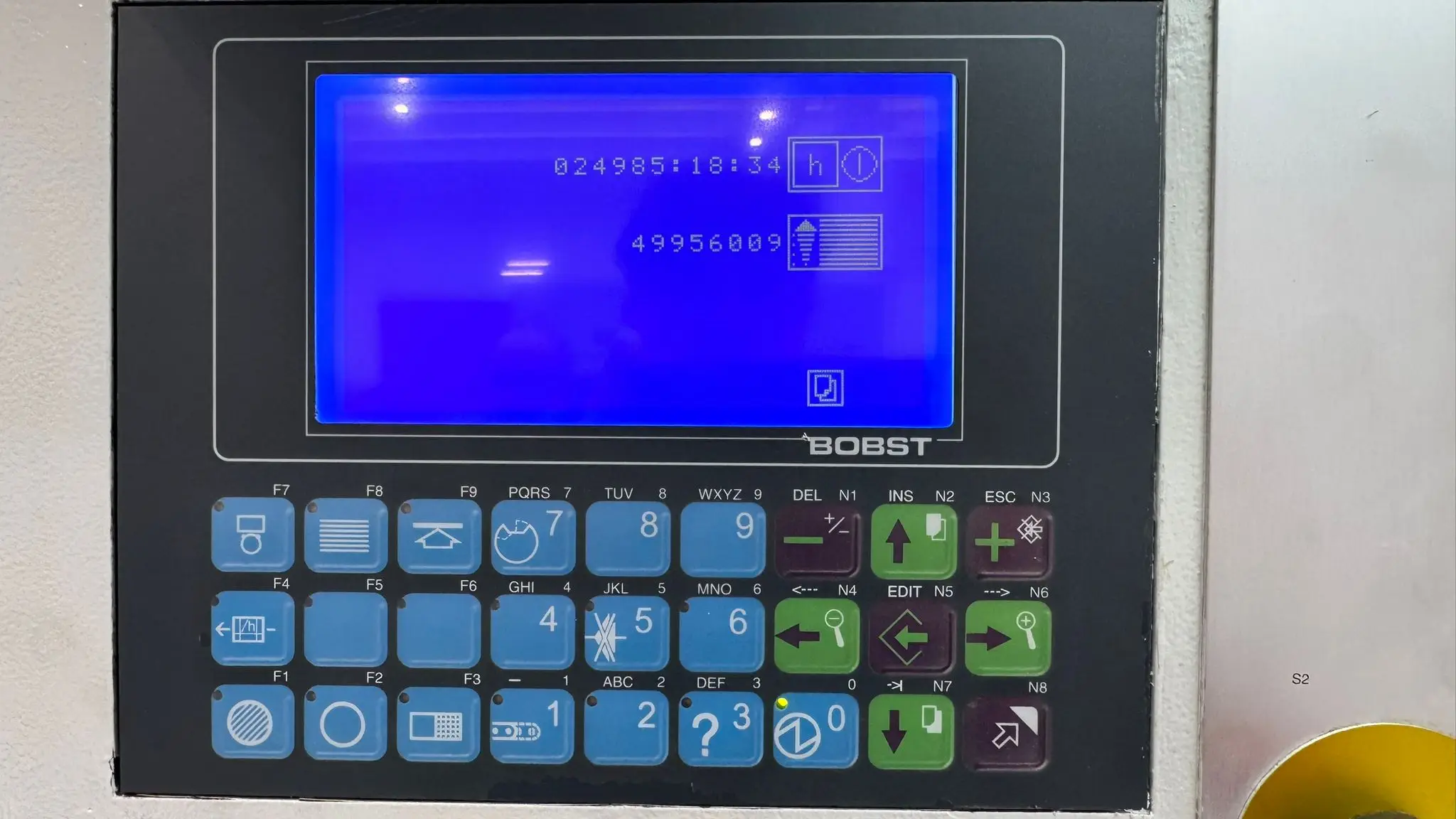

N.of Impressions	49 mio.
N.of working hours	24985

Conditions Overview

“EXTRA” Accessories Overview

KERSTEN ANTISTATIC DEVICE ON THE SHEET FEEDER FOR SHEET TRAVEL
COMPENSATING PLATE, THICKNESS 2,3 MM. 1 unit with the basic machine
AUTOMATIC NON-STOP BELT. The belt automatically enters on delivery when the pile of sheets is complete. Facilitates the use of non-stop by eliminating the manipulation of the grid. This mat replaces the Non-stop grille (Standard)

Reference Overview

Reference	20035885
Visible	Testable in production at Sbm a Robecco sul Naviglio (MI)
Availability	Ready for delivery

Note:

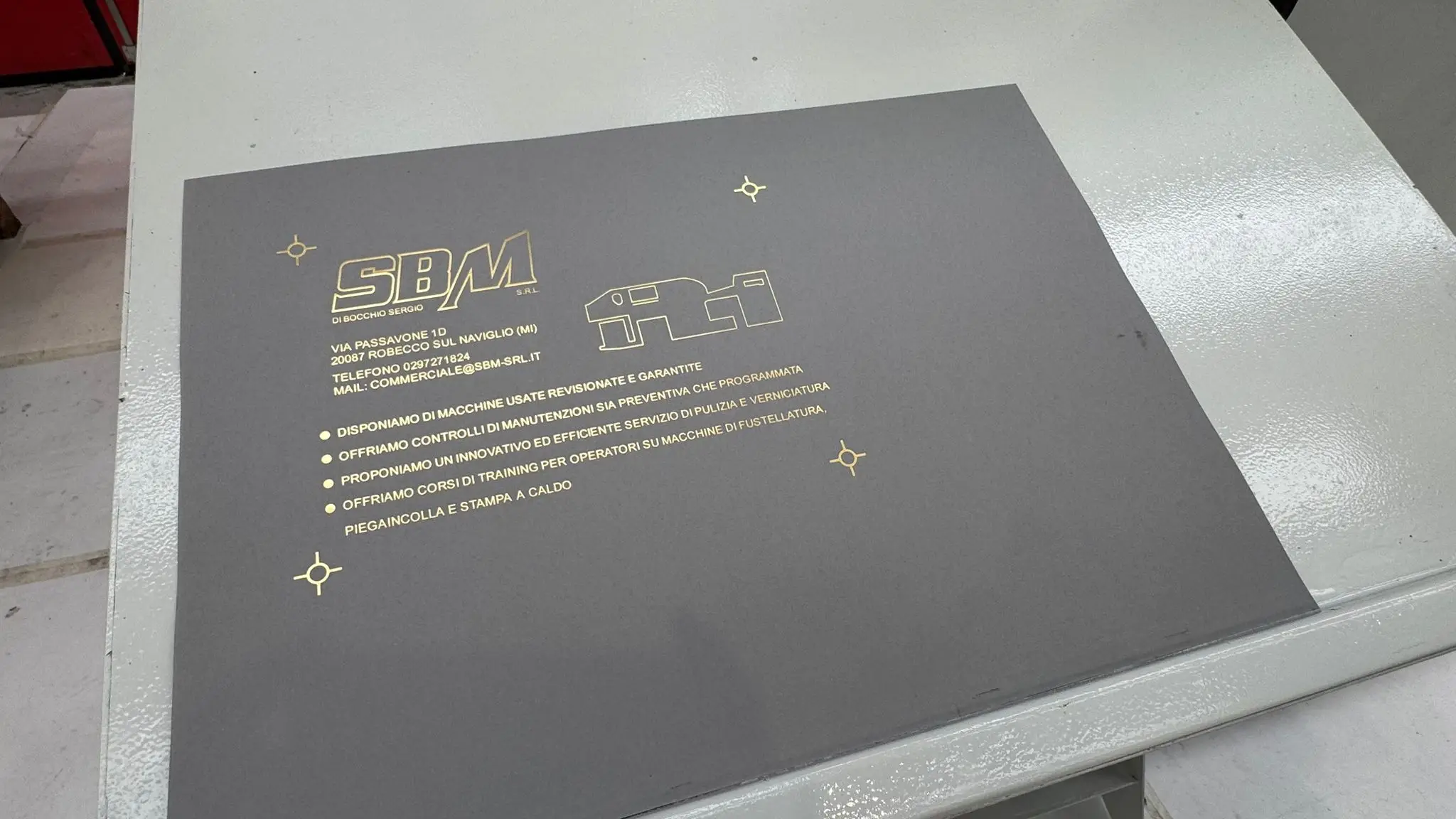

Print test possible with your jobs by appointment
